N4DIH32 N4DIM32 DC 12V 24V 32CH Optically Isolated Input PNP NPN Switch Digital Collector RS485 Modbus RTU Module
N4DIH32 N4DIM32 DC 12V 24V 32CH Optically Isolated Input PNP NPN Switch Digital Collector RS485 Modbus RTU Module
SKU:N4DIH32
87 in stock
Regular price
$14.99
Regular price
$14.99
Sale price
$14.99
Unit price
per
Couldn't load pickup availability
Product Name: DC 12V 24V 32CH Optically Isolated Input PNP NPN Switch Digital Collector RS485 Modbus RTU Module
Package inlcuded:
1 x

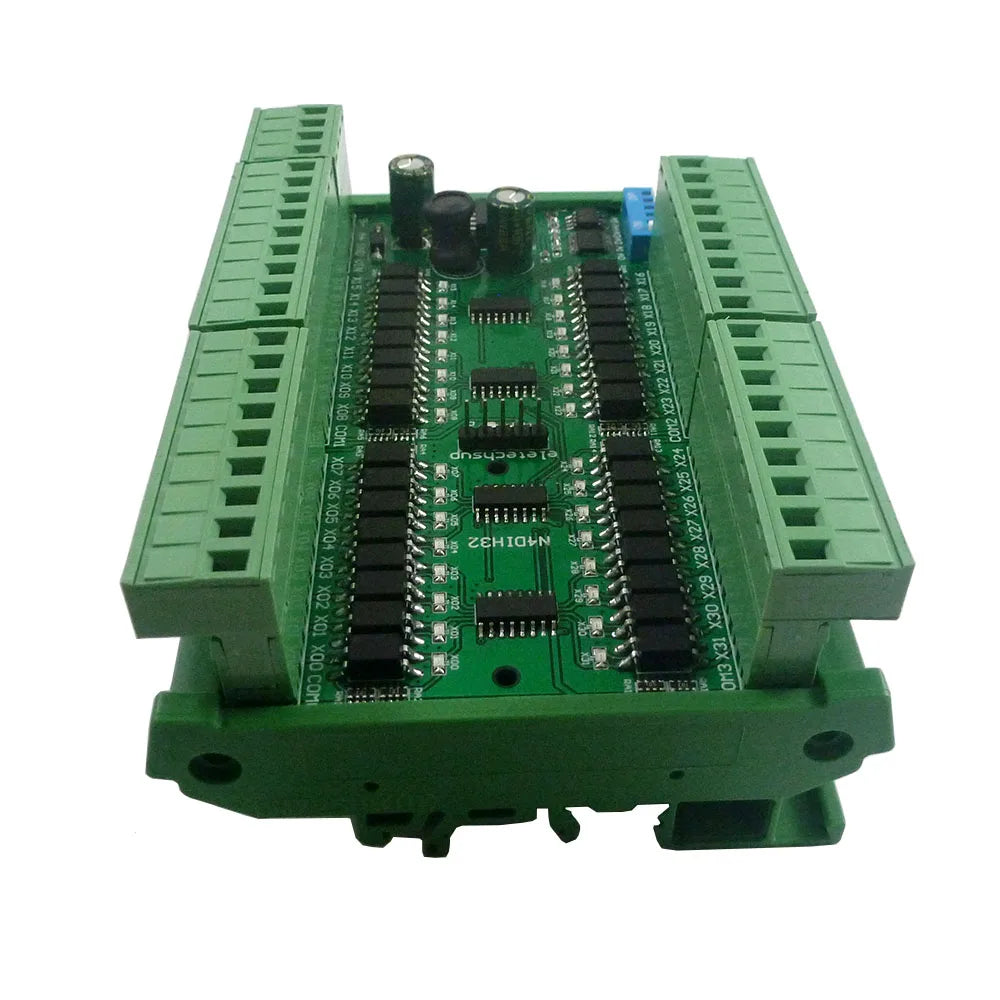

N4DIH32_N4DIM32 32-channel NPN PNP digital input Board
Description:
1 Working voltage: DC 12V/24V(6.5-25V)
2 Working current: 8-20MA
3 MODBUS RTU 03 06 command control mode

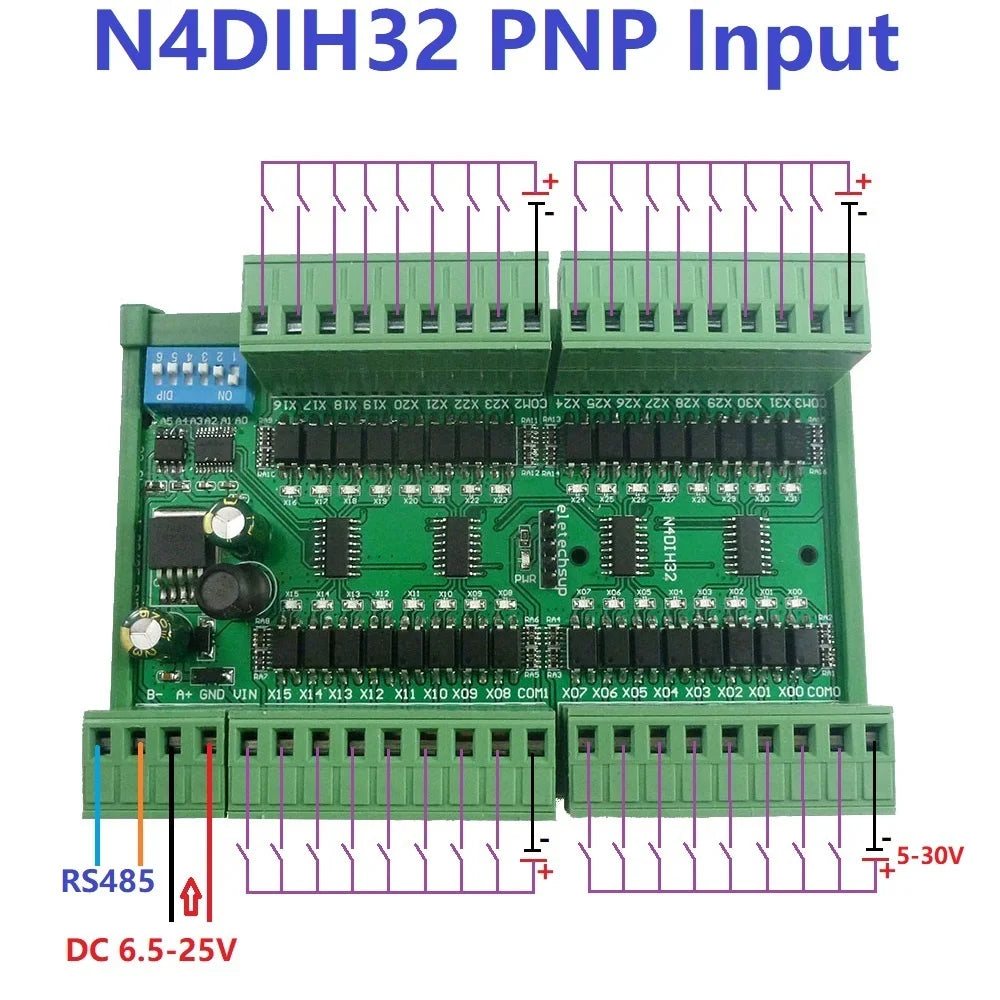

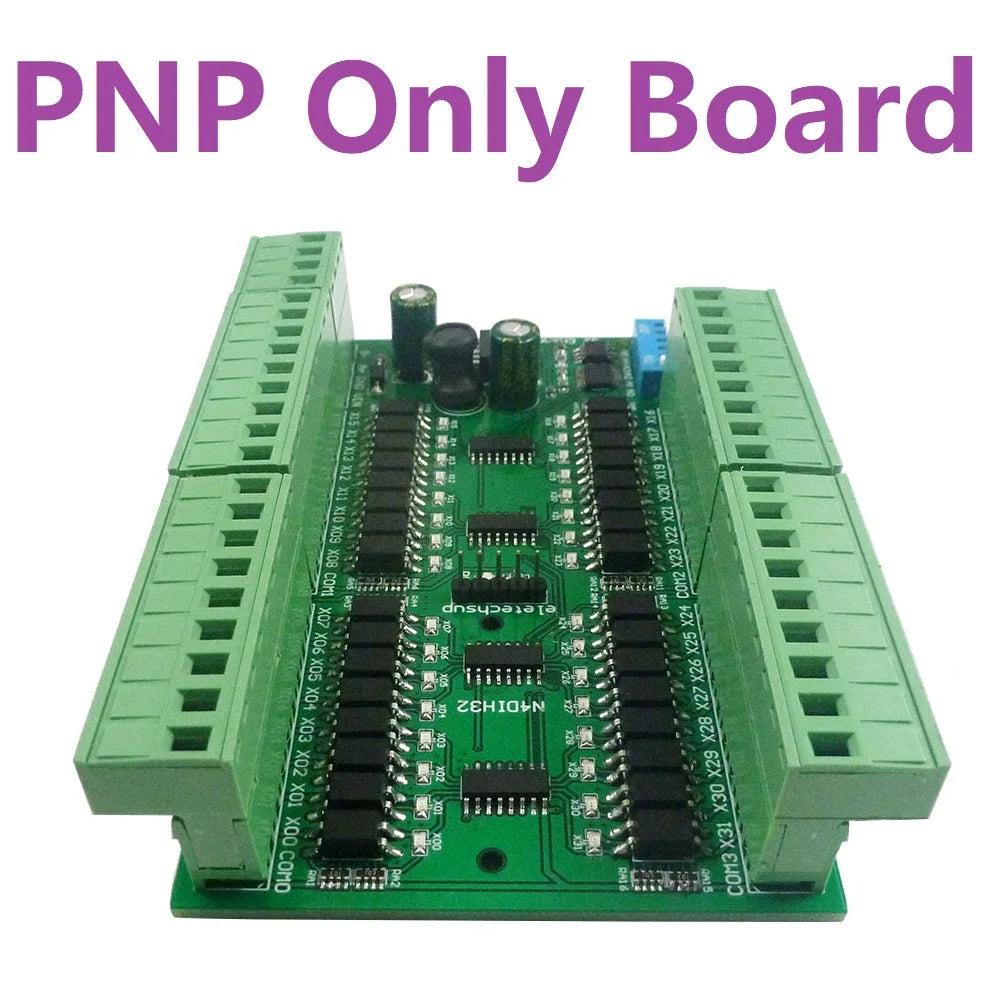

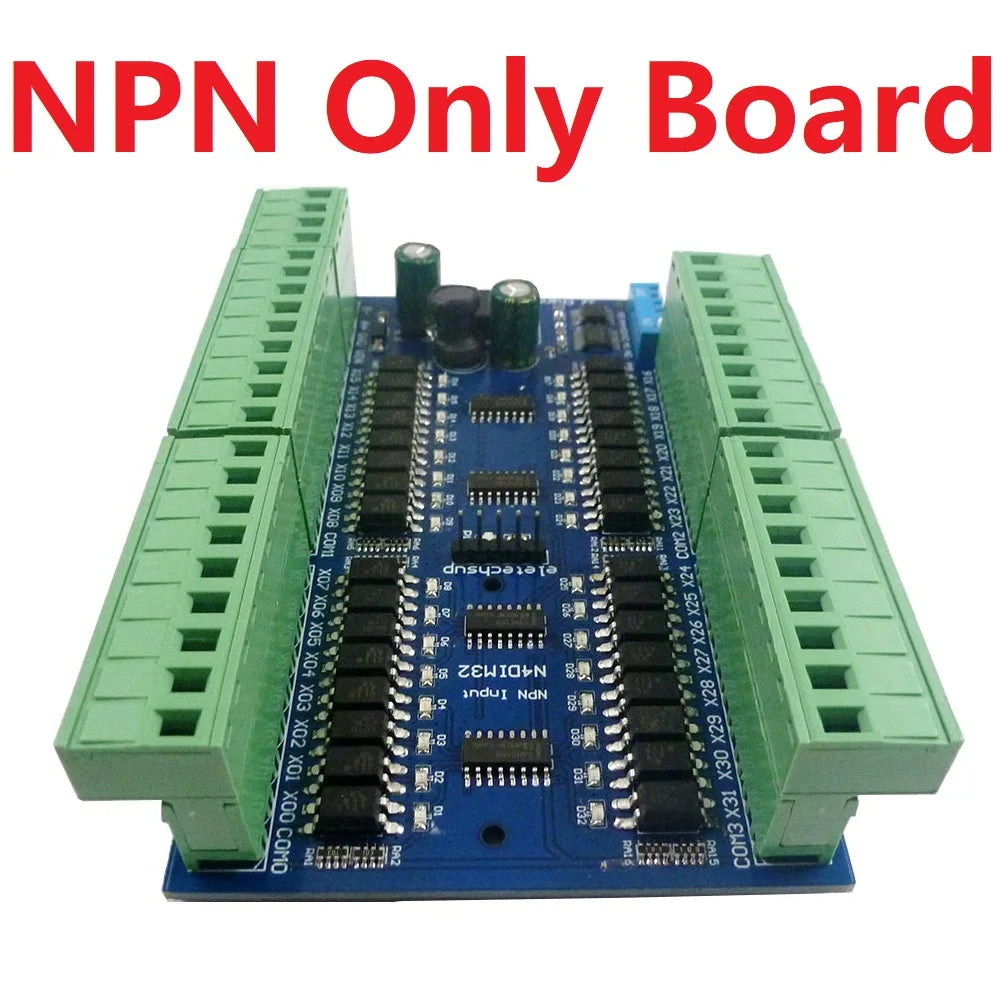

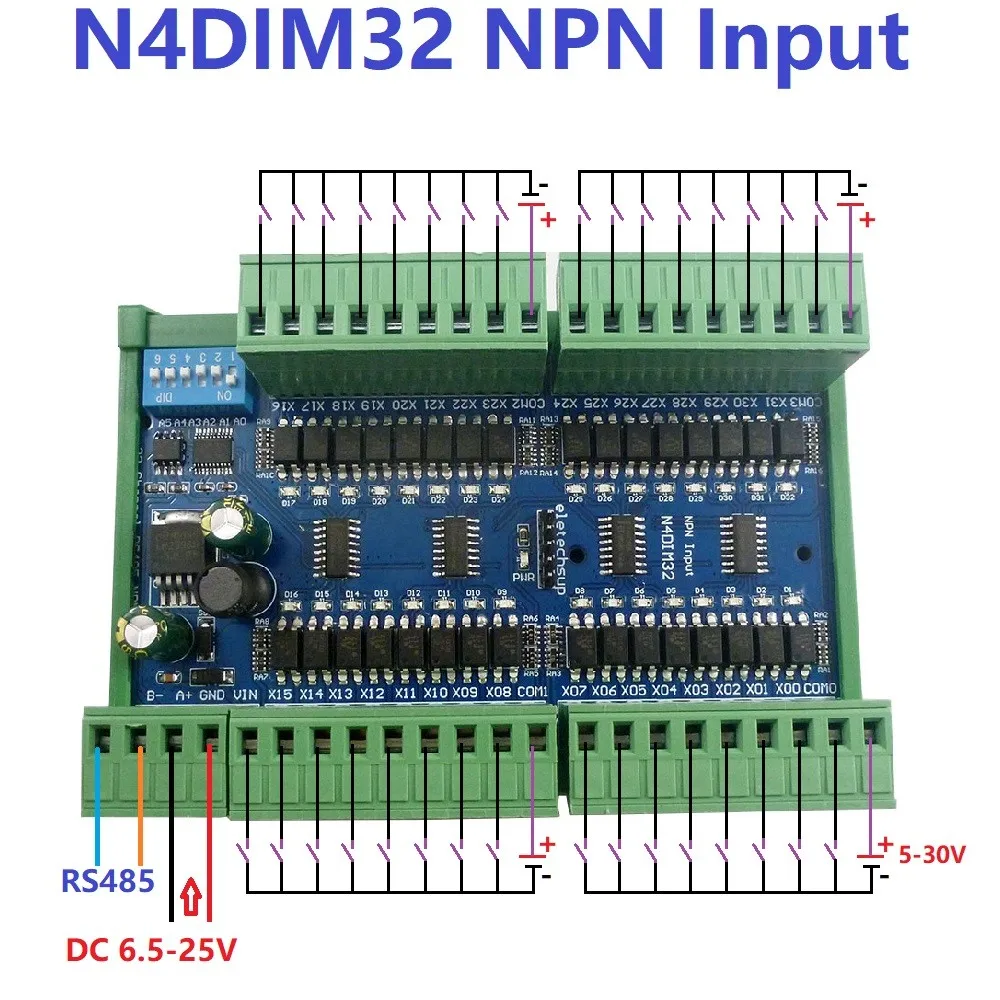

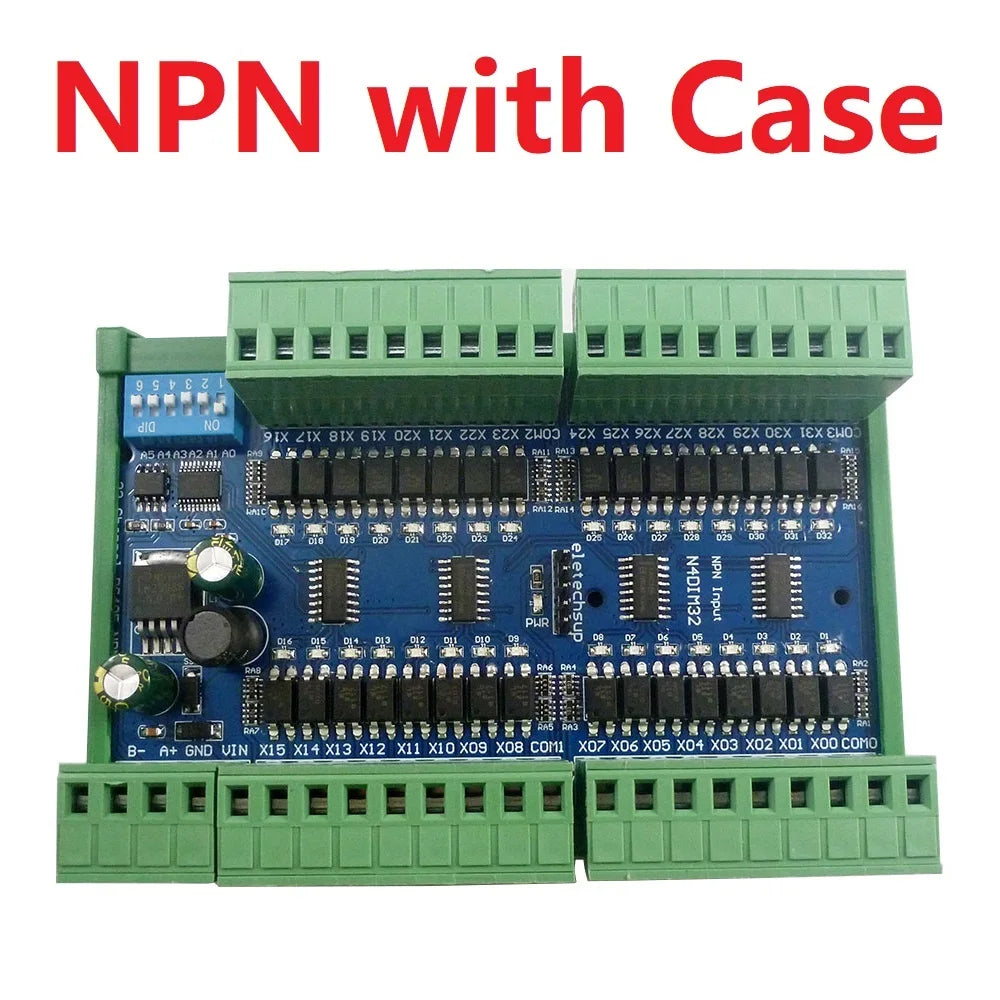

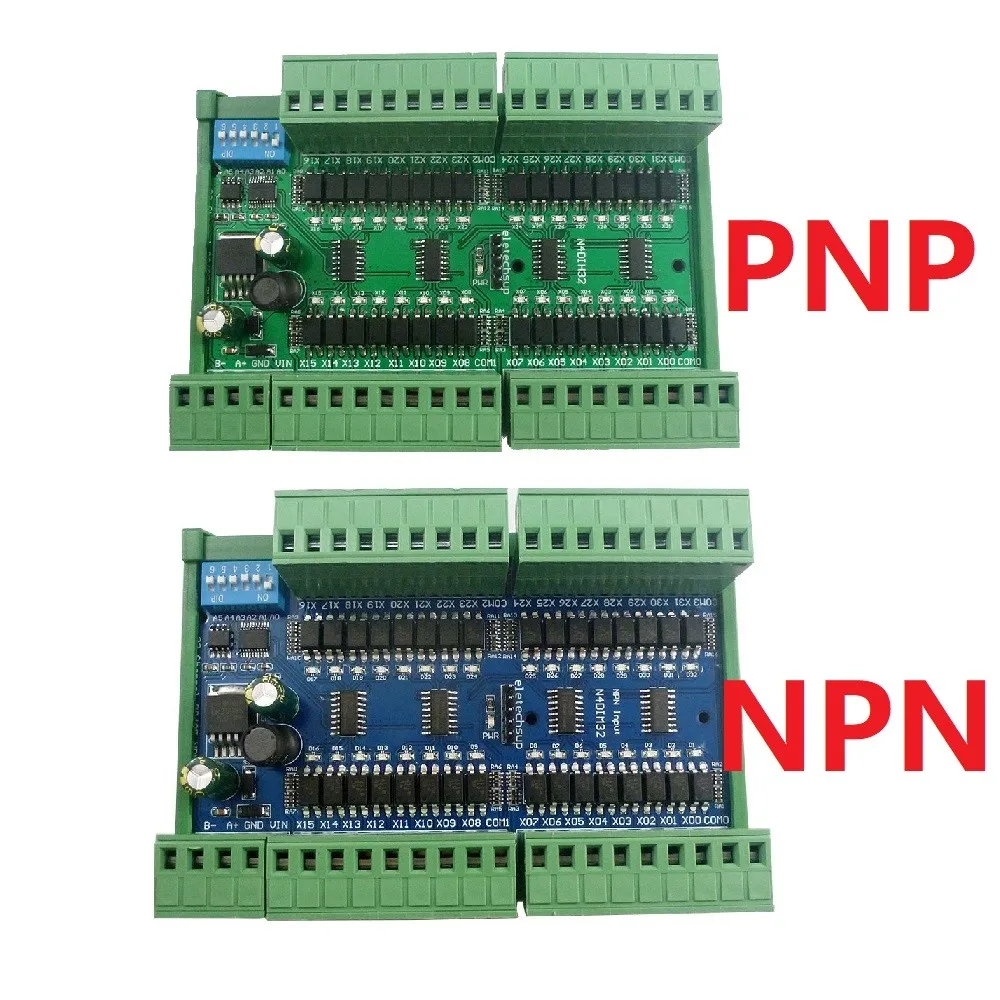

4 Two input versions, PNP high level input (green PCB), NPN low level input (blue PCB)
5 Input port voltage range: 5-30V
6 Input port status supports query (default) and automatic reporting
7 The default baud rate is 9600BPS, which can be configured to support 1200 2400 4800 19200 baud rate

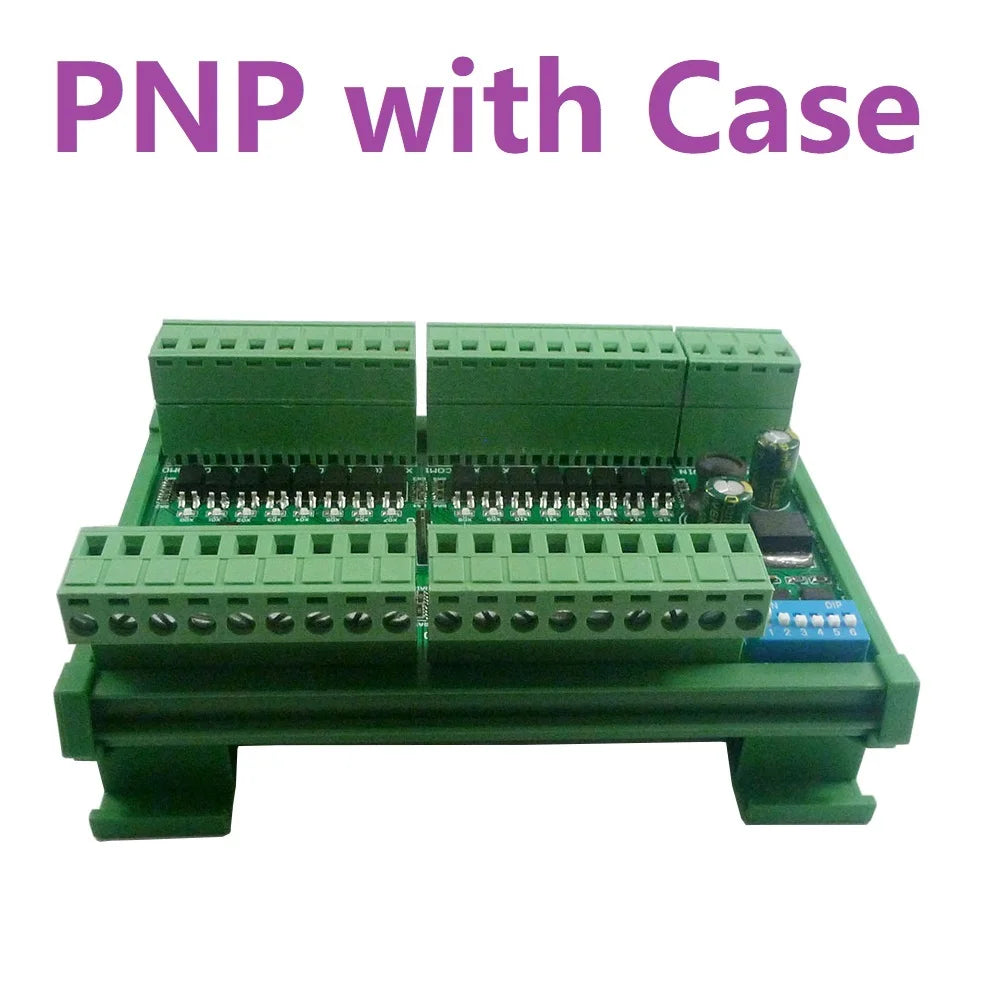

8 Size: 122*88*47(with Case), 120*72*25(Only Board)
9 Weight: 200 grams(with Case), 114 grams (Only Board)
2 Working current: 8-20MA
3 MODBUS RTU 03 06 command control mode
4 Two input versions, PNP high level input (green PCB), NPN low level input (blue PCB)
5 Input port voltage range: 5-30V
6 Input port status supports query (default) and automatic reporting
7 The default baud rate is 9600BPS, which can be configured to support 1200 2400 4800 19200 baud rate
8 Size: 122*88*47(with Case), 120*72*25(Only Board)
9 Weight: 200 grams(with Case), 114 grams (Only Board)
Instruction manual Please ask us after the purchase
Application
Automated industry PLC
PLC IO expansion board
Digital in to RS485
Smart Home,Home Automation ;
Identification system;
CCTV Camera PTZ Control;
Security system;
RS485 remote control;
PLC IO expansion board
Digital in to RS485
Smart Home,Home Automation ;
Identification system;
CCTV Camera PTZ Control;
Security system;
RS485 remote control;
