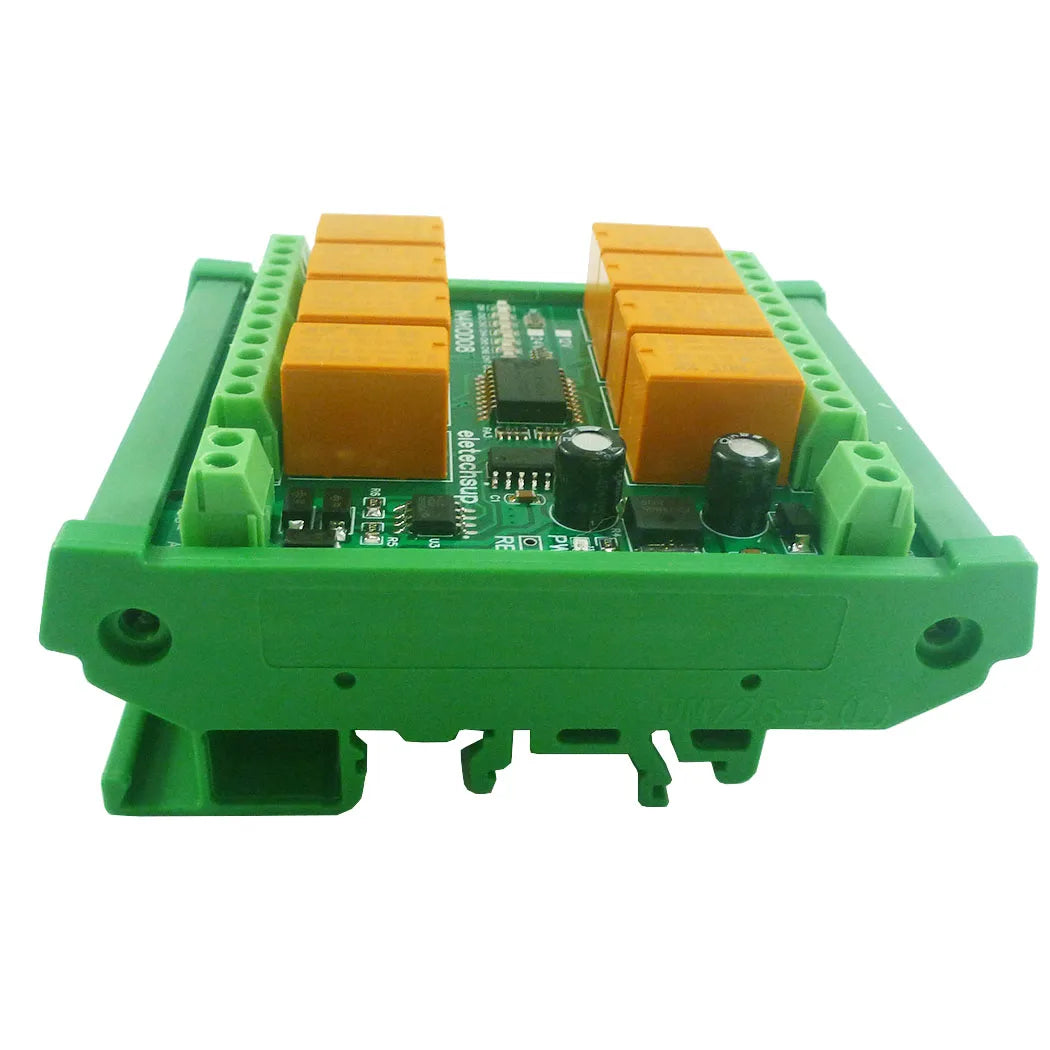

N4ROD08 DC 12V-24V 8 Channels Micro Size & Low Power Consumption RS485 RS422 Relay Board DIN C35 Rail Mount Box for PLC HMI

SKU:N4ROD08_24V

1000 in stock

$13.99

~~$16.96~~ $13.99

Sale Sold out

Quantity

Product Name: Mini Size IOT Remote IO Controller N4ROD08 Modbus Industrial 8 DO RS485 Relay Module DC 12V 24V Eletechsup

Package inlcuded:

1 PCS DC 12V/24V 8-Channel mini RS485 Modbus Rtu 3A Relay Module

Description:

1: Working voltage DC 12V/24V;
2: Standby current (all relays closed) 6MA, 1 relay open 24MA, ...,8 relay open 150MA
3: ''Open'' ''Close'' ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay'' ''Open all'' ''Close all'' 8 Commands

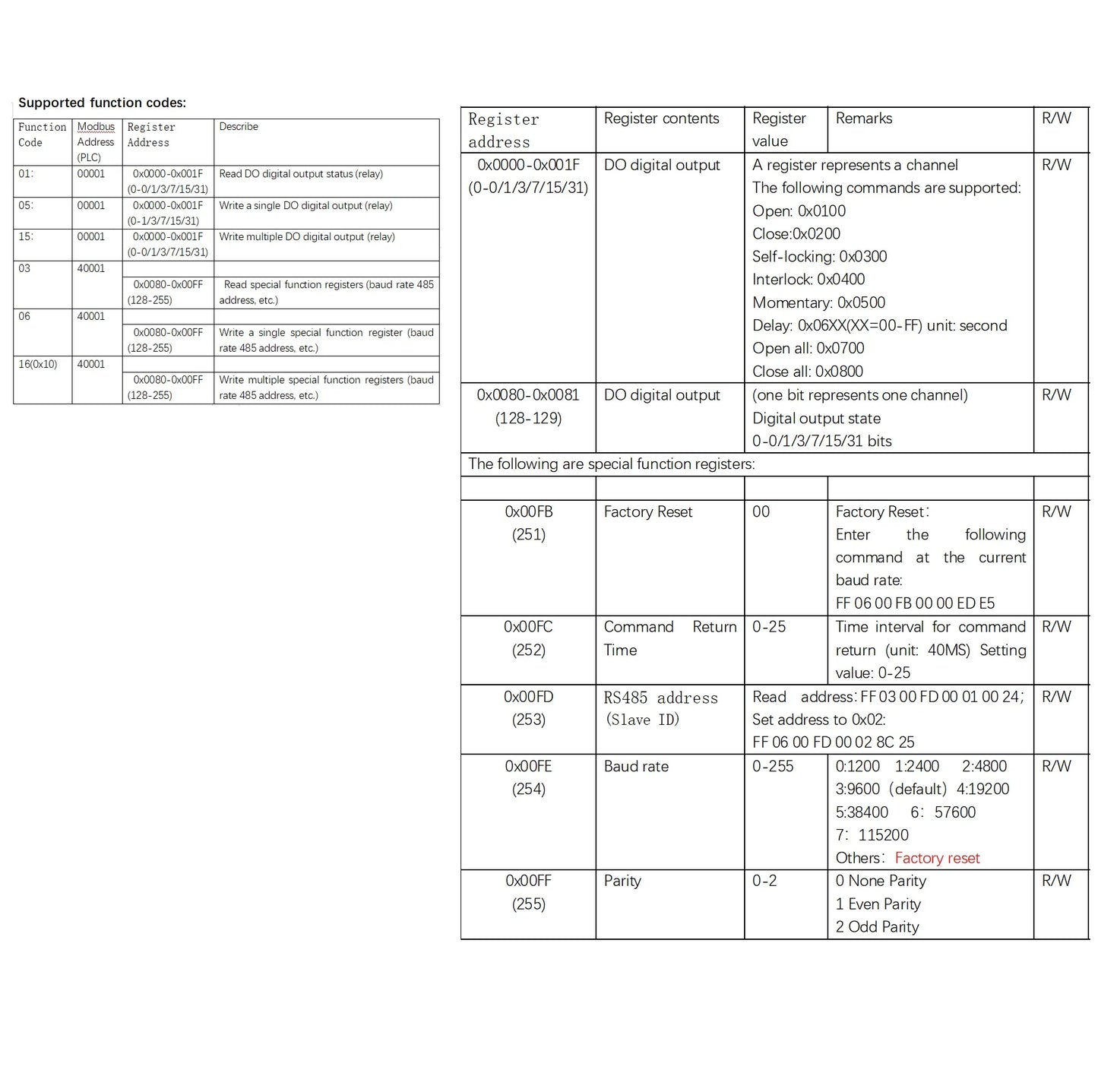

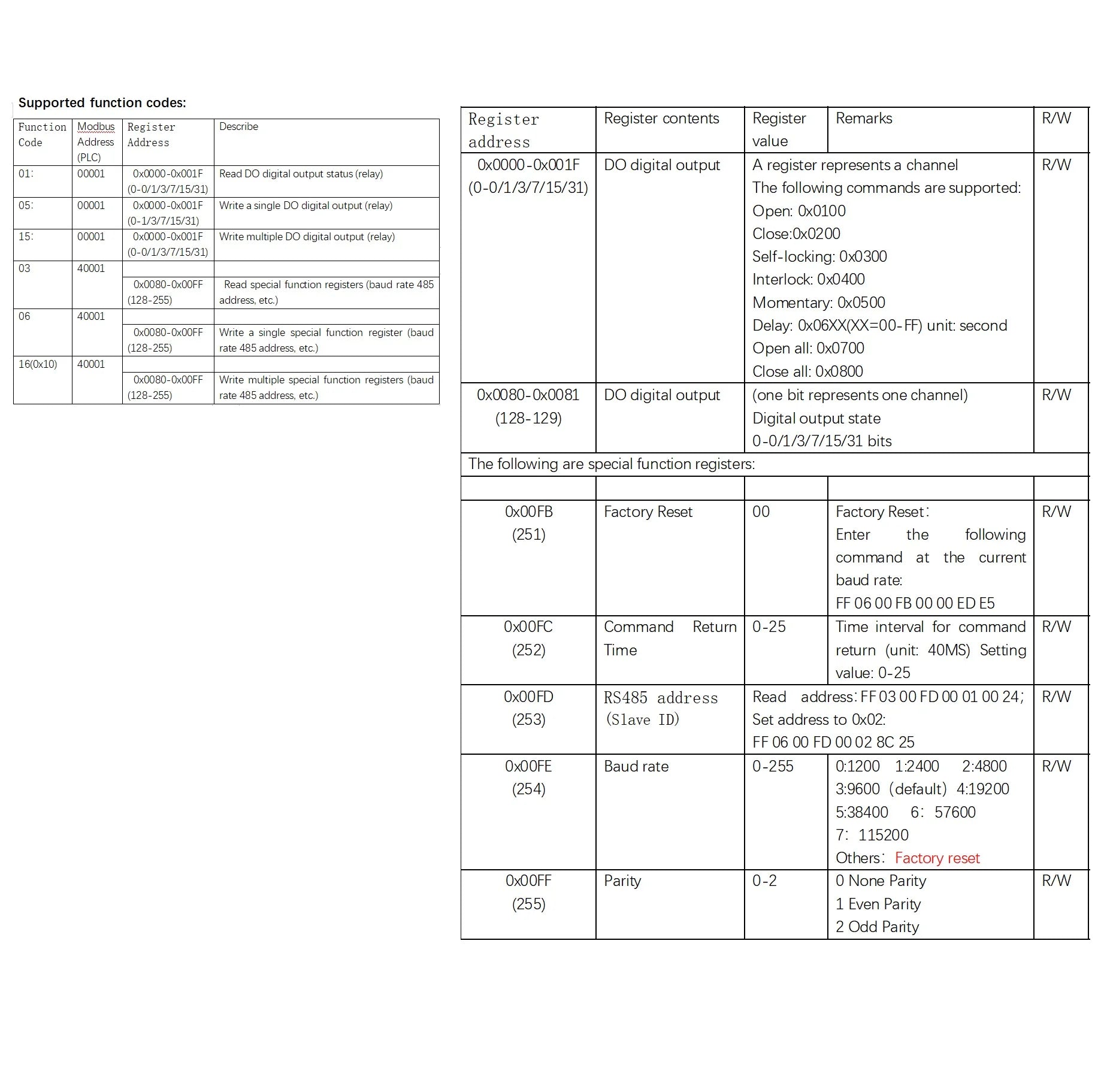

4: Standard MODBUS RTU command, Write 05/06/15/16, Read 01/03
5: Under the ''Delay'' command ,the maximum delay is 255 seconds;
6 MODBUS commands can be made serial HyperTerminal (serial assistant) OR ''Modbus Poll'' Enter;
7 Under the MODBUS command mode, it can support up to 64 devices in parallel
8 Baud_rate : 1200/2400/4800/9600(Default)/19200/38400/57600/115200BPS
9 Parity :None(Default)/Even/Odd

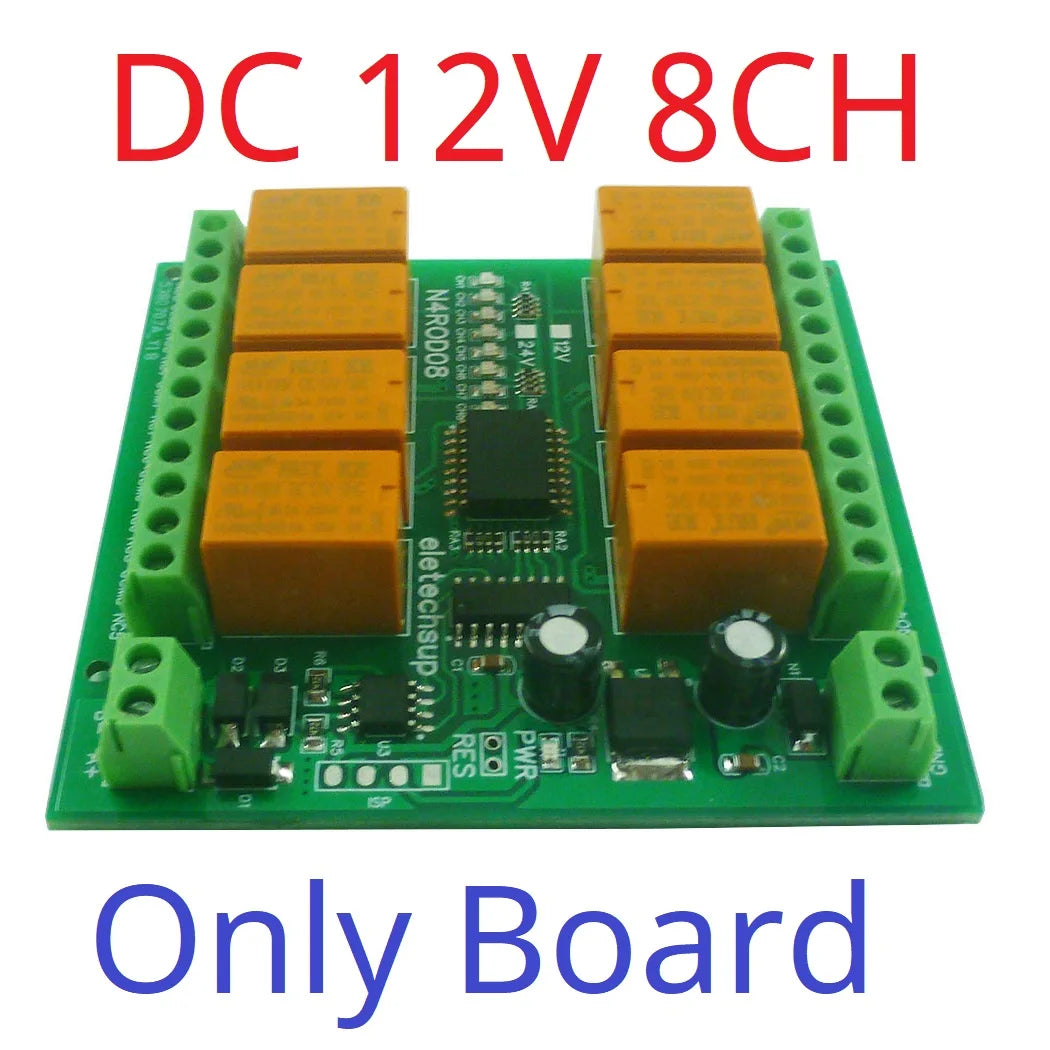

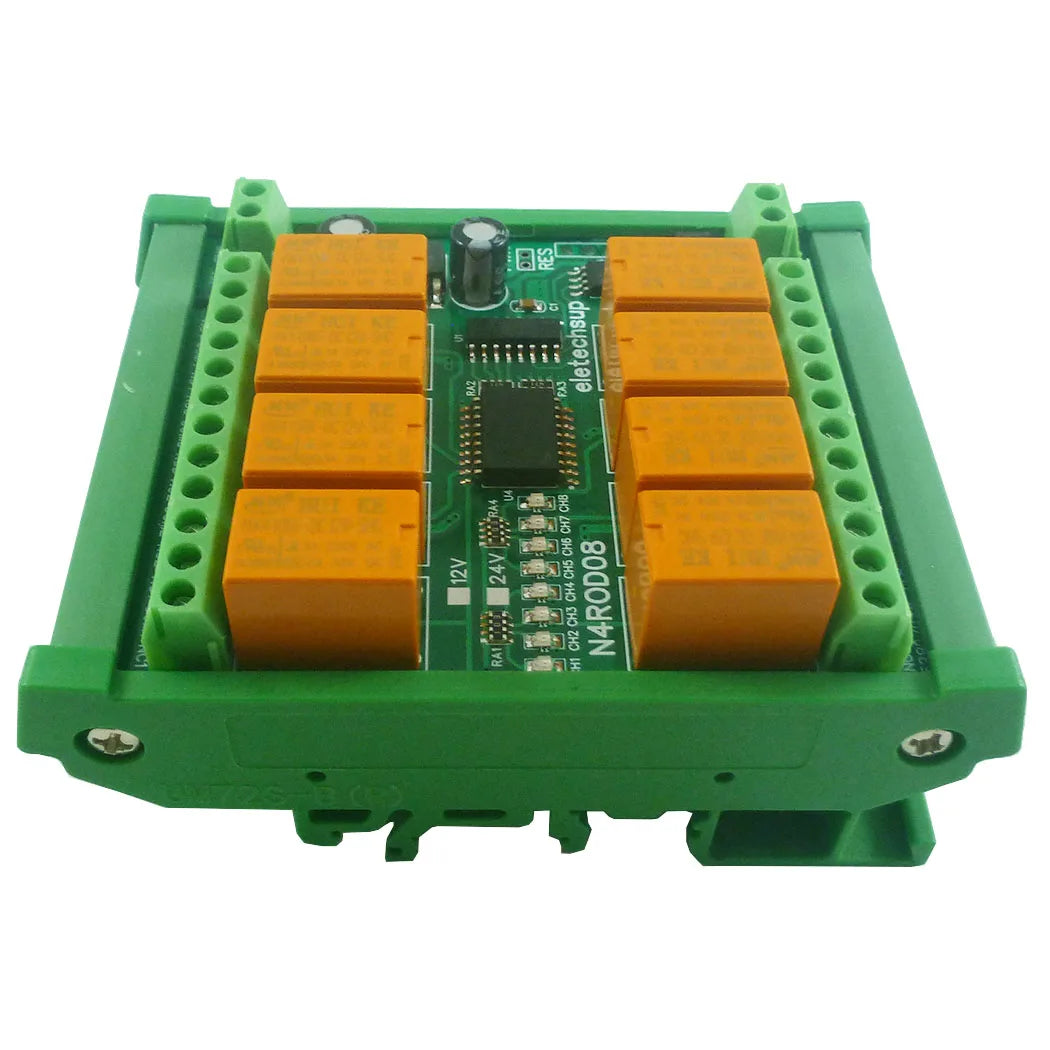

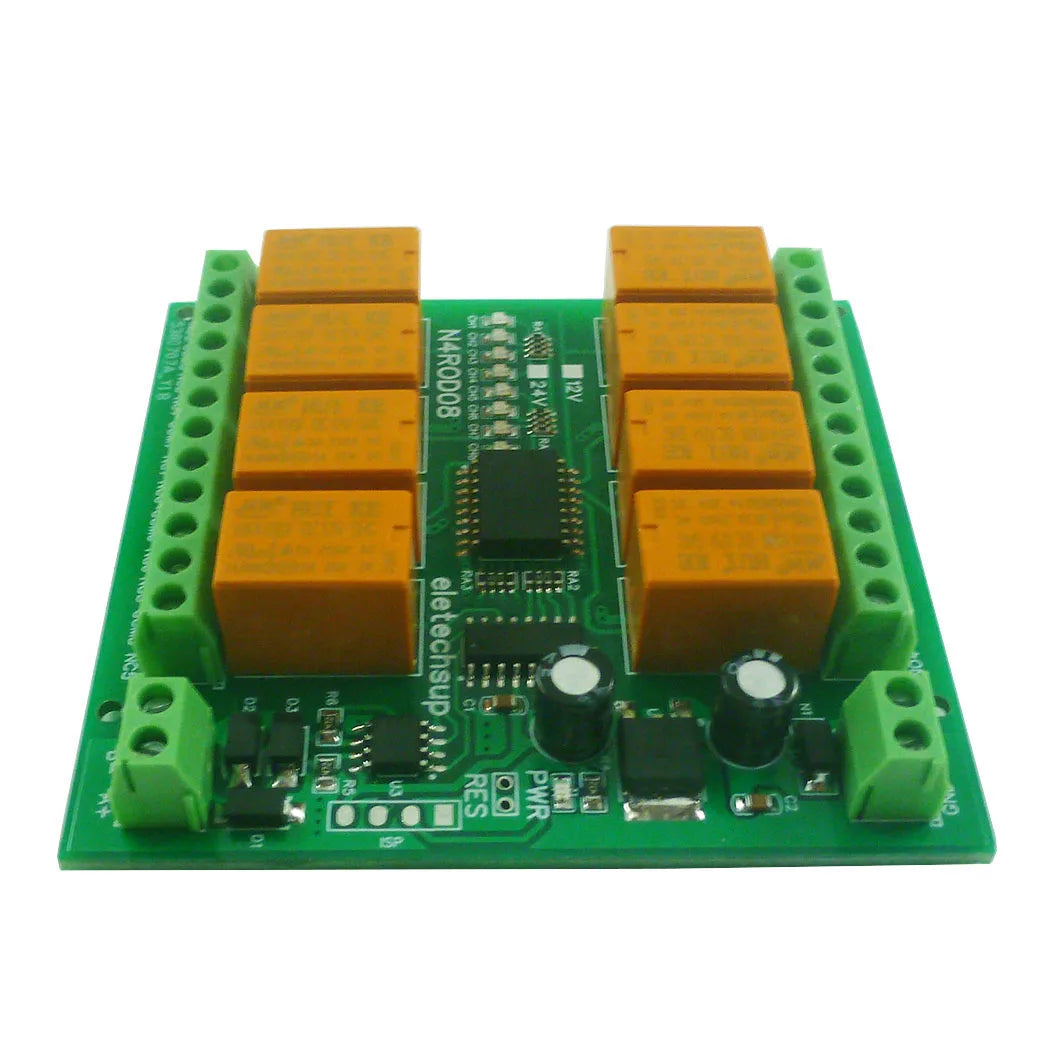

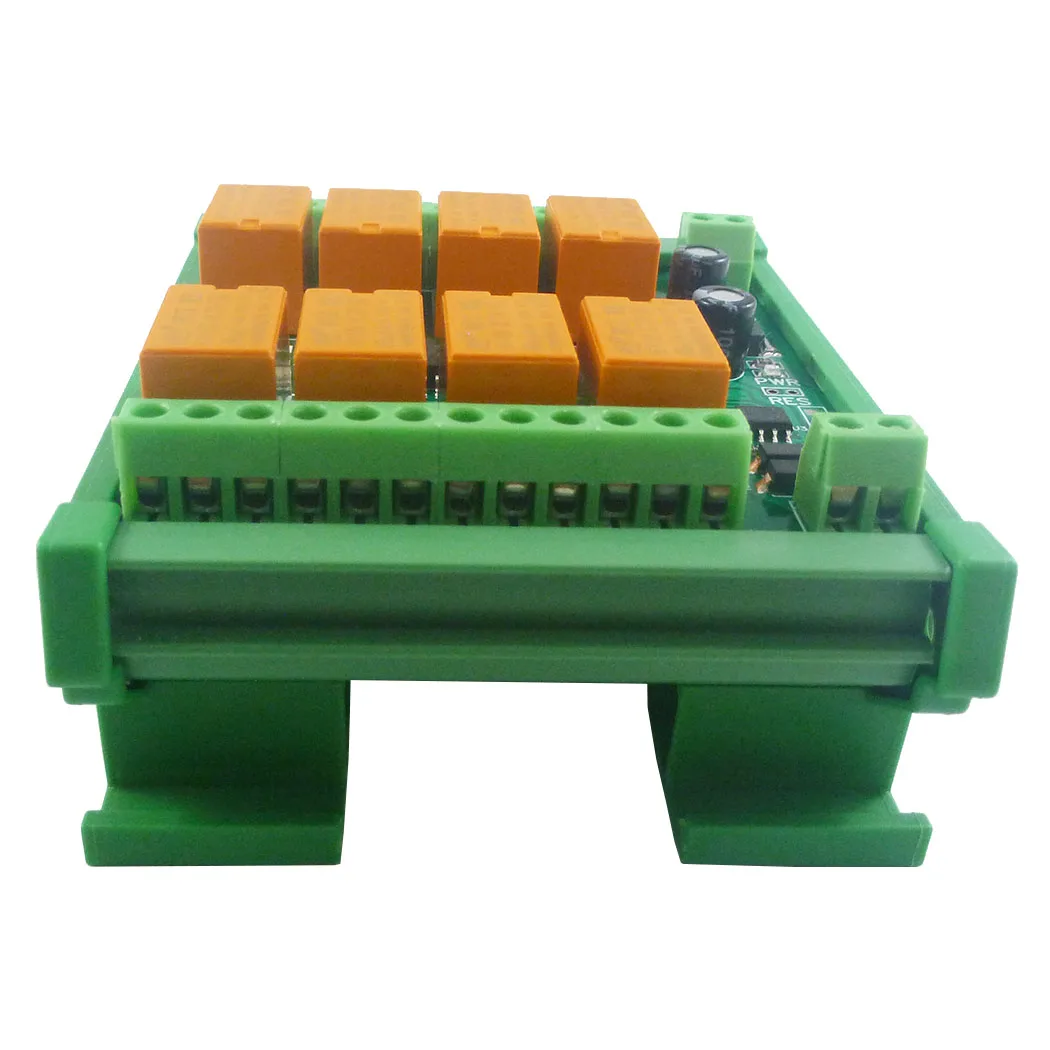

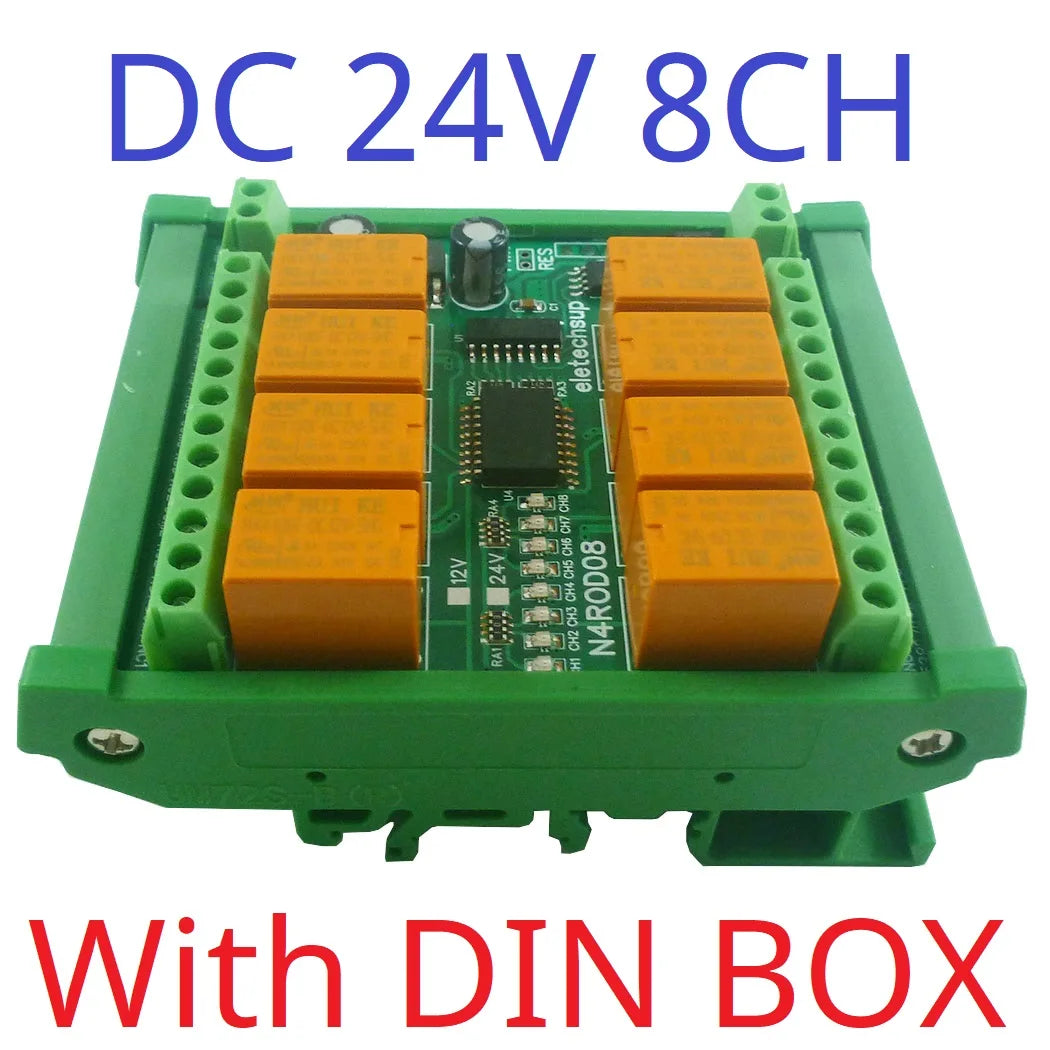

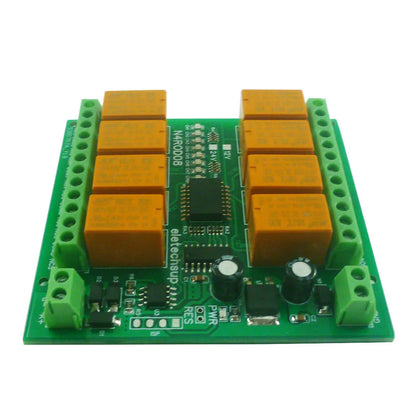

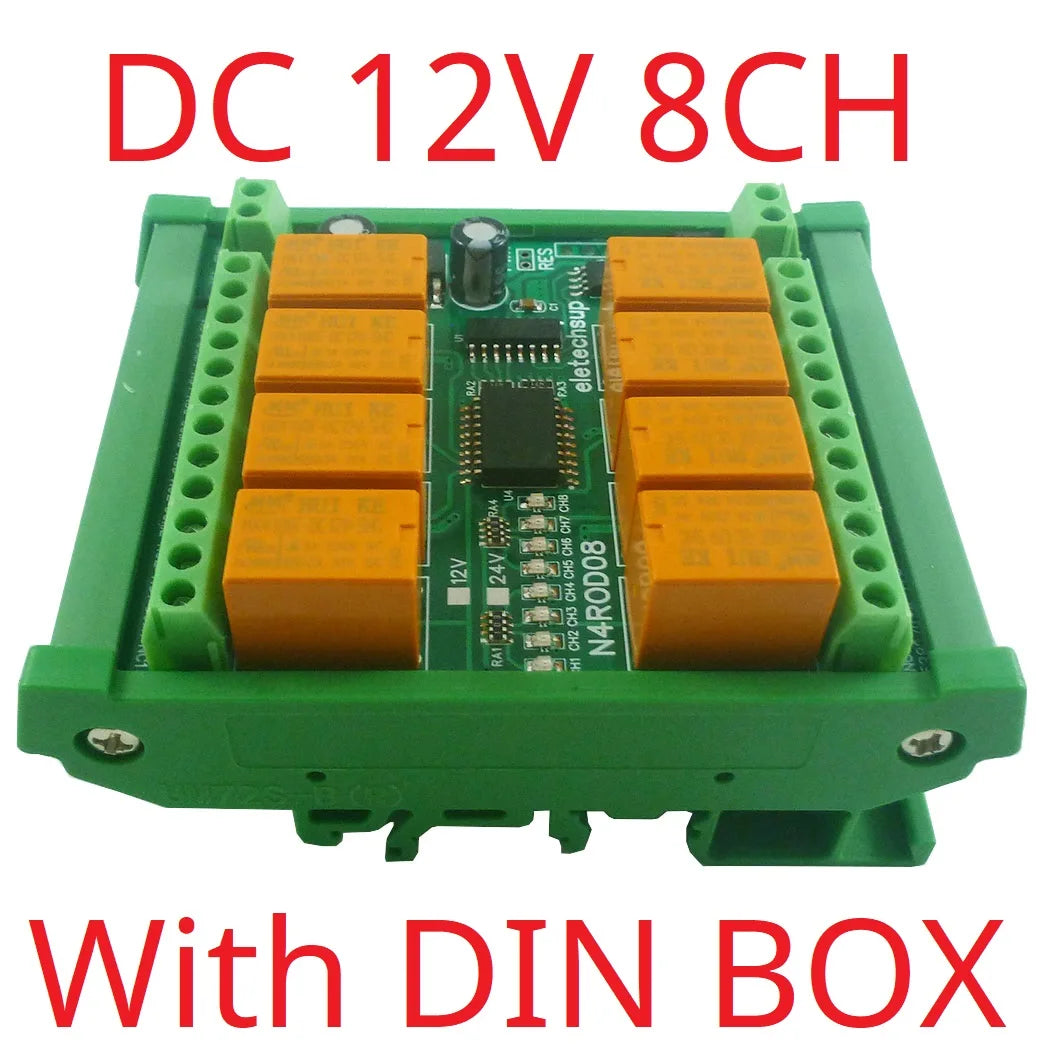

10 Size : 67*72*14MM(Only Board);69*88*38MM(With DIN Box);
11 Weight : 59g(Only Board),115g(With DIN Box)

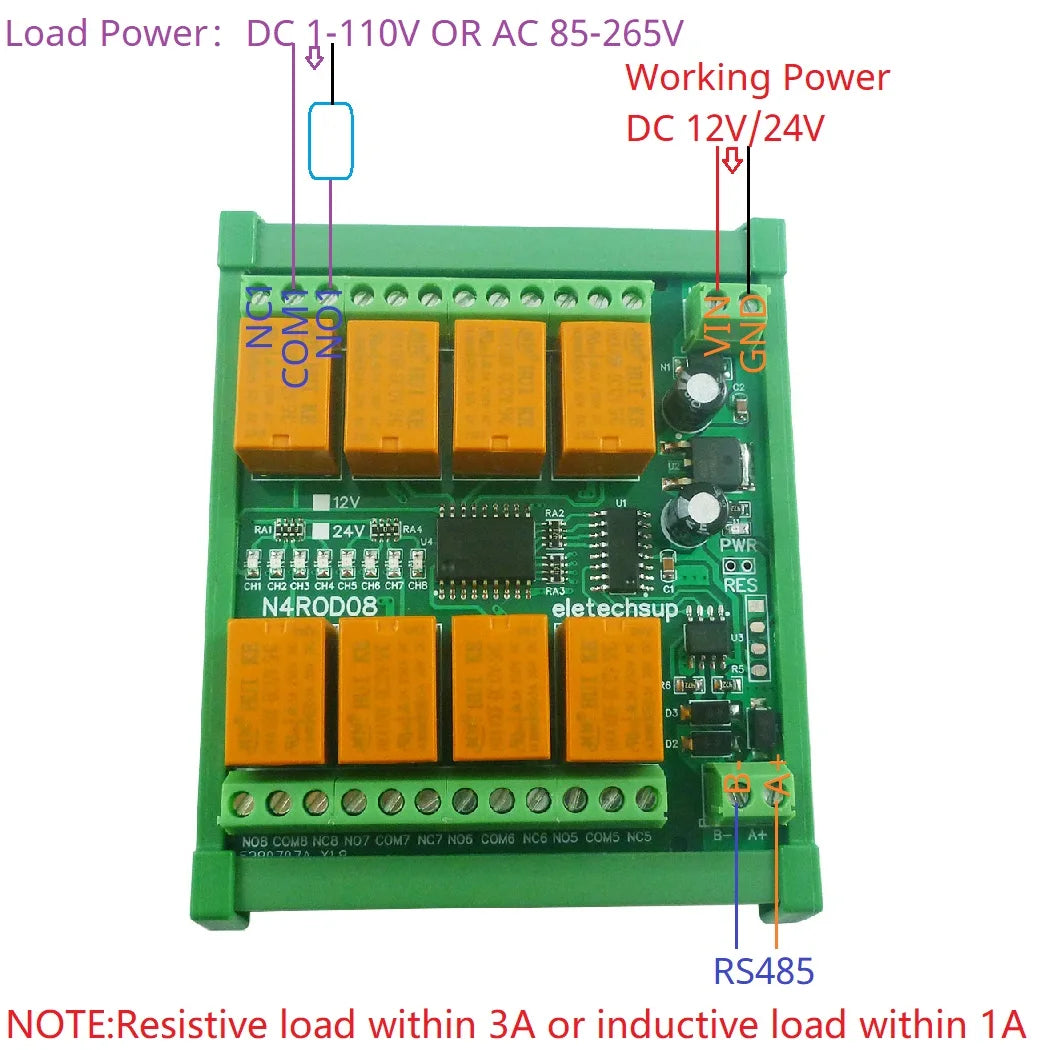

12 Maximum load: 3A/250VAC ,3A /30VDC(Resistive load within 3A or inductive load within 1A)

For more information, please contact me

Application

PLC Output expansion board
HMI Configuration Software
Smart Home,Home Automation ,Wiser Home;
PTZ CCTV Camera
Security Monitoring
Identification system;
Mini Motor FW & BW
Automatic curtain control
LED Control
