N4ROF32 Mini DC 12V 24V 32CH Multifunction Modbus Rtu RS485 Relay Board 2A 0.2W Low Power Consumption Micro Voice Relay Module N4ROF32
N4ROF32 Mini DC 12V 24V 32CH Multifunction Modbus Rtu RS485 Relay Board 2A 0.2W Low Power Consumption Micro Voice Relay Module N4ROF32
SKU:N4ROF32_24V
100 in stock
Regular price
$41.99
Regular price
$56.97
Sale price
$41.99
Unit price
per
Couldn't load pickup availability
Product Name: Mini Size 32CH RS485 Relay Modbus Rtu PLC IO Expansion Module 2A Low Power Intermediate Relay Output Board DIN Rail DC 12V 24V
Package inlcuded:

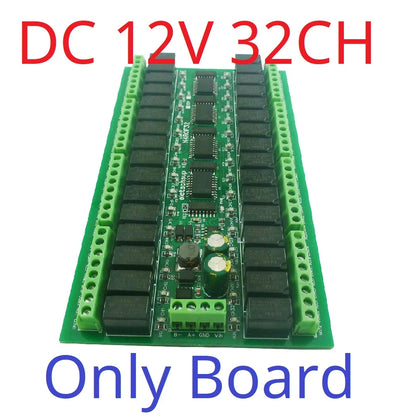

1 PCS DC 12V/24V 32CH mini Size RS485 2A Relay Digital Output Board
Description:

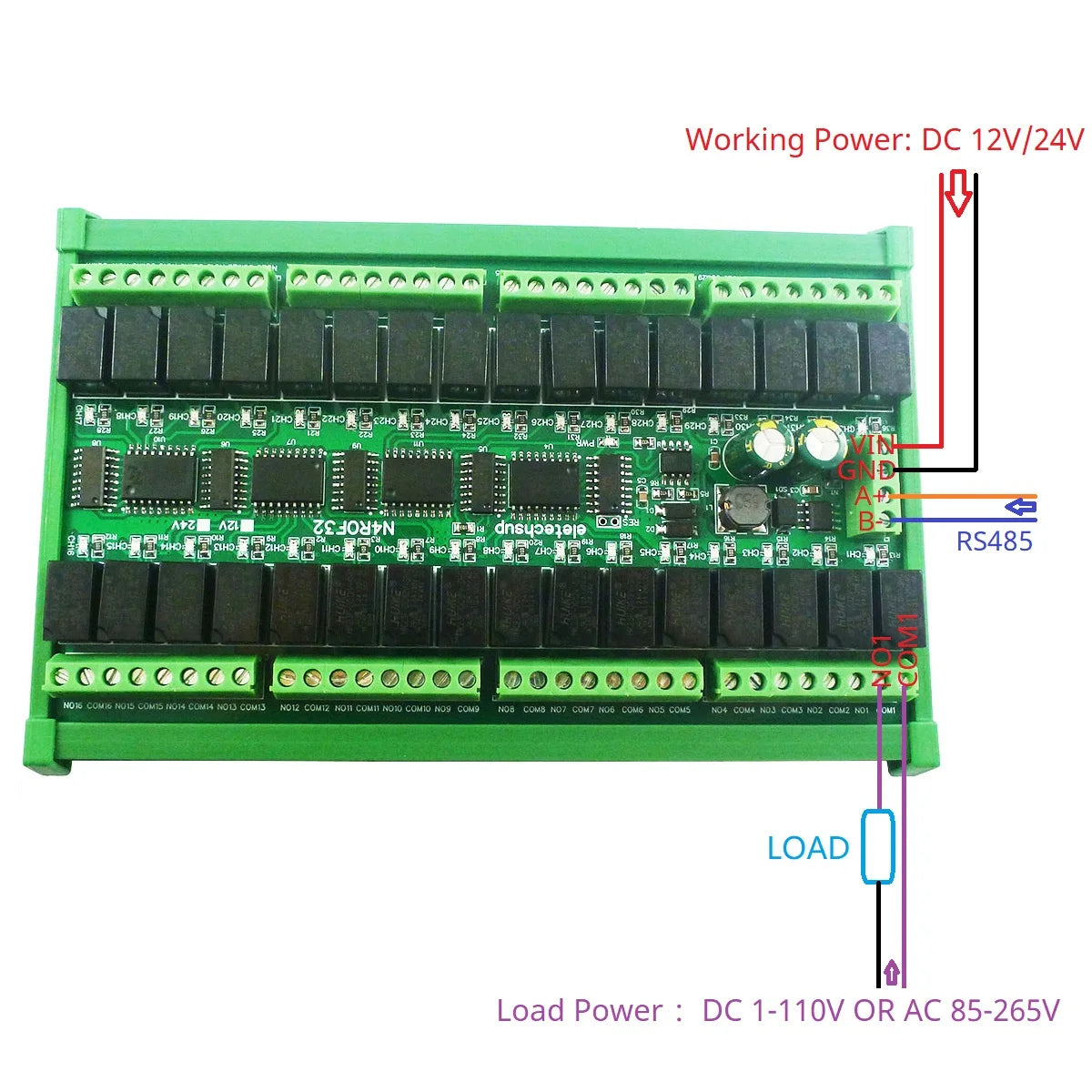

1: Working voltage DC 12V/24V;
2: Standby current (DC 12V) 4MA, 1 relay open 20MA, ...,32 relay open 432MA
3: ''Open'' ''Close'' ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay'' ''Open all'' ''Close all'' 8 Commands

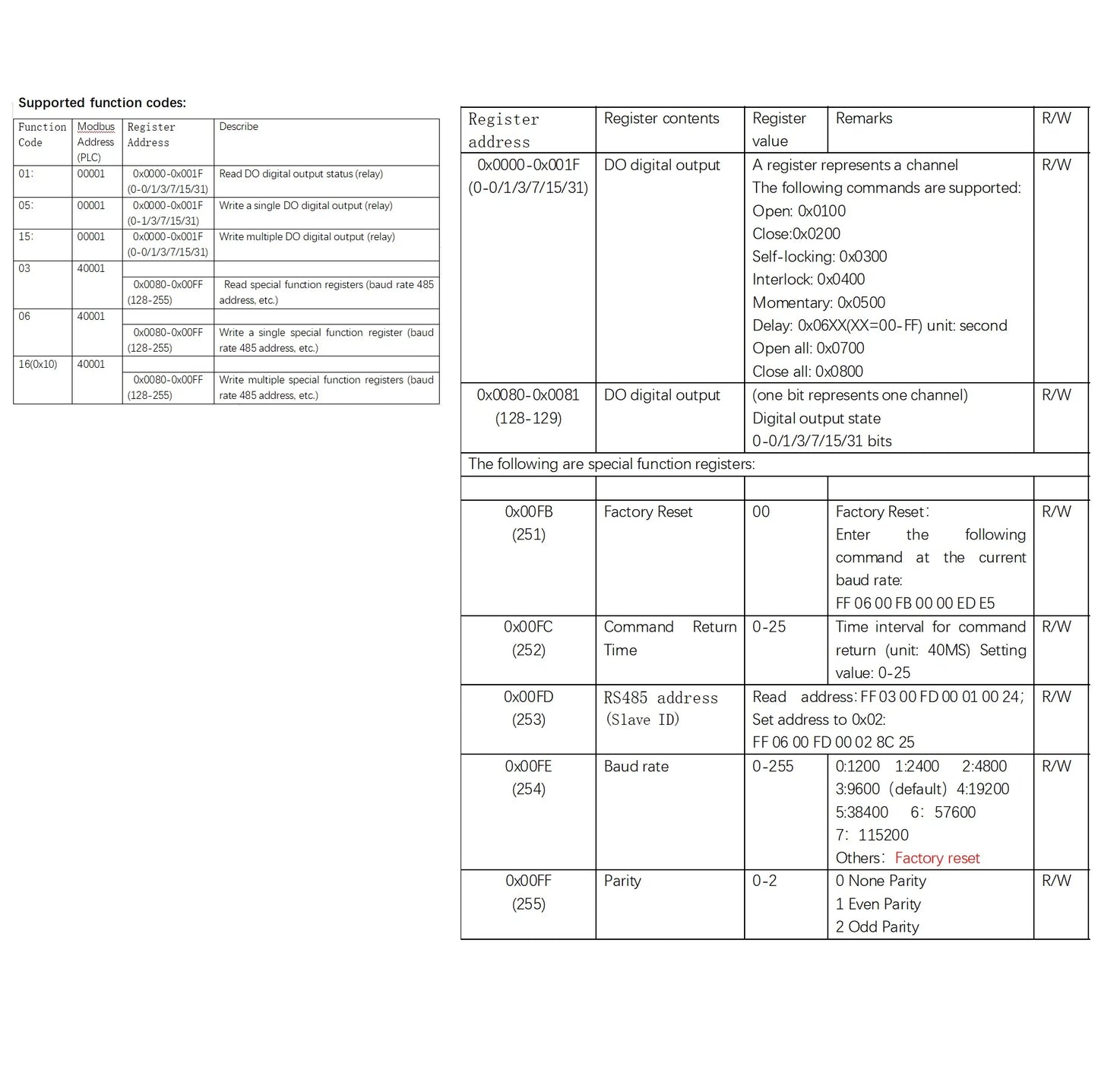

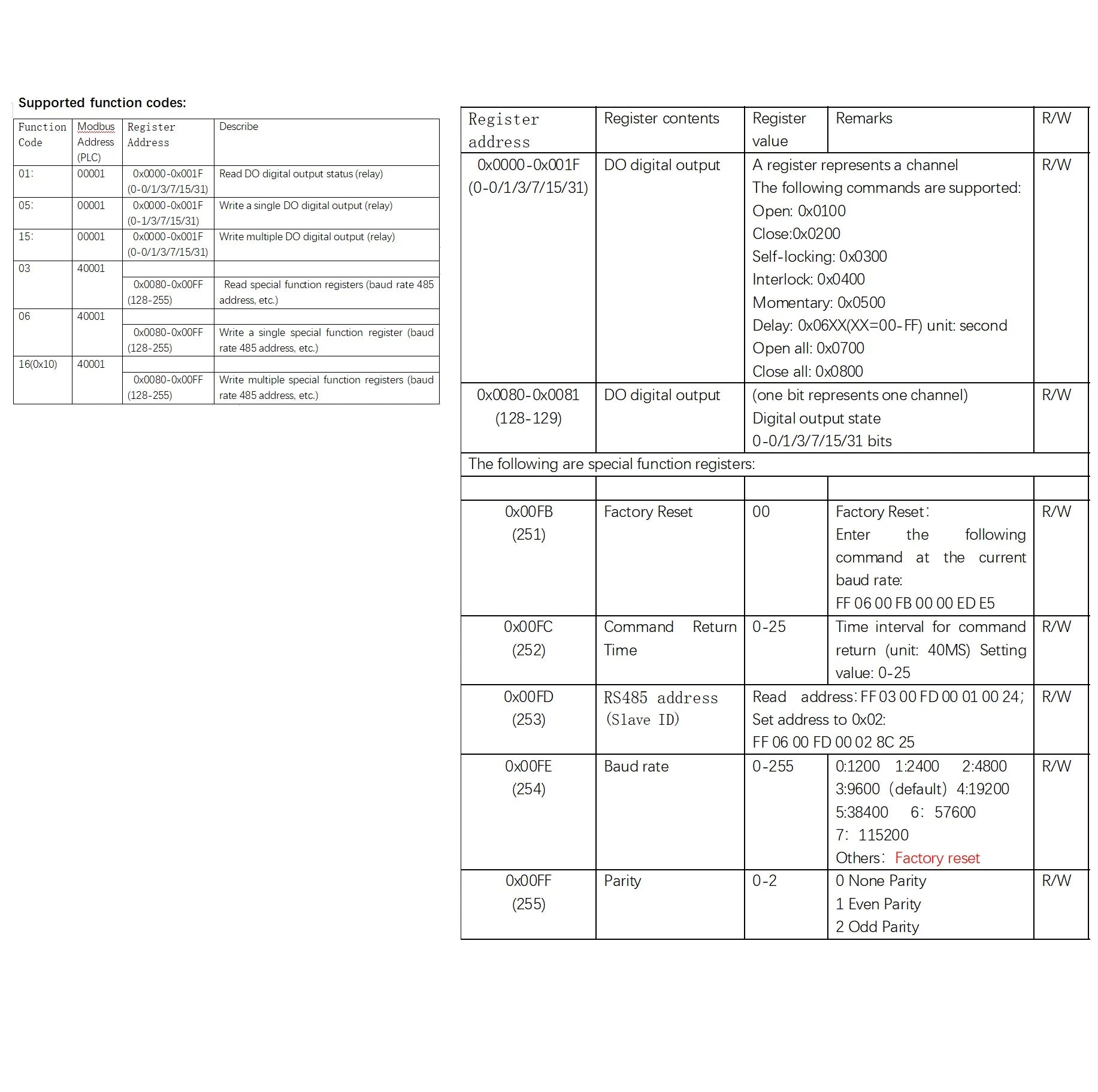

4: Standard MODBUS RTU command, Write 05/06/15/16, Read 01/03
5: Under the ''Delay'' command ,the maximum delay is 255 seconds;
6 MODBUS commands can be made serial HyperTerminal (serial assistant) OR ''Modbus Poll'' Enter;
7 Under the MODBUS command mode, it can support up to 64 devices in parallel
8 Baud_rate : 1200/2400/4800/9600(Default)/19200/38400/57600/115200BPS
9 Parity :None(Default)/Even/Odd
10 Terminal specification: 3.96MM pitch, 2.5MM slotted screw

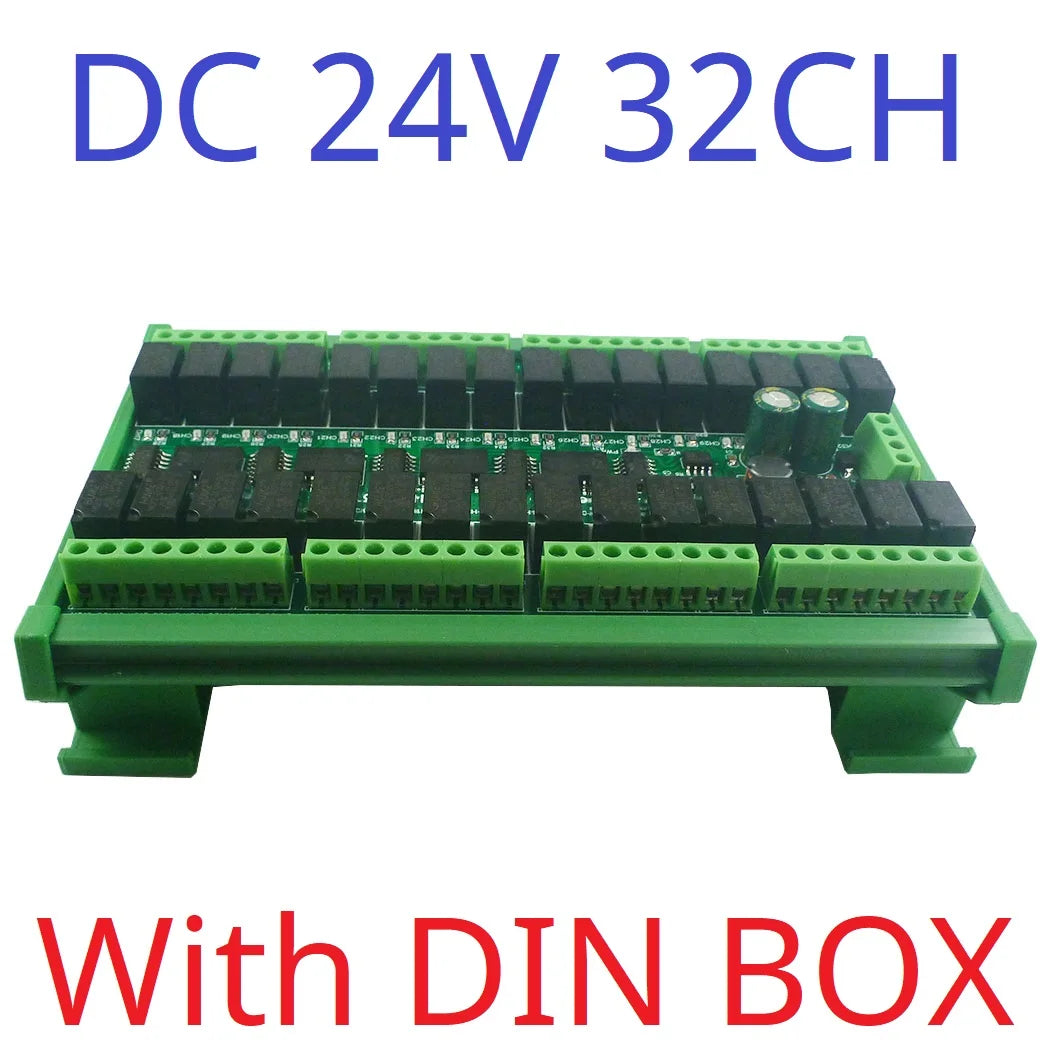

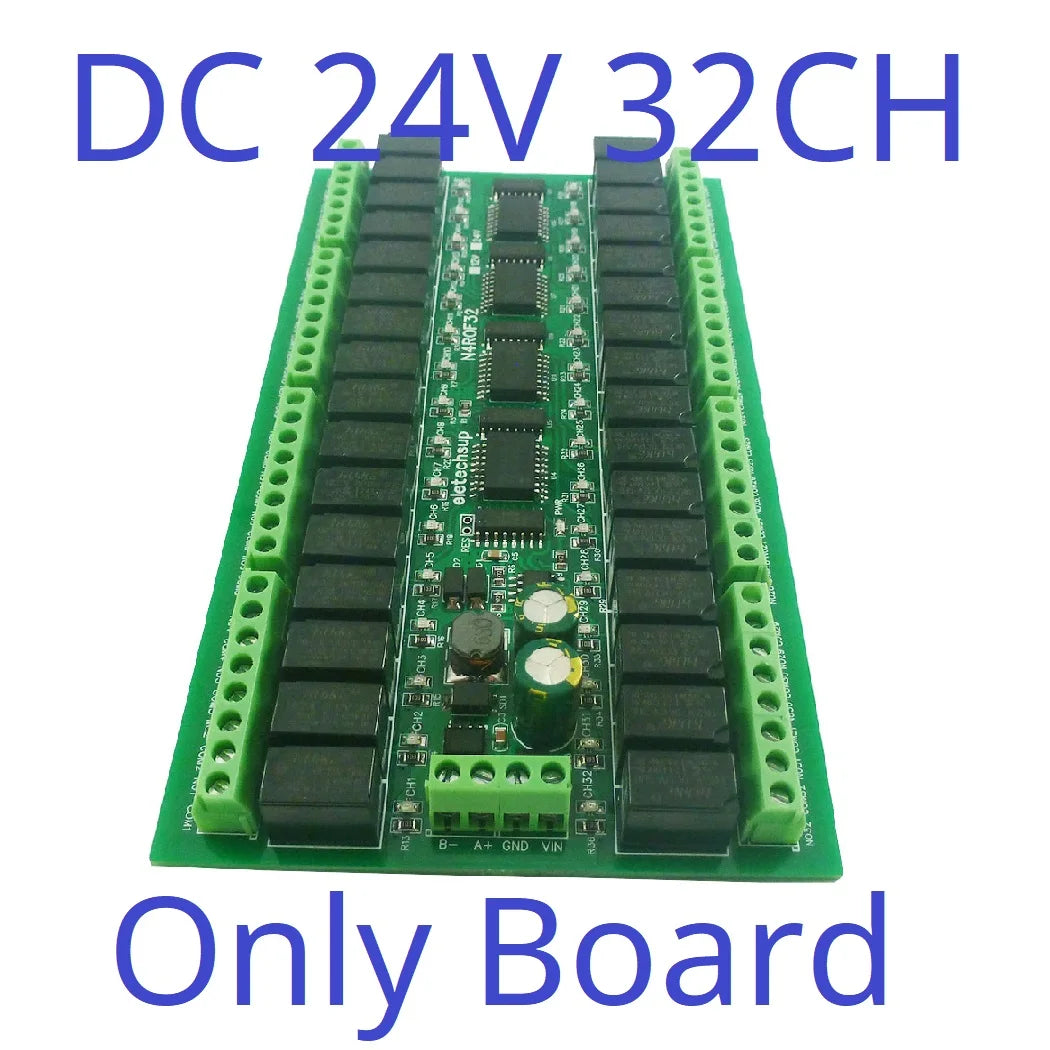

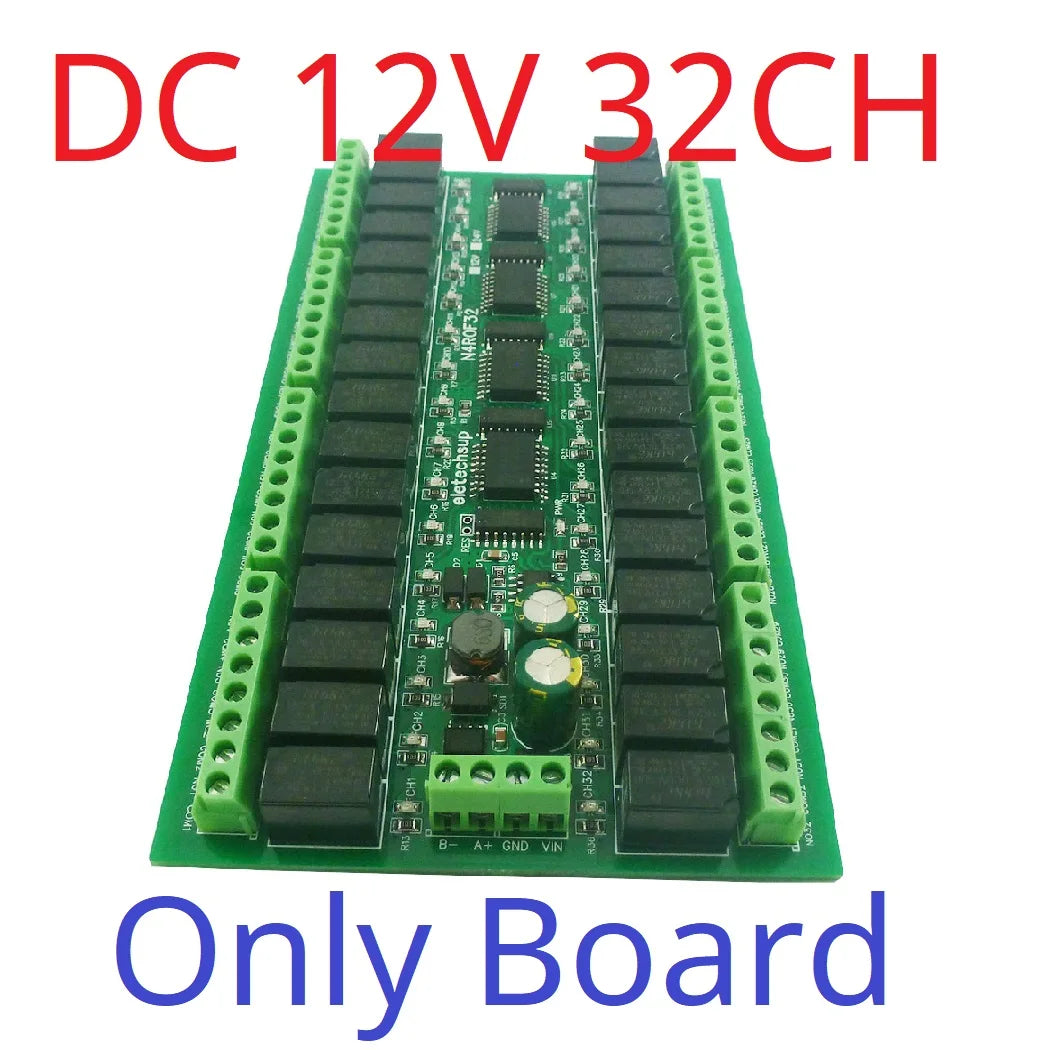

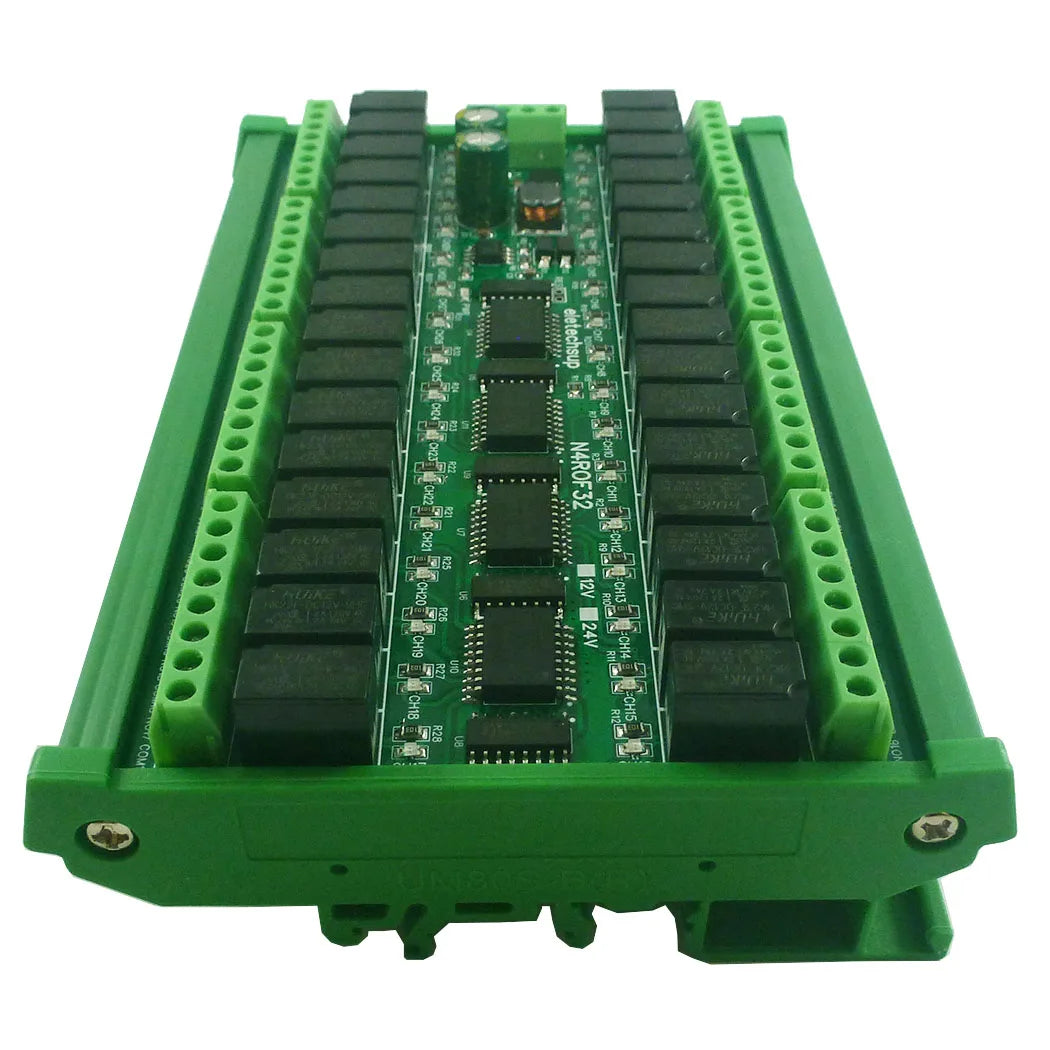

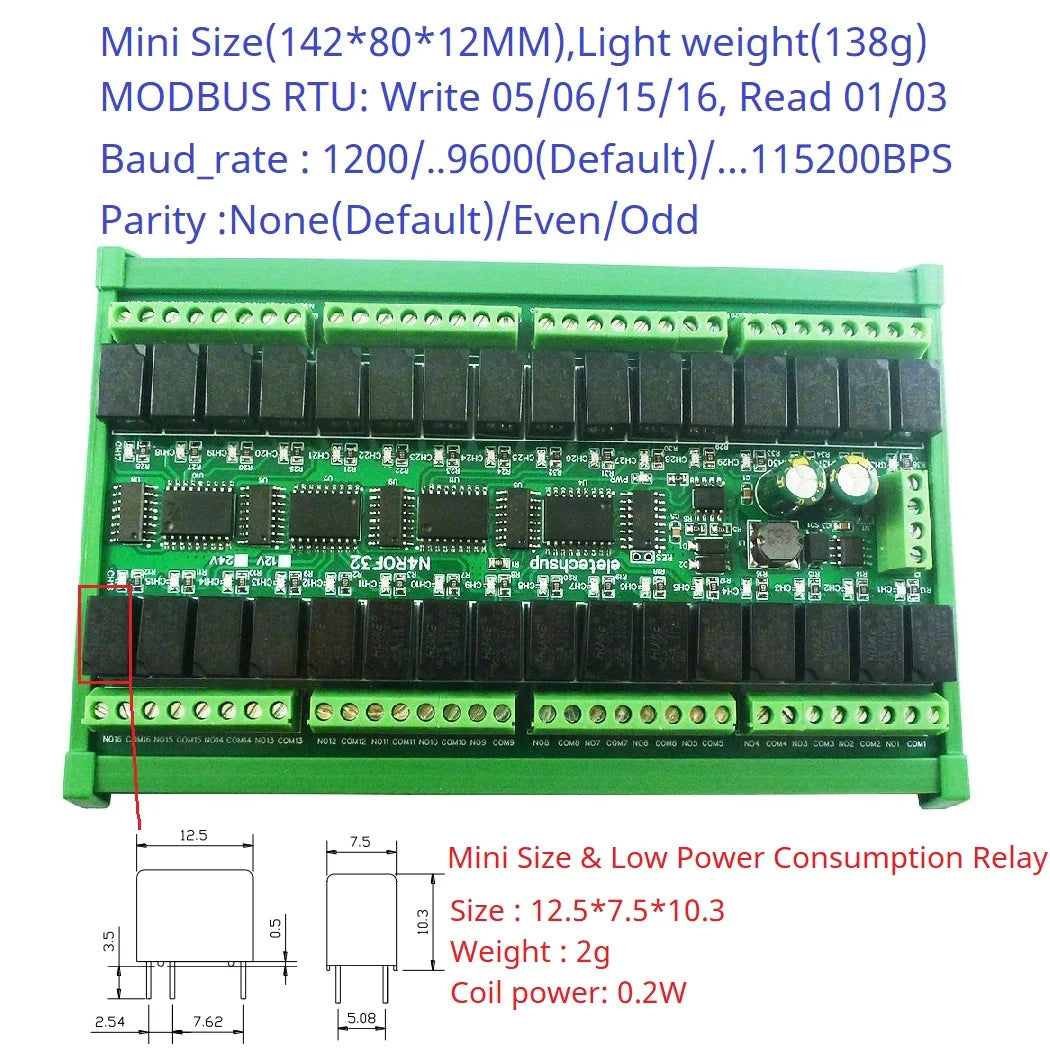

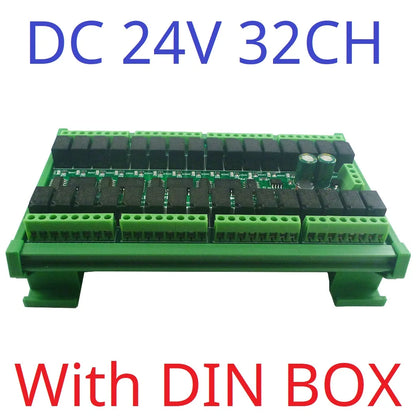

11Size : 142*80*12MM(Only Board);145*88*36MM(With DIN Box);
12 Weight : 138g(Only Board),238g(With DIN Box)
13 Maximum load: 2A/120VAC ,2A /24VDC(Resistive load within 2A or inductive load within 1A)
For more information, please contact me
Application
Application
PLC Output expansion board
HMI Configuration Software
Smart Home,Home Automation ,Wiser Home;
PTZ CCTV Camera
Security Monitoring
Identification system;
Mini Motor FW & BW
Automatic curtain control
LED Control
HMI Configuration Software
Smart Home,Home Automation ,Wiser Home;
PTZ CCTV Camera
Security Monitoring
Identification system;
Mini Motor FW & BW
Automatic curtain control
LED Control

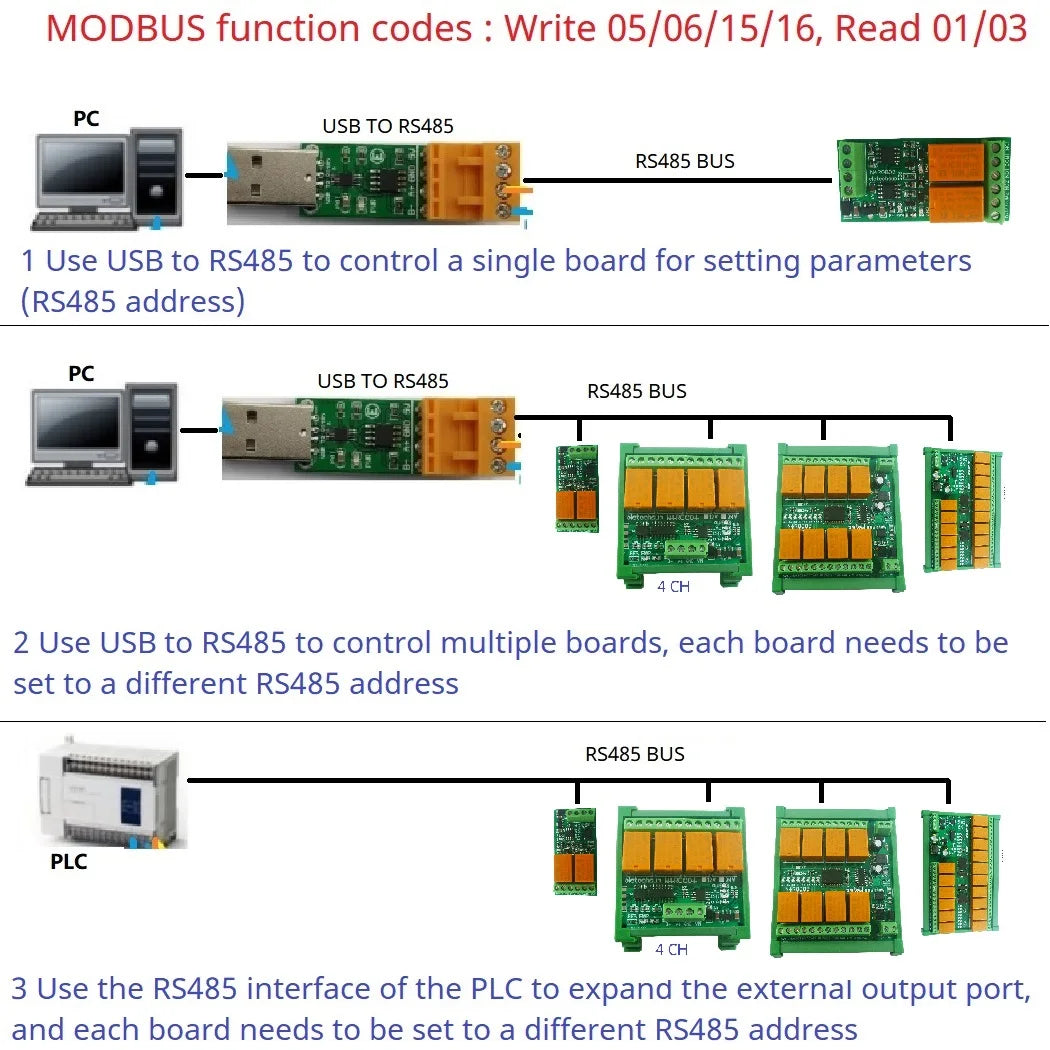

1 Use USB to RS485 to control a single board for setting parameters (RS485 address)
2 Use USB to RS485 to control multiple boards, each board needs to be set to a different RS485 address
3 Use the RS485 interface of the PLC to expand the external output port, and each board needs to be set to a different RS485 address
