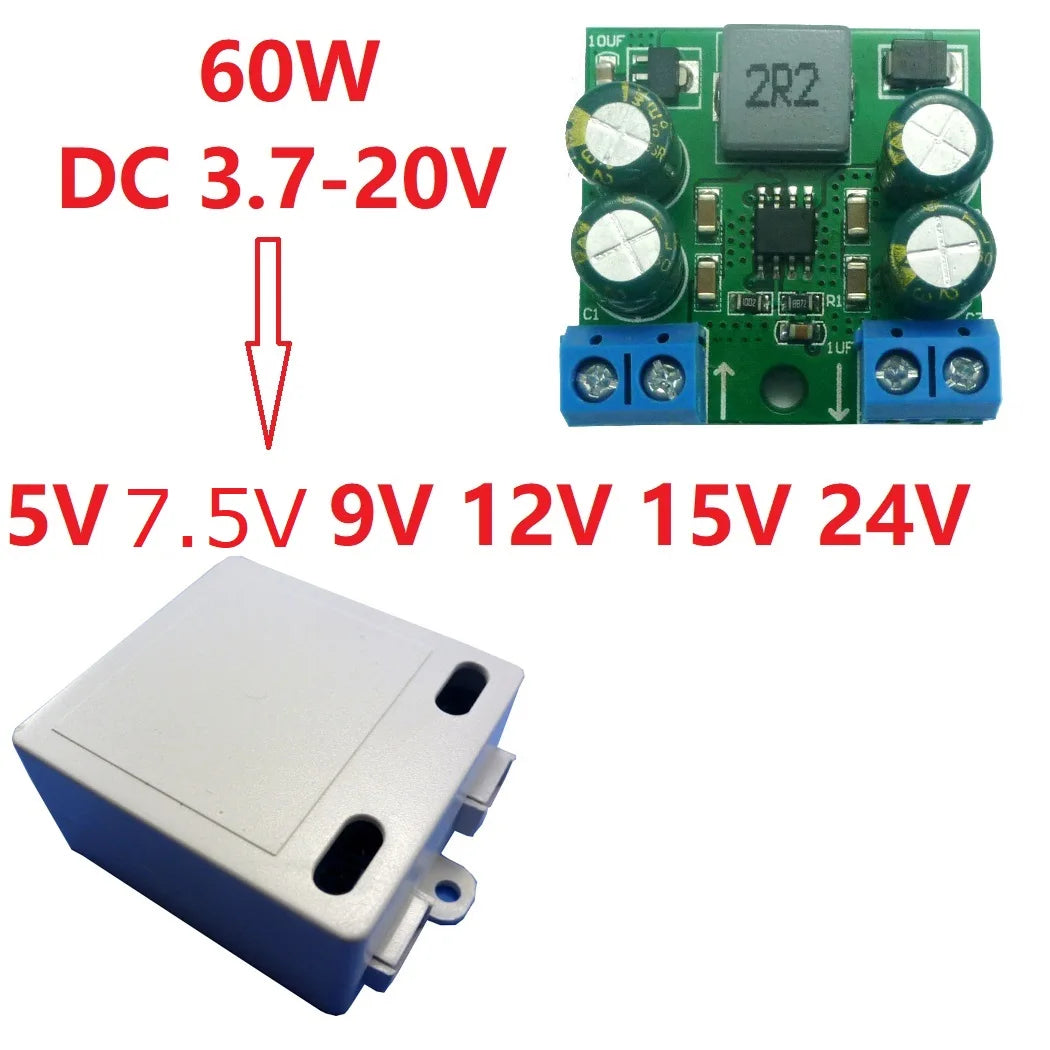

ND04BOTA 60W Step-Up DC-DC Converter Module 3.7-19V to 5V 7V5 9V 12V 15V 24V for Arduiuo NANO esp8266

ND04BOTA 60W Step-Up DC-DC Converter Module 3.7-19V to 5V 7V5 9V 12V 15V 24V for Arduiuo NANO esp8266

ND04BOTA_5V

1799 in stock

$1.99
$3.14 $1.99
Sale Sold out

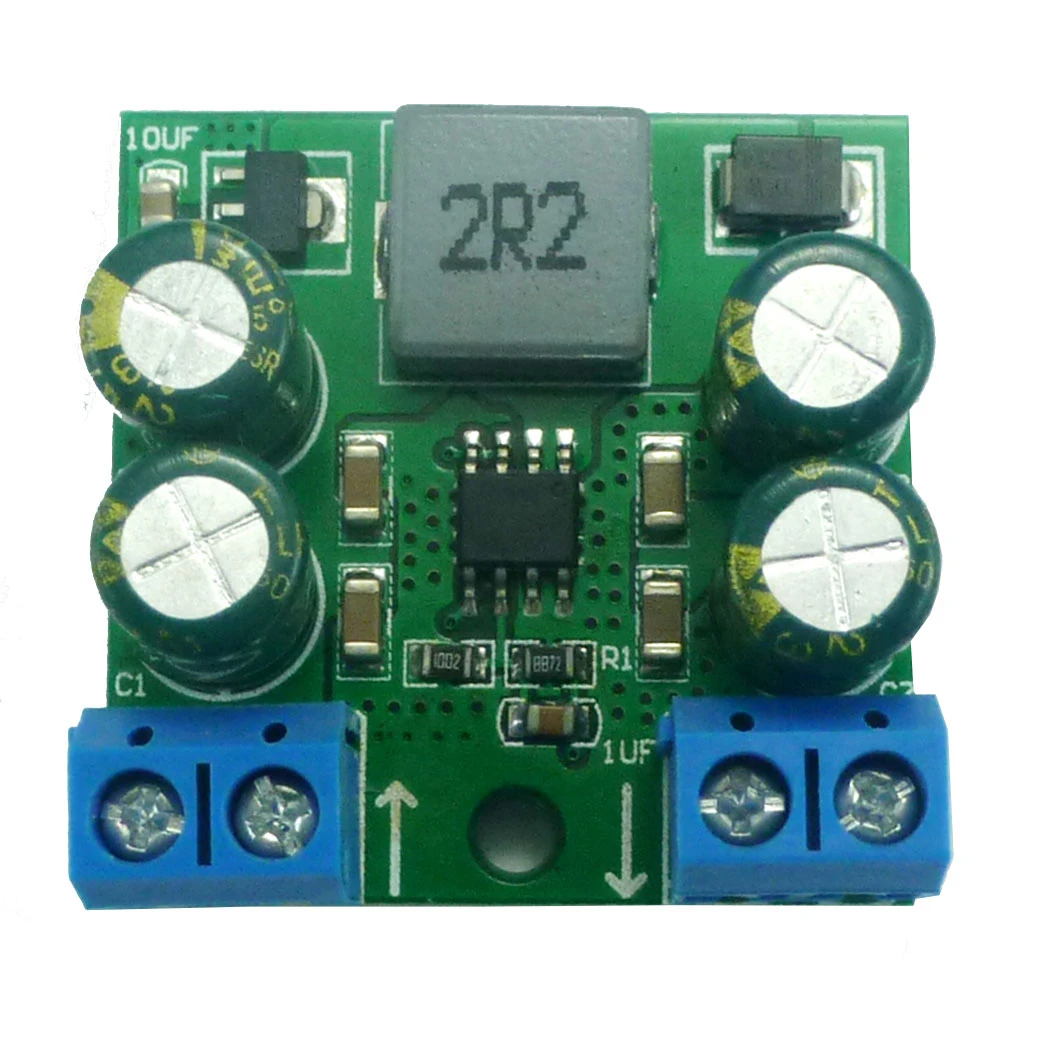

Product Name:
60W Step-Up DC-DC Converter Module 3.7-19V to 5V 7V5 9V 12V 15V 24V for Arduio NANO UNO esp8266

Packing list : 1 PCS 60W High-Power DC-DC Step-Up Boost Converter Board


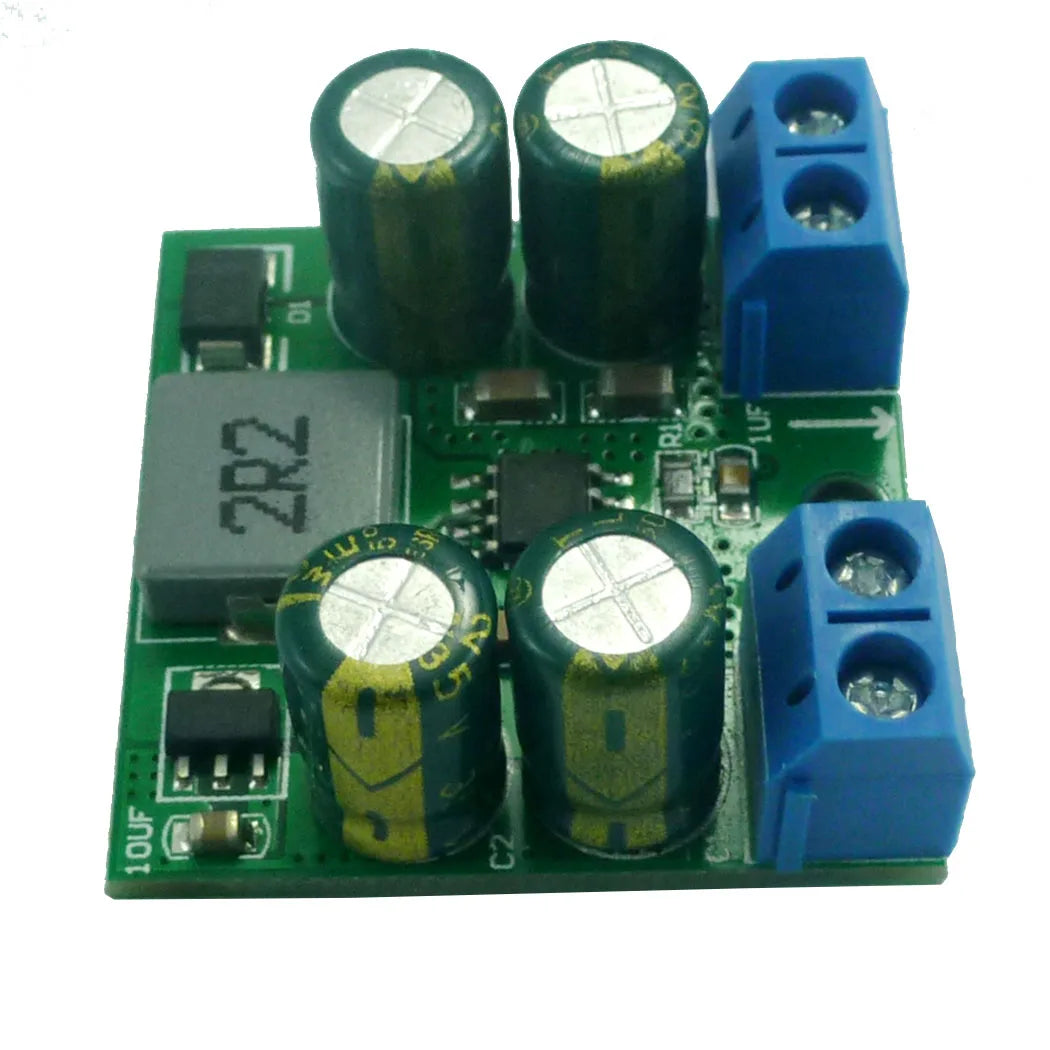

Features:

1. DC DC Boost Converter Module working frequency 600KHZ
2. Up to 92% Efficiency (usually is 75%-91%)
3. Quiescent current: about 1MA
4. Over Temperature shutdown, input under-voltage protection and short circuit protection.
5. Operating temperature range : -40~+85 Degrees Celsius
6. Operating temperature range : -40~+85 Degrees Celsius
7. Size:33mm*33mm*14mm
8. Weight:13.6g

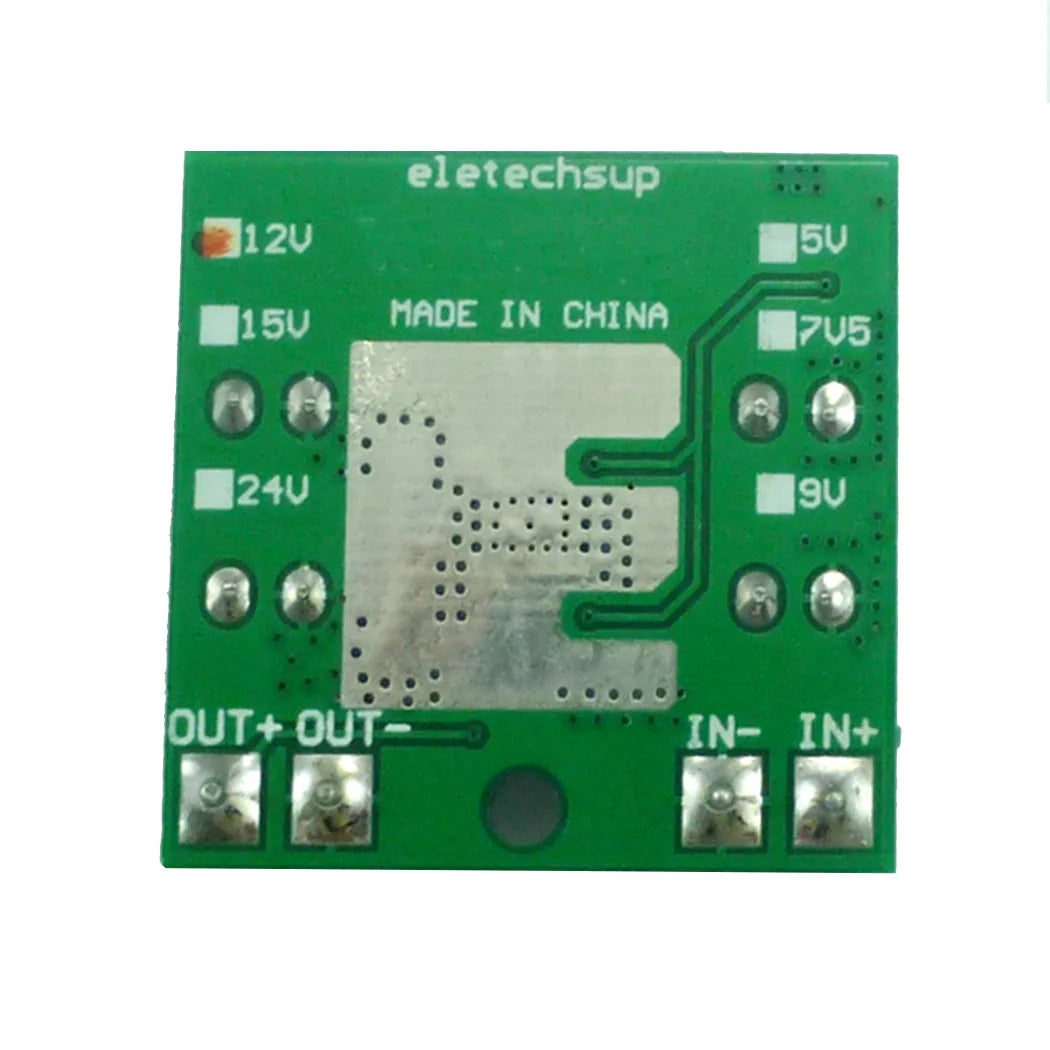

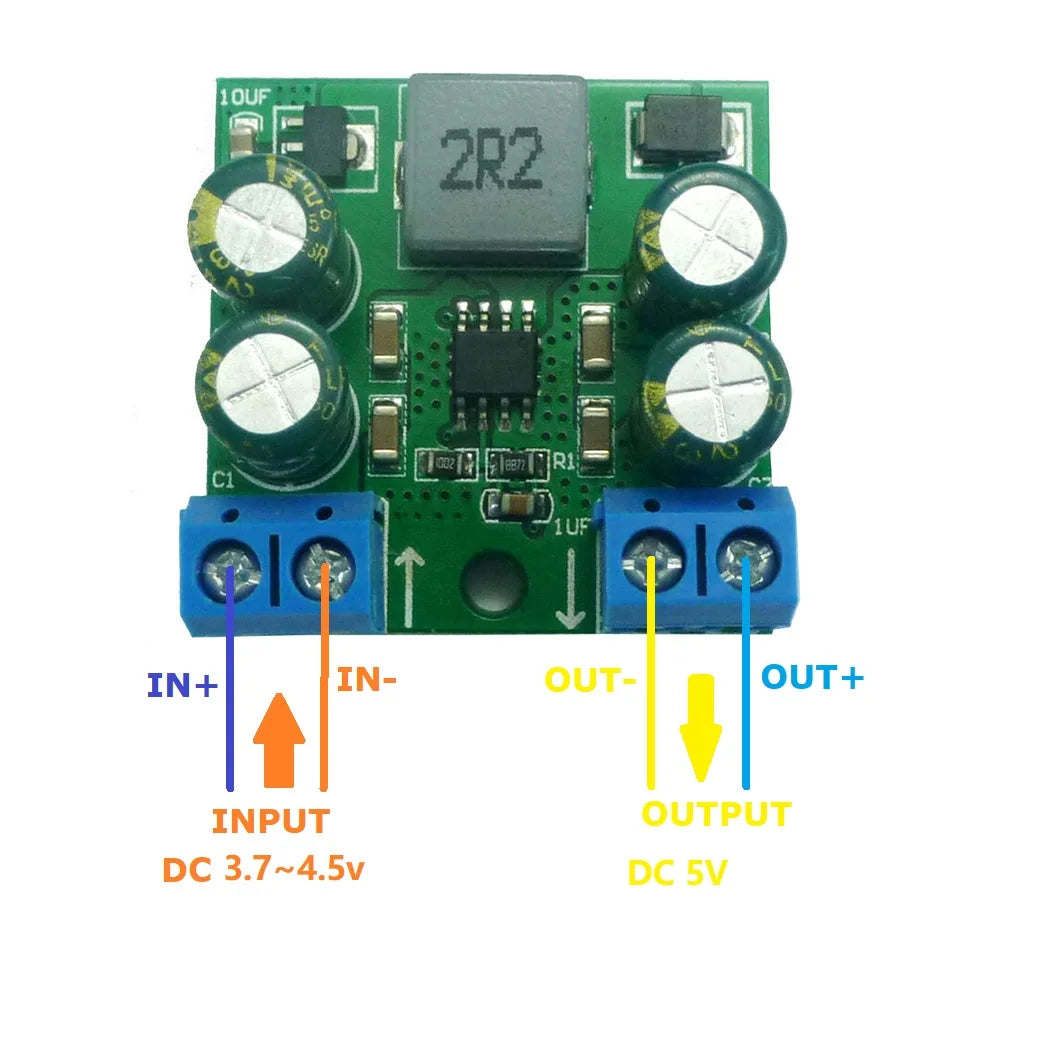

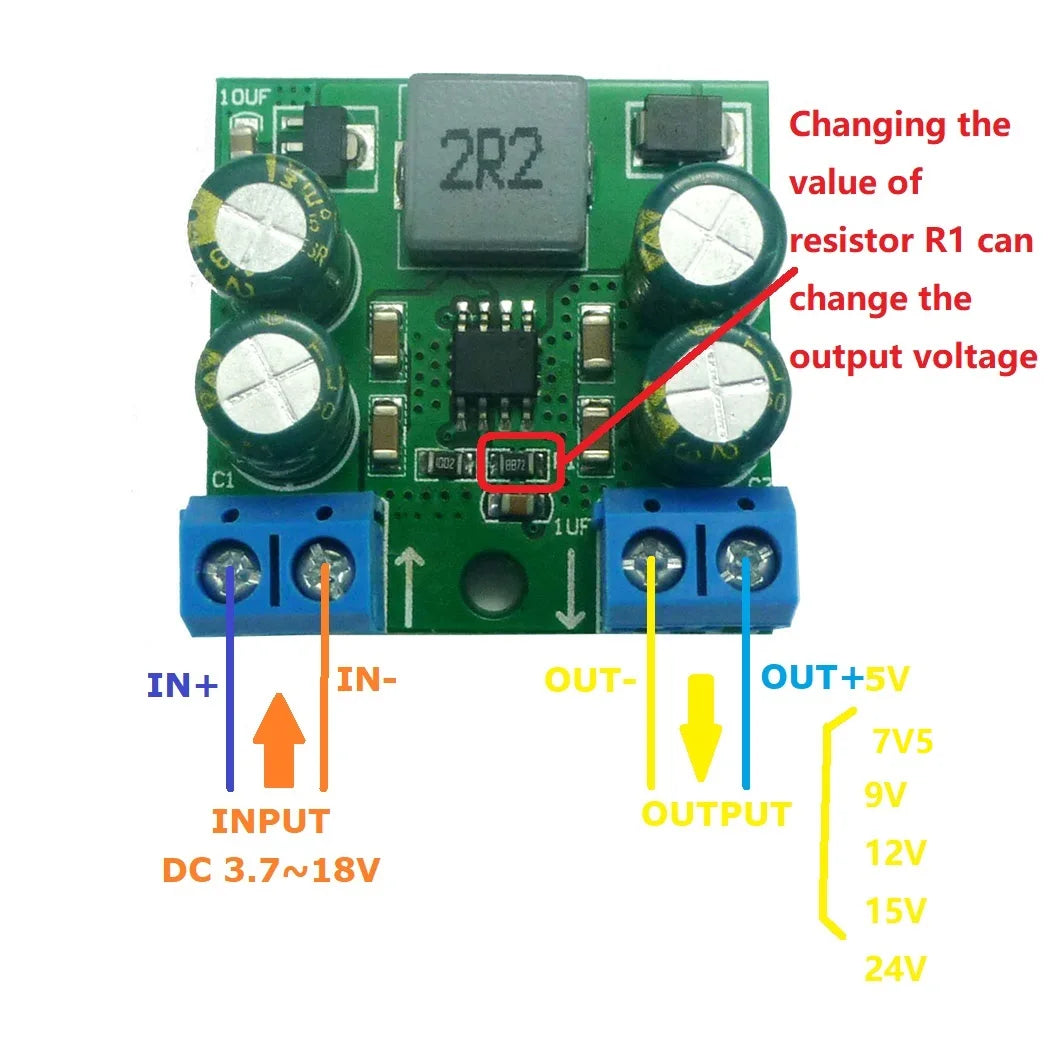

OUTPUT :5V
Measurement results are for reference only

Input Voltage

Input Current

Output Voltage

Output Current

3.7V

4.56A

5V

3.00A

4.2V

4.00A

5V

3.00A

4.5V

4.40A

5V

3.50A

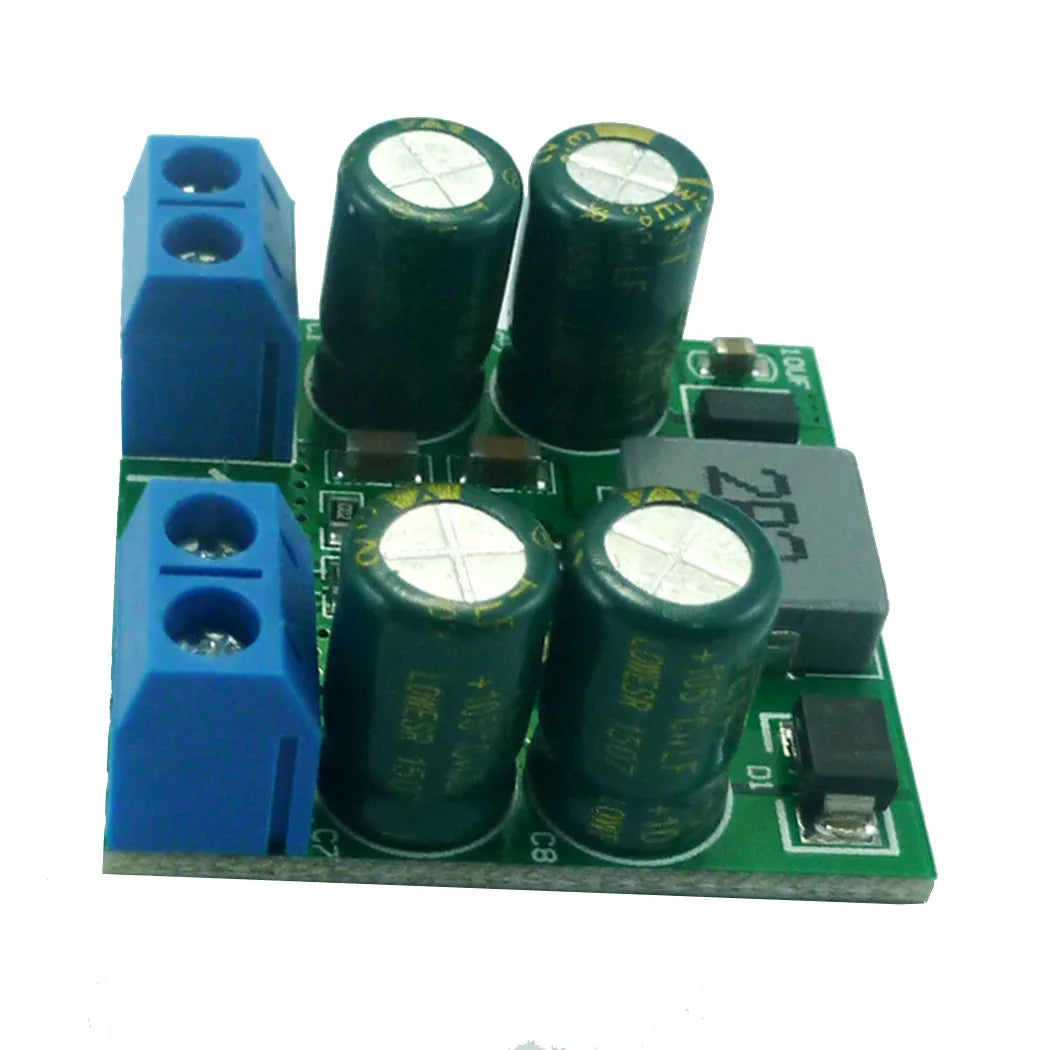

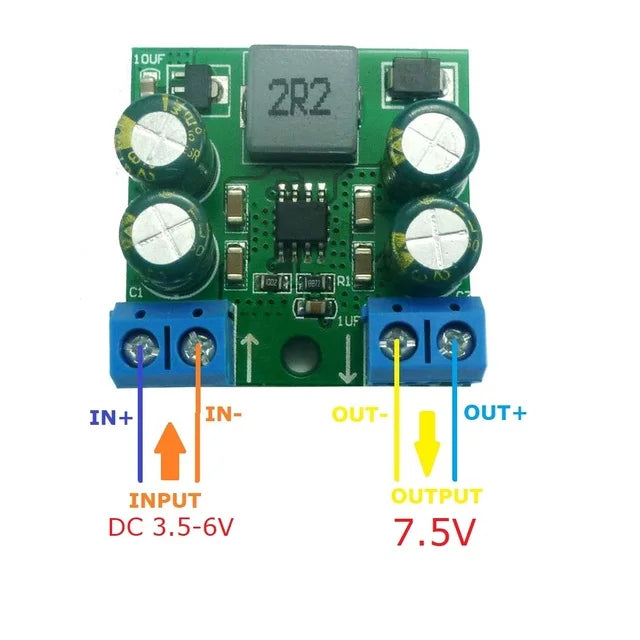

OUTPUT:7.5V
Measurement results are for reference only

Input Voltage

Input Current

Output Voltage

Output Current

3.7V

5.90A

7.5V

2.4A

4.2V

4.90A

7.5V

2.4A

4.5V

5.00A

7.5V

2.64A

5V

5.46A

7.5V

3.2A



OUTPUT:9V
Measurement results are for reference only

Input Voltage

Input Current

Output Voltage

Output Current

3.7V

5.80A

9V

2.00A

4.2V

6.40A

9V

2.50A

4.5V

6.60A

9V

2.80A

5V

7.50A

9V

3.50A

6V

6.90A

9V

4.00A

7.5V

6.70A

9V

5.00A

OUTPUT:12V
Measurement results are for reference only

Input Voltage

Input Current

Output Voltage

Output Current

3.7V

5.90A

12V

1.50A

4.2V

5.80A

12V

1.70A

4.5V

6.40A

12V

2.00A

5V

7.30A

12V

2.50A

6V

7.00A

12V

3.00A

7.5V

7.30A

12V

4.00A

9V

6.60A

12V

4.50A

10V

6.50A

12V

5.00A

OUTPUT:15V

Measurement results are for reference only

Input Voltage

Input Current

Output Voltage

Output Current

3.7V

6.20A

15V

1.20A

4.2V

6.10A

15V

1.40A

4.5V

6.50A

15V

1.60A

5V

7.30A

15V

2.00A

6V

6.40A

15V

2.20A

7.5V

6.80A

15V

3.00A

9V

6.50A

15V

3.50A

10V

6.50A

15V

4.00A

12V

6.00A

15V

4.50A

OUTPUT :24V

Measurement results are for reference only

Input Voltage

Input Current

Output Voltage

Output Current

9V

4.90A

24V

1.62A

12V

4.40A

24V

2.00A

14.8V

4.20A

24V

2.42A

18V

4.30A

24V

2.85A

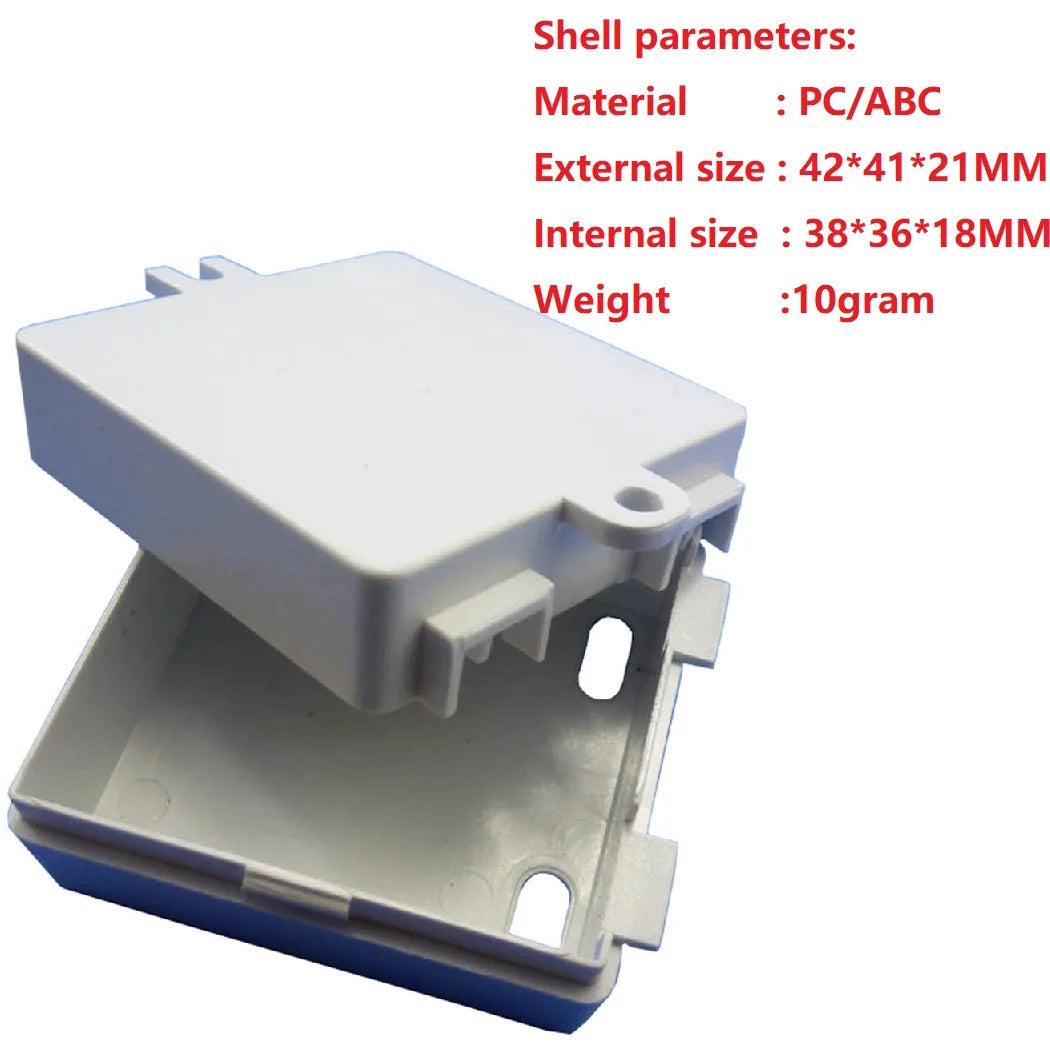

Shell parameters(Need to be purchased separately):

Material : PC/ABC
External size : 42*41*21MM
Internal size : 38*36*18MM
Weight :10gram
