ND0507UD 5V to 9V/12V USB A to DC 5.5*2.1mm Boost DC-DC Conerter Voltage Step-up Cable for Arduiuo MEGA2560 Wifi Router Mobile Power
ND0507UD 5V to 9V/12V USB A to DC 5.5*2.1mm Boost DC-DC Conerter Voltage Step-up Cable for Arduiuo MEGA2560 Wifi Router Mobile Power
SKU:ND0507UD_9V
996 in stock
Regular price
$2.99
Regular price
$2.99
Sale price
$2.99
Unit price
per
Couldn't load pickup availability

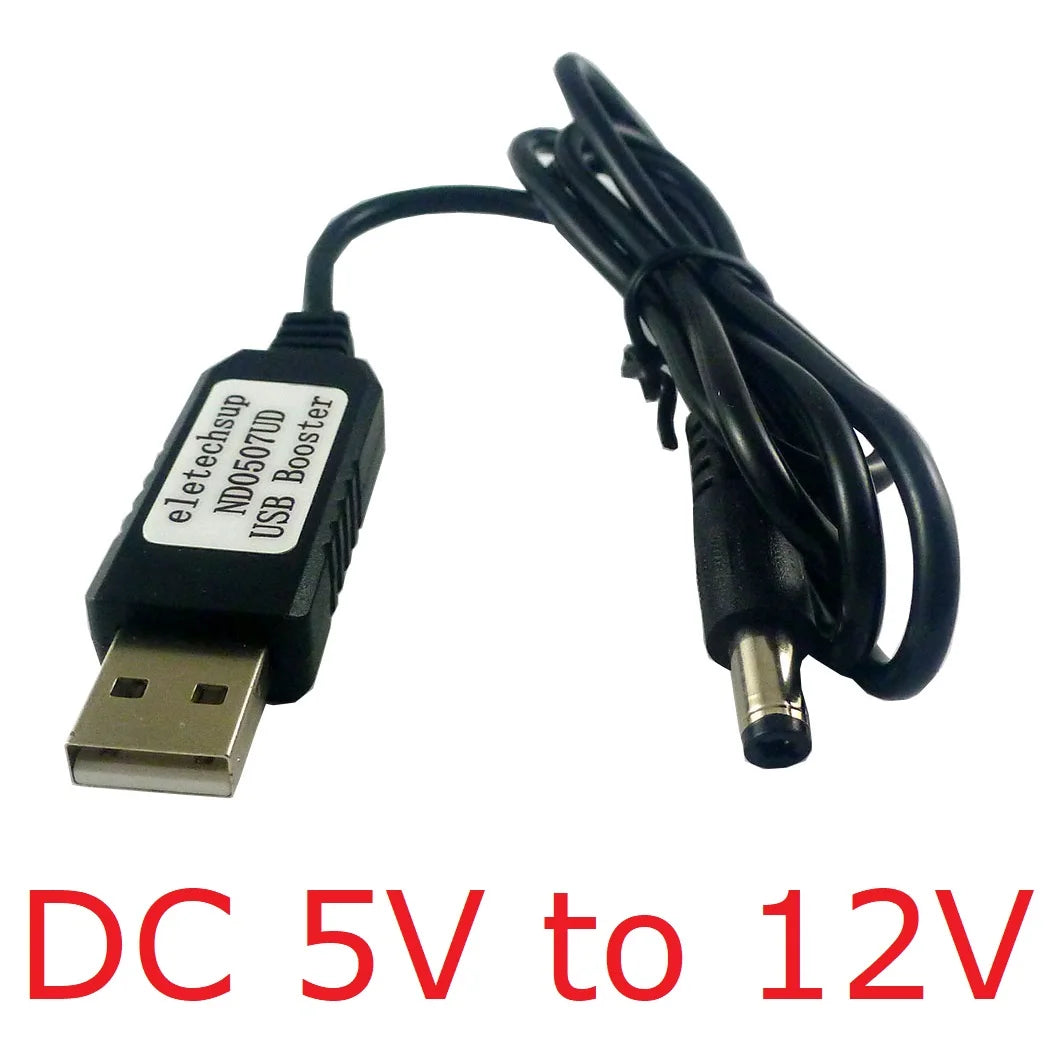

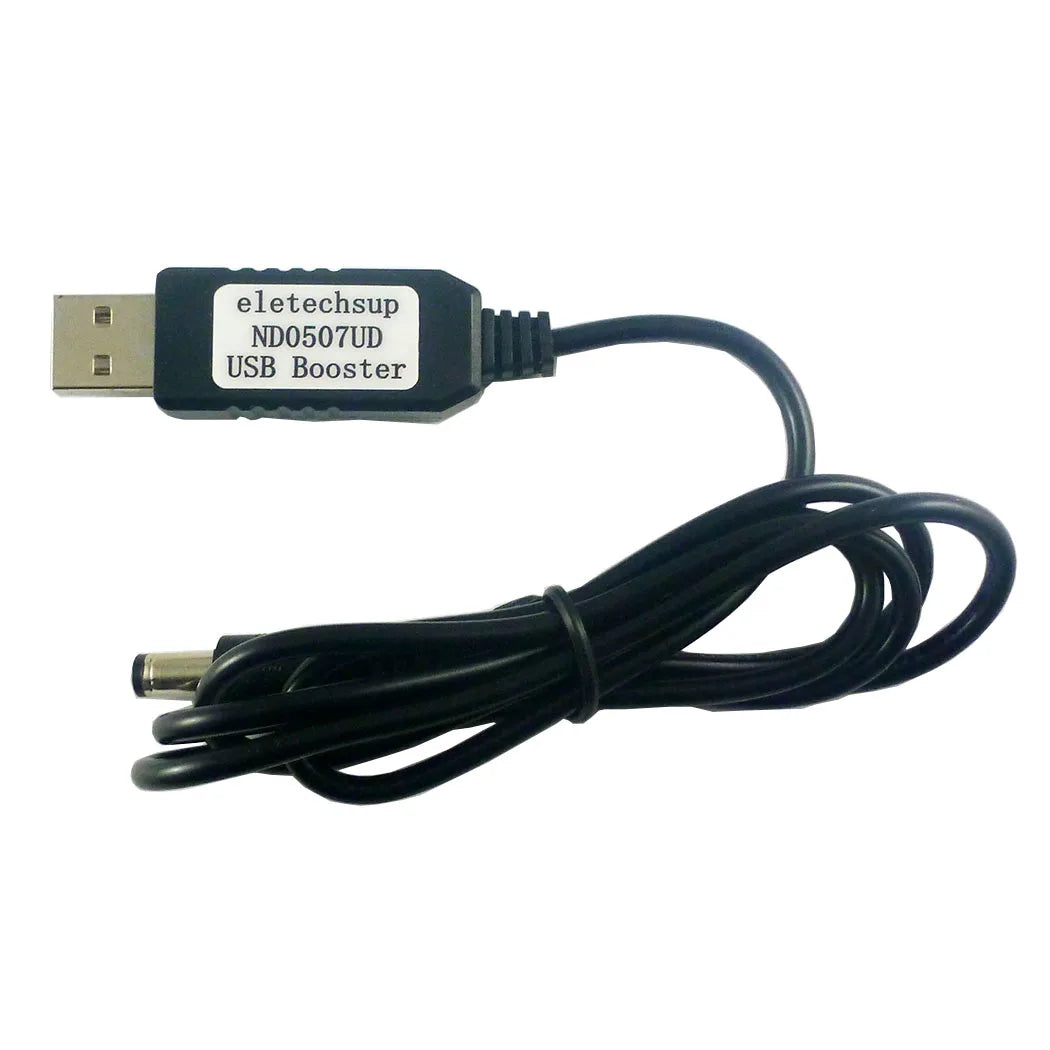

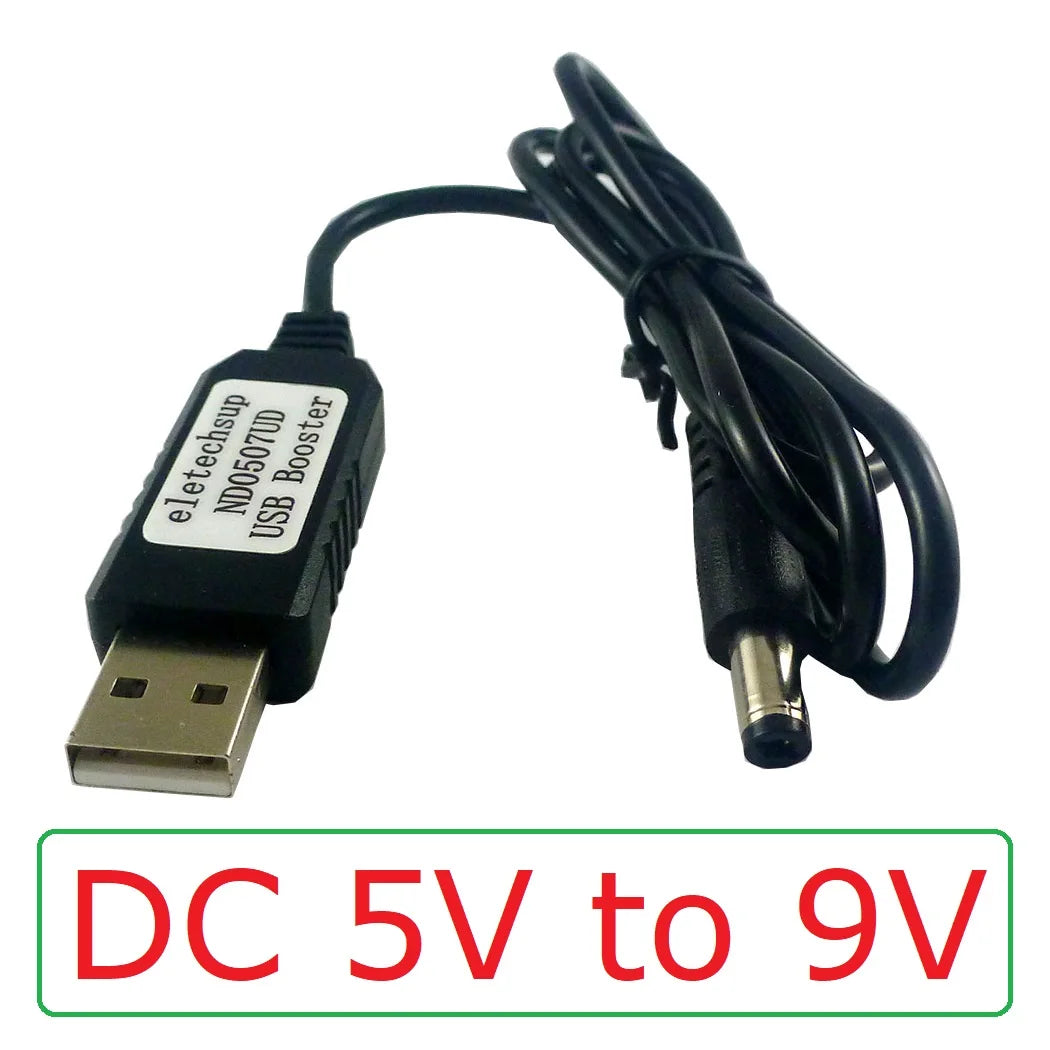

Product Name: 5V to 9V/12V USB A to DC 5.5*2.1mm Boost DC-DC Conerter Voltage Step-up Cable for Arduiuo MEGA2560 Wifi Router Mobile Power
Packing list (Please select the product you need):
1 USB A to DC 5.5x2.5 DC 5V TO 9V/12V Boost DC-DC Converter
Description :
Input Voltage : DC 5V (4.5-5.5V)
Output Voltage : DC 9V/12V
No-load power consumption : <3mW
Maximum load : 7W(IN DC 5V/2A)
Operating Temperature : -40~85 Celsius

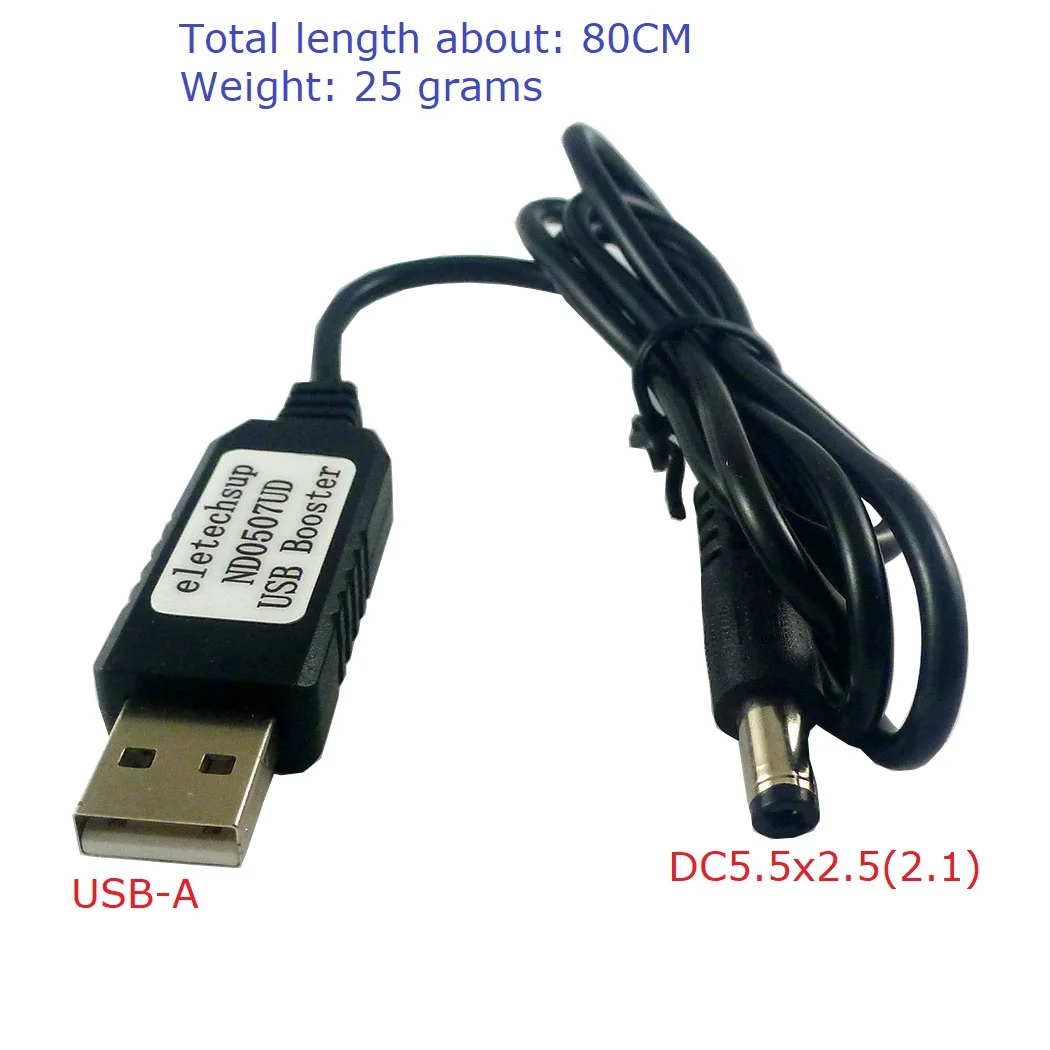

Input Interface : USB Male A
Output Interface: DC 5.5*2.5(2.1)mm
Full length : 0.8~1Meter
Weight : about 25g
This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself
Typical application:
Output Voltage : DC 9V/12V
No-load power consumption : <3mW
Maximum load : 7W(IN DC 5V/2A)
Operating Temperature : -40~85 Celsius
Input Interface : USB Male A
Output Interface: DC 5.5*2.5(2.1)mm
Full length : 0.8~1Meter
Weight : about 25g
This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself

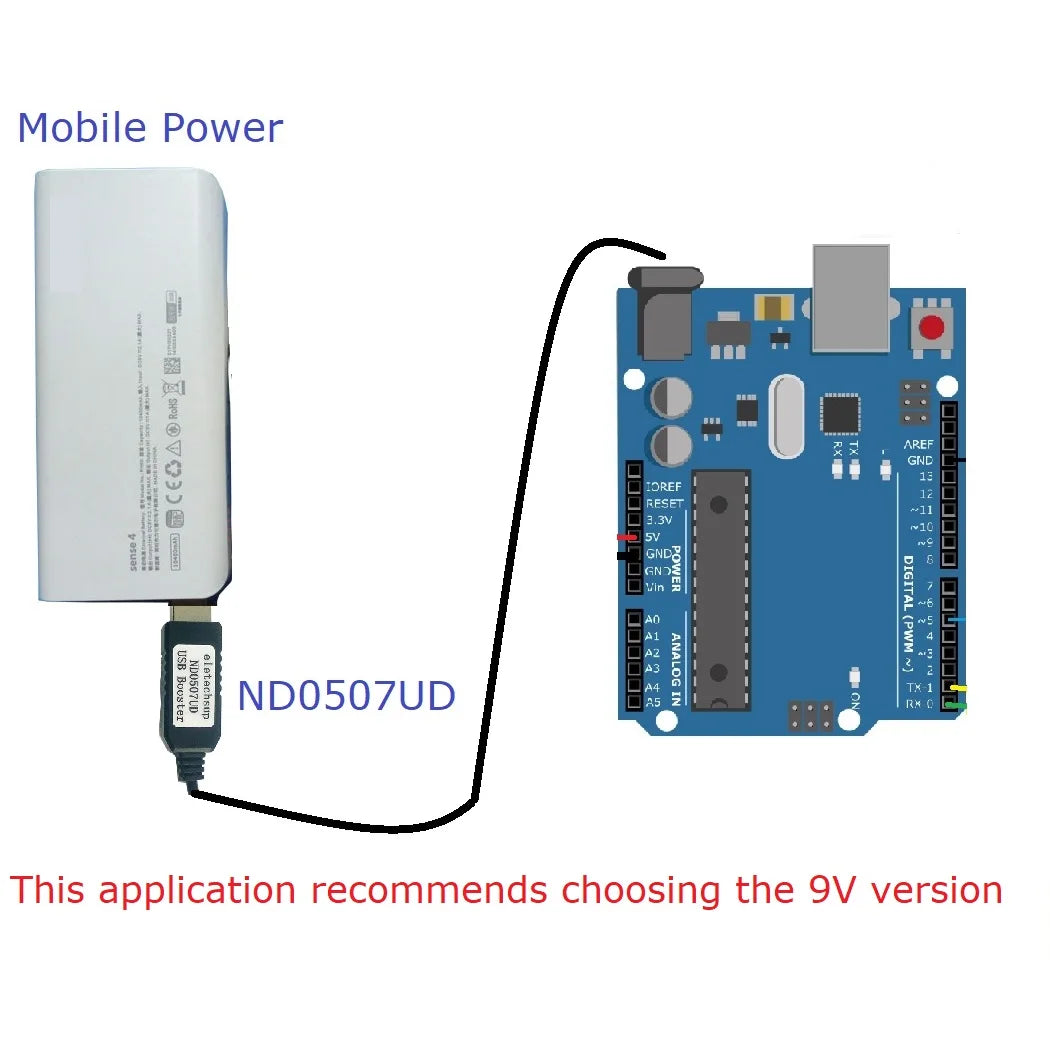

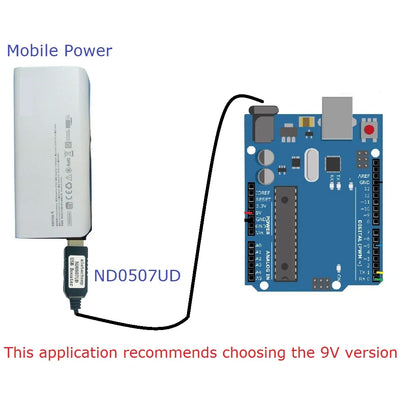

Typical application:
Thermostatic Controls
Industrial Systems
Consumer Products

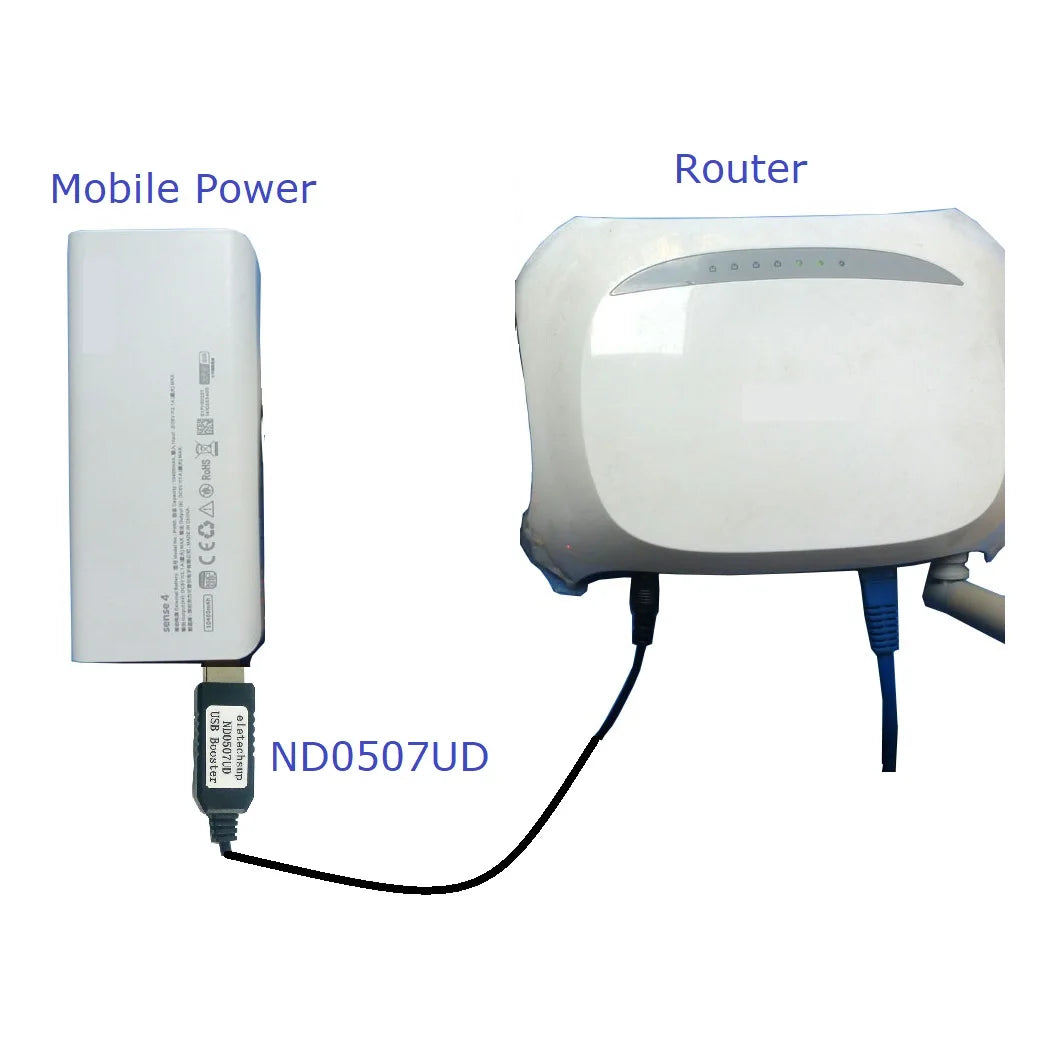

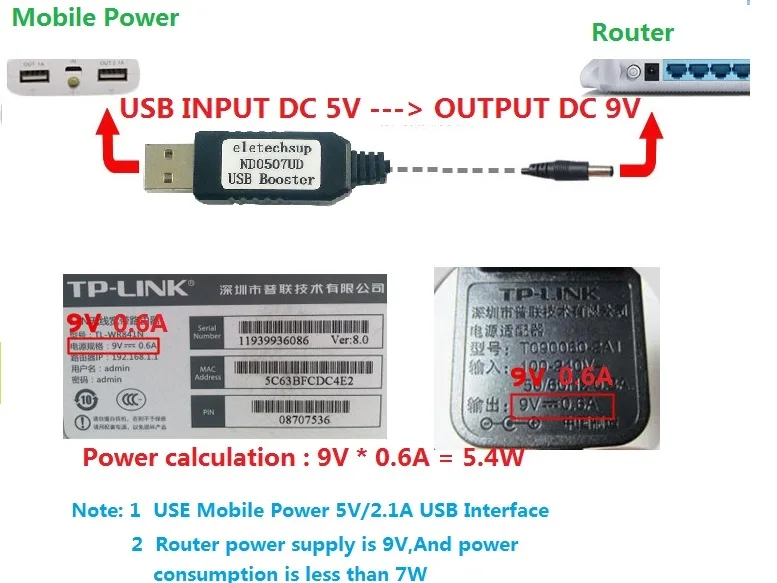

WIFI Router
Smart home, Home automation
for Arduiuo UNO MEGA2560 Power
