ND2A12MA 1Cell to 2-3Cell Battery Voltage Doubler DC-DC 4.2V 8.4V 12.6V Converter 3.3V 3.7V 4.2V to 5V 8.4V 12V 12.6V Voltage Booster

ND2A12MA 1Cell to 2-3Cell Battery Voltage Doubler DC-DC 4.2V 8.4V 12.6V Converter 3.3V 3.7V 4.2V to 5V 8.4V 12V 12.6V Voltage Booster

ND2A12MA_5V

1000 in stock

$1.99
$2.69 $1.99
Sale Sold out

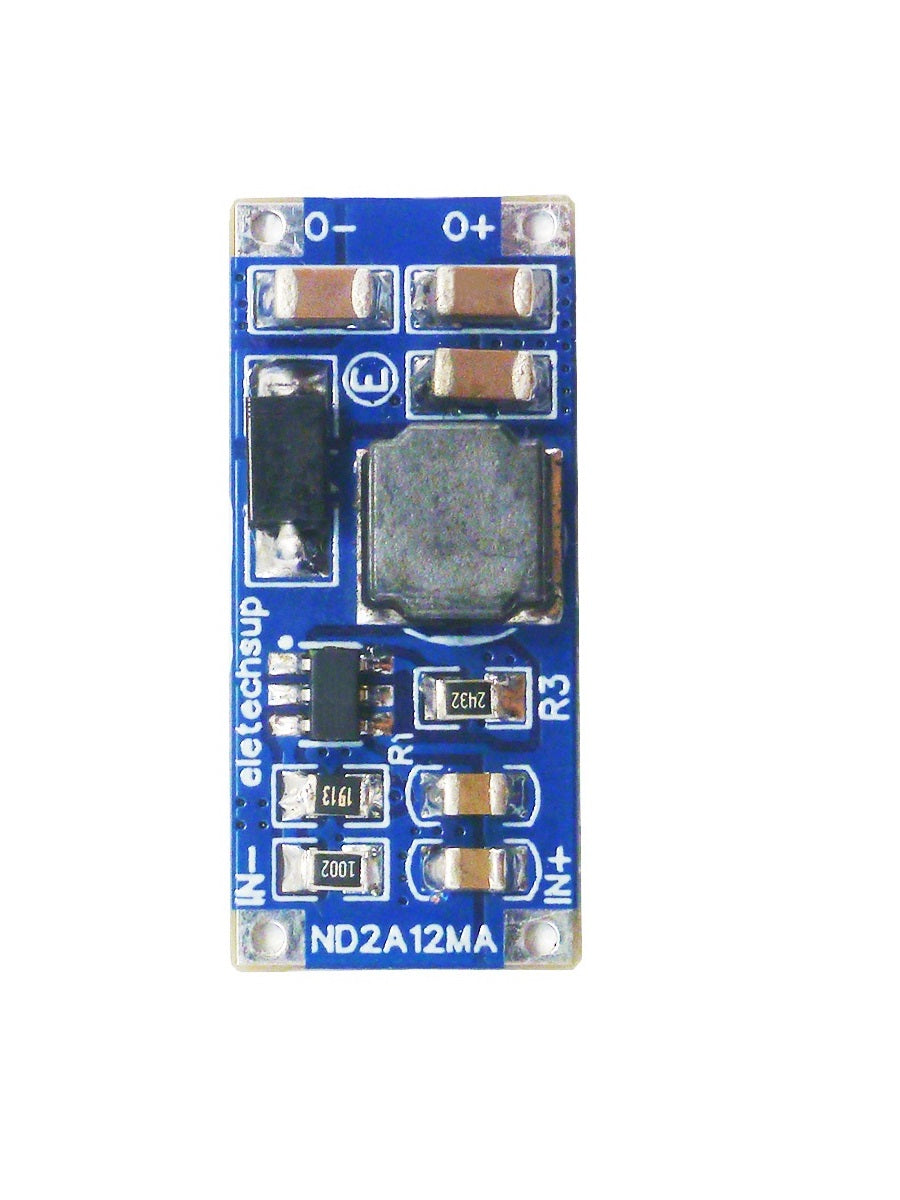

ND2A12MA is a multi-protection high-efficiency DC-DC boost converter. The 0.5-2.5A Current Limit Program function can be used as a constant current driver for LEDs and can also charge lithium batteries.

Description:

DC DC Boost Converter Module working frequency 1MHZ.
Efficiency up to 93% (usually is 86%-91%)
Quiescent current : 190UA.

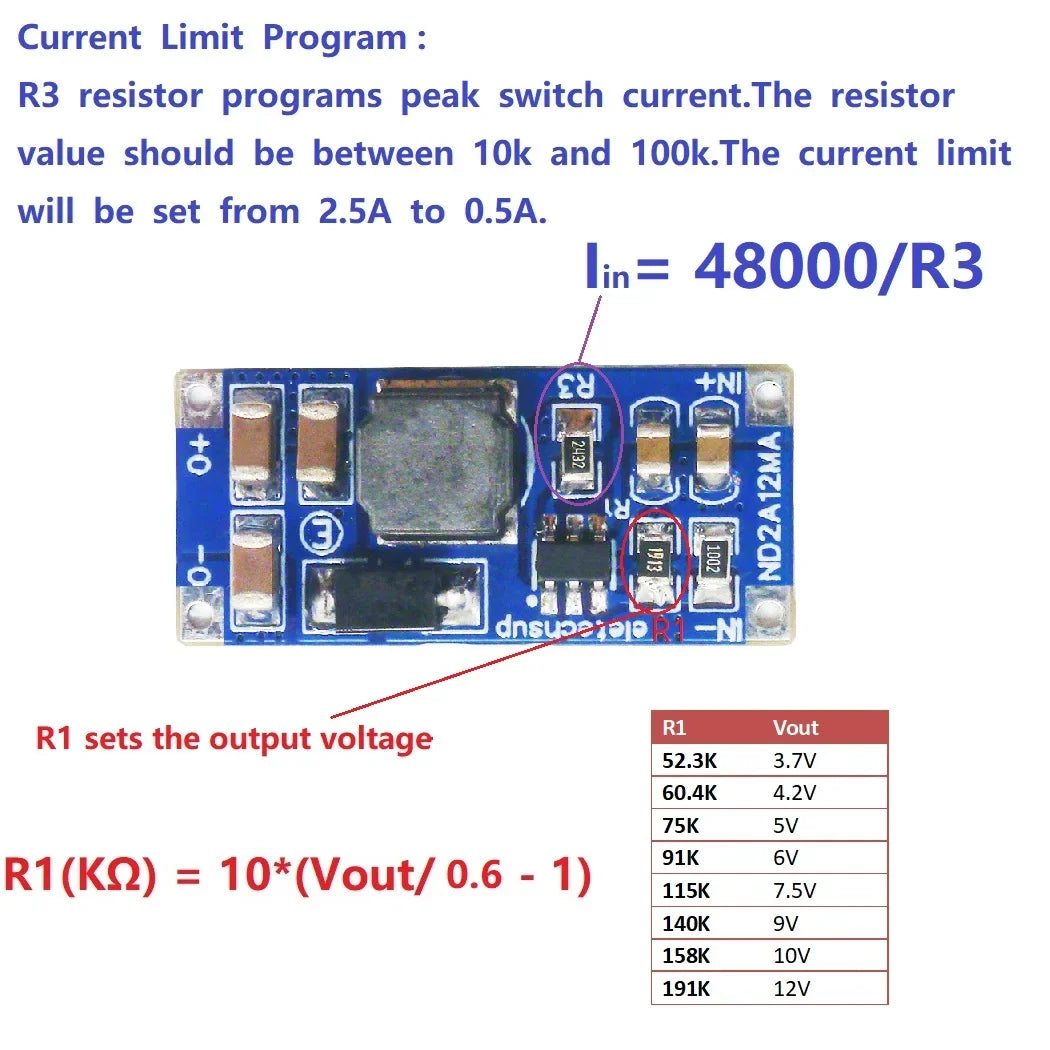

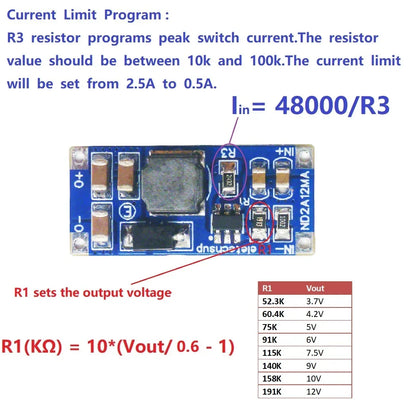

Current Limit Program(0.5-2.5A,Default 2.4A)
In a well-ventilated and heat-dissipating environment, the maximum output power can reach 8-9W
Operating temperature range : -40~+85 Degrees Celsius
Storage temperature range : -65~+150 Degrees Celsius
Size : 24.5 x 11x 5.8mm
Weight : 1.6g(with Pin)



Protection :


Under Voltage Lockout: 2.2V
OTP Temperature: 150℃
Overvoltage protection
Short circuit protection



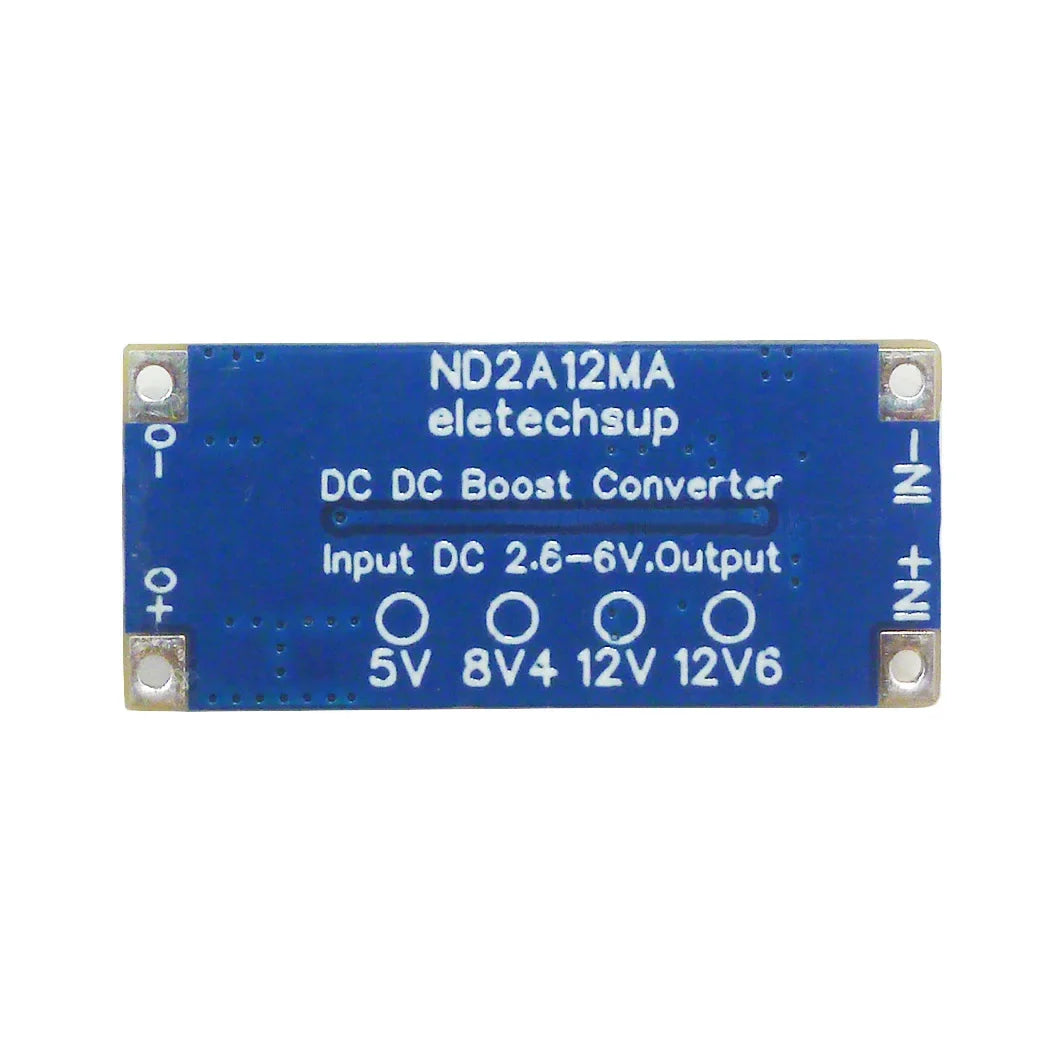

Pin description:

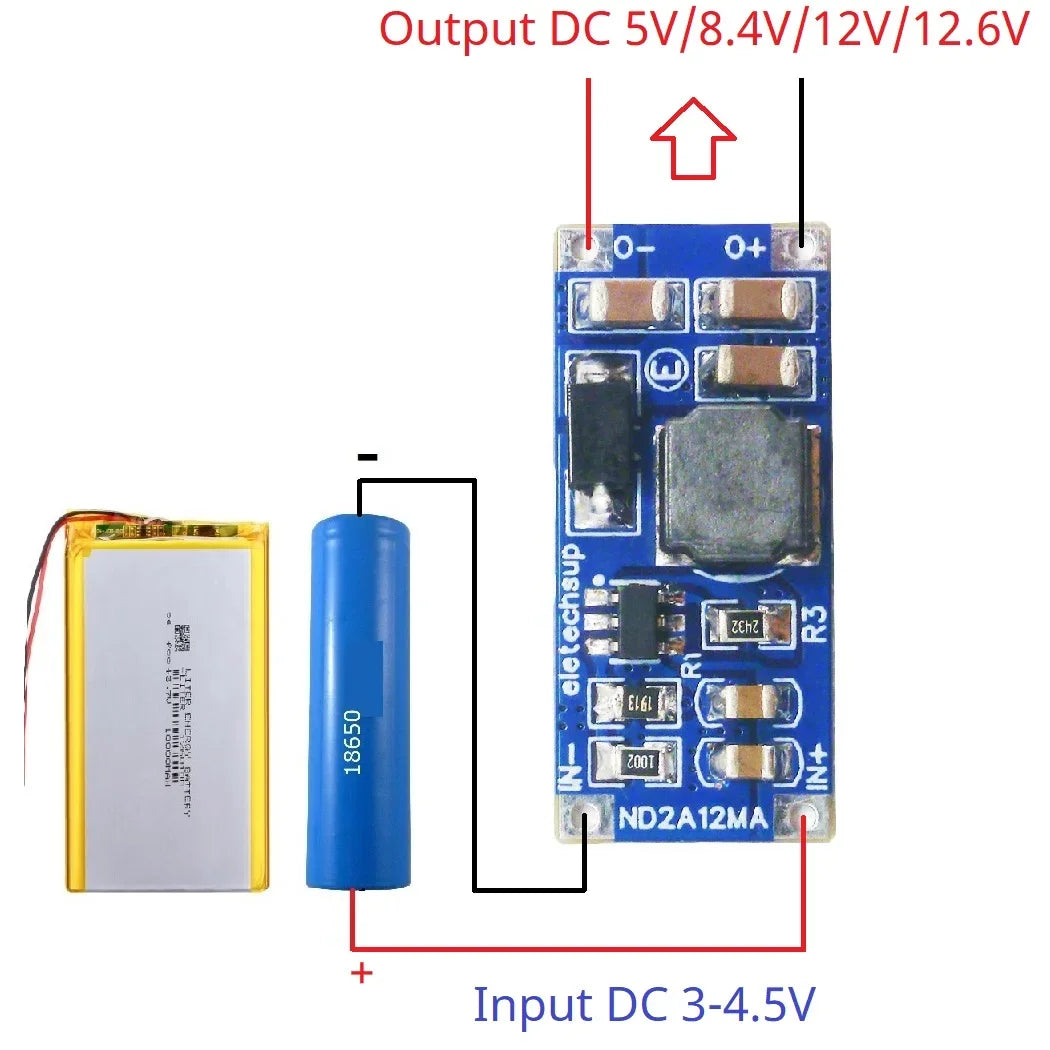

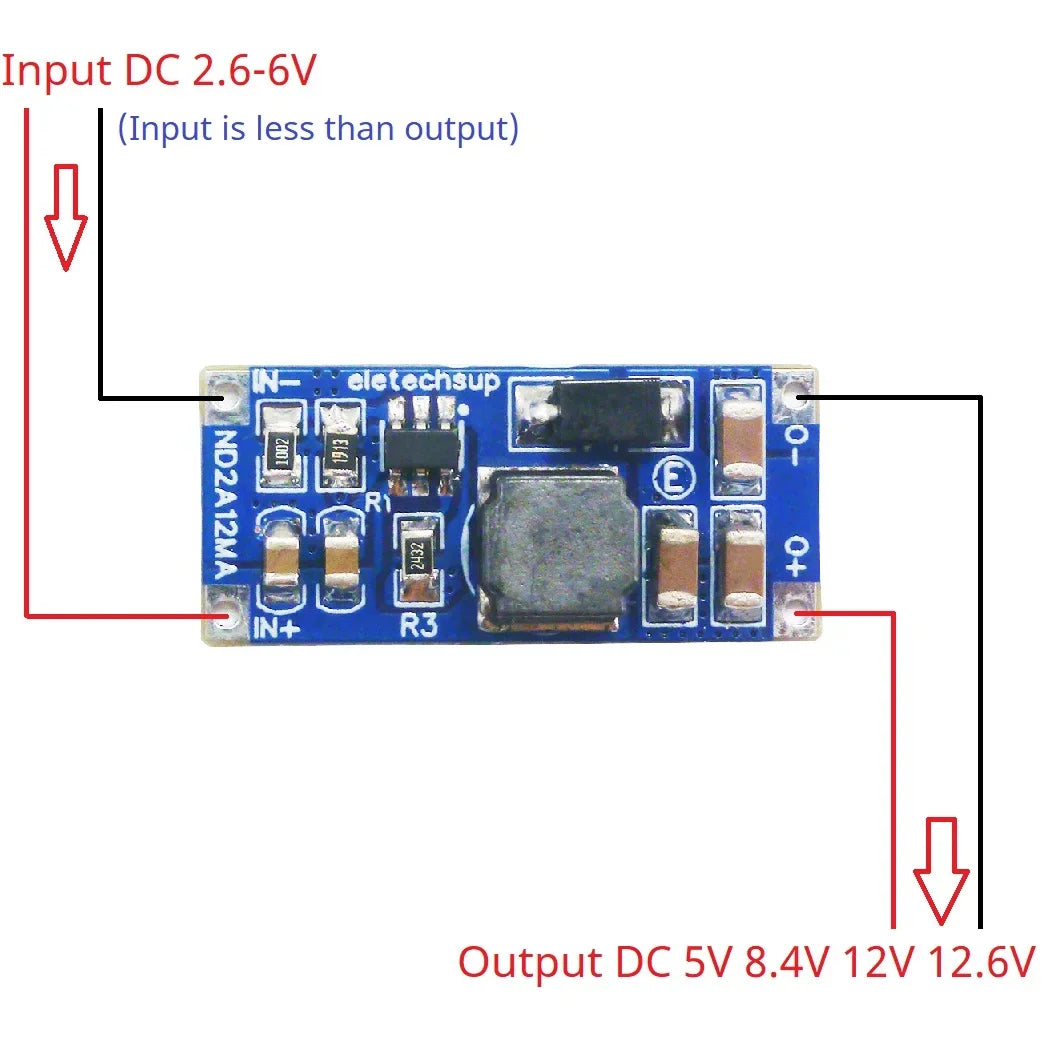

IN+: Input positive(+)

IN-: Input positive(-)
O+: Output positive(+)
O-: Output positive(-)

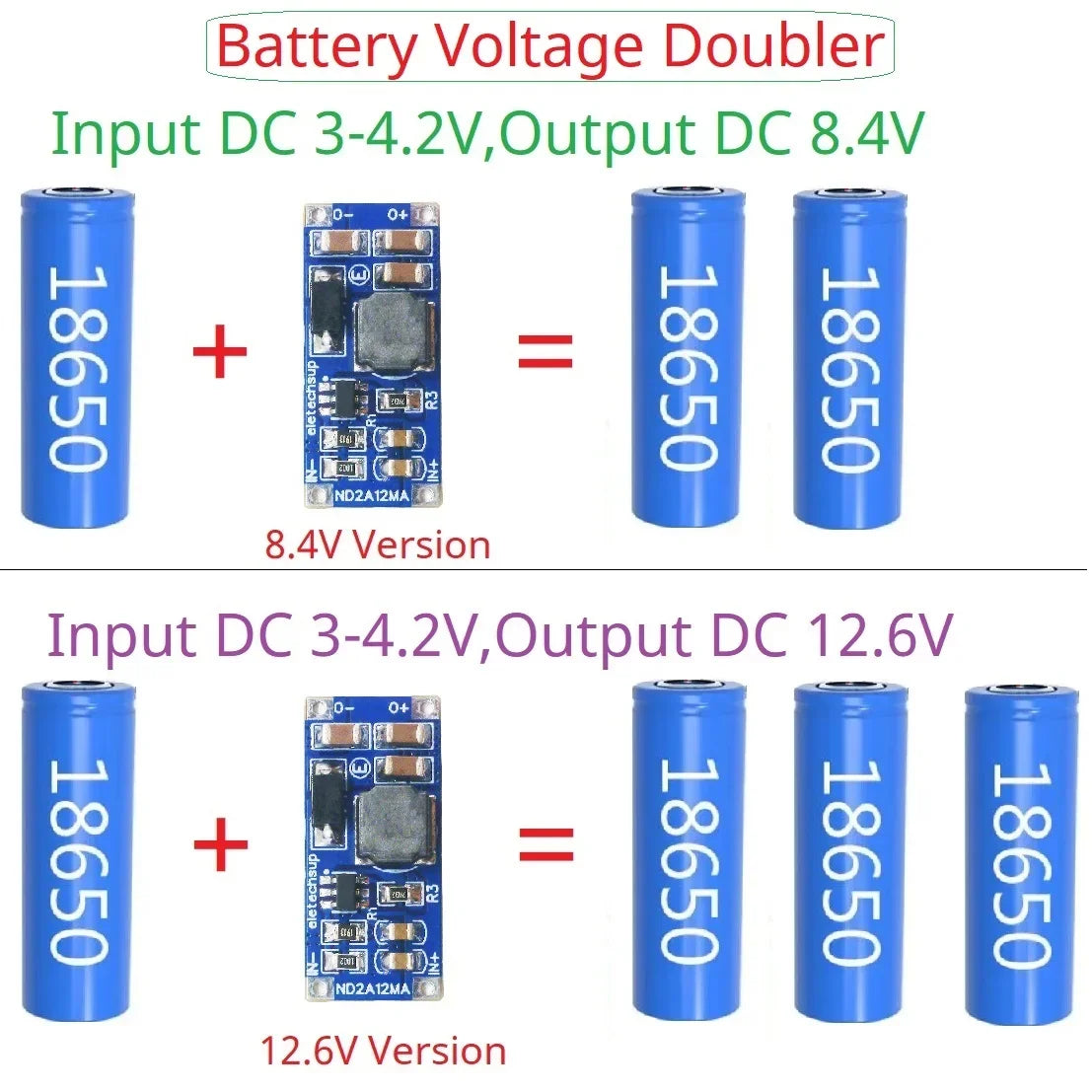

The following are the laboratory parameters for each version:

Test conditions: 25 degrees Celsius, directly measure the input and output voltages on the board.

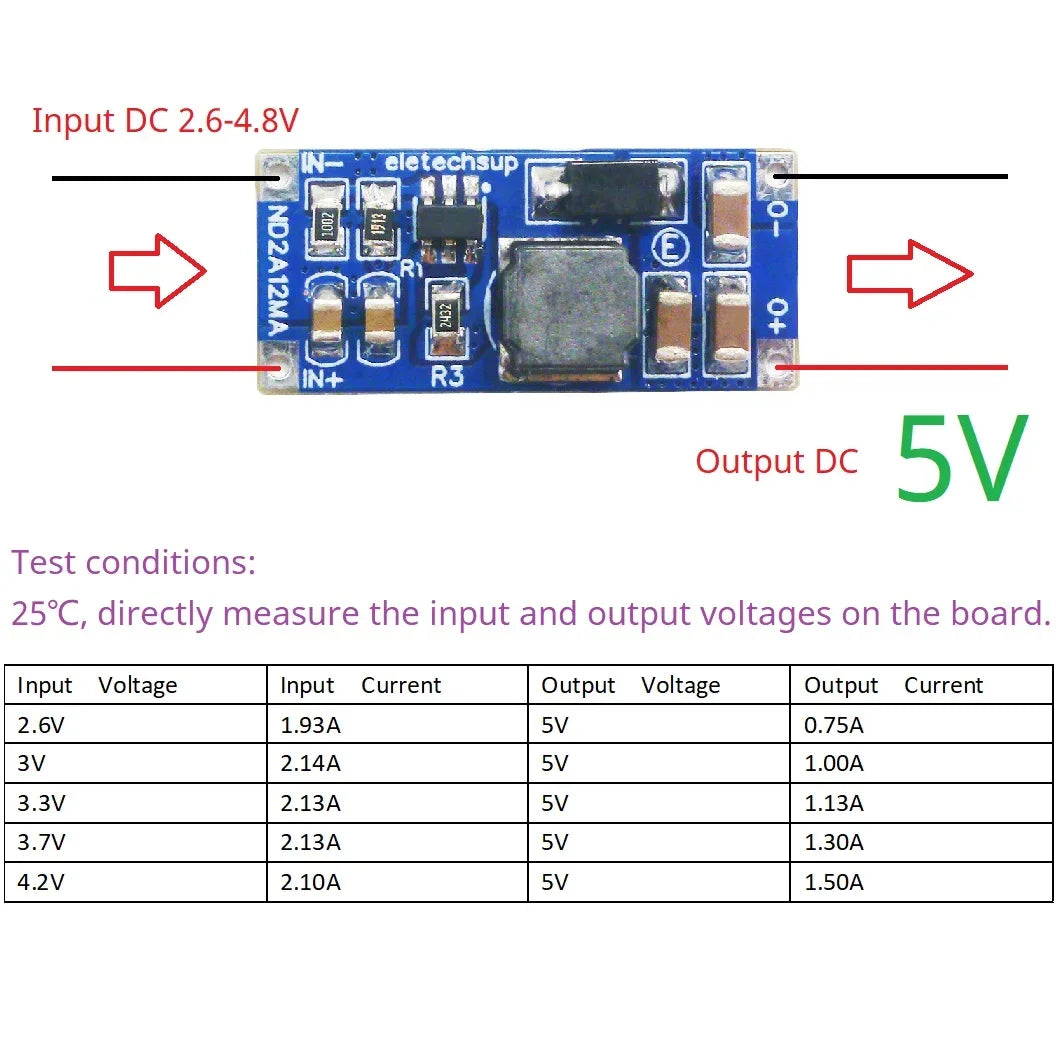

Output 5V :


Input voltage DC 2.6 ~ 4.8V,output DC 5.1V±2%


Maximum output : 5V/1.5A(See the table below for details)

Input DC 2.6/1.93A,Output DC 5V/0.75A

Input DC 3V/2.14A,Output DC 5V/1.00A

Input DC 3.3V/2.13A,Output DC 5V/1.13A

Input DC 3.7V/2.13A,Output DC 5V/1.30A

Input DC 4.2V/2.10A,Output DC 5V/1.50A

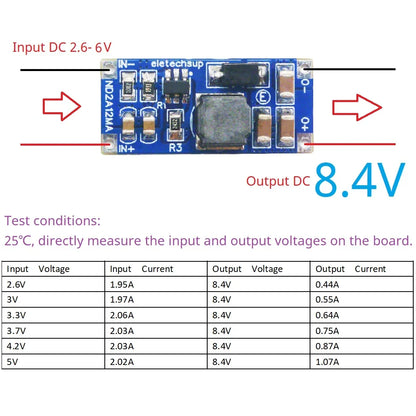

Output 8.4V :

Input voltage DC 2.6 ~ 5.5V,output DC 8.4V±2%
Maximum output : 8.4V/1A(See the table below for details)

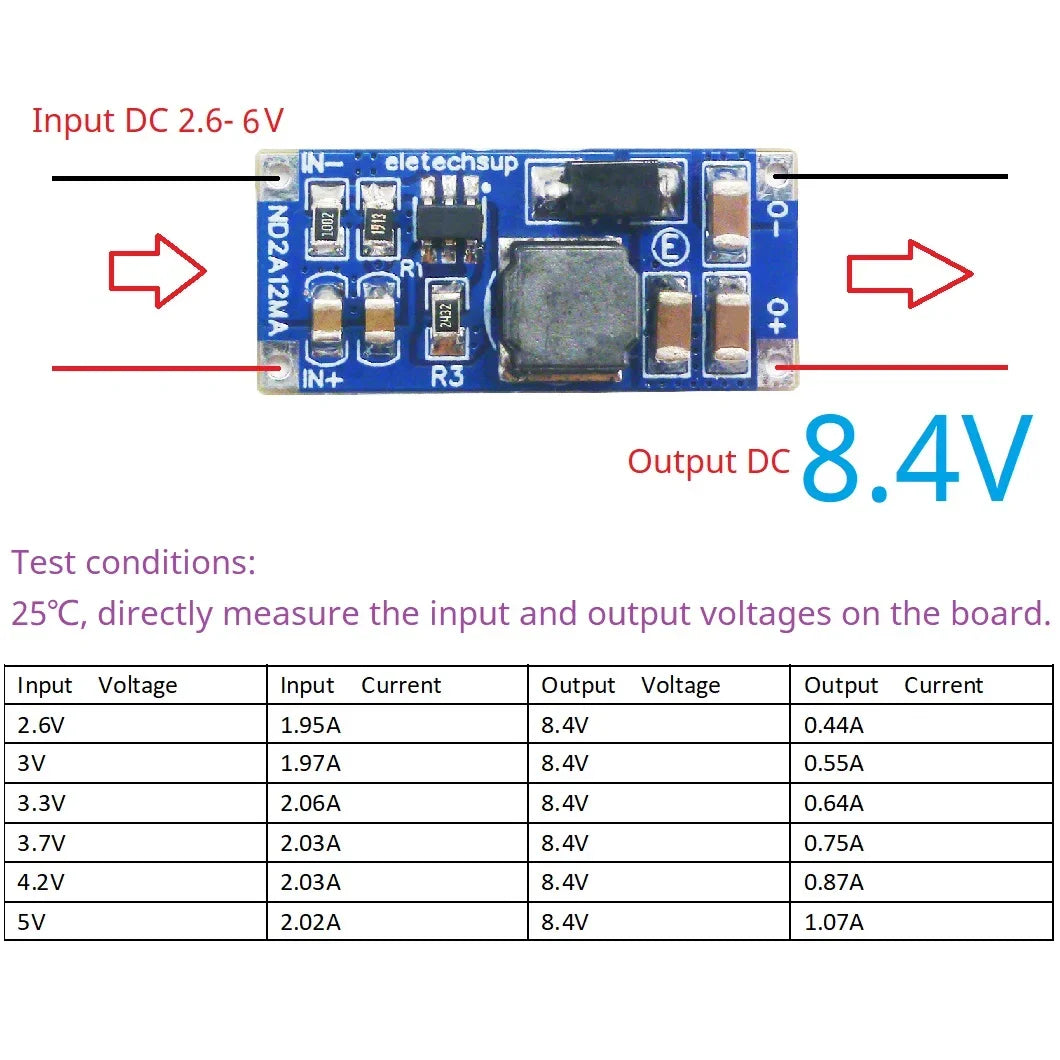

Input DC 2.6/1.95A,Output DC 8.4V/0.44A

Input DC 3V/1.97A,Output DC 8.4V/0.55A

Input DC 3.3V/2.06A,Output DC 8.4V/0.64A

Input DC 3.7V/2.03A,Output DC 8.4V/0.75A(1Cell to 2Cell)

Input DC 4.2V/2.03A,Output DC 8.4V/0.87A
(1Cell to 2Cell)

Input DC 5V/2.02A,Output DC 8.4V/1.07A




Output 12V :


Input voltage DC 2.6 ~ 6V,output DC 12V±2%
Maximum output : 12V/0.75A(See the table below for details)

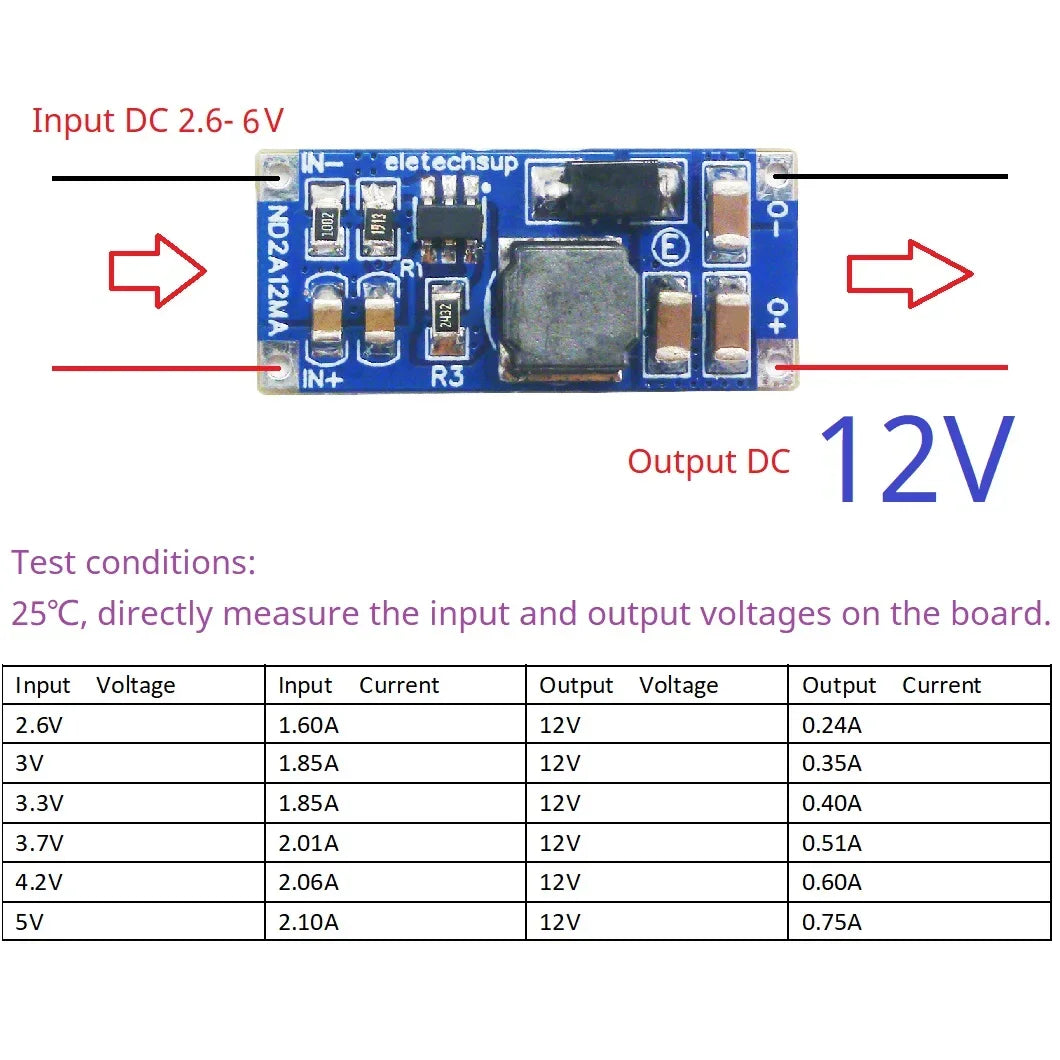

Input DC 2.6/1.60A,Output DC 12V/0.24A

Input DC 3V/1.85A,Output DC 12V/0.35A

Input DC 3.3V/1.85A,Output DC 12V/0.40A

Input DC 3.7V/2.01A,Output DC 12V/0.51A

Input DC 4.2V/2.06A,Output DC 12V/0.60A

Input DC 5V/2.10A,Output DC 12V/0.75A

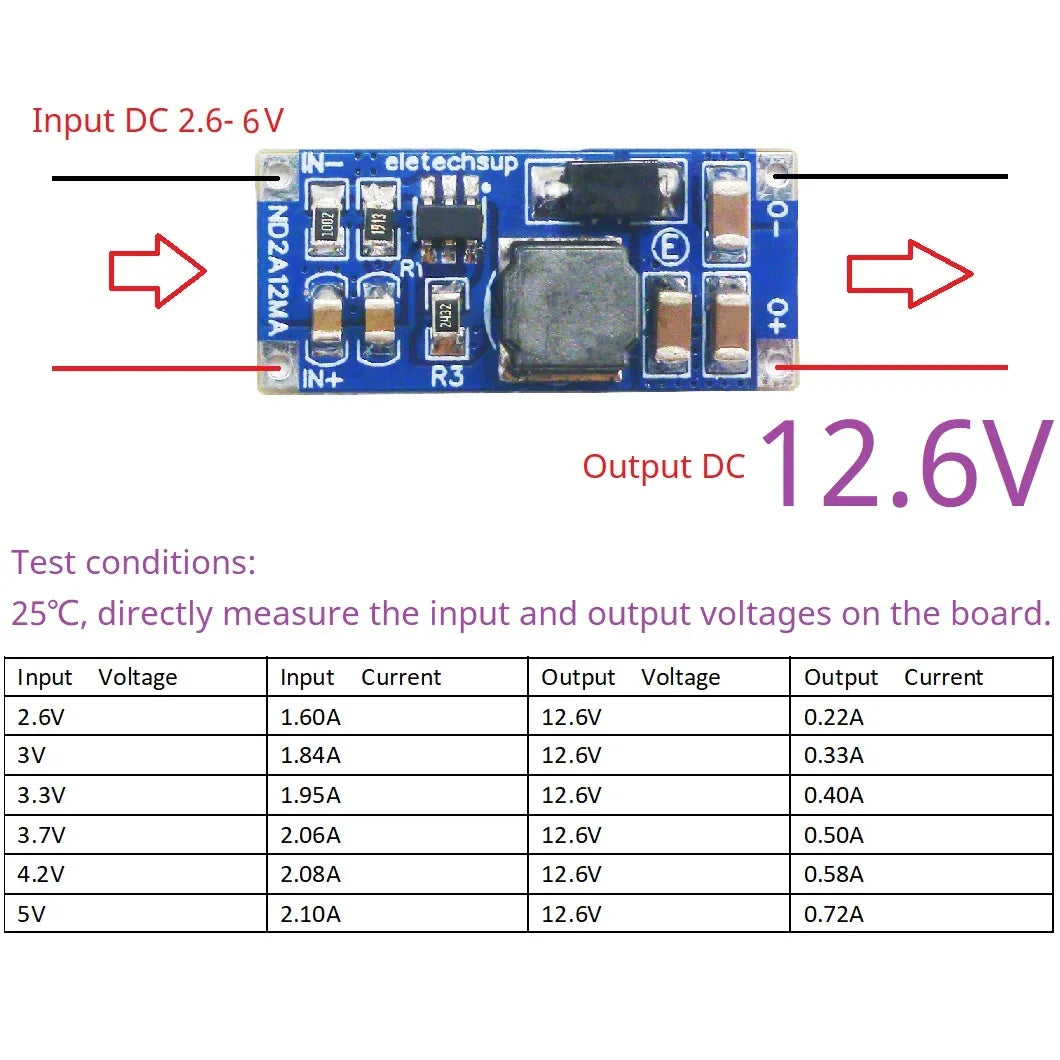

Output 12.6V :


Input voltage DC 2.6 ~ 6V,output DC 12.6V±2%
Maximum output : 12.6V/0.70A(See the table below for details)

Input DC 2.6/1.60A, Output DC 12.6V/0.22A

Input DC 3V/1.84A, Output DC 12.6V/0.33A

Input DC 3.3V/1.95A,Output DC 12.6V/0.40A

Input DC 3.7V/2.06A,Output DC 12.6V/0.50A
(1Cell to 3Cell)

Input DC 4.2V/2.08A,Output DC 12.6V/0.58A
(1Cell to 3Cell)

Input DC 5V/2.10A, Output DC 12.6V/0.72A


Attention :

This is a DC-DC voltage converter module,Must be noted when using:

1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself


Q & A:


Q : Why output voltage is less than the nominal voltage



A : Input power supply power is too low.Test the input voltage with a multimeter,a t this time of the input voltage is very low
