Product Title: 2.5A DC 10-90V to 5V 12V 24V DC-DC Converter High-Voltage Buck Regulator Module for Lion Lipo LiFePO4 Lead-acid Solar battery
Product List: 1 PCS 2.5A DC 10-90V to 5V 12V 24V DC-DC Converter High-Voltage Buck Regulator Module (Specific according to the version and quantity you choose)

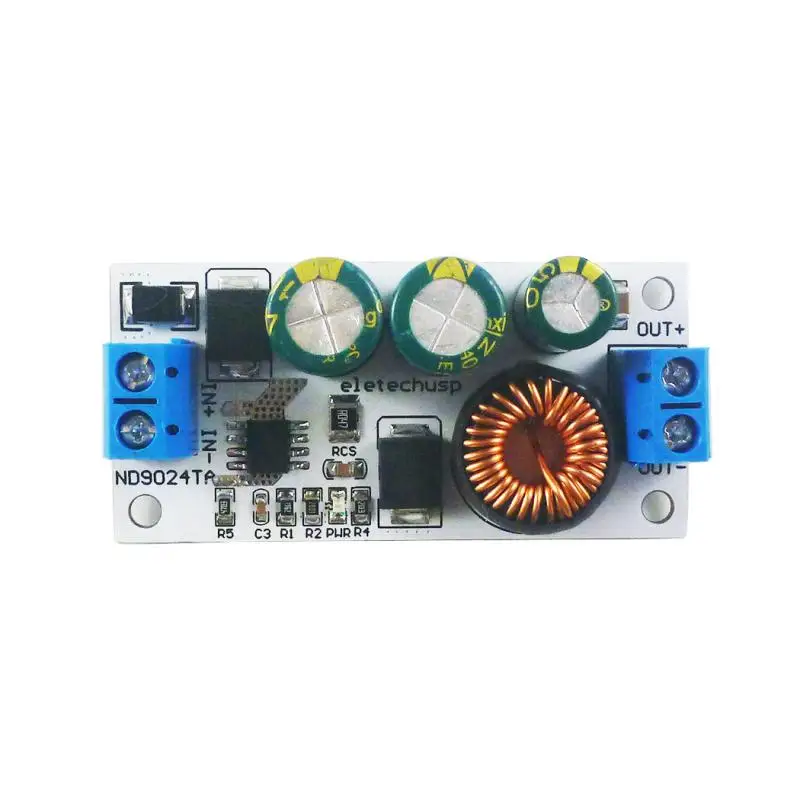

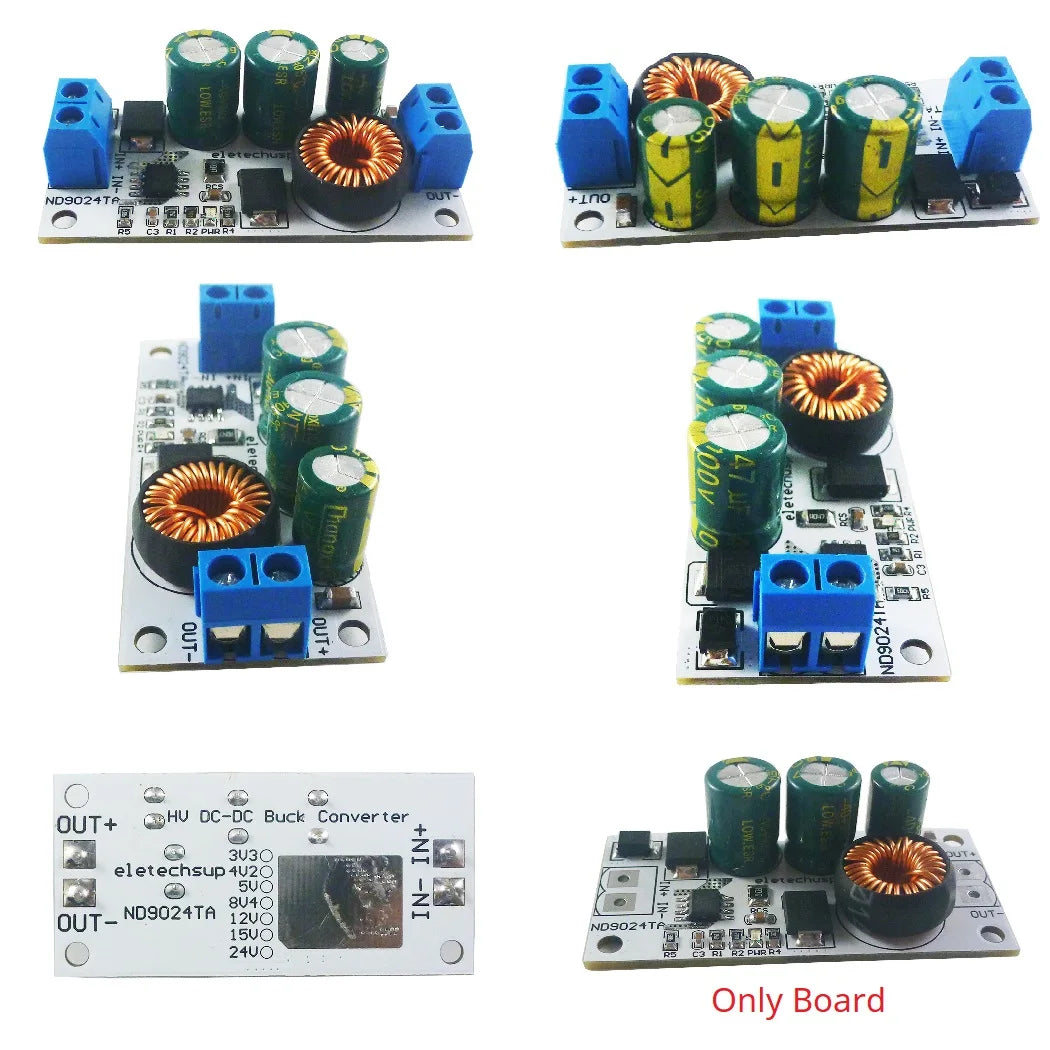

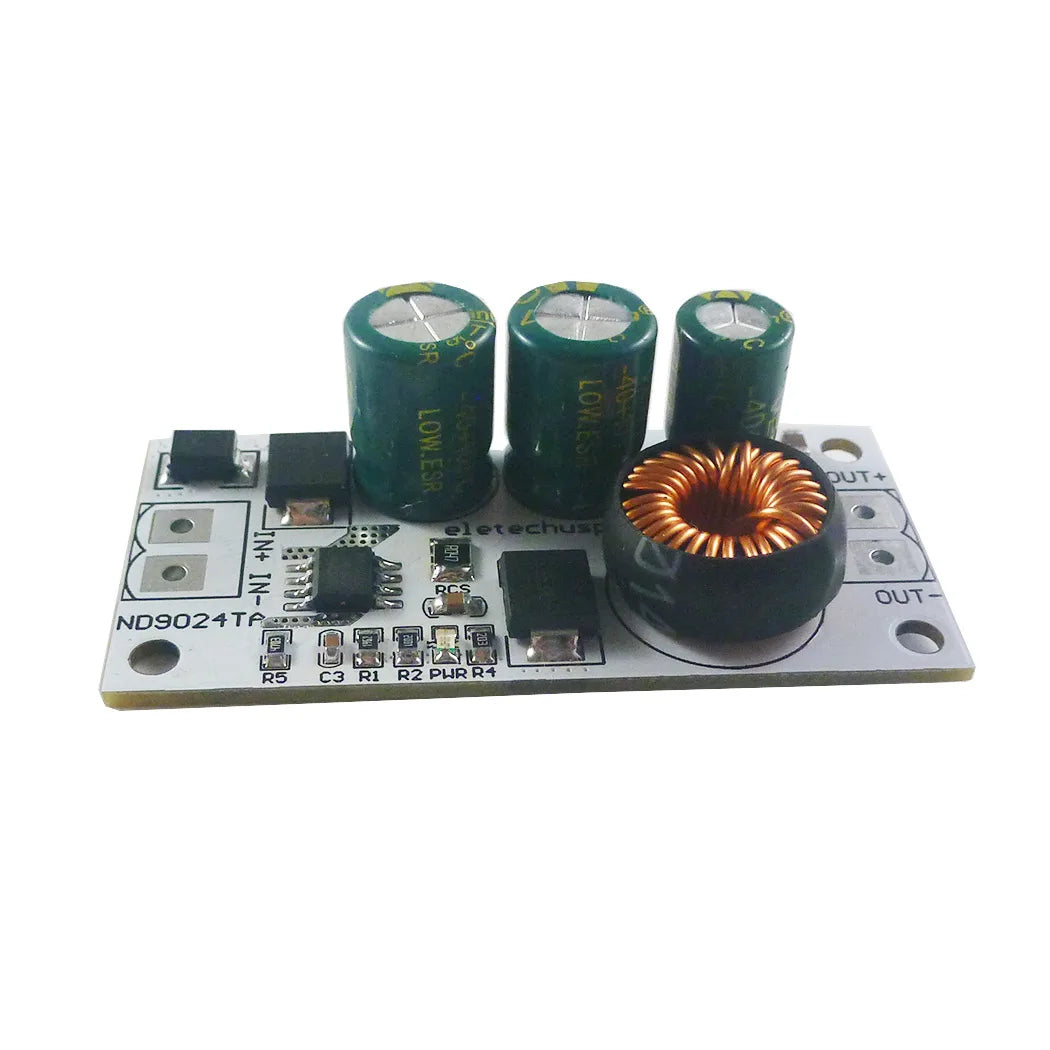

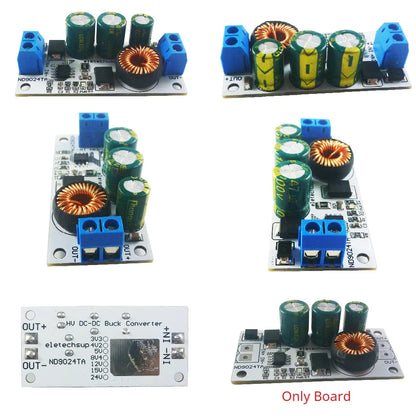

ND9024TA is Eletechsup high performance high voltage buck module, up to 90V input, optional 5V/12V/24V output.

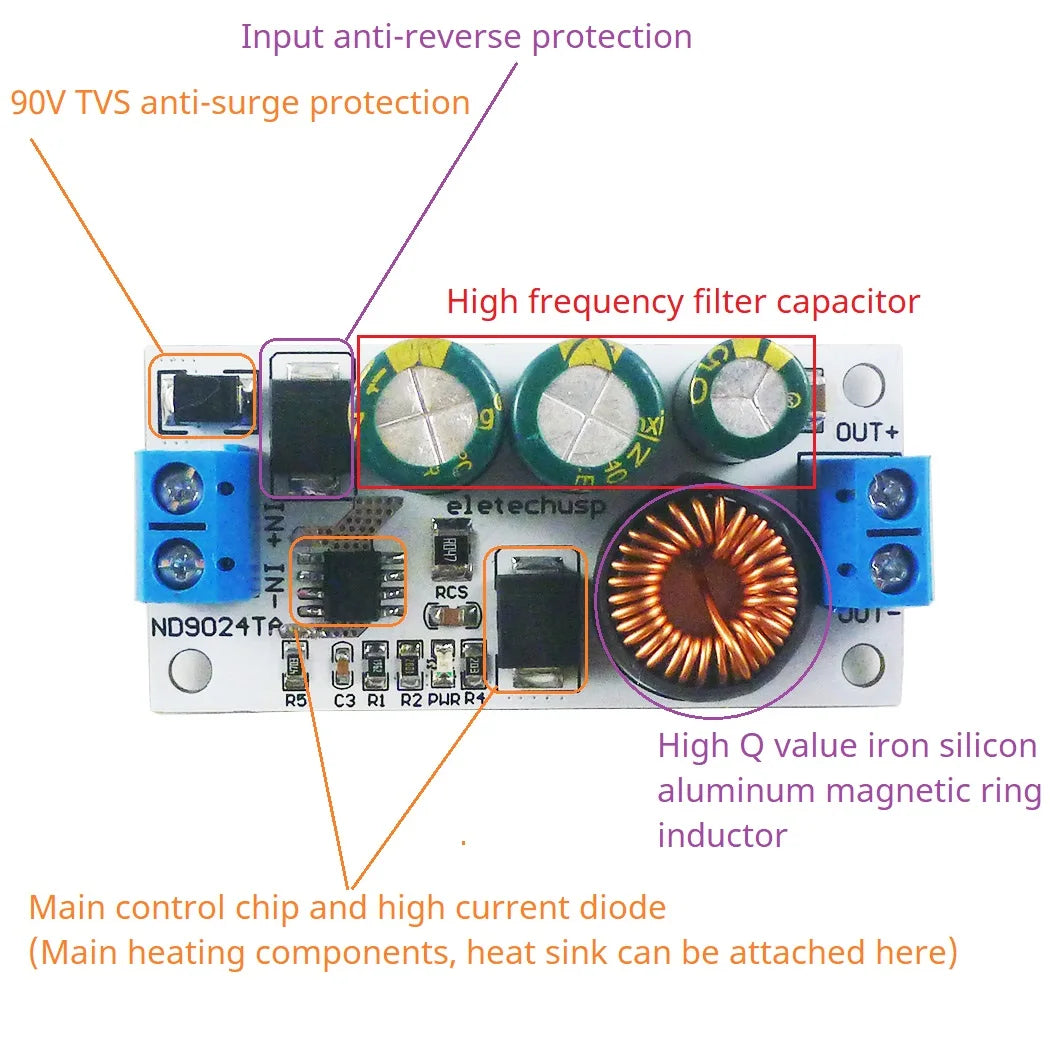

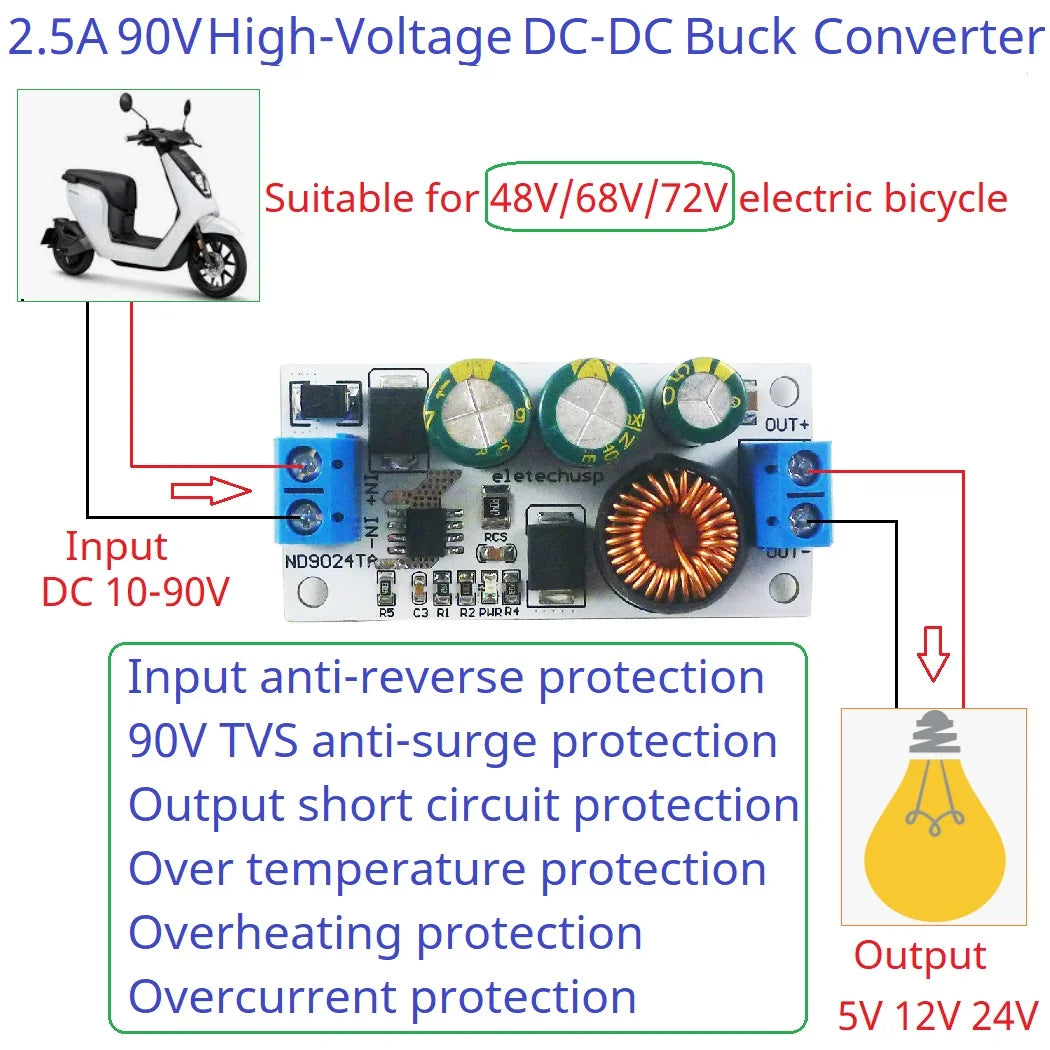

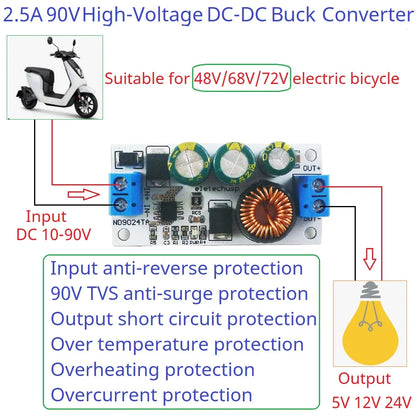

Multiple protections to ensure the safety of electricity use Input anti-reverse protection 90V TVS anti-surge protection Output short circuit protection Over temperature protection Overheating protection Overcurrent protection
The maximum 30W output refers to the power when 24V outputs 1.25A

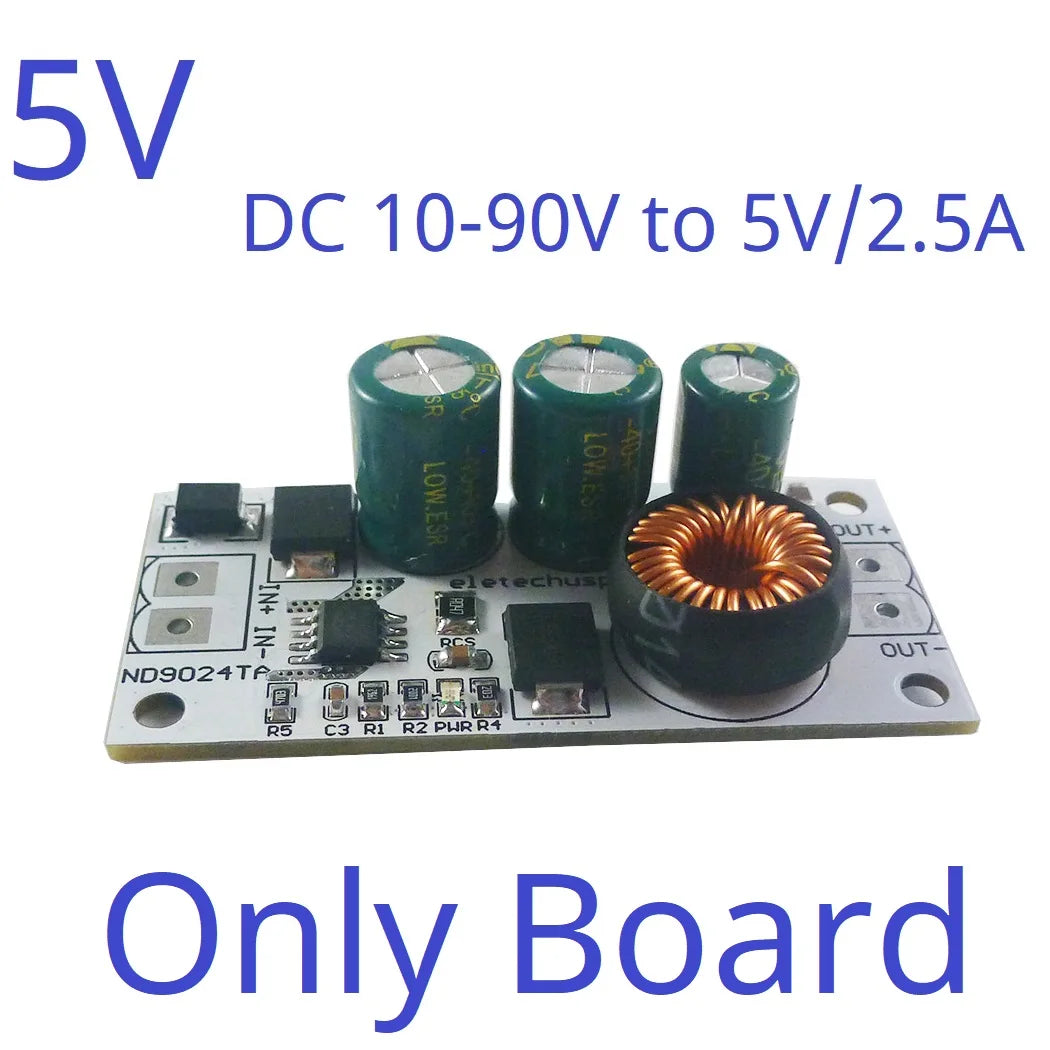

5V :

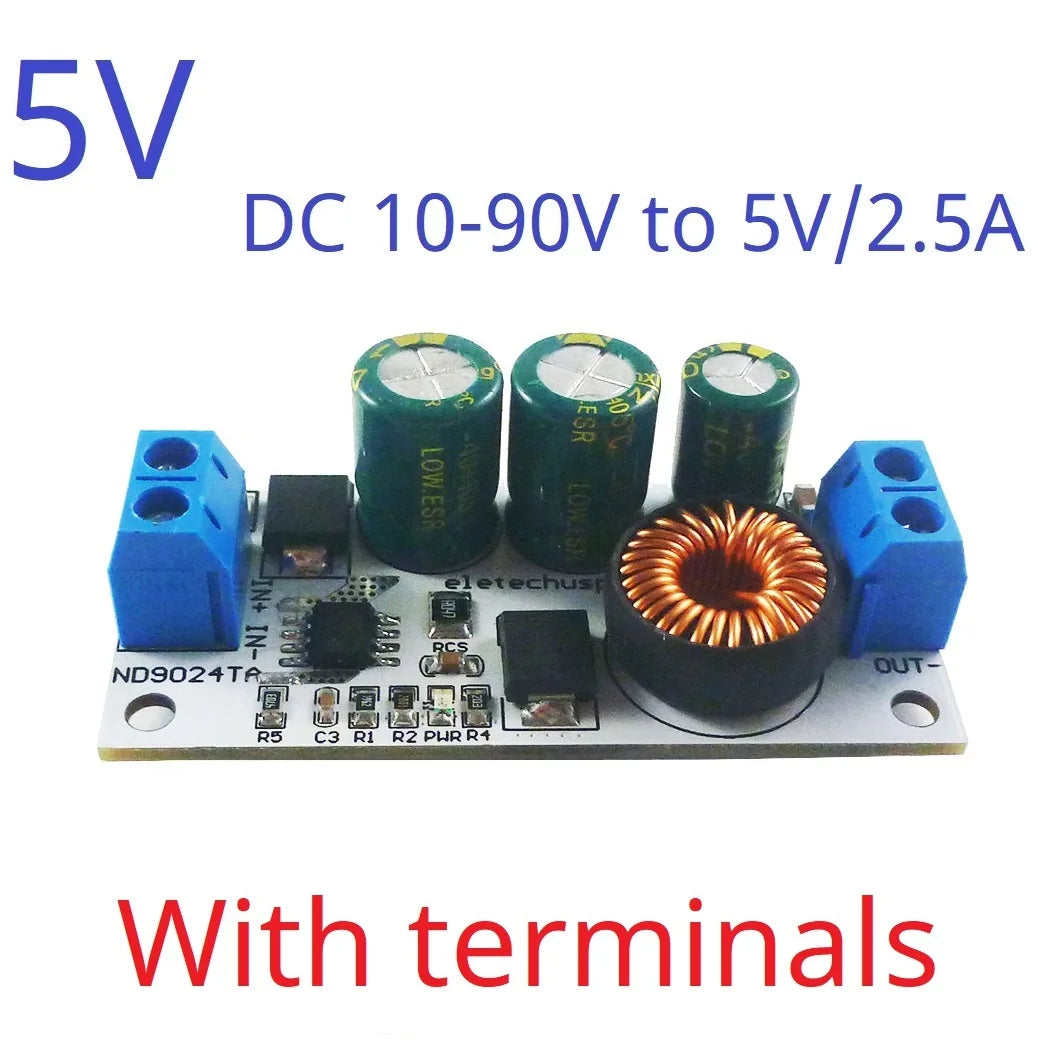

Input voltage 10~90V,output 5V Maximum output current 2.5A DC-DC high-voltage Step-Down Converter module working frequency 110KHz. Maximum conversion efficiency is 92% . Quiescent current: about 2.3mA Operating Temperature : –45°C to +125°C Size : 55 x 26.5 x 16mm Weight : With terminal 17g;No terminal 14g

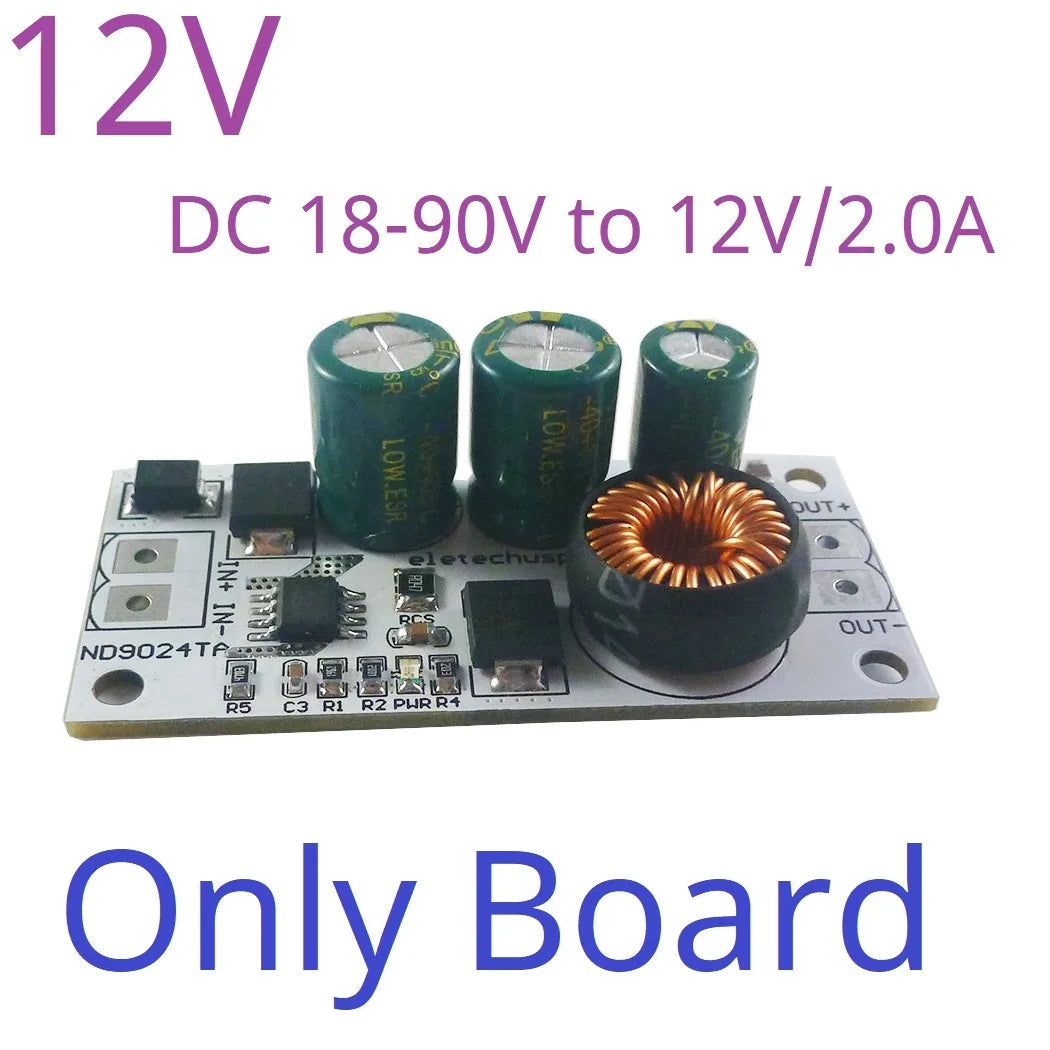

12V :

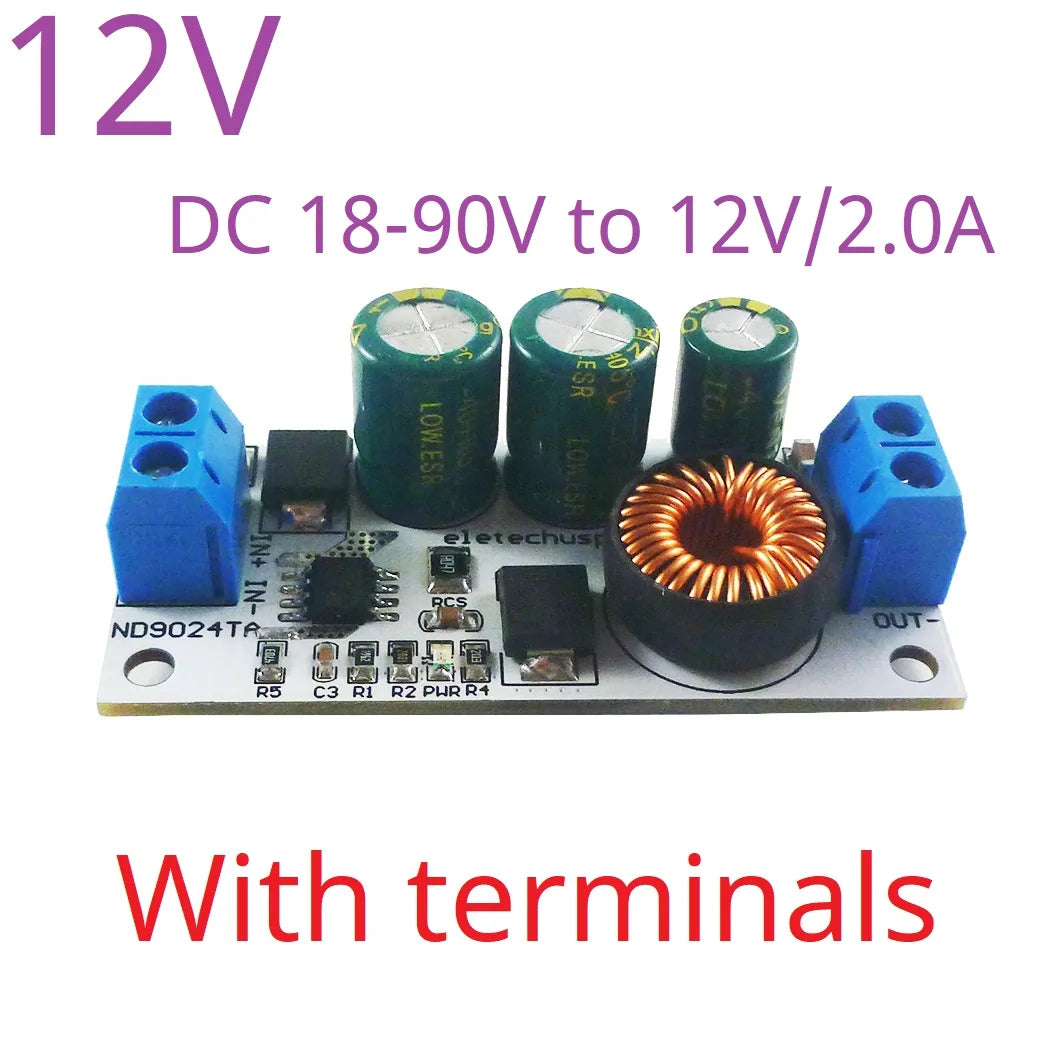

Input voltage 18~90V,output 12V Maximum output current 2A DC-DC high-voltage Step-Down Converter module working frequency 110KHz. Maximum conversion efficiency is 92% . Quiescent current: about 2.4mA Operating Temperature : –45°C to +125°C Size : 55 x 26.5 x 16mm Weight : With terminal 17g;No terminal 14g

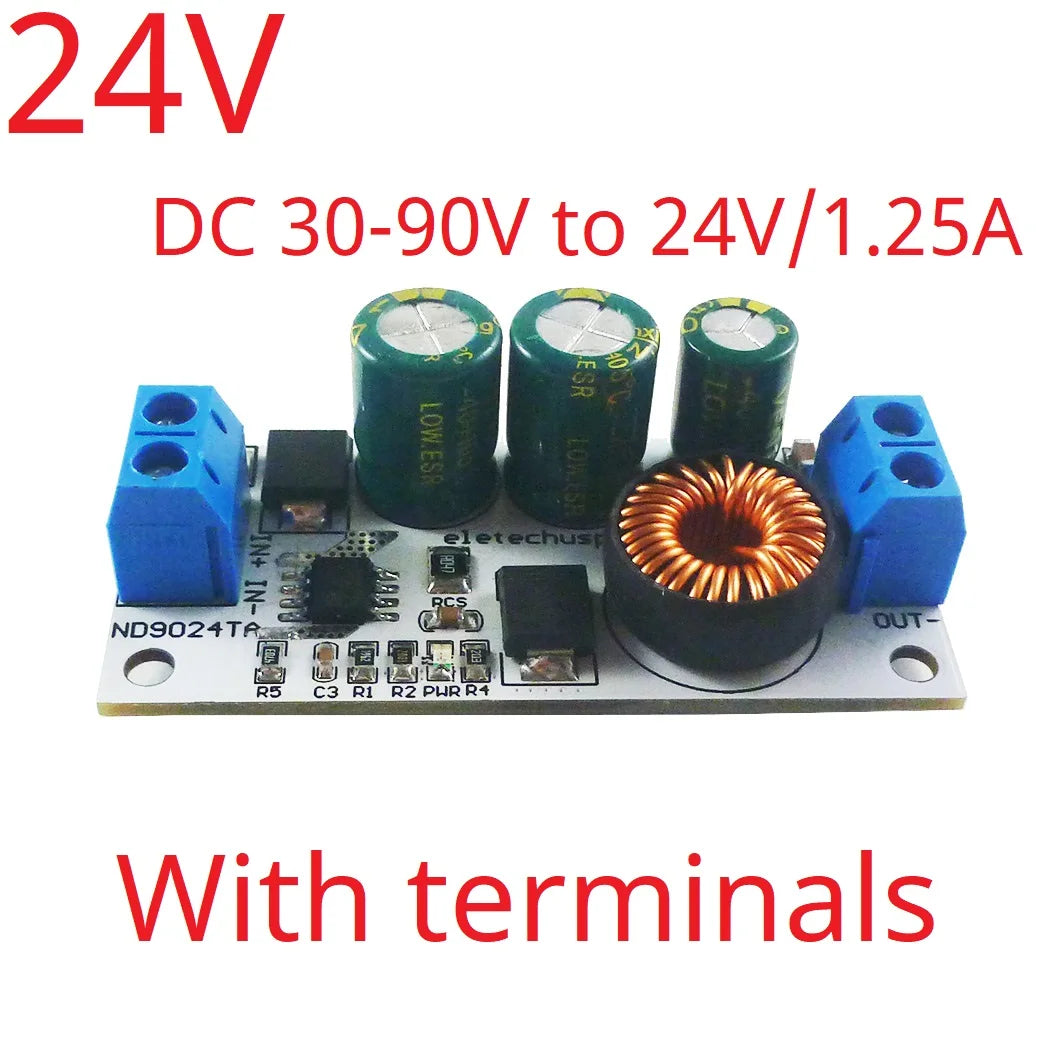

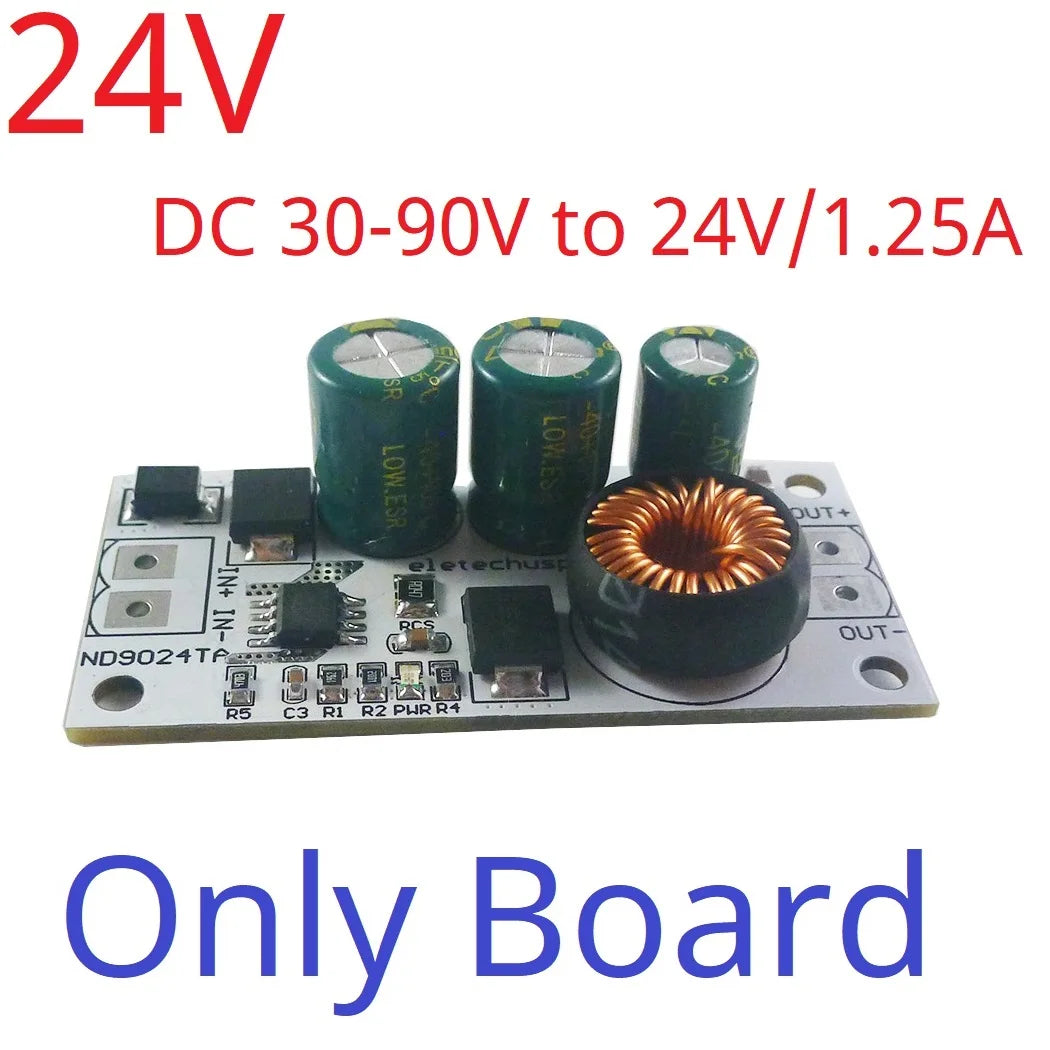

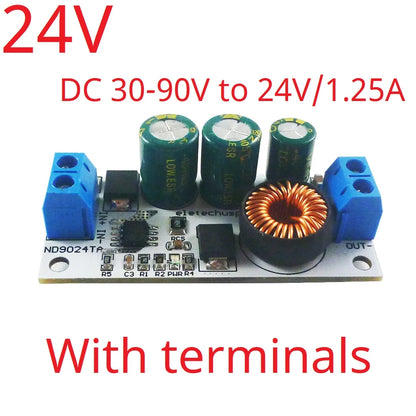

24V :
Input voltage 30~90V,output 24V Maximum output current 1.25A(30W) DC-DC high-voltage Step-Down Converter module working frequency 110KHz. Maximum conversion efficiency is 92% . Quiescent current: about 2.4mA Operating Temperature : –45°C to +125°C Size : 55 x 26.5 x 16mm Weight : With terminal 17g;No terminal 14g
Attention :
This is a high voltage DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range 2 Output power can not be greater than the maximum load for a long time 3 Input power must be greater than the output power, because the power consumption of the module itself 4 When the input voltage is greater than 30V, please connect the wires first and then power on.
Applications:
Electric bicycle EBike motorcycle
DC 90V 72V 64V 60V 48V 36V 24V
CCTV PTZ camera
RS485 Modbus equipment
Motor Toy Wifi Router
Network equipment
Multimeter instrumentation
Electric toys
Smart home / home automation
Lion Lipo LiFePO4 Lead-acid Solar battery

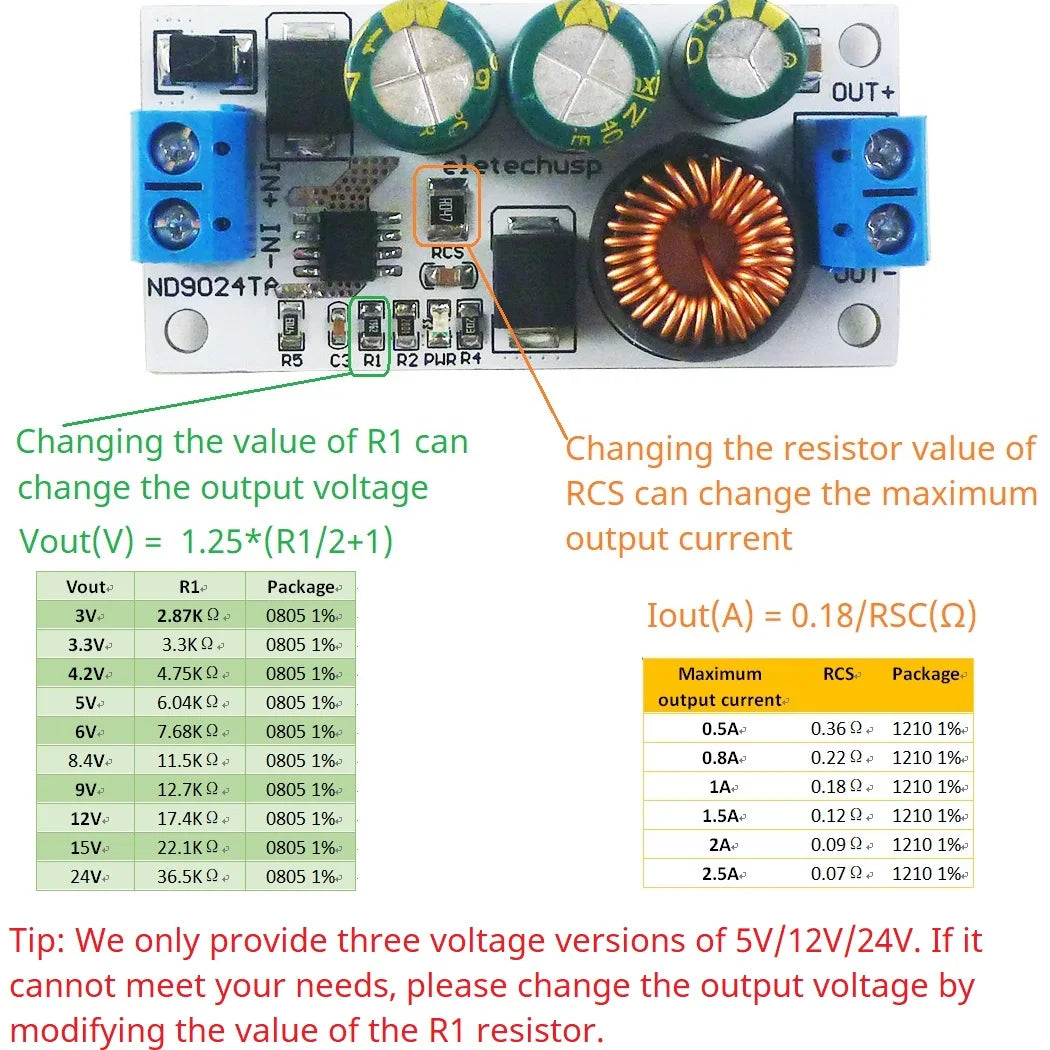

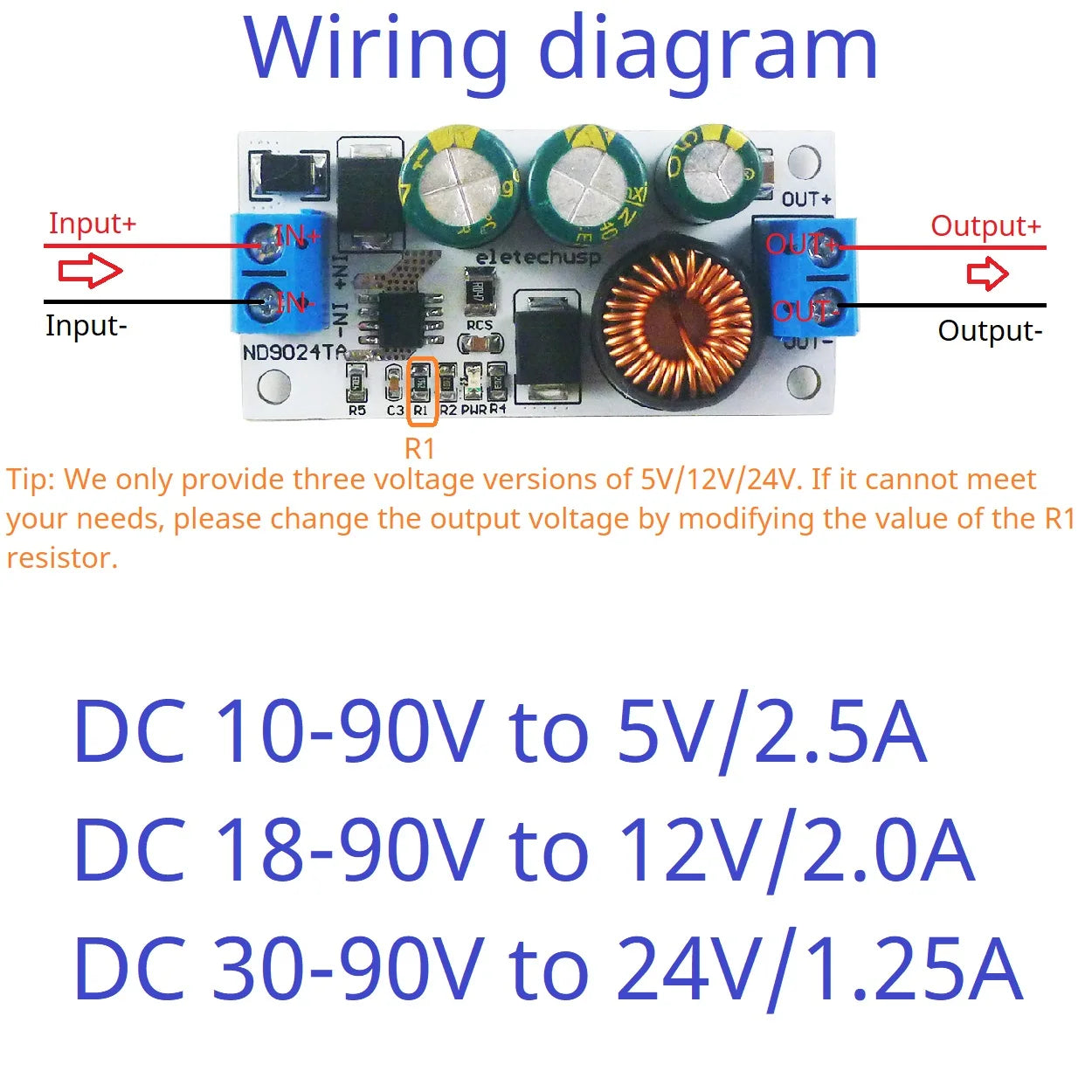

Tip: We only provide three voltage versions of 5V/12V/24V. If it cannot meet your needs, please change the output voltage by modifying the value of the R1 resistor.
