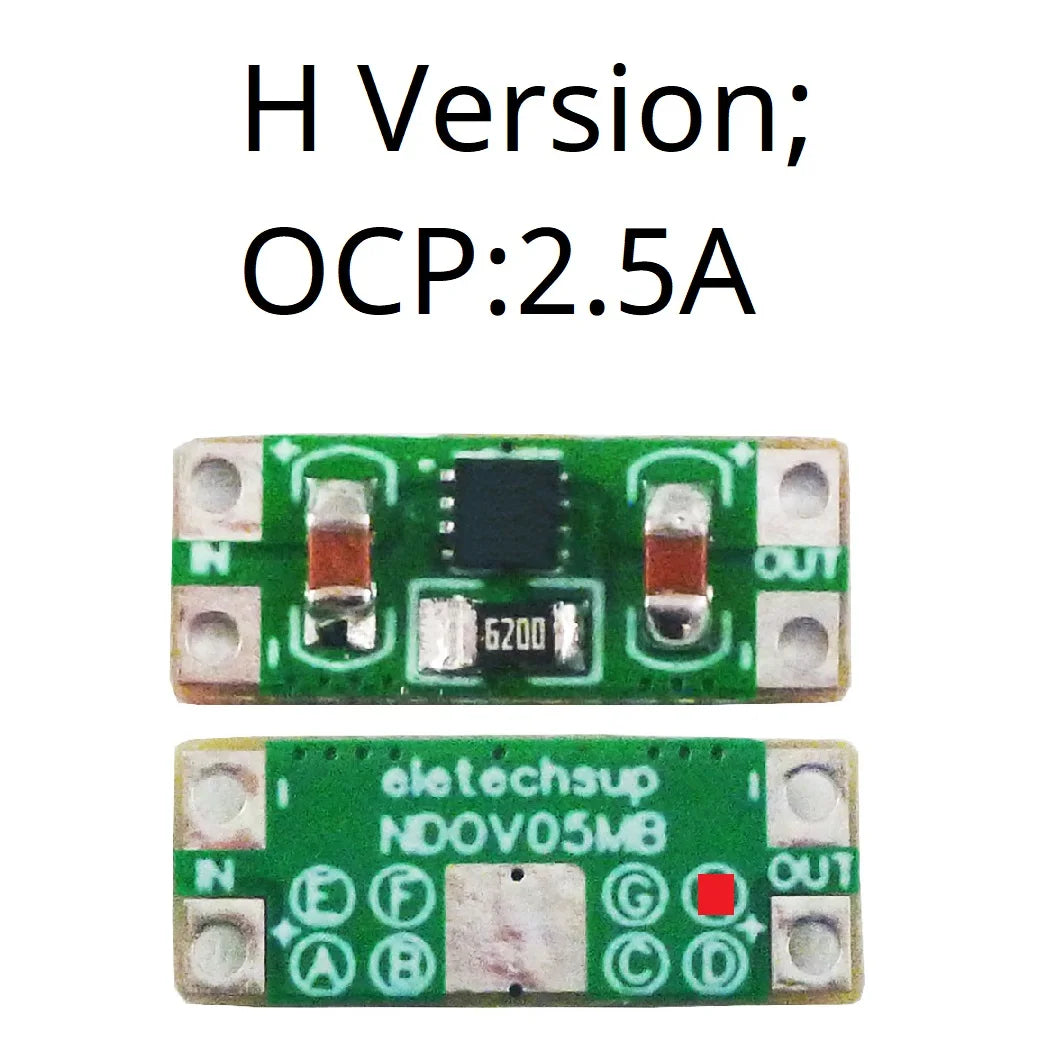

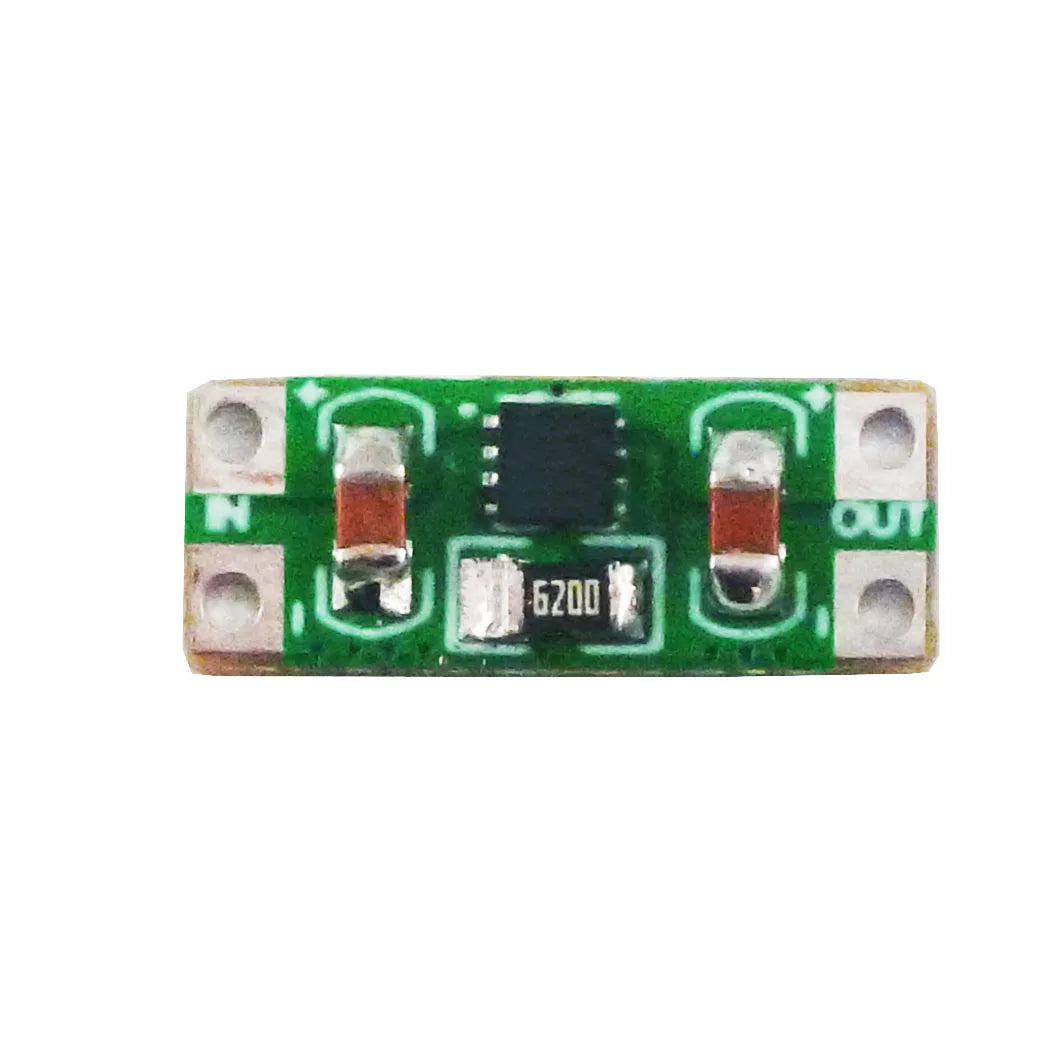

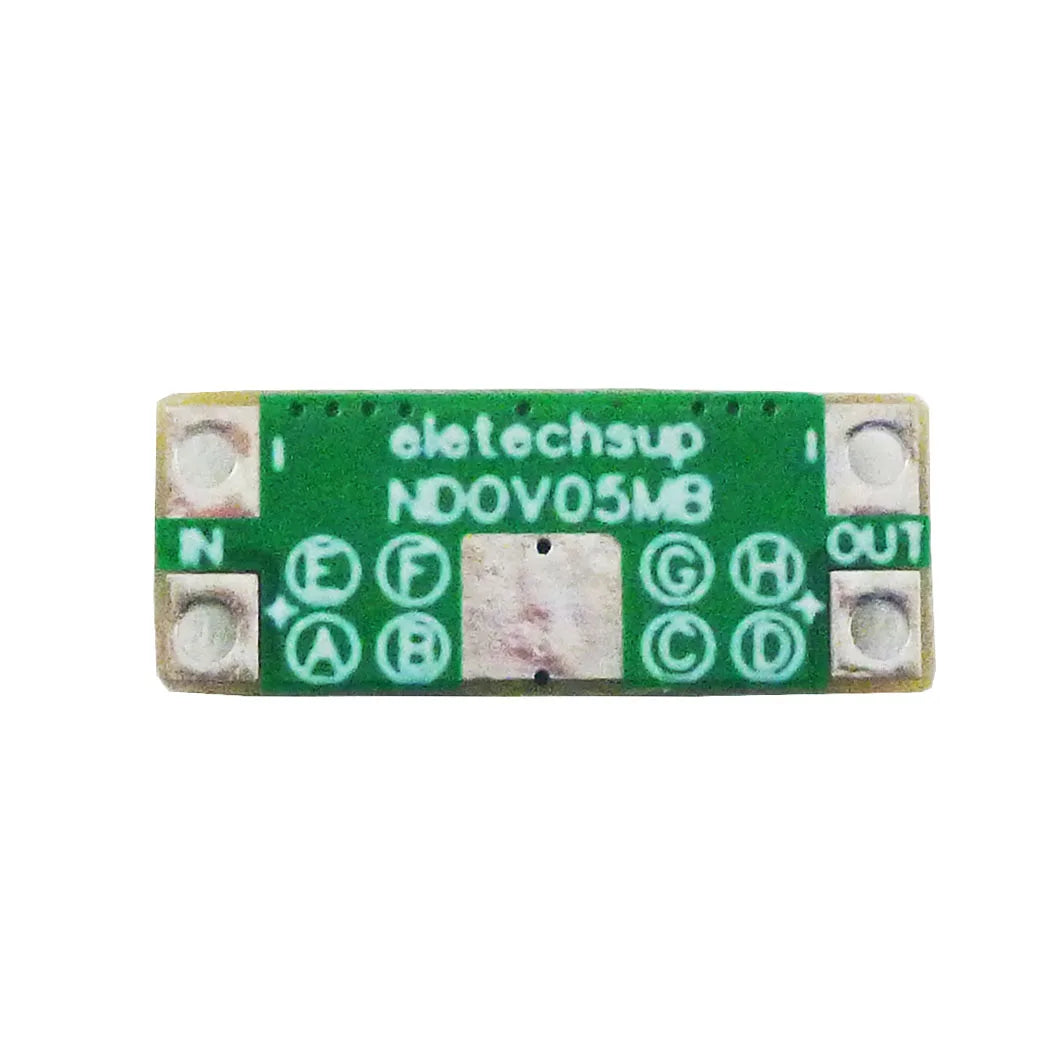

NDOV05MB DC 3.3-5V 0.2-2.5A Overvoltage Overcurrent Power Supply Protector OCP OVP UVLO OTP Protection Module for 18650 Lion Lifepo4 NIMH
NDOV05MB DC 3.3-5V 0.2-2.5A Overvoltage Overcurrent Power Supply Protector OCP OVP UVLO OTP Protection Module for 18650 Lion Lifepo4 NIMH
SKU:NDOV05MB_A
999 in stock
Regular price
$1.71
Regular price
$1.71
Sale price
$1.71
Unit price
per
Couldn't load pickup availability
Description:

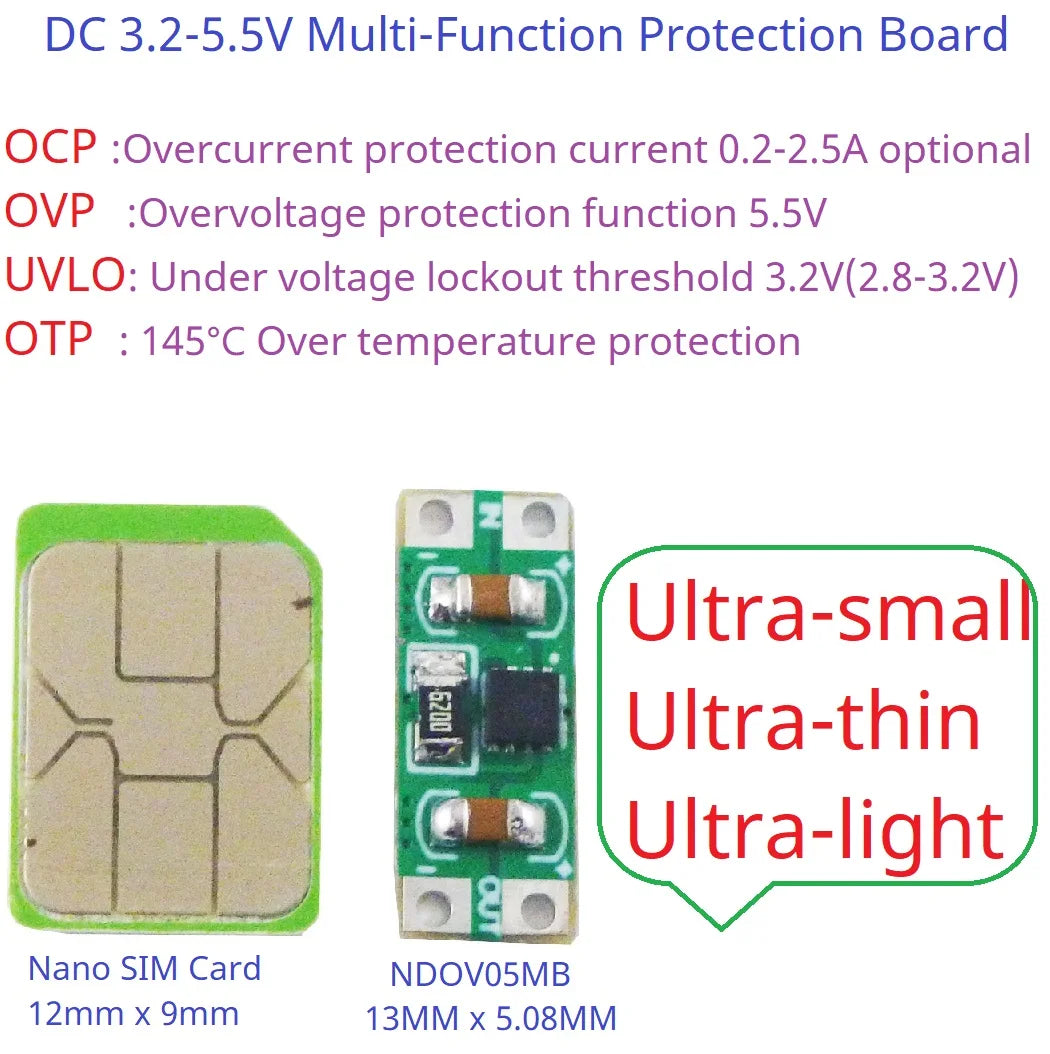

DC 3.2-5.5V Multi-Function Protection Board
Working Voltage : 3.2-5.5V
Working Current:0.2-2.5A
Quiescent operating current: 200uA

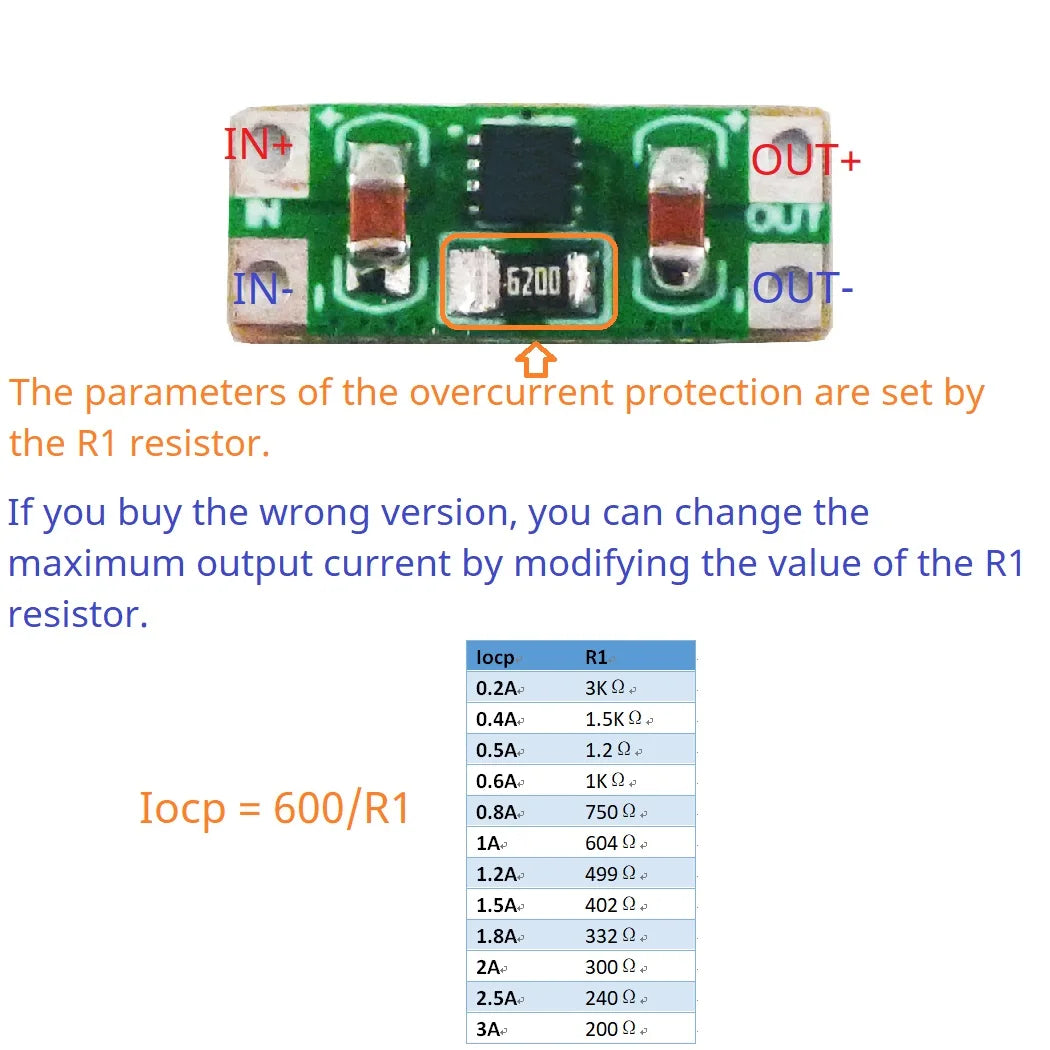

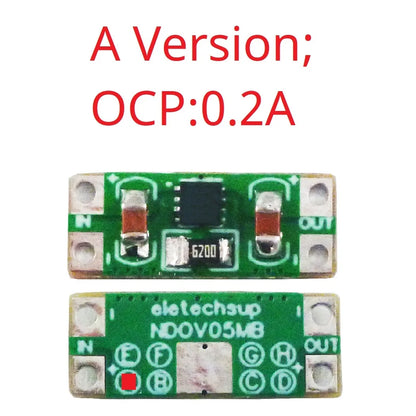

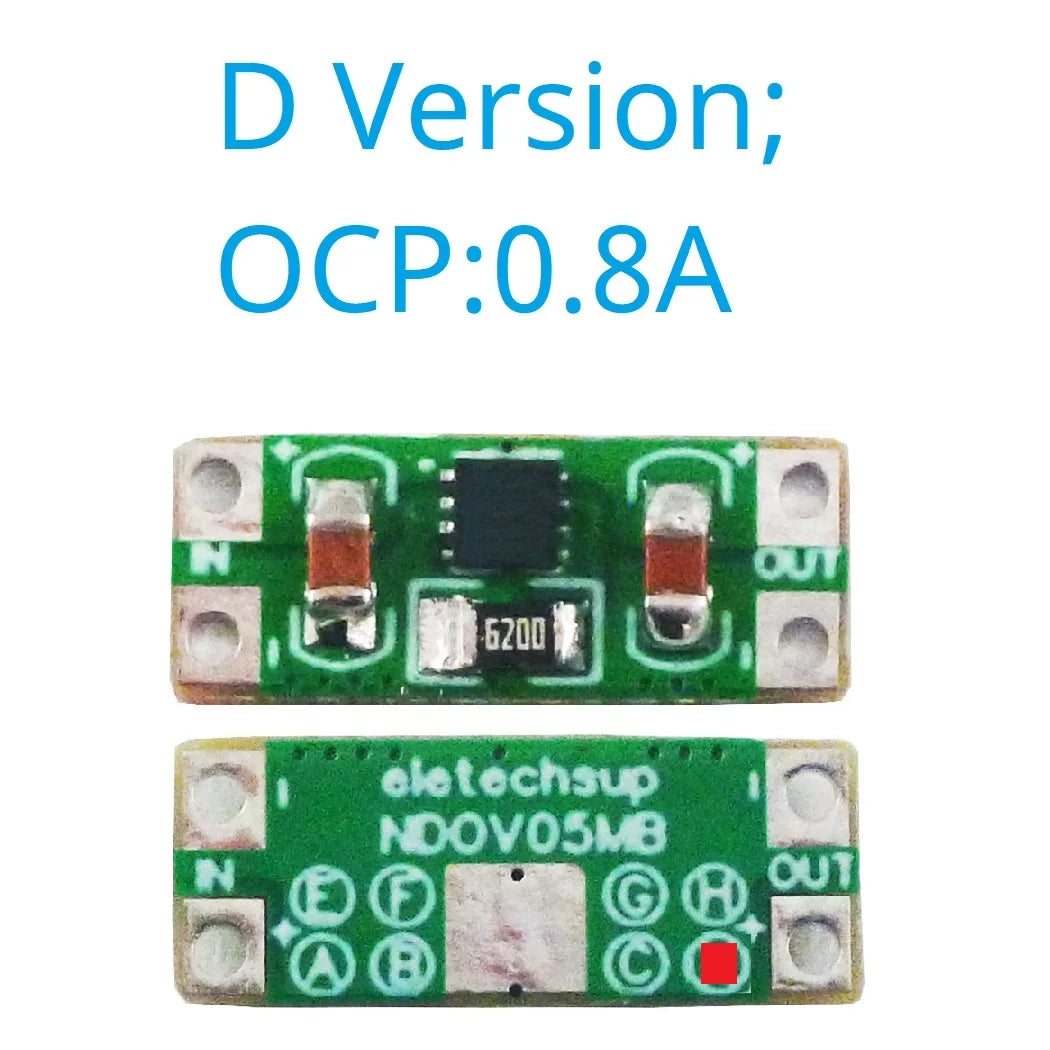

OCP:Overcurrent protection current 0.2-2.5A optional
OVP :Overvoltage protection function 5.5V
UVLO: Under voltage lockout threshold 3.2V(2.8-3.2V)
OTP: 145℃ Over temperature protection
Size 13mm x 5.08mm x 1.6mm(Ultra-small,Ultra-thin)
Weight : About 0.2g(Ultra-light)
Note: This board does not have an input anti-reverse function, and the input cannot be reversed.

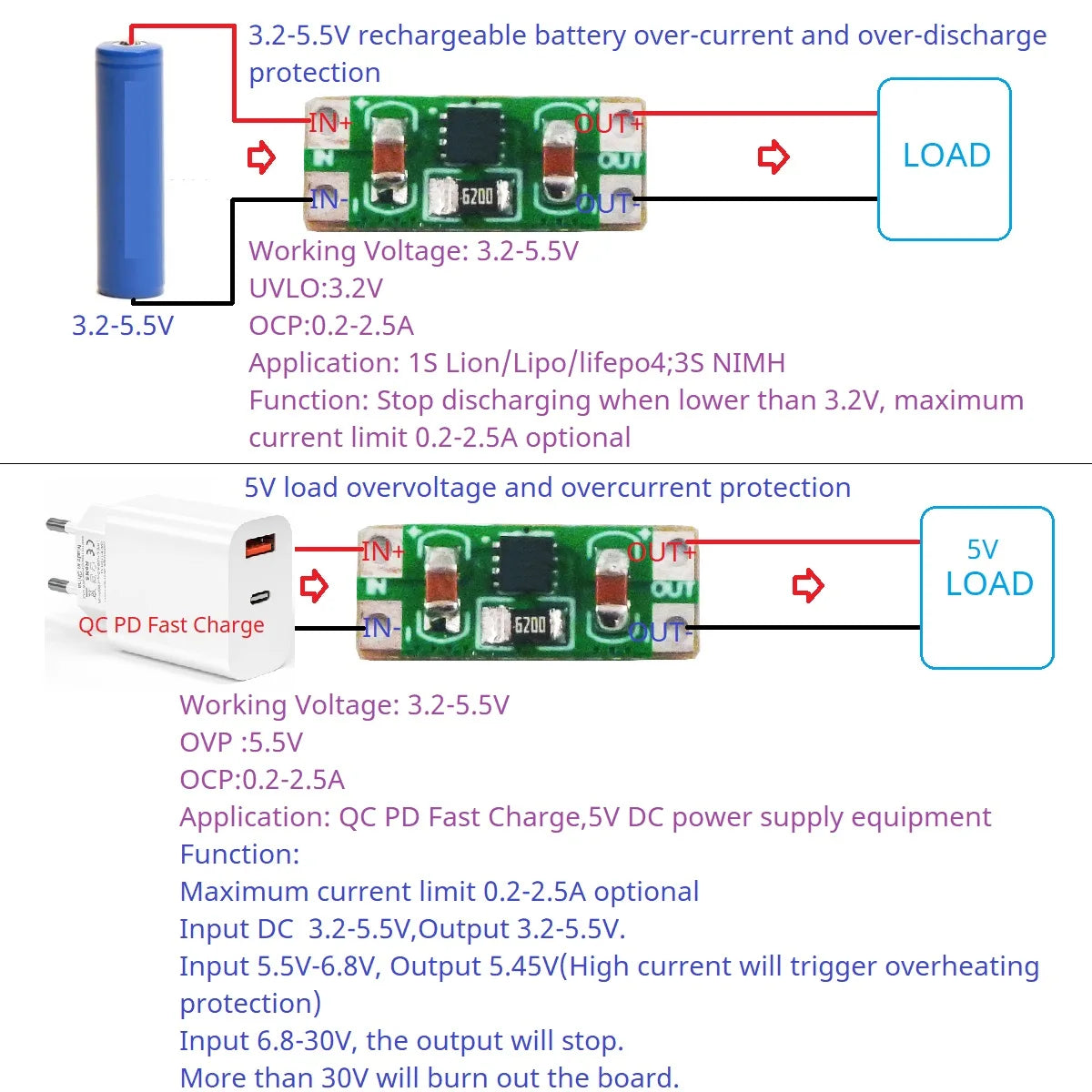

Applications:
1S Lion/Lipo/lifepo4,3S NIMH
Over current and over discharge protection
Li-ion/Li-PO Lithium Battery 18650

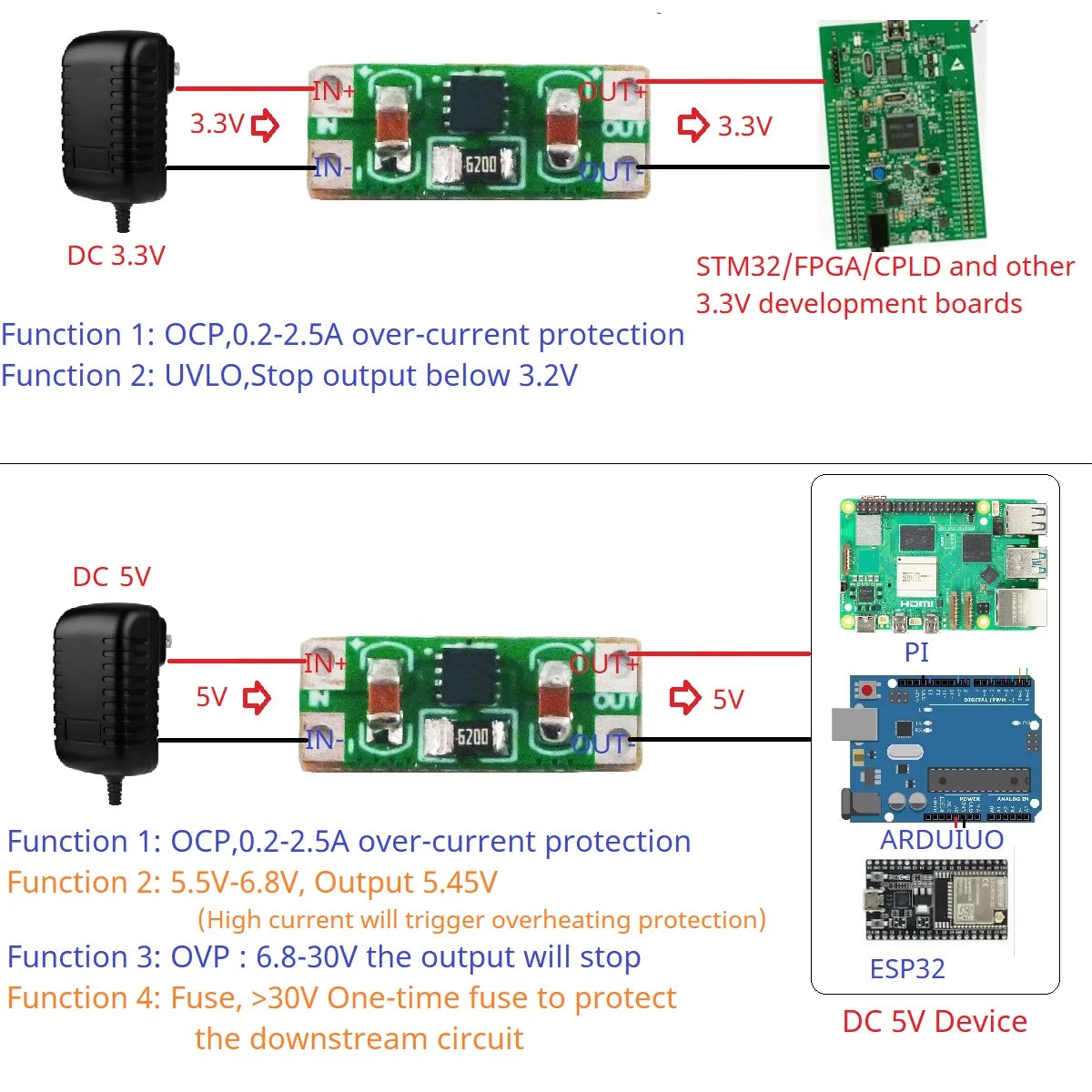

STM32/FPGA/CPLD/ATMEGA328
PD/QC Fast Charge
5V 3.3V DC power supply equipment
