OP31C08 8Ch In 3-8V Out 3-8VLogic Protection Panel 5V Level Conversion Module Npn Pnp Isolation Ttl Lvttl Digital for Arduino Plc Mcu Pi

OP31C08 8Ch In 3-8V Out 3-8VLogic Protection Panel 5V Level Conversion Module Npn Pnp Isolation Ttl Lvttl Digital for Arduino Plc Mcu Pi

OP31C08_NPN_IN5V_Out5V_R

200 in stock

$5.99
$5.99 $5.99
Sale Sold out

Product Name:5V 8Ch In 3-8V Out 3-8VLogic Level Conversion Module Npn Pnp Isolation Protection Panel Ttl Lvttl Digital for Arduino Plc Mcu Pi


Packing list:

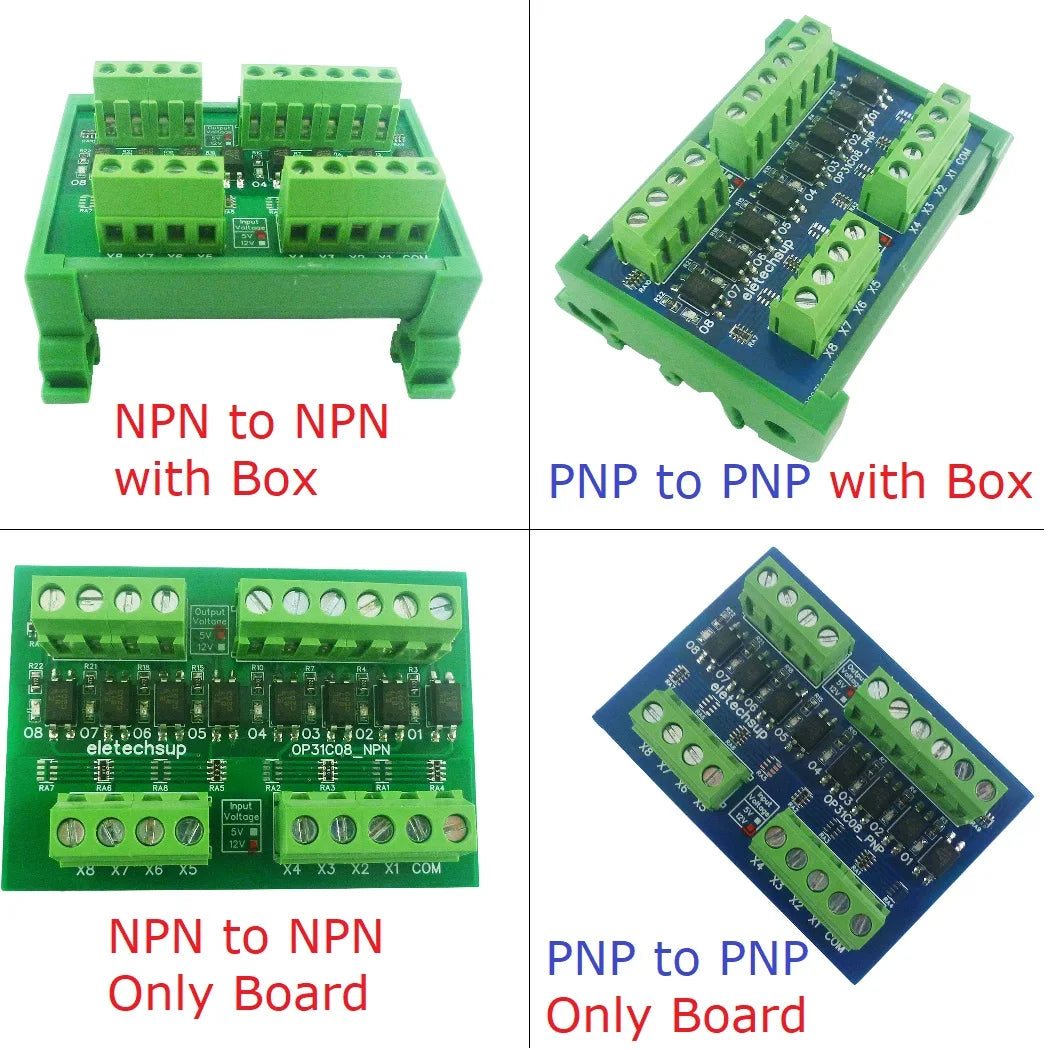

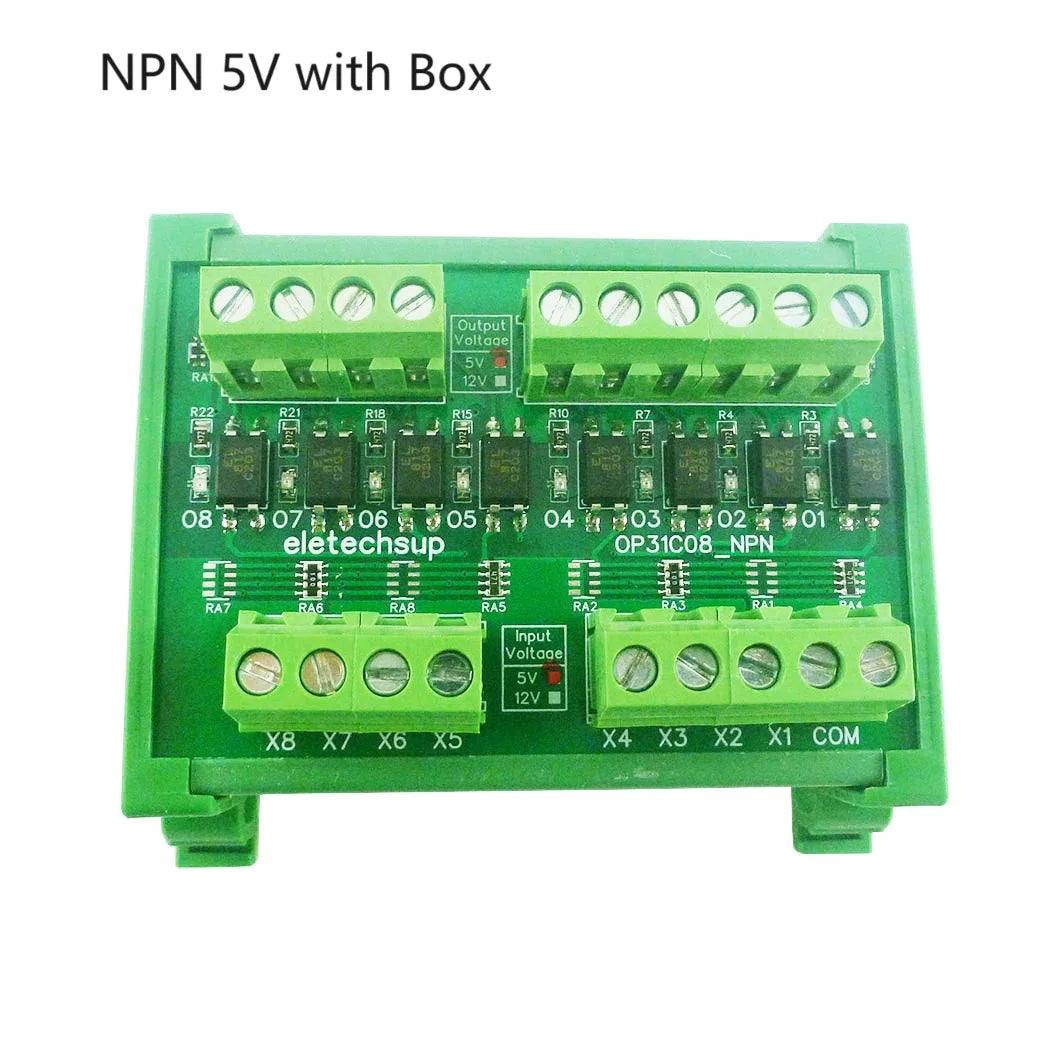

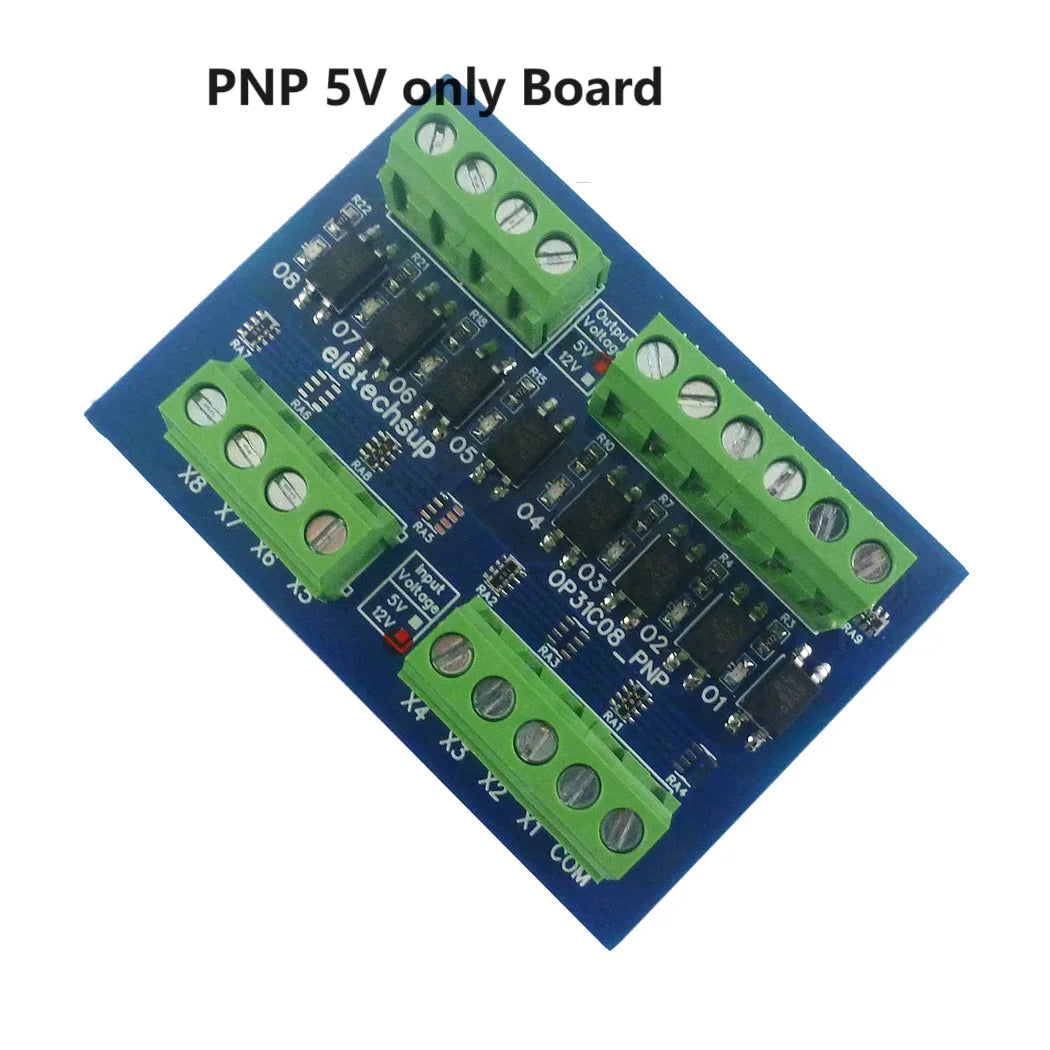

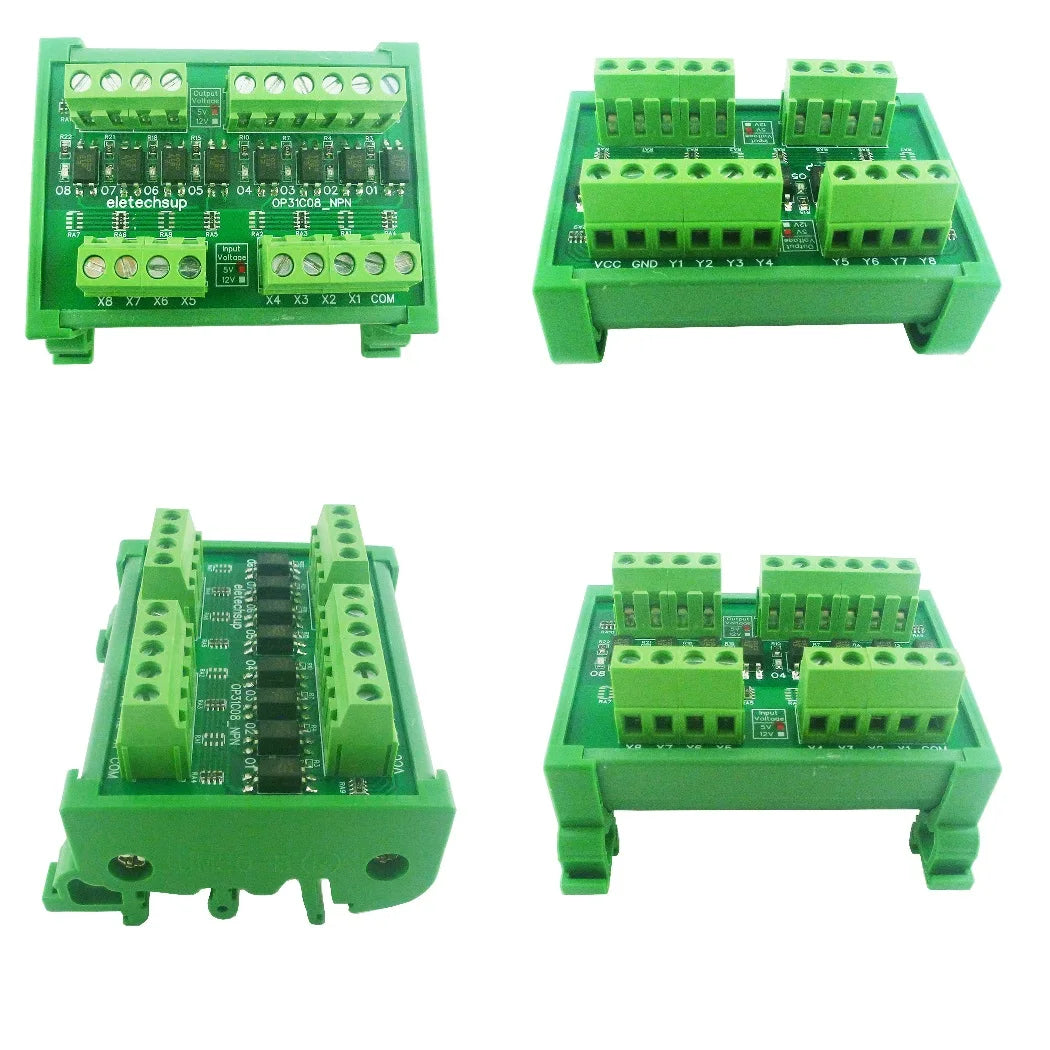

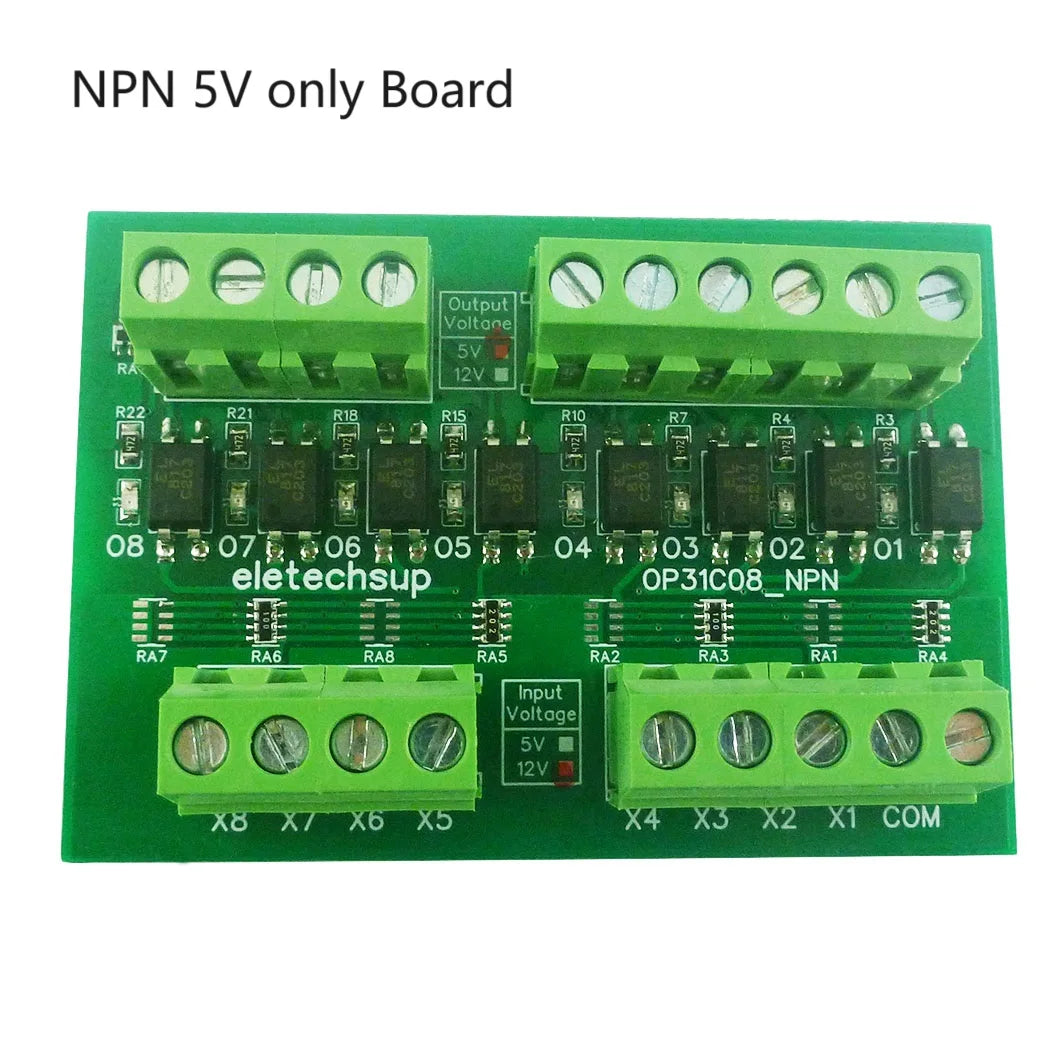

1 PCS 5V 8Ch In 3-8V Out 3-8V NPN TO NPN (PNP TO PNP) Opto-isolated level conversion module




Description:
This is a 8-channel photoelectric isolation module, which can realize NPN to NPN(PNP to PNP) conversion, and can realize any level conversion of 3-24V. It is a reliable MCU PLC input and output port isolation module.

Input level : 3-8V two versions
Output level: 3-8V two versions
Working current: 3-8V out version 4-20MA
Input signal type: NPN/PNP
Output signal type: NPN/PNP
Input signal current: 3-8V version 4-15MA
Output signal current: 3-8V version 1-3MA
Isolation voltage: 3000V
Signal frequency: <10KHz
Working temperature: -40-110 degrees Celsius

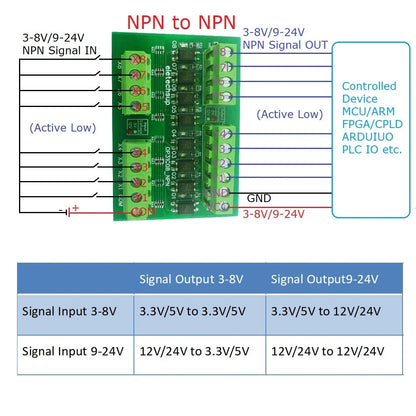

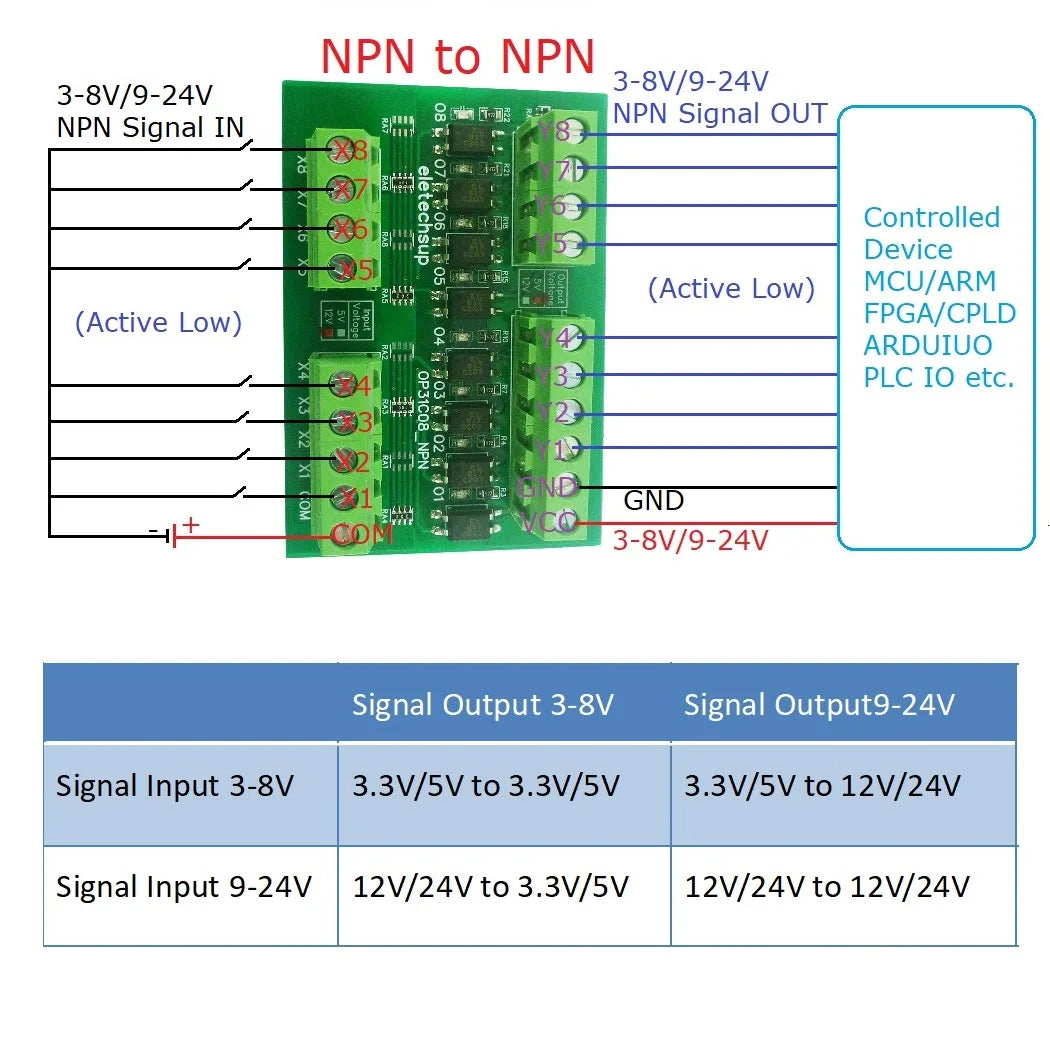

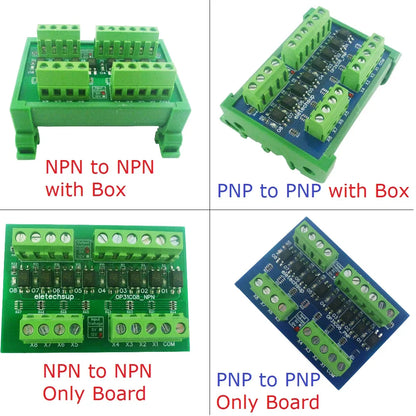

Conversion type: NPN to NPN; PNP to PNP

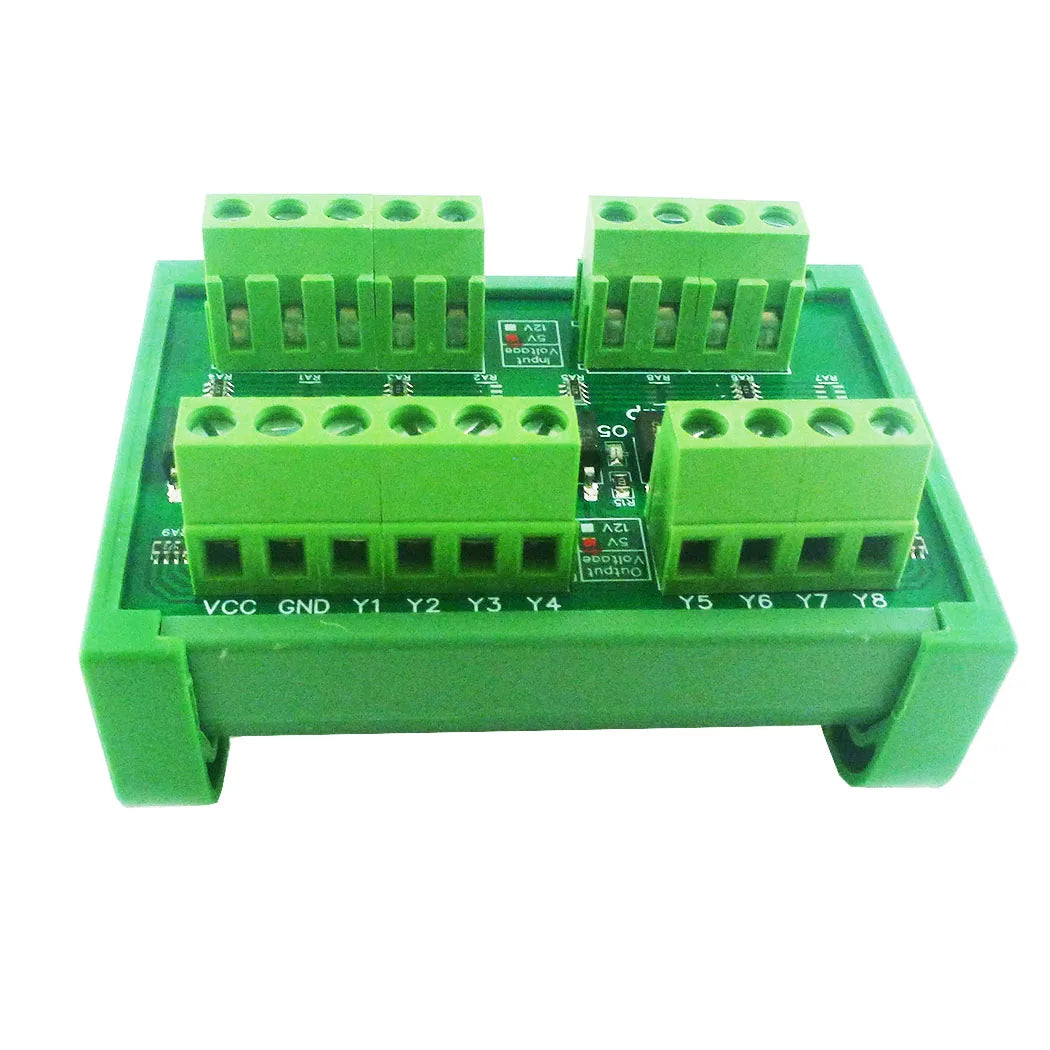

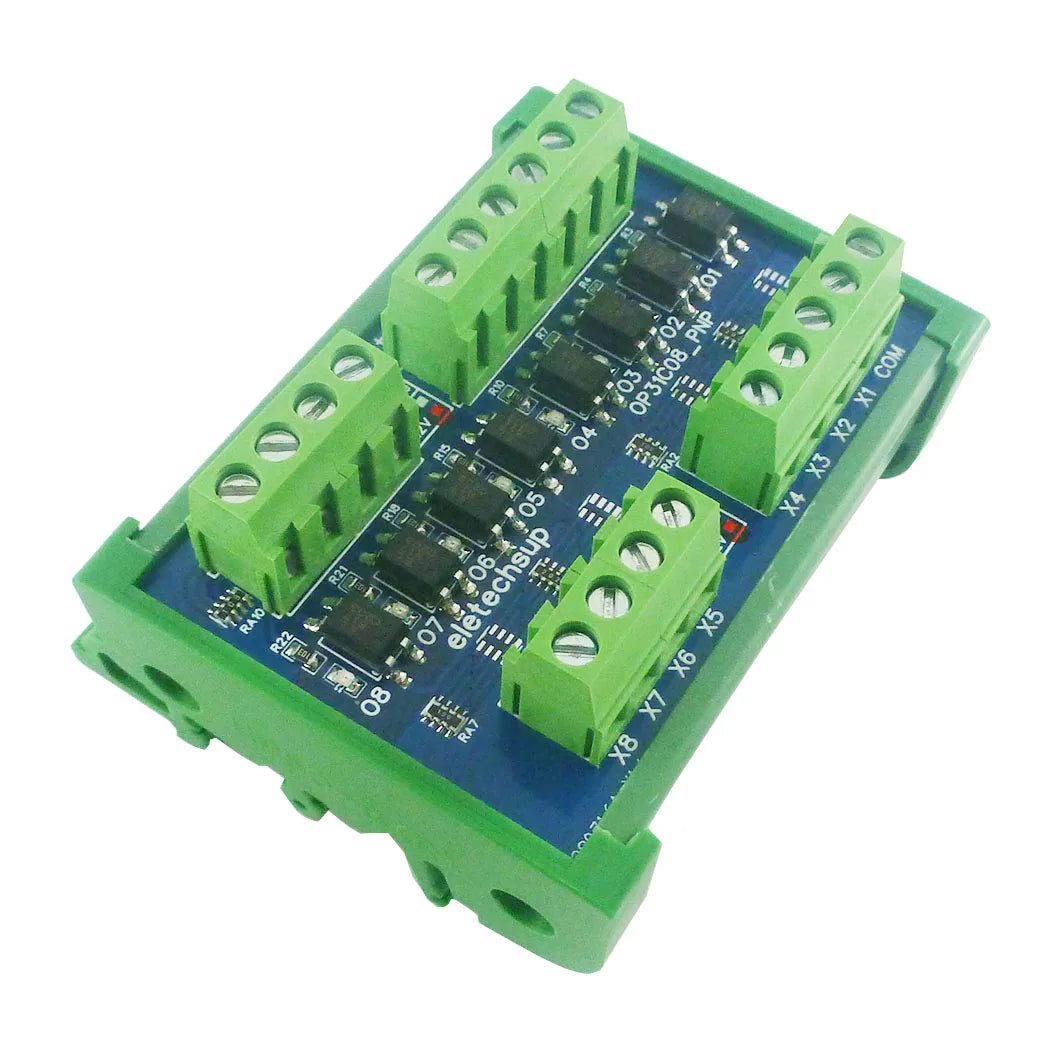

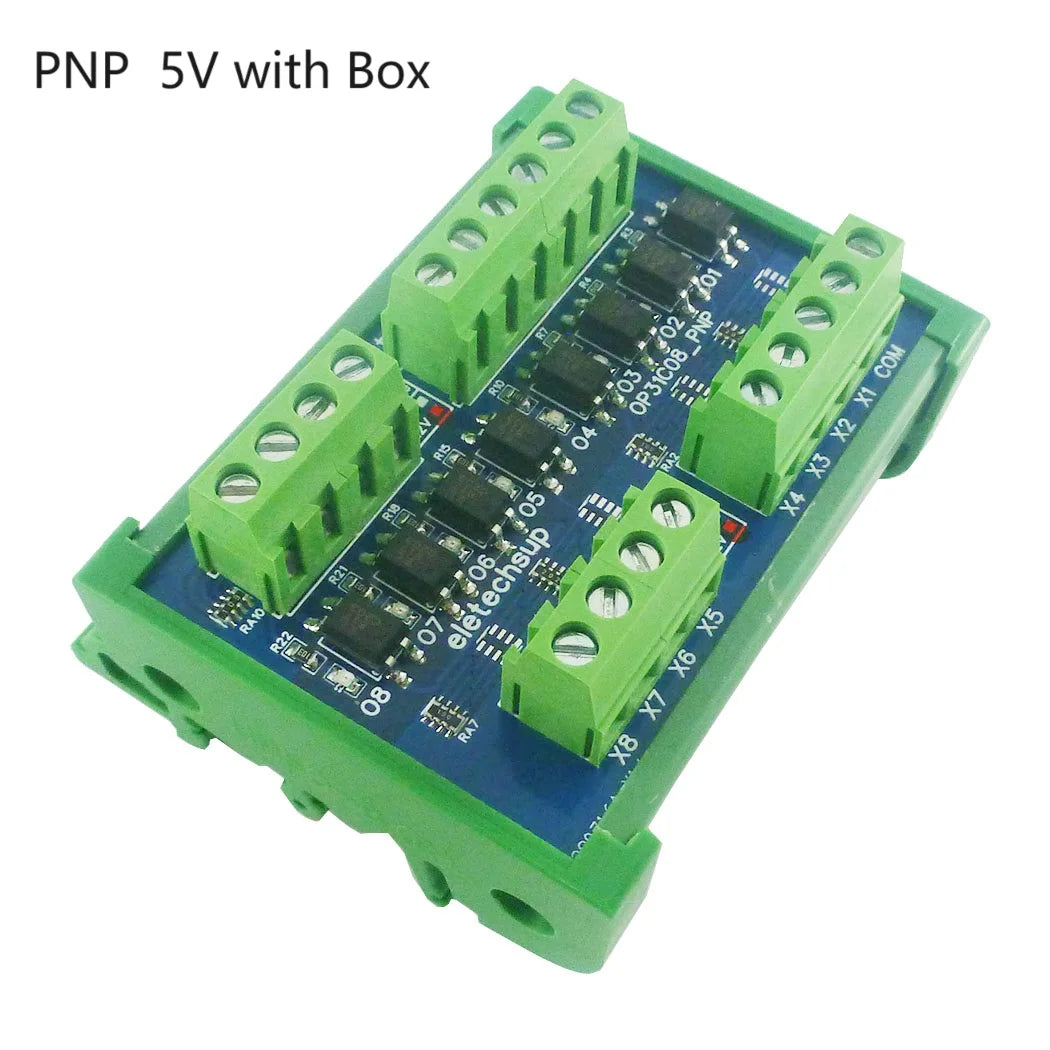

Size: 72*50*18MM(only Board);76*63*44MM(with Box)
Weight: 37 grams(only Board);75 grams(with Box)

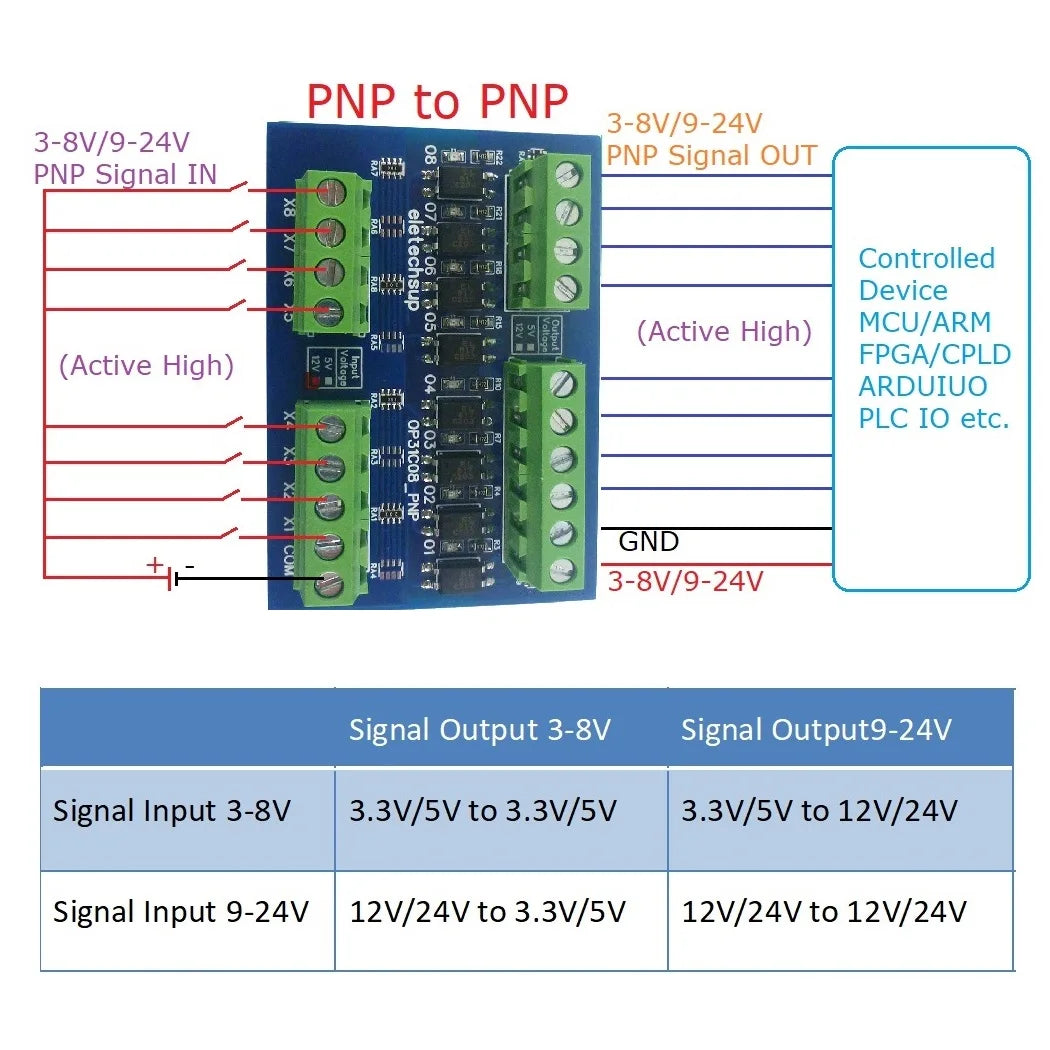

In 3-8V,Out 3-8V Version ,Suitable for the following level conversions
3.3V to 3.3V
3.3V to 5V
5V to 3.3V
5V to 5V
