OP62A02 10M High-Frequency 3.3V 5V GPIO Logic Level Converter Board PWM Signal 5000Vrms Optical Isolation Module PNP NPN OP62A02
OP62A02 10M High-Frequency 3.3V 5V GPIO Logic Level Converter Board PWM Signal 5000Vrms Optical Isolation Module PNP NPN OP62A02
SKU:OP62A02_NO
995 in stock
Regular price
$2.99
Regular price
$2.81
Sale price
$2.99
Unit price
per
Couldn't load pickup availability

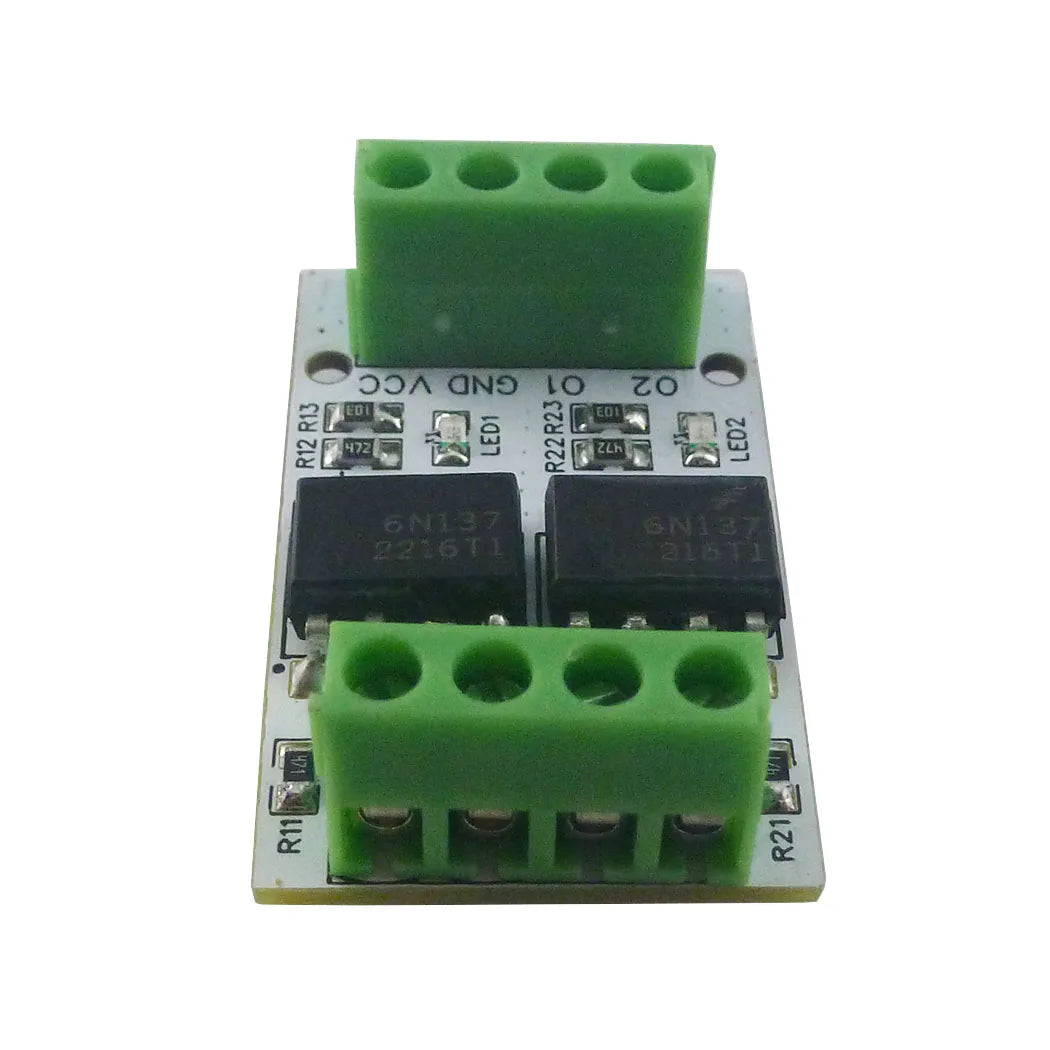

Product List: 1PCS
2CH High-Speed 10MBit/s 5000Vrms Logic Gate Photocoupler Module 3.3V 5V Digital Logic Level Converter
Features
This is a 2-channel high-speed photoelectric isolation module with a maximum transmission rate of up to 10MBit/s and input and output isolation of 5000Vrms. There are four wiring methods, non-inverting input, inverting input, differential in-phase input, and differential inverting input. Can be used in most 3.3V 5V level isolation situations.
Input level : 3.3-5V
Output level: 3.3-5V
Input drive current: 3.3V/4MA; 5V/7MA
Output load current: 3.3V/5MA; 5V/8MA
Input signal type: NPN/PNP
Output signal type: NPN
Isolation voltage: 5000V
Signal frequency: <10Mhz
Product model: OP62A02
Brand name: eletechsup
Working temperature: -40-110 degrees Celsius

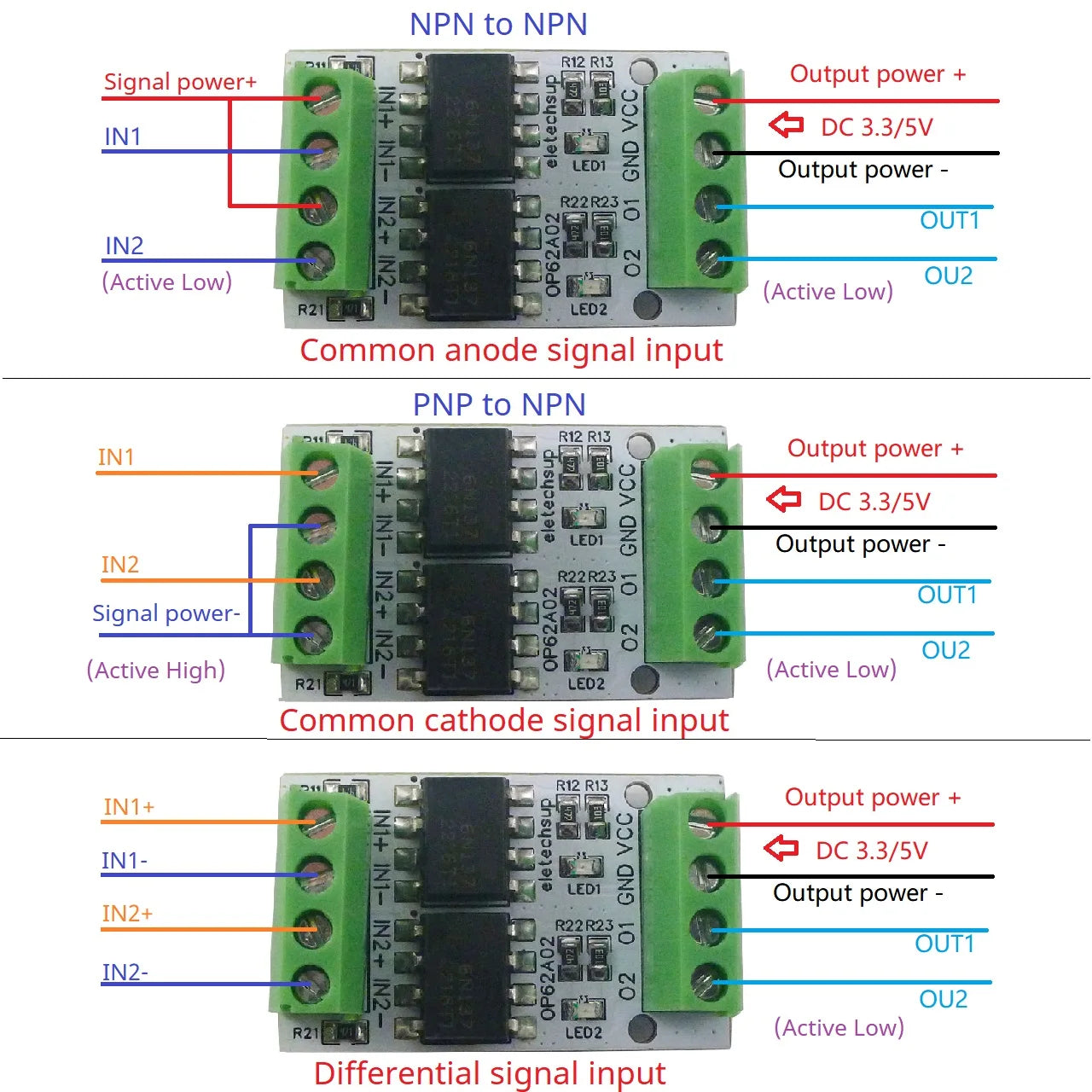

Conversion type: NPN to NPN; PNP to NPN

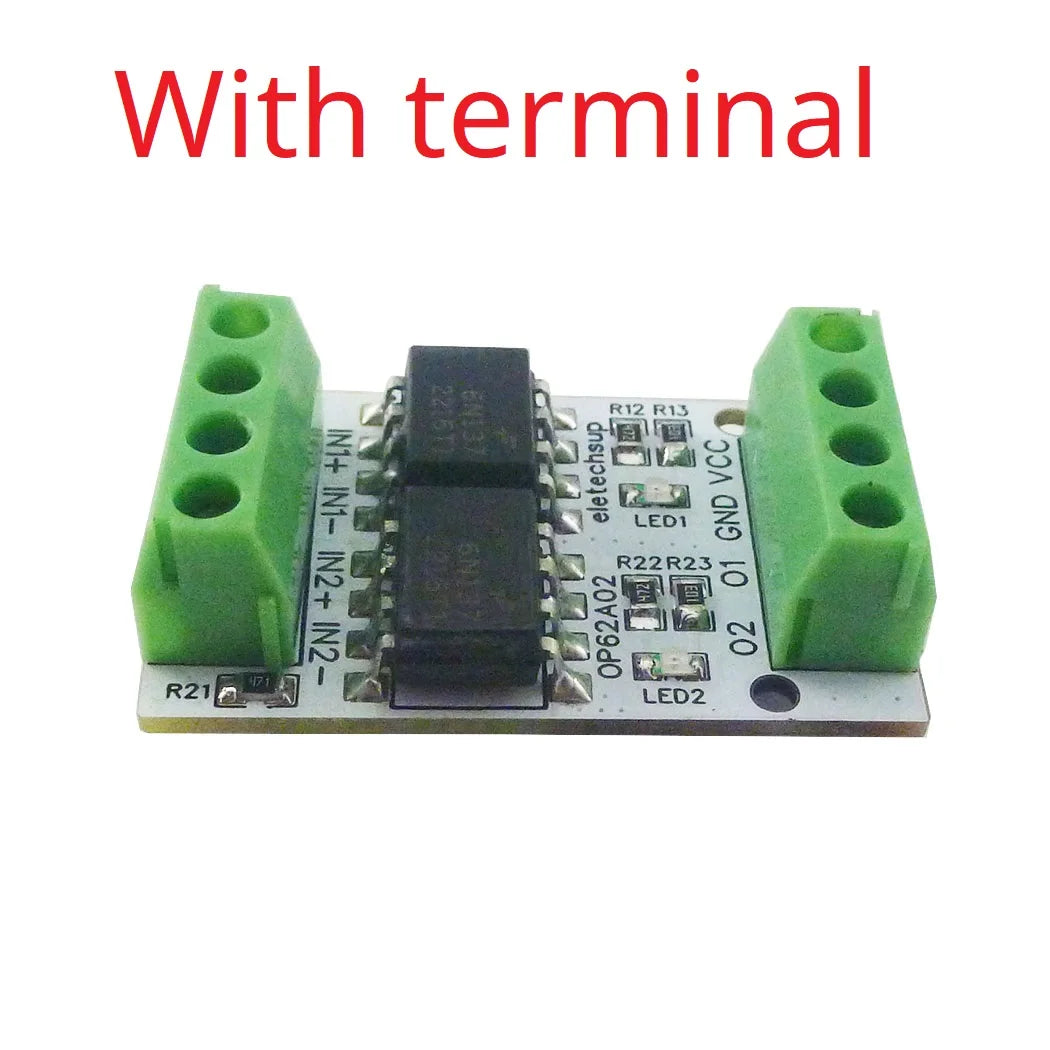

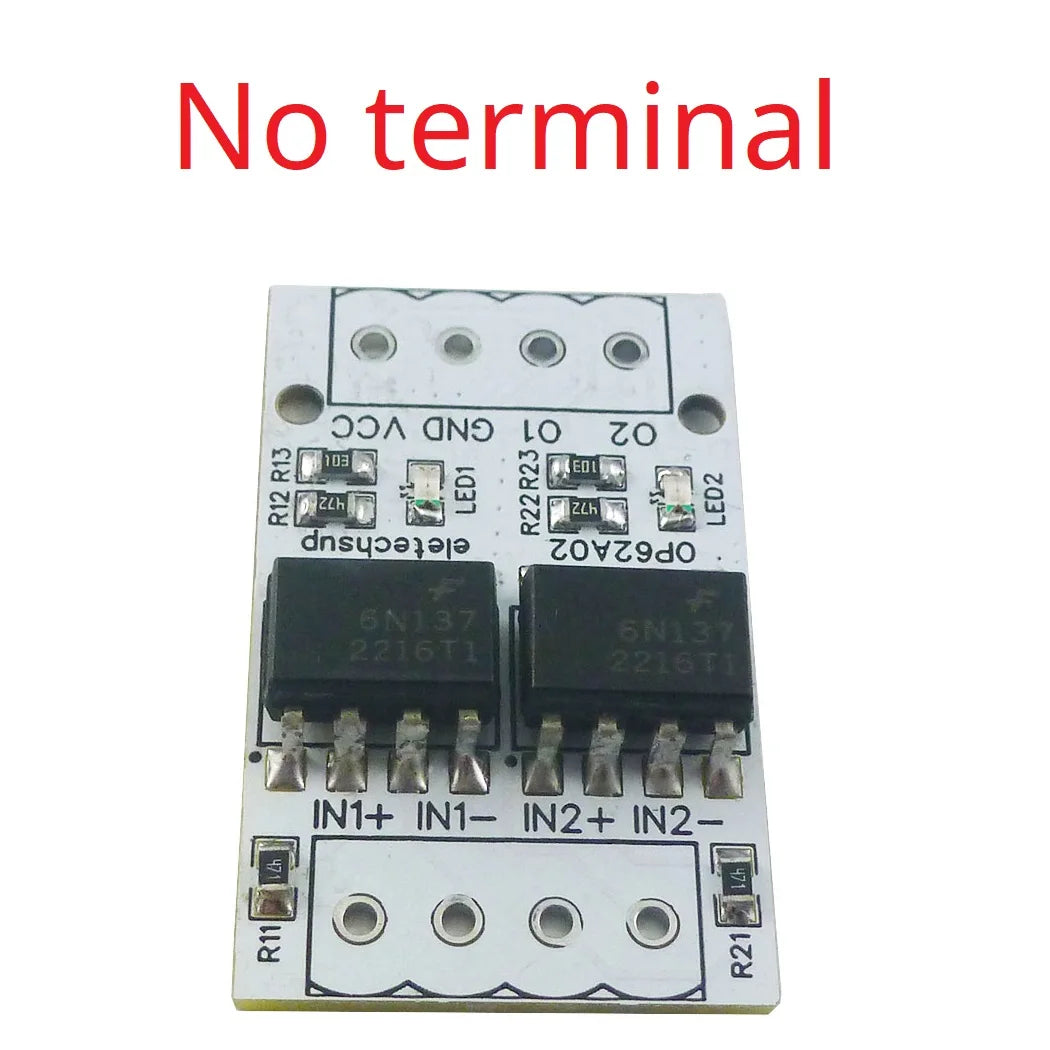

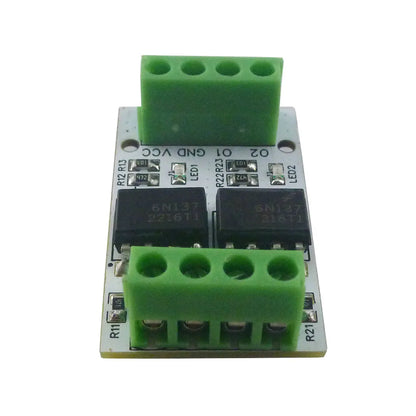

Size: 35.5*22*5.7MM(No terminal),35.5*22*12MM(With terminal)
Weight: 3.1grams(No terminal),6.5grams(With terminal)
Application:
3.3V LvTTL 5V TTL Convert each other
for Arduino MEGA2560 ESP32 etc.
Line receiver,data transmission
Data multiplexing
Switching power supplies
Pulse transformer replacement

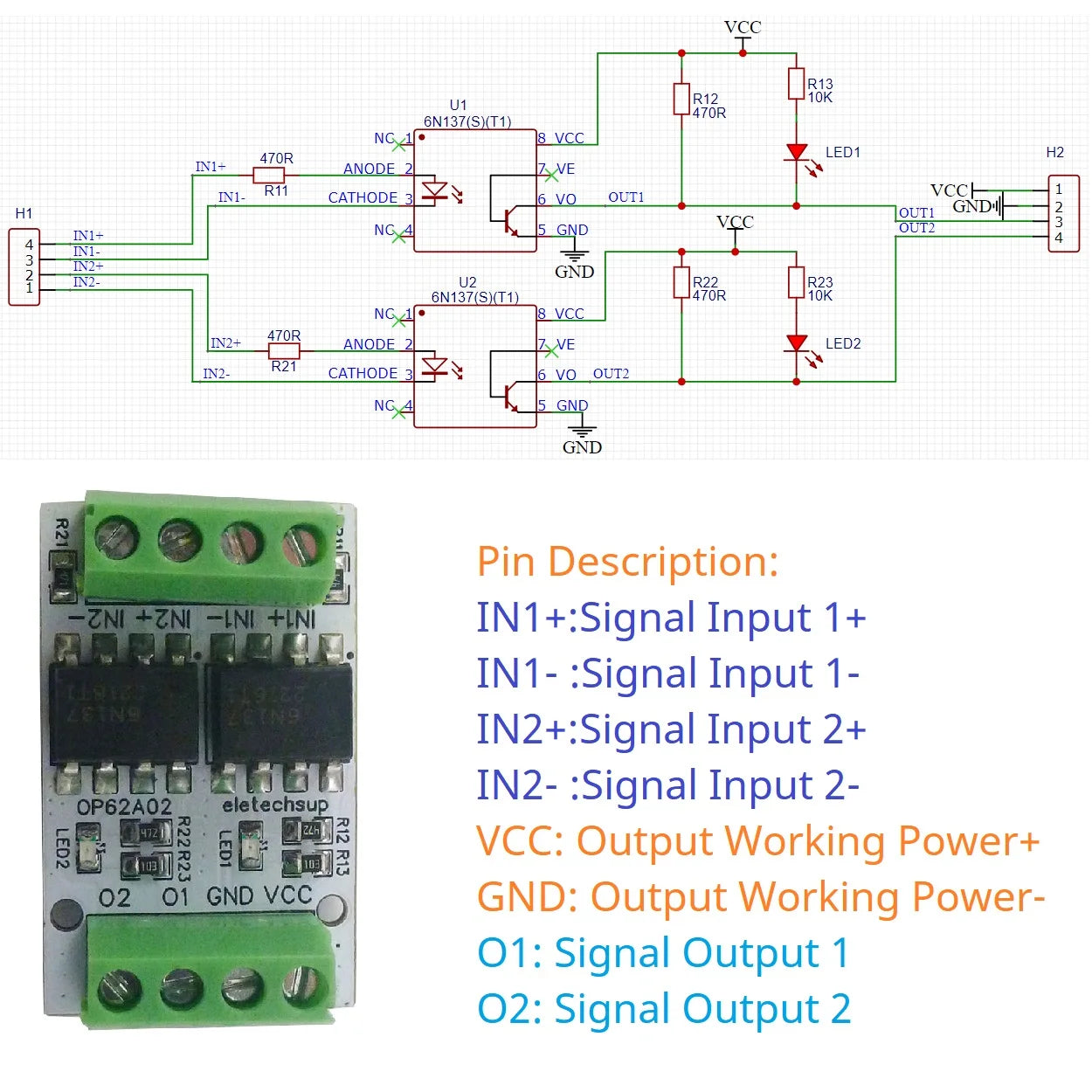

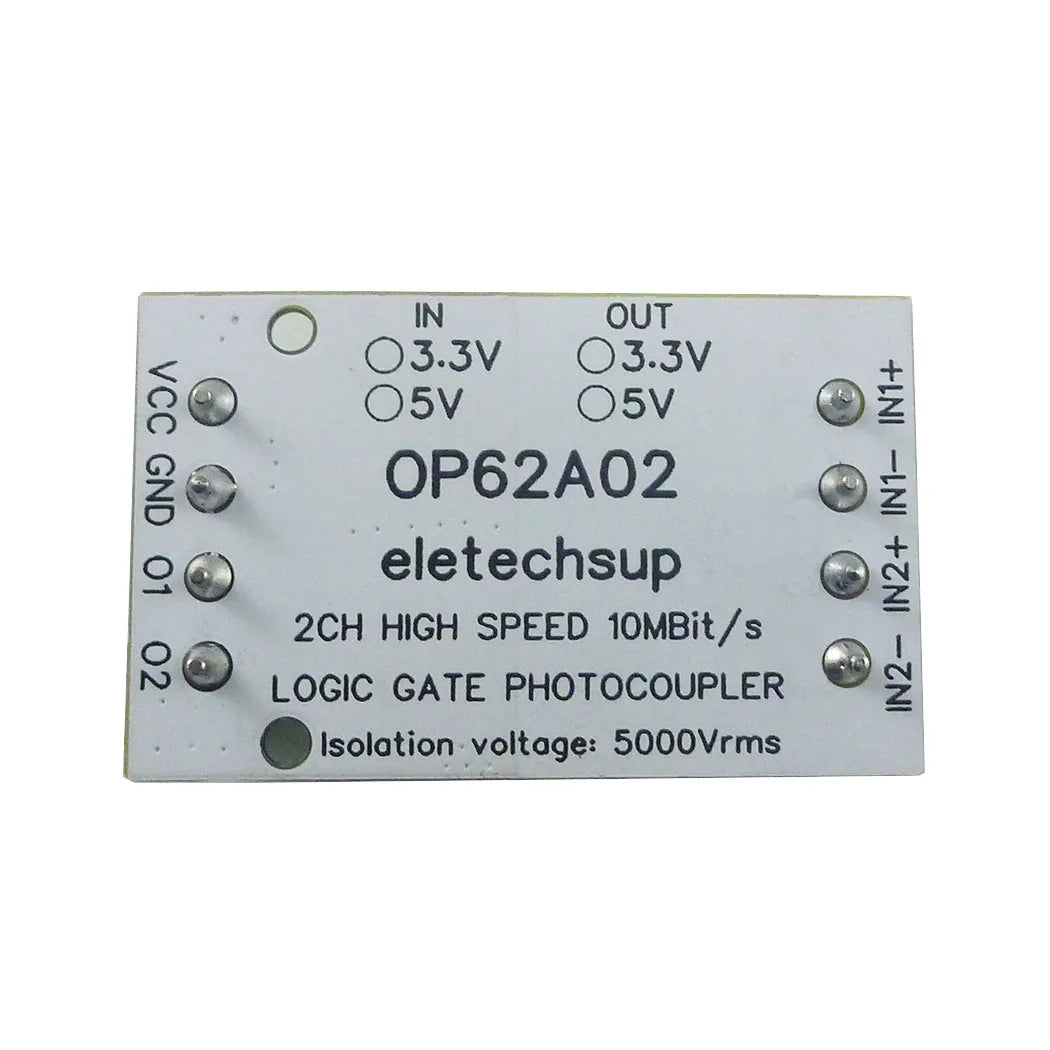

Pin Description:
IN1+:Signal Input 1+
IN1- :Signal Input 1-
IN2+:Signal Input 2+
IN2- :Signal Input 2-
VCC: Output Working Power+（DC 3-5.5V）
GND: Output Working Power-
O1: Signal Output 1
O2: Signal Output 2

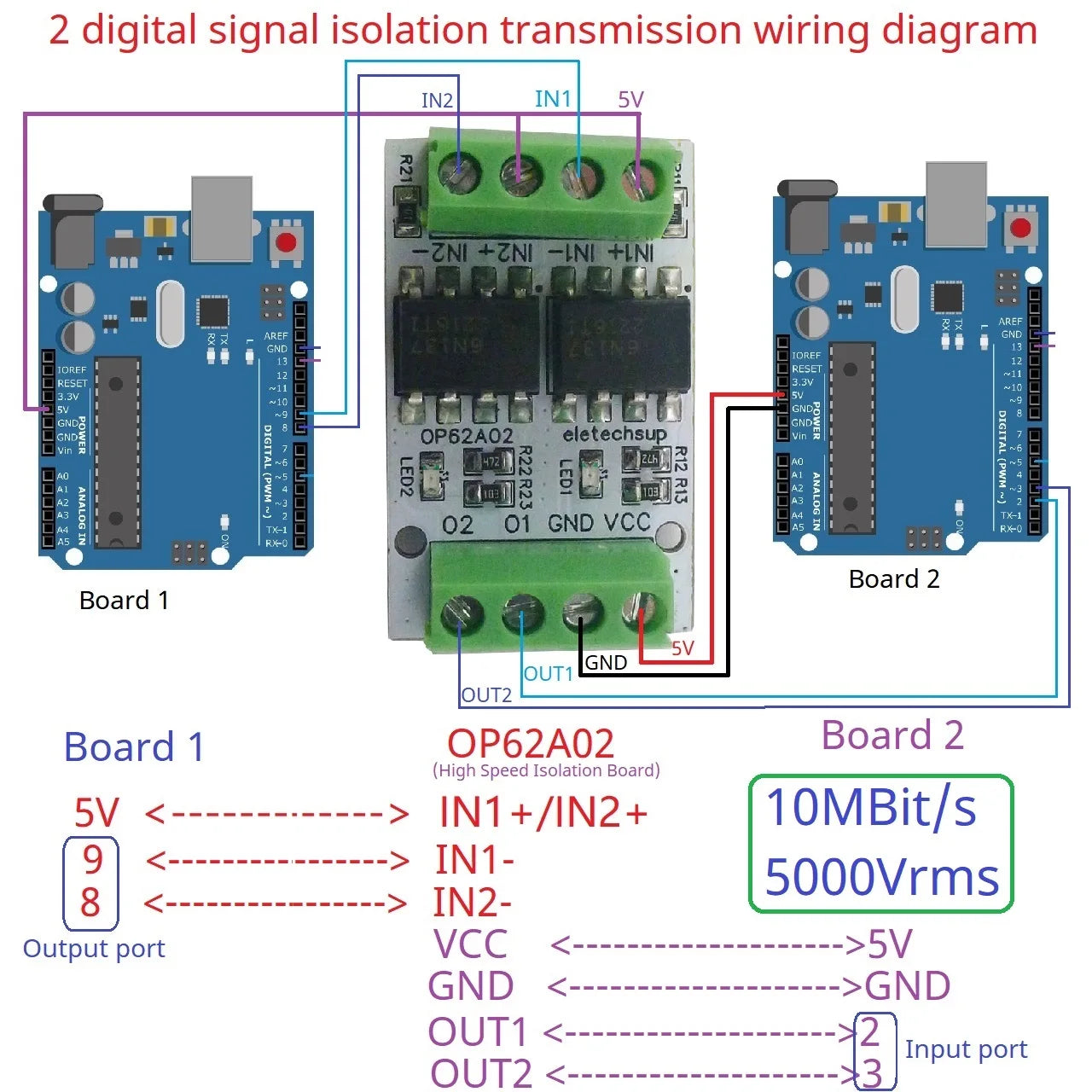

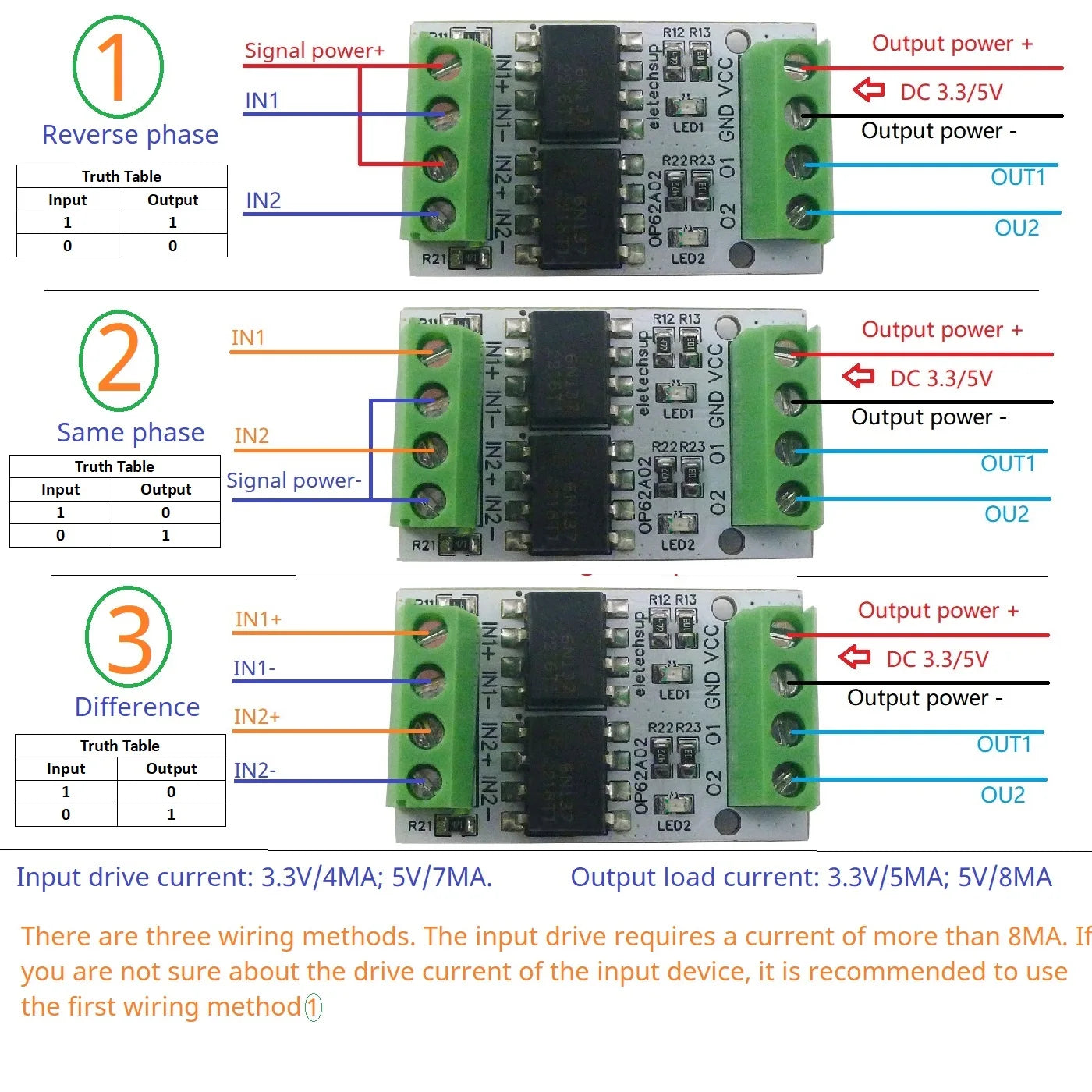

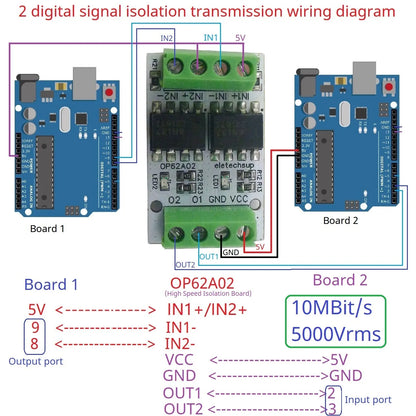

There are three wiring methods. The input drive requires a current of more than 8MA. If you are not sure about the drive current of the input device, it is recommended to use the first wiring method.
