Packname: 4-16CH 3.3V 5V 12V 24V PNP NPN Digital Logic Converter 5A MOS Solid State Relay PLC Signal Amplifier Board for Motor Relay

Packing included:
1 PCS 4/8/12/16 Channels 3.3-24V NPN PNP PLC Signal Amplifier Module

Description:

Specification
1. Adopt original drive chip, stable and reliable performance.
2. Compatible with postive control,negative control two input modes.
3. Each channel has an LED indicator to indicate the current working state of the channel.
4. The input signal adopts optocoupler isolation design, which has strong anti-interference ability.
5. The module is designed wiht standard rail type.

Technical Paramteres:
Control Voltage: 3.3-8V and 8-24V
Input current: 8-15mA
Output type: Non-Contact type
Drive component: P/N channel FET
Operating time: 1ms or less
Rest time: 1ms or less
MAX switching frequency: 2000Hz
Module installation method: standard rail mounting

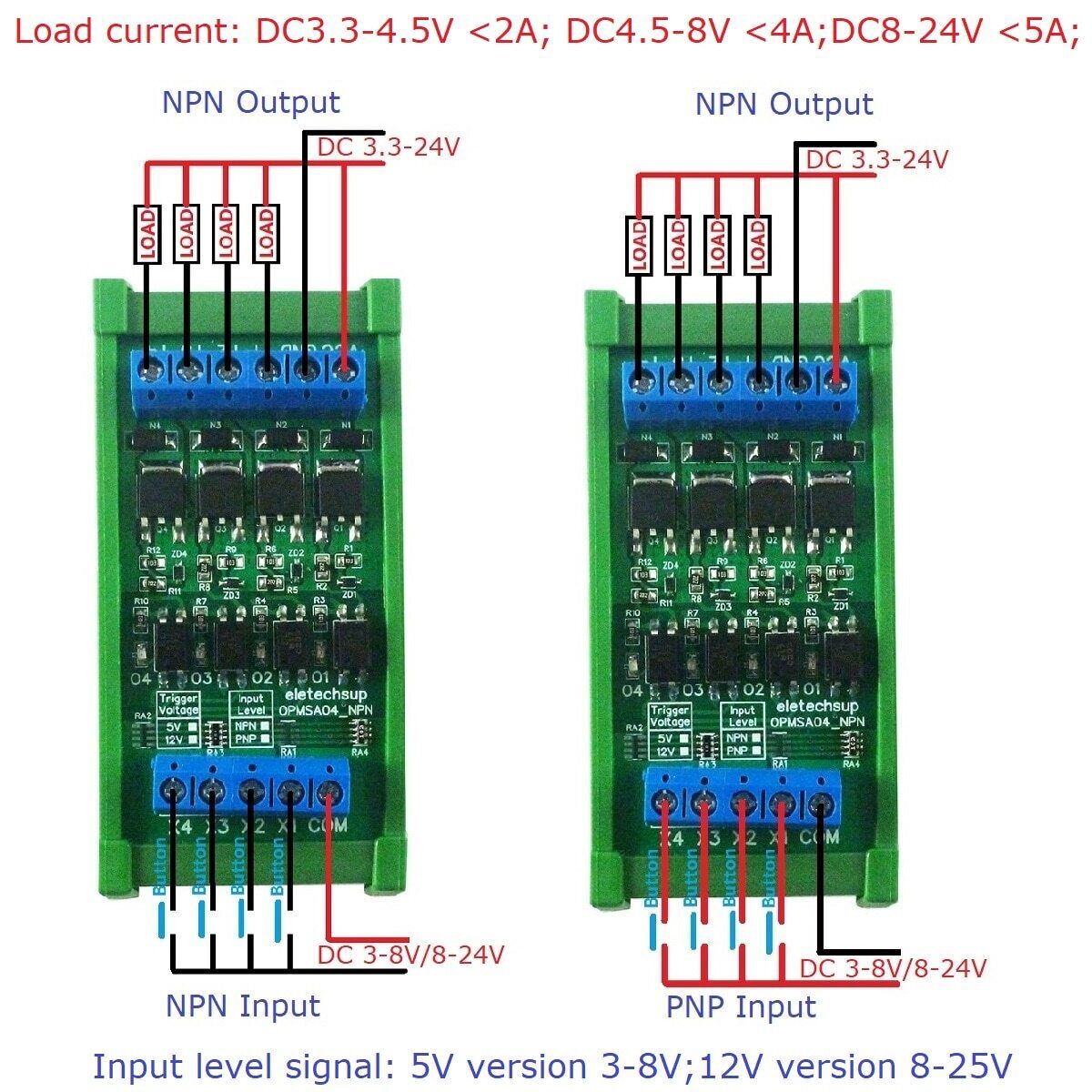

X1...X16 is the signal input terminal, COM is the signal common terminal.
Input level signal: 5V version 3-8V;12V version 8-25V
Y1...X16 is MOS load output terminals.
Load current: DC 3.3-4.5V <2A; DC 4.5-8V <4A;DC 8-24V <5A;

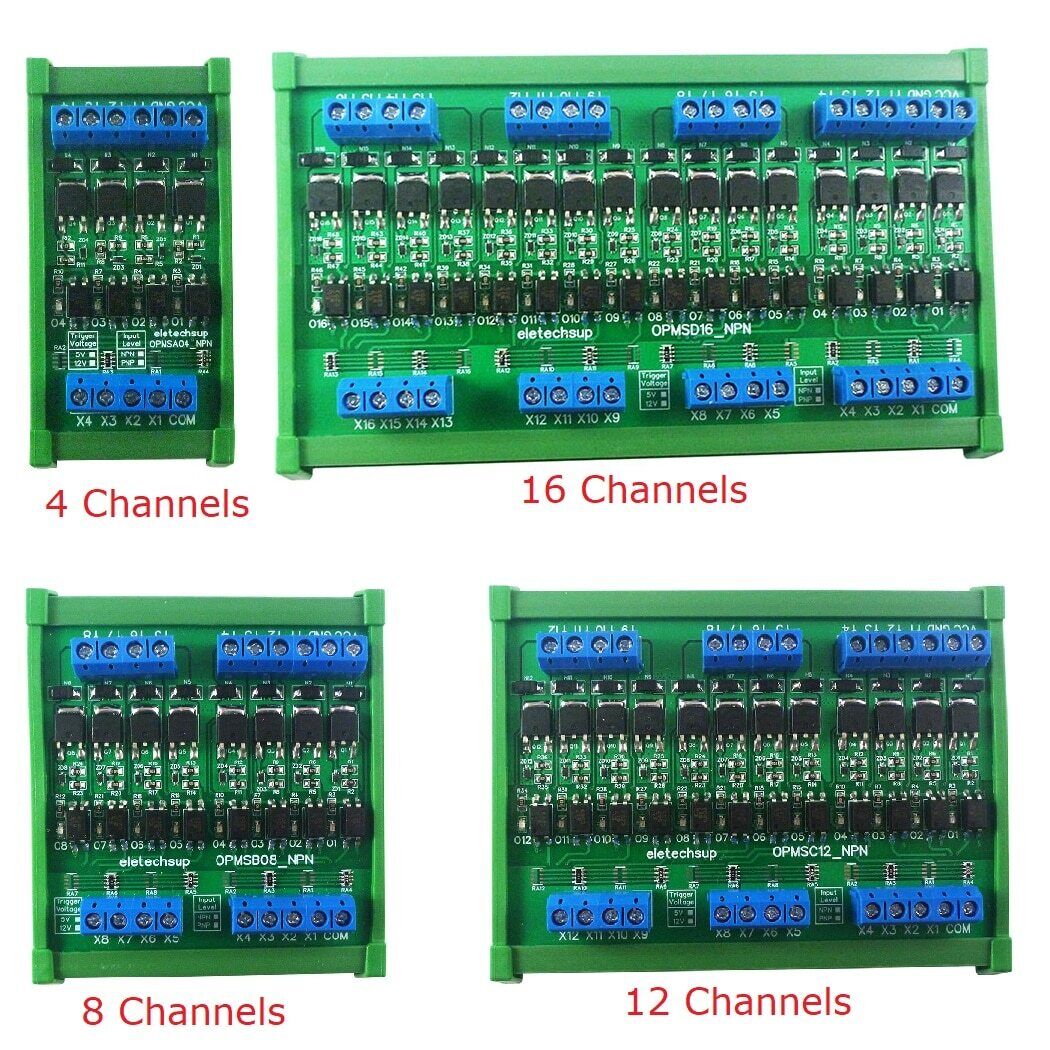

4CH:
Size :39*72*12(Only Board), 42*86*36(with Shell)
Weight : 21g(Only Board),62g(with Shell)

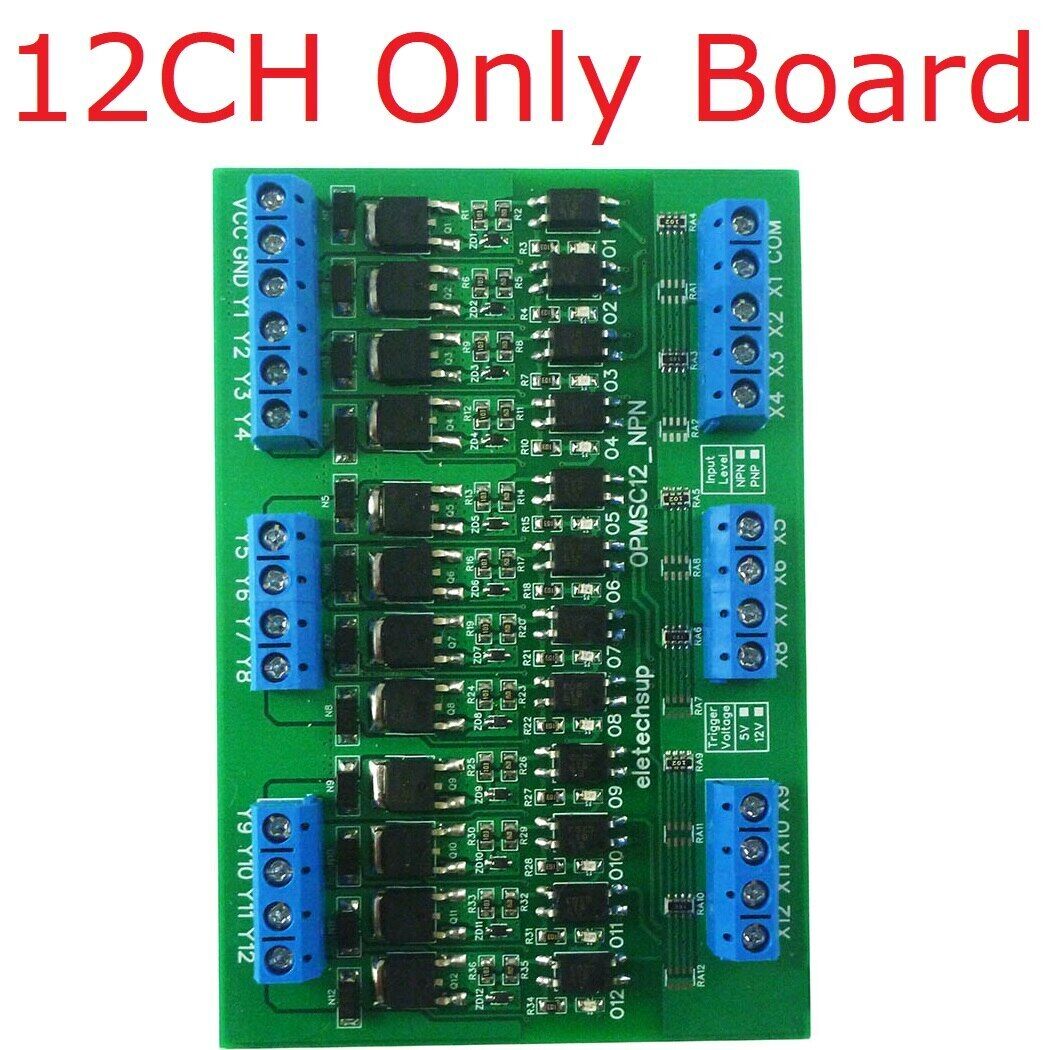

8CH:
Size :73*72*12(Only Board), 76*86*36(with Shell)
Weight : 39g(Only Board),100g(with Shell)

12CH:
Size :107*72*12(Only Board), 110*86*36(with Shell)
Weight : 56g(Only Board),140g(with Shell)

16CH:
Size :141*72*12(Only Board), 144*86*36(with Shell)
Weight : 74g(Only Board),177g(with Shell)
