PTA8E16 16CH DC 12V 24V Temperature Analog PT100 Resistance RS485 Collector Modbus RTU -40-500 High Temperature Acquisition Board

PTA8E16 16CH DC 12V 24V Temperature Analog PT100 Resistance RS485 Collector Modbus RTU -40-500 High Temperature Acquisition Board

PTA8E16_B

100 in stock

$25.25
$25.25 $25.25
Sale Sold out

Product Name:
16AI RS485 Analog Input RS485 PT100 RTD Temperature Sensor Collector for Lithium Battery Test PLC Configuration Software




Packing list
(
Please select the product you need
):

1 PCS

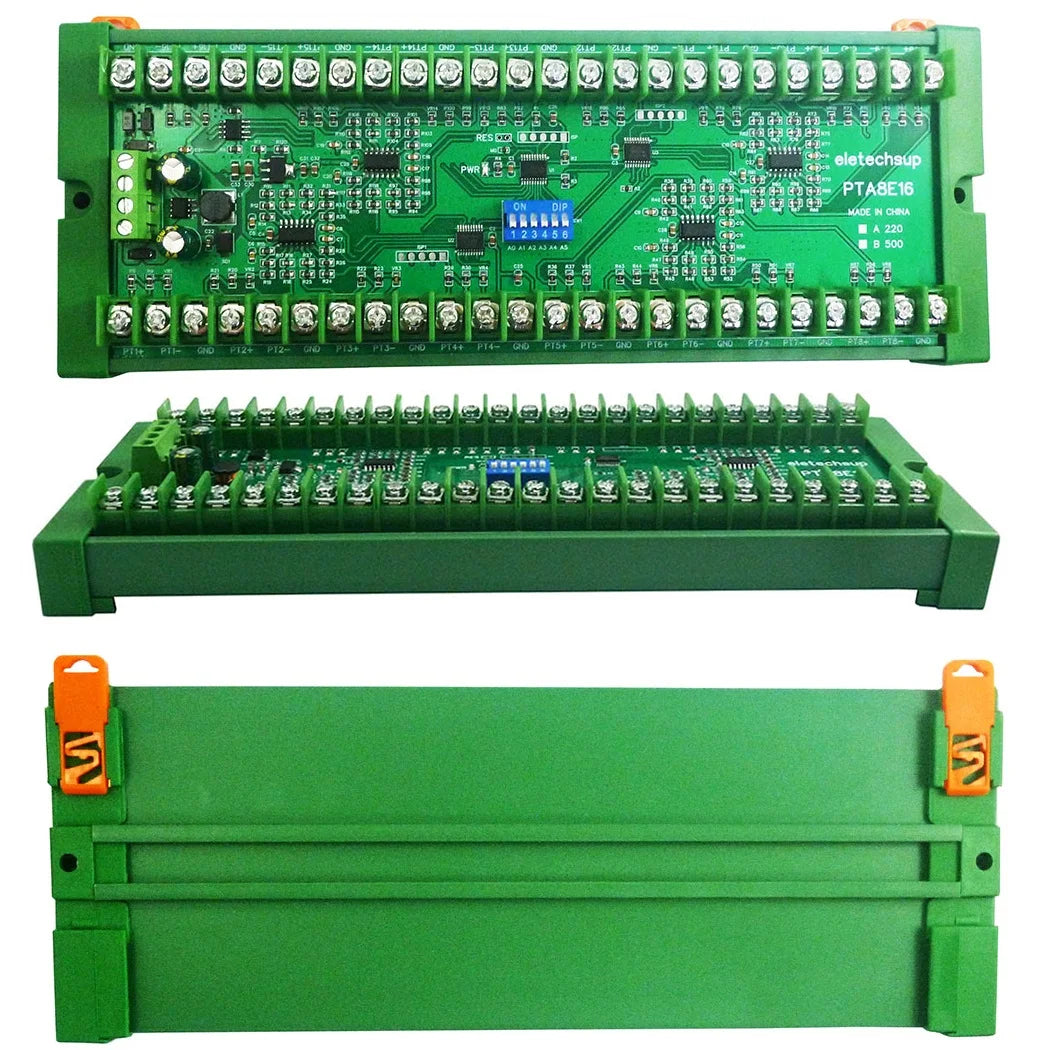

PTA8E16 16ch PT100 to RS485 Acquisition Board



Description :


PTA8E16 PT100 to RS485 Collector module Description:


Working voltage: DC 8~30V(DC 12V 24V)
Working current: 14-25MA
MODBUS RTU protocol, 03 read command, 06 or 16 write command.
Serial port baud rate: 9600 (default), N, 8, 1
By modifying the 485 address, up to 247 modules can be cascaded (more than 16 please use R485 repeater)
Can read temperature and PT100 Resistance Value
Adapted sensor: PT100 3-wire or 2-wire sensor

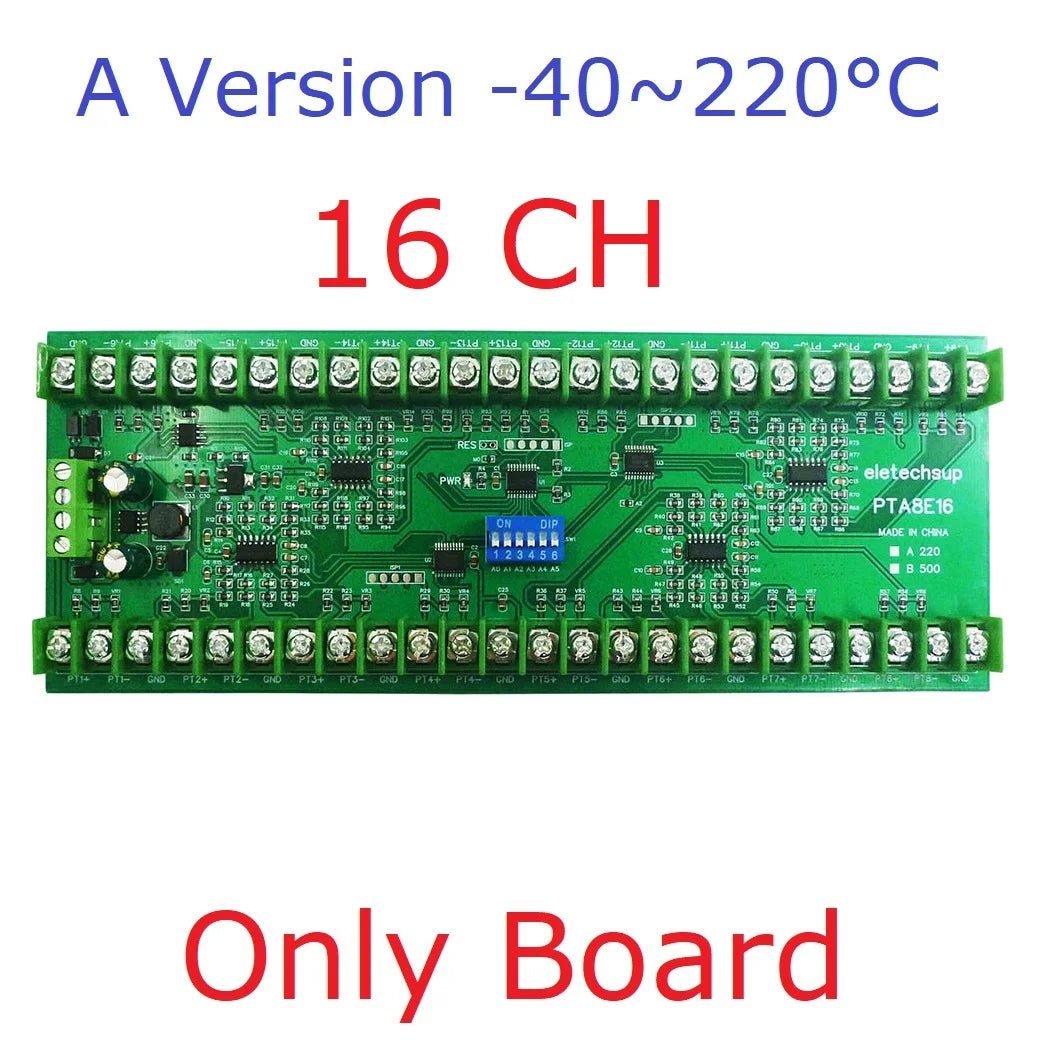

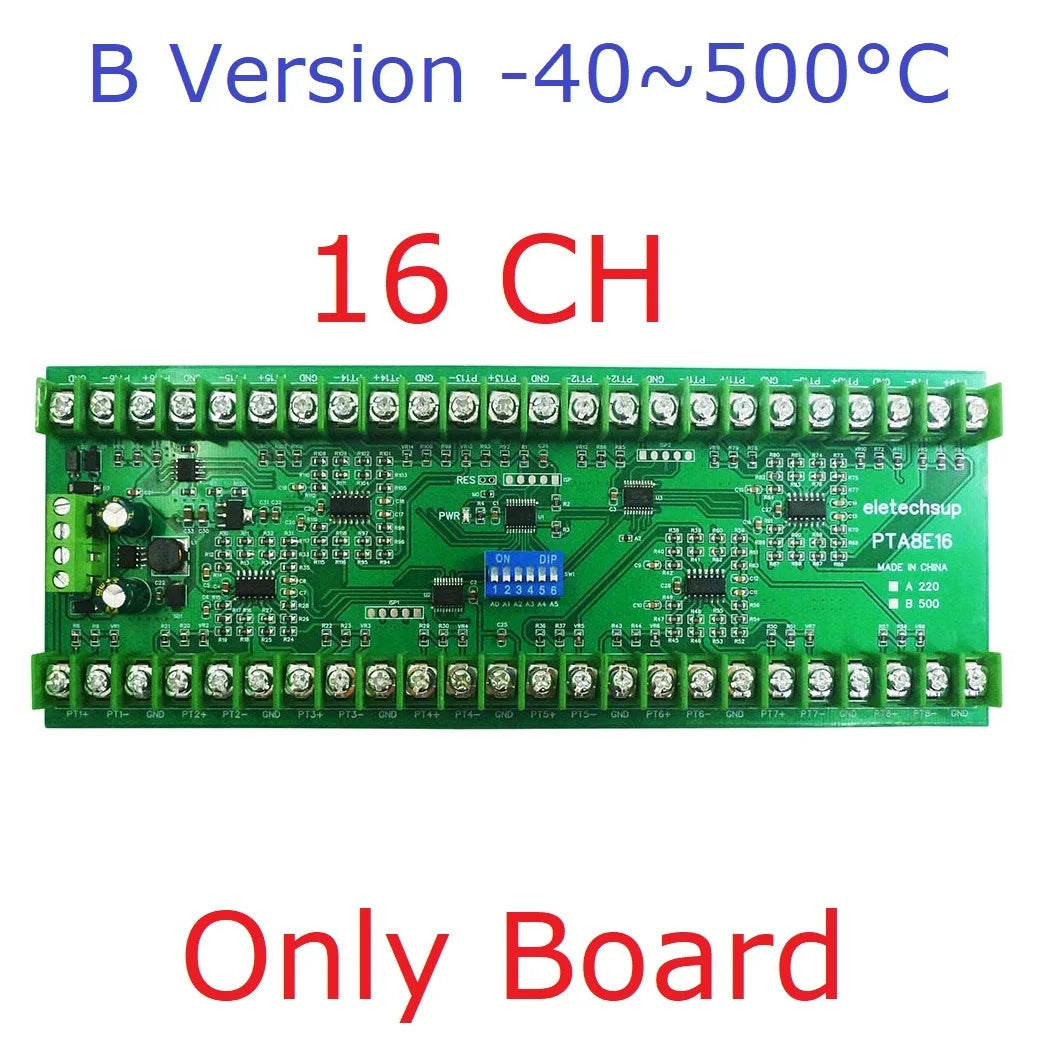

Temperature measurement range: A version -40℃ to +220℃; B version -40℃ to +500℃.
It is recommended to select a version with a smaller range within the range that meets the measurement.

Temperature measurement accuracy: 1%.
Size: 136 X 92 X 32MM
Weight: 166g

MODBUS RTU protocol please refer to : ''PTA8D08 8CH PT100 RS485 sensor protocol''

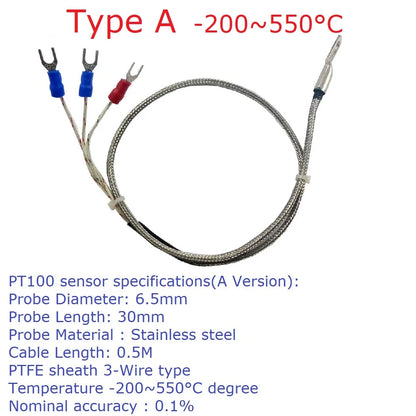

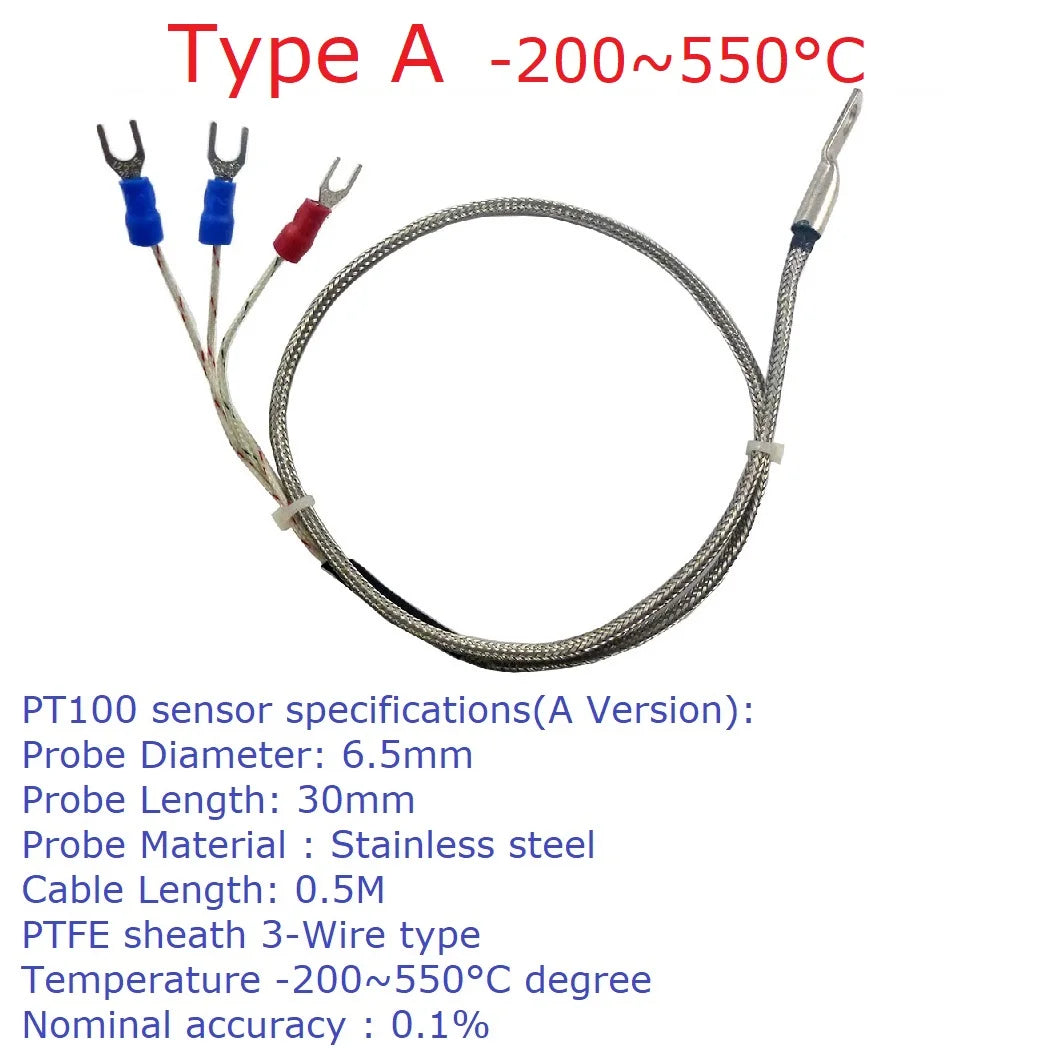

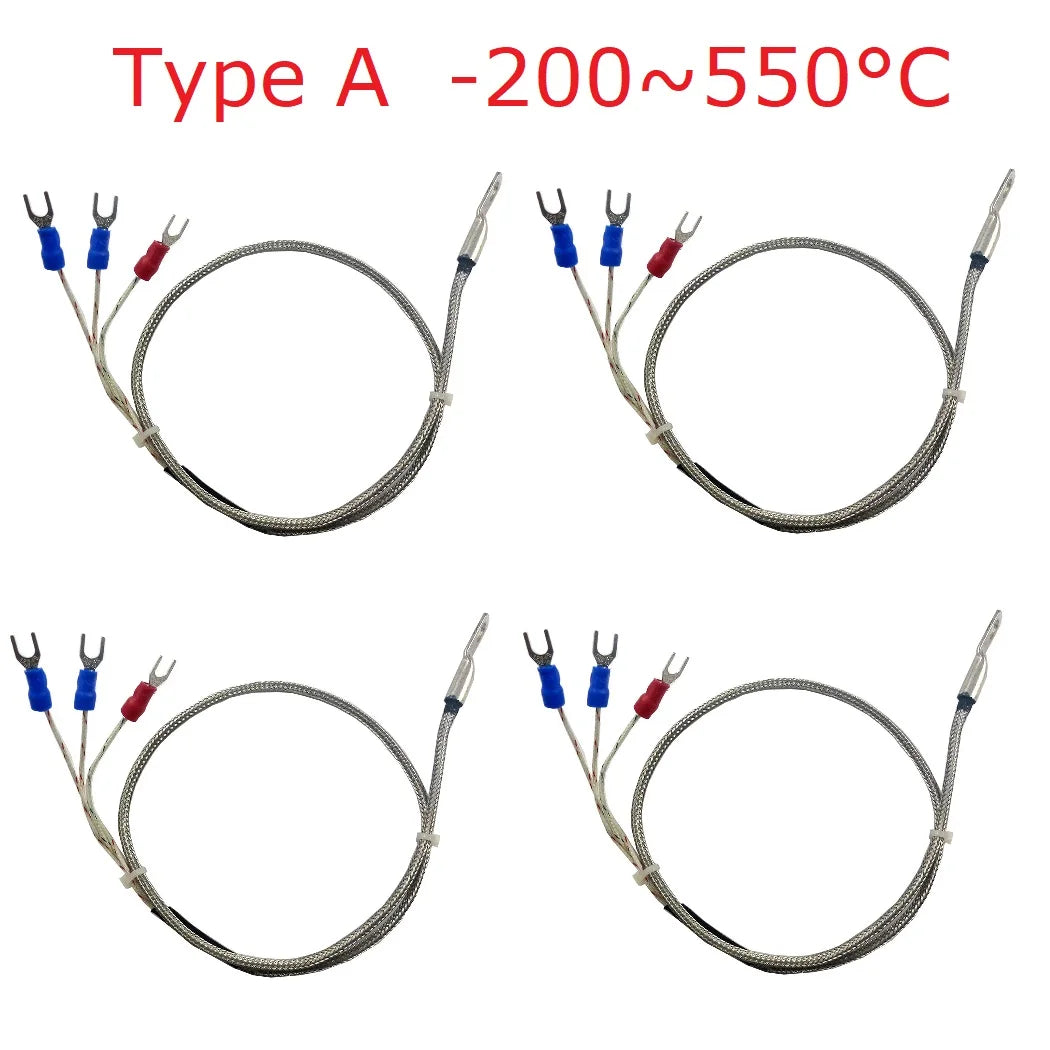

PT100 sensor specifications(Type A):

Type: PT100
Probe Diameter: 6.5mm
Probe Length: 30mm
Probe Material : Stainless steel
Cable Length: 0.5M
PTFE sheath 3-Wire type
Temperature -200~550°C degree
Nominal accuracy : 0.1%

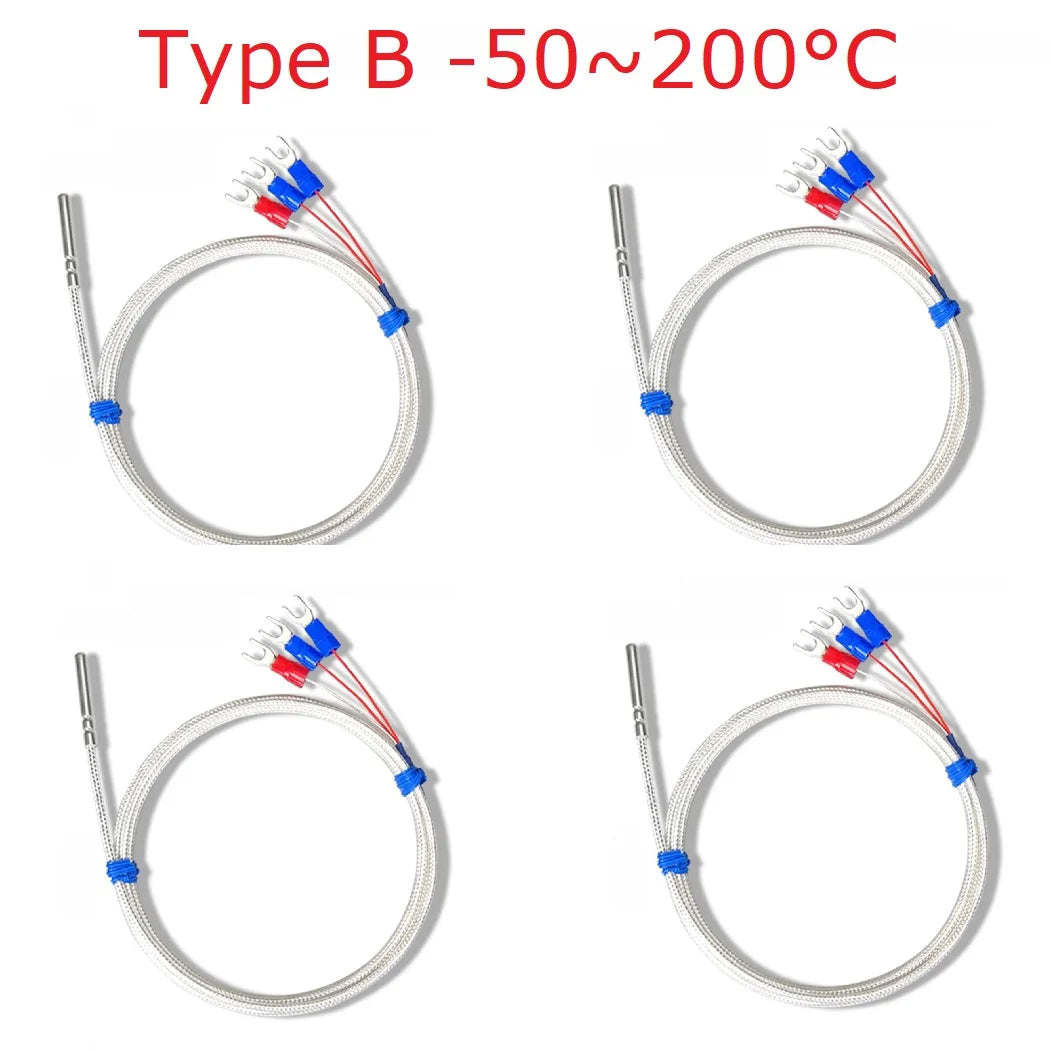

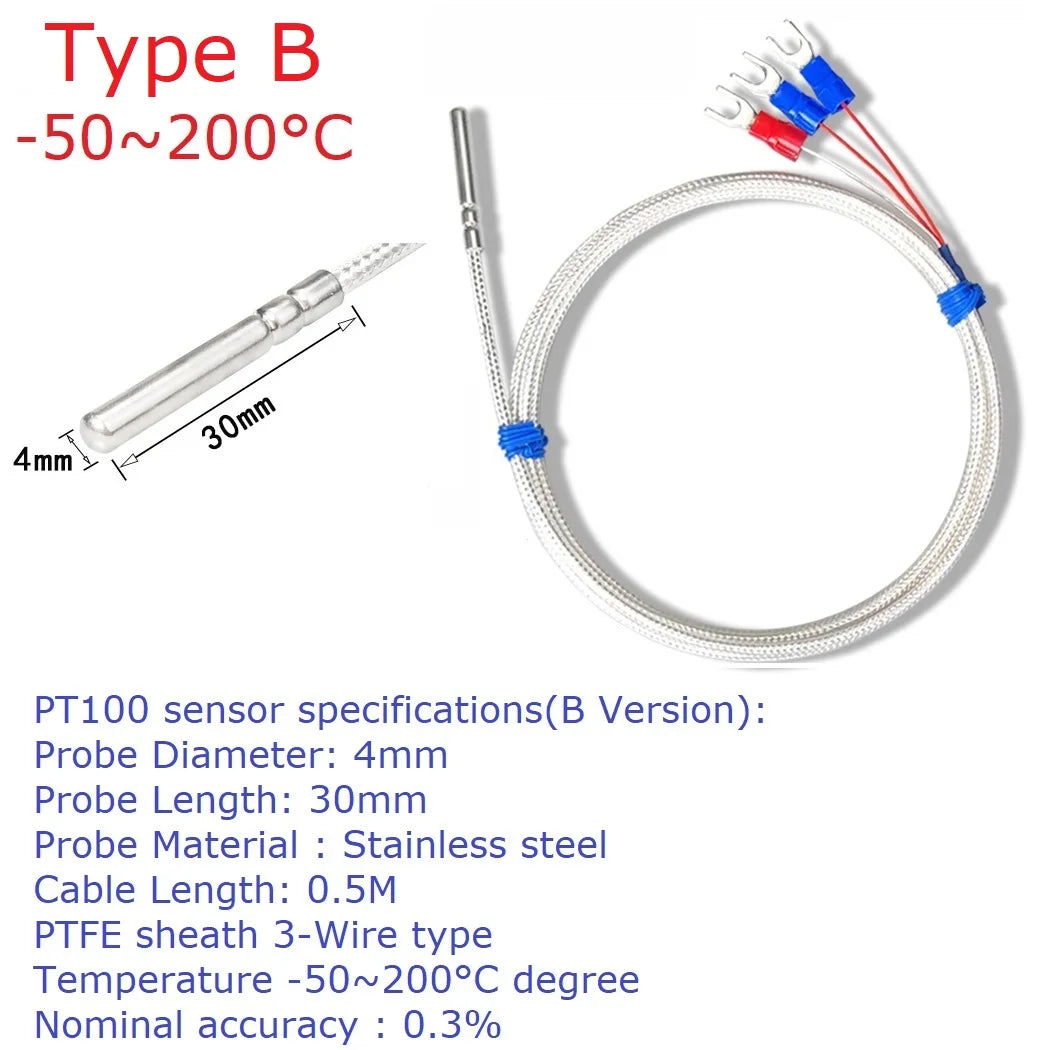

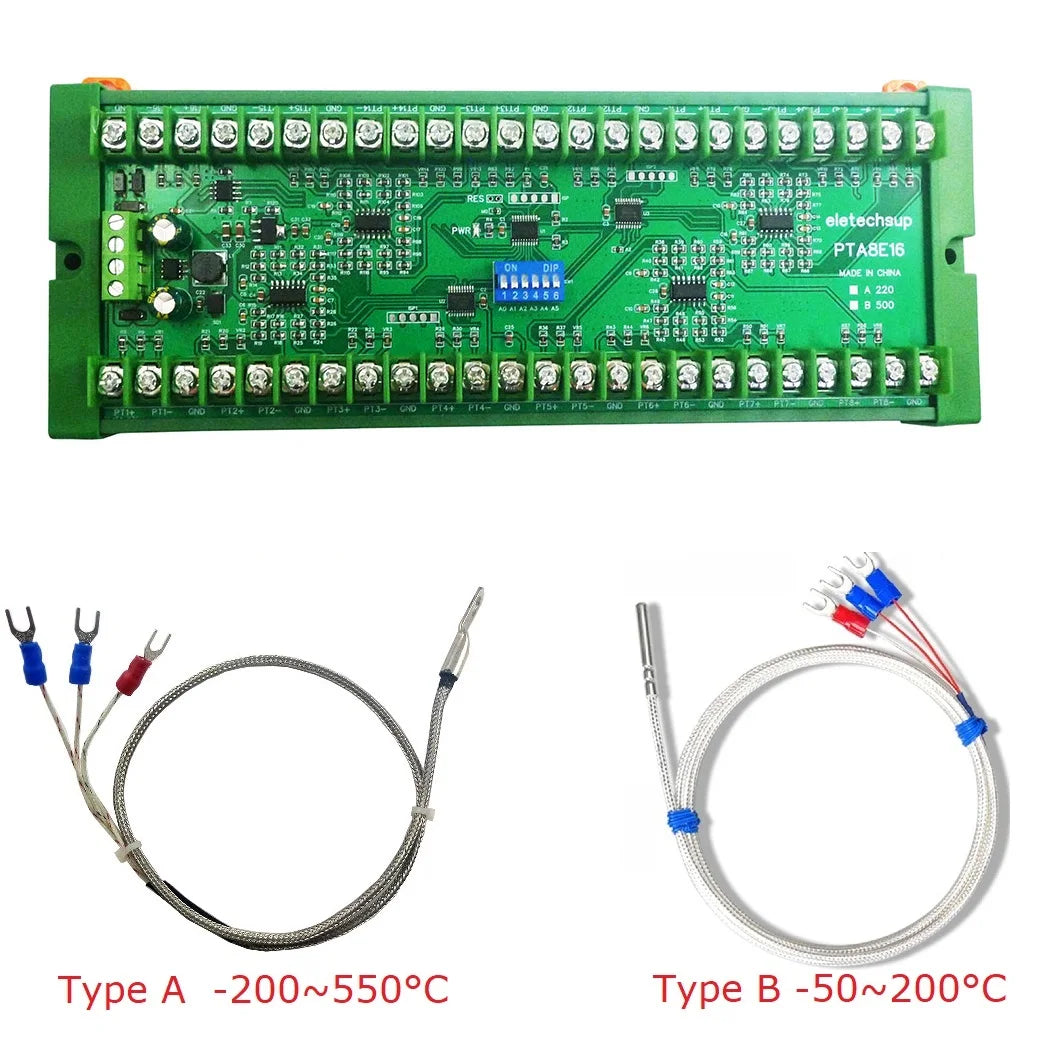

PT100 sensor specifications(Type B):

Type: PT100
Probe Diameter: 4mm
Probe Length: 30mm
Probe Material : Stainless steel
Cable Length: 0.5M
PTFE sheath 3-Wire type
Temperature -50~200°C degree
Nominal accuracy : 0.3%

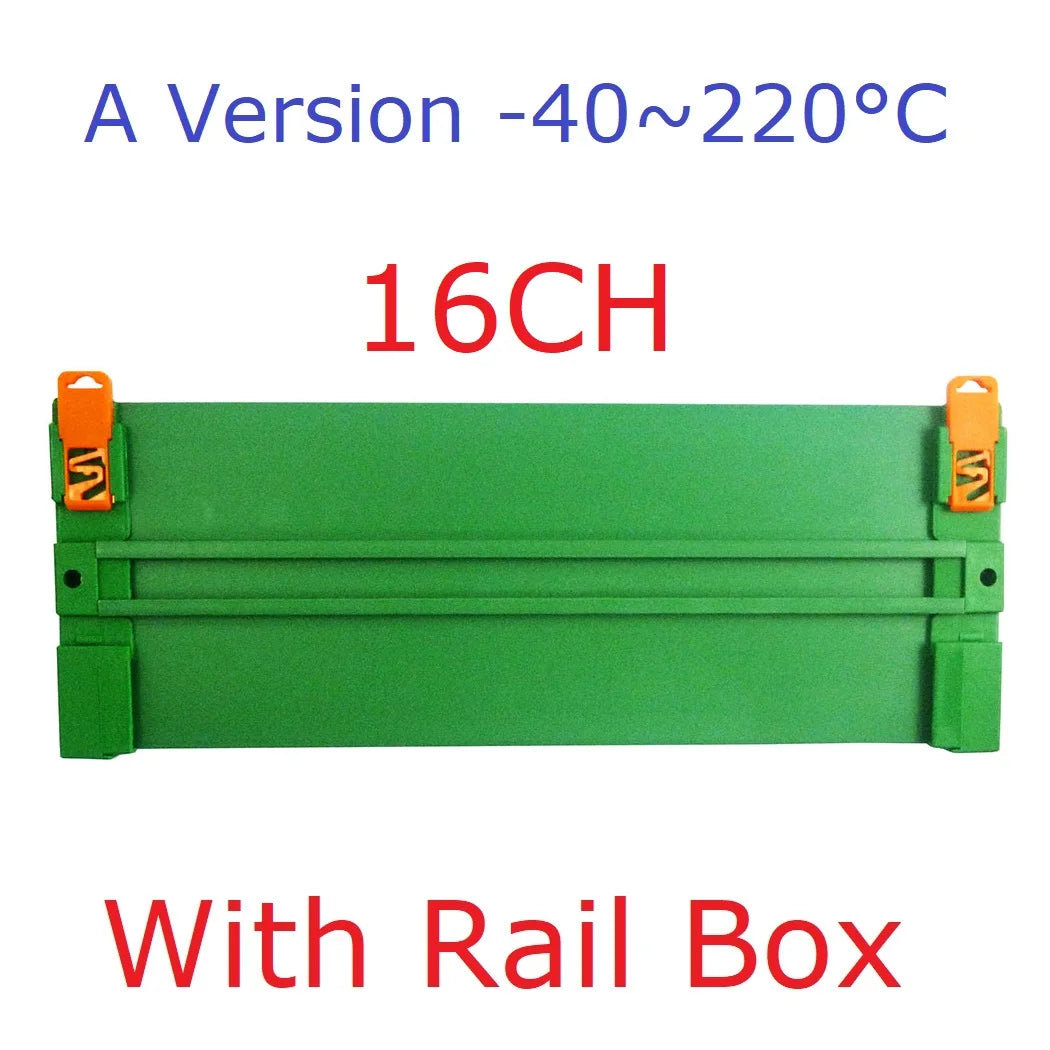

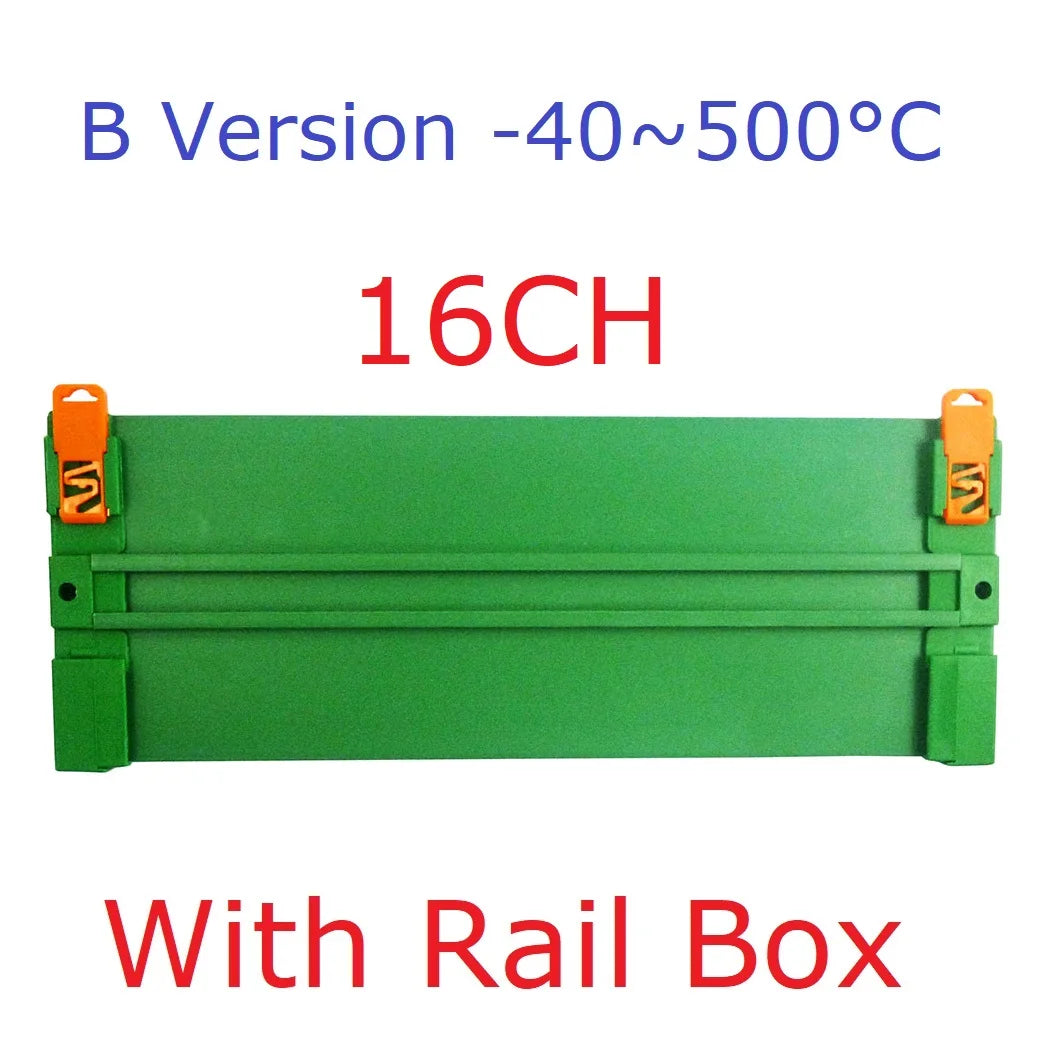

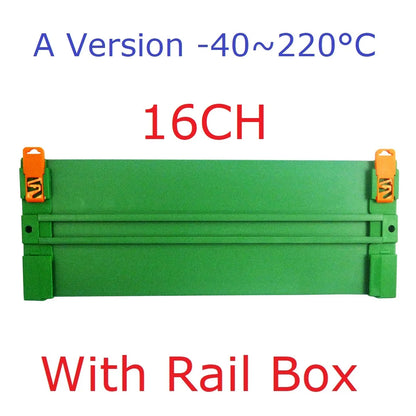

DIN rail Box parameters:

Product model: UM80
Color:
Green

Width: suitable for PCB board width UM80(80mm)
Insulation grade: flame-retardant VO grade
Backplane length: suitable for 210 mm PCB boards
Net weight: 141g
Installation: DIN35 and C45 rail



For more information, please contact us!!!



Typical application:



Thermostatic Controls
Industrial Systems
Consumer Products
Thermally Sensitive Systems
Measuring instruments
Indoor and outdoor temperature measurement
Temperature in vegetable garden
Weather forecasting, and monitoring
Temperature in Computer Room
Warehouse temperature
PLC analog expansion board

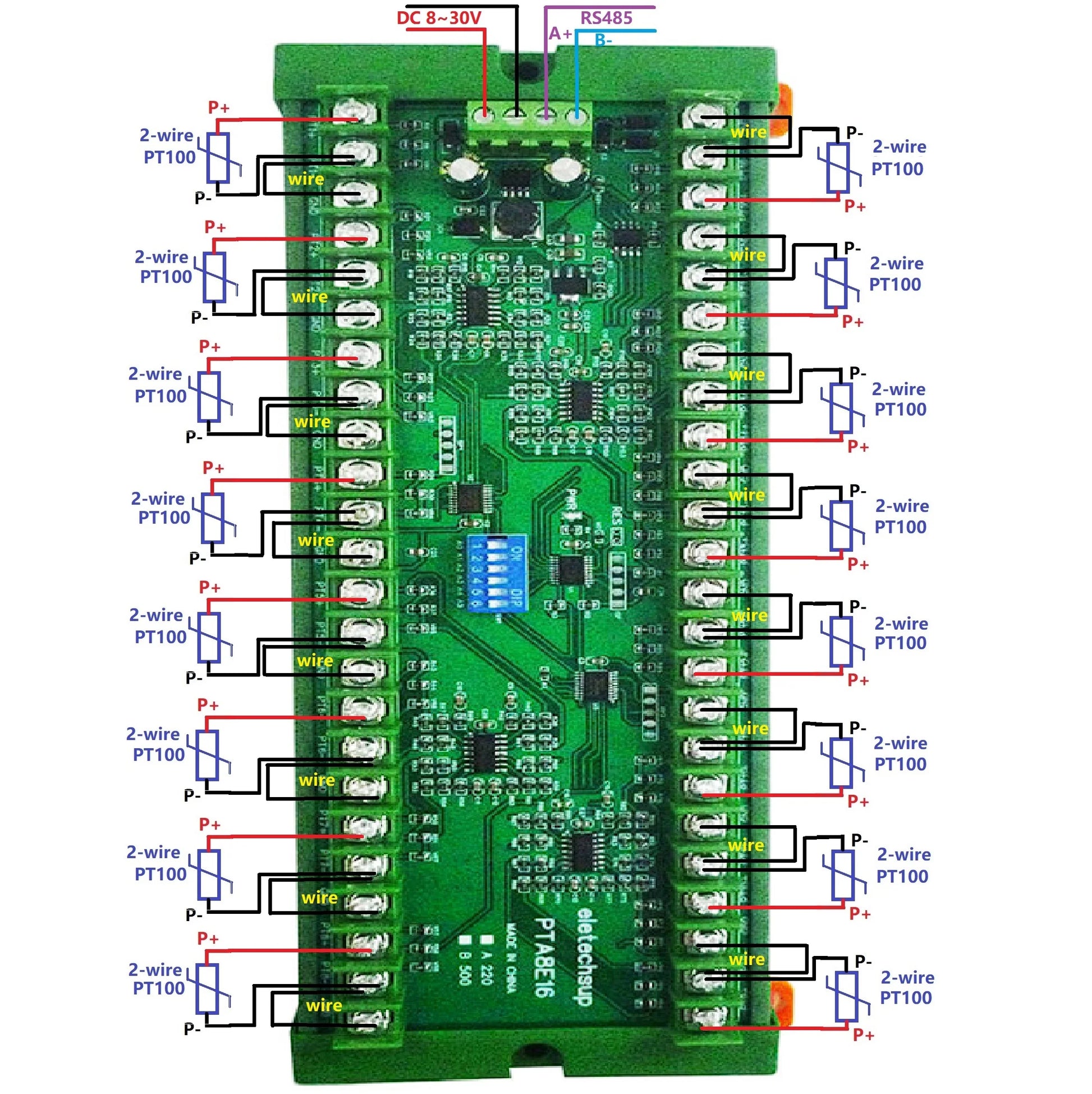

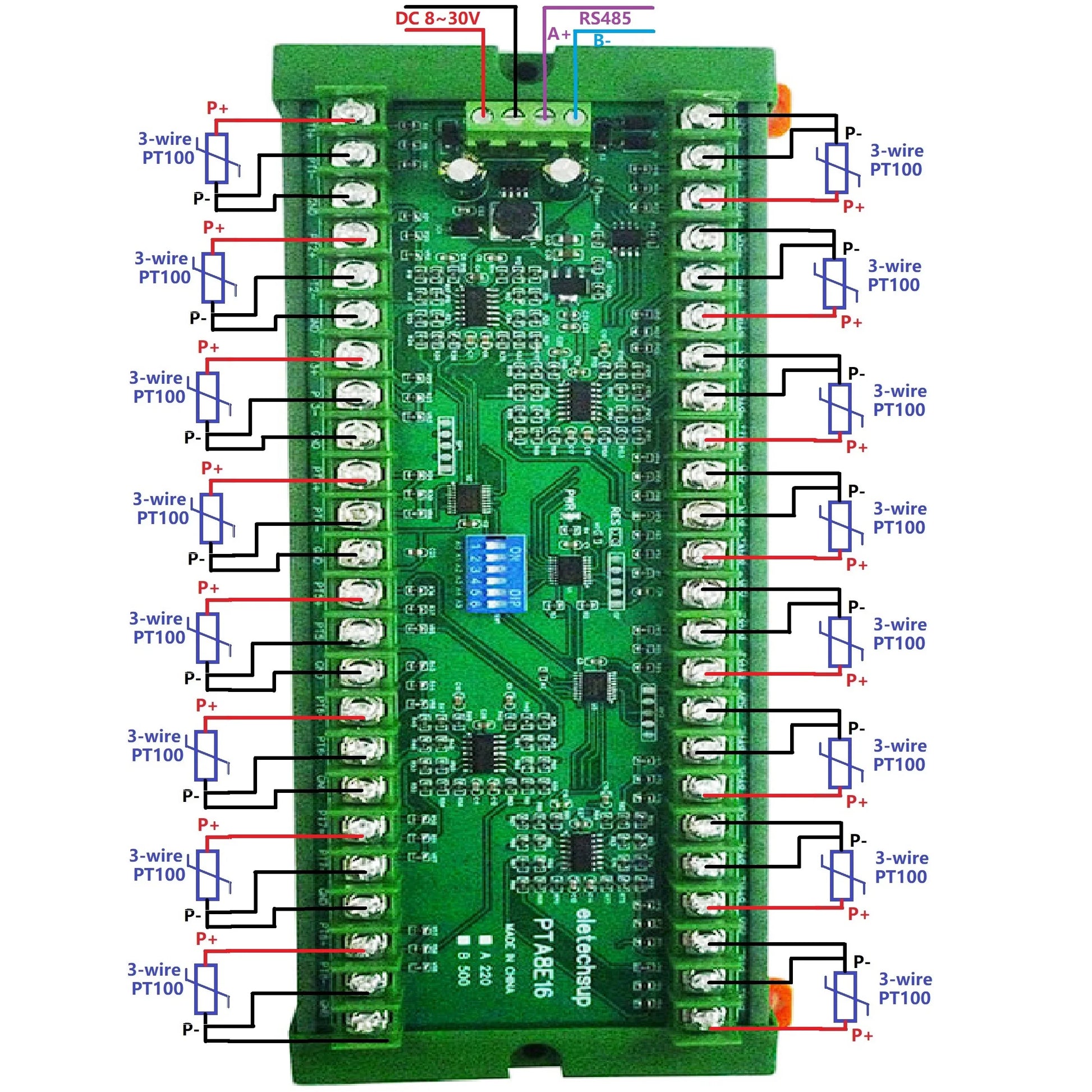

3-wire probe wiring mode: the red wire is connected to P+, and the other two wires of the same color are connected to P- and GND (the ports are not distinguished).



2-wire probe wiring mode: red wire connects to P+, blue wire connects to P- and G.

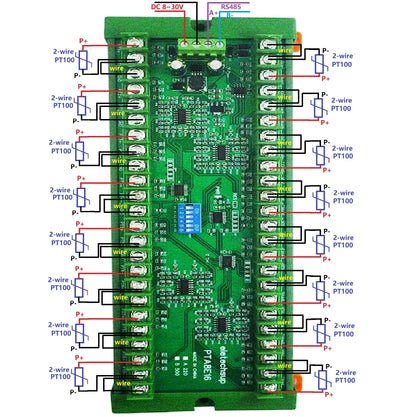

RS485 bus wiring diagram:
