PTDNC04 PT1000 4CH Modbus Wide Range Temperature Sensor Collector PT100 RTD Platinum Thermal Resistance RS485 Remote Analog Quantity
PTDNC04 PT1000 4CH Modbus Wide Range Temperature Sensor Collector PT100 RTD Platinum Thermal Resistance RS485 Remote Analog Quantity
SKU:PTDNC04_A_PT100
1000 in stock
Regular price
$17.10
Regular price
$17.10
Sale price
$17.10
Unit price
per
Couldn't load pickup availability
PTDNC04 is a PT100/PT1000 RS485 collector developed and produced by eletechsup. It uses low-cost components and reasonable and ingenious design to achieve cost-effective PT100/PT1000 sensor temperature and resistance value collection.

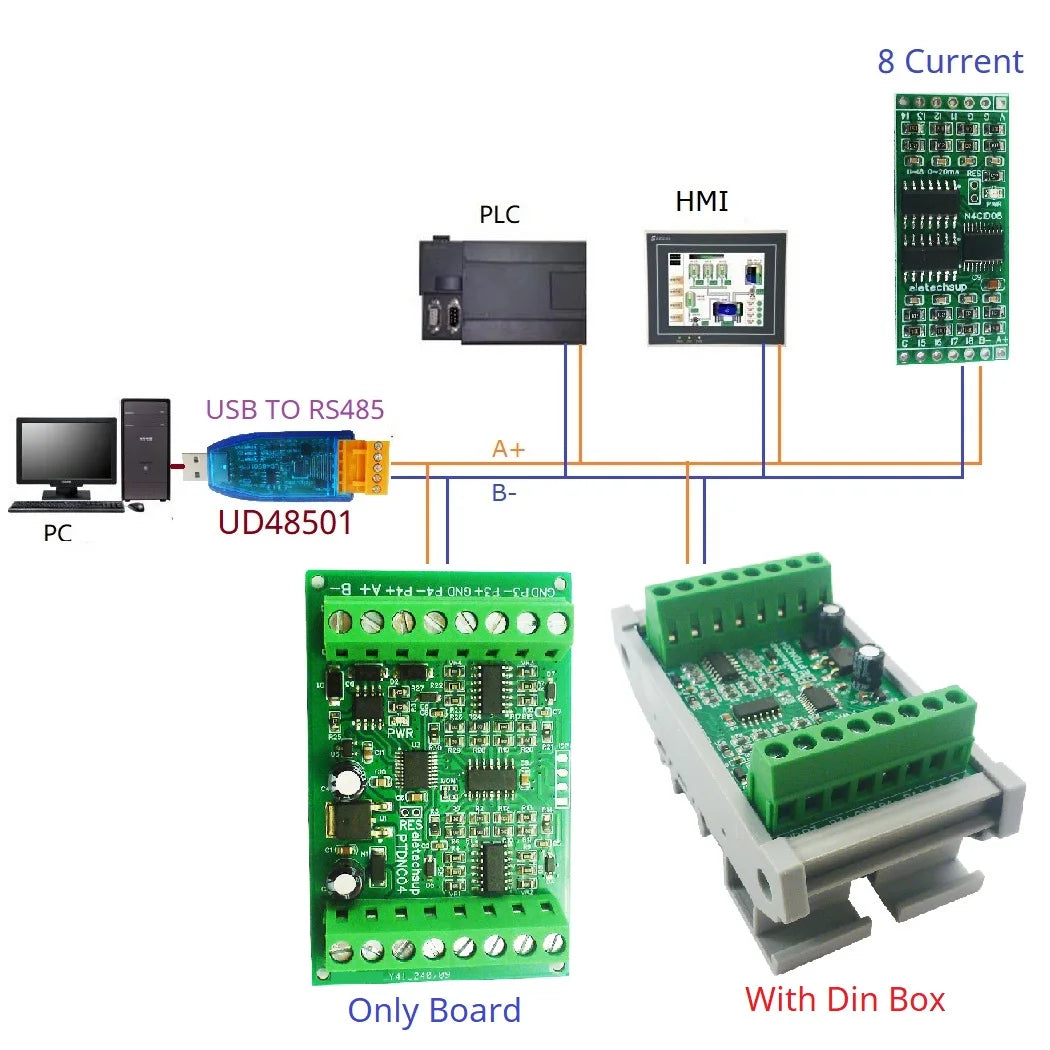

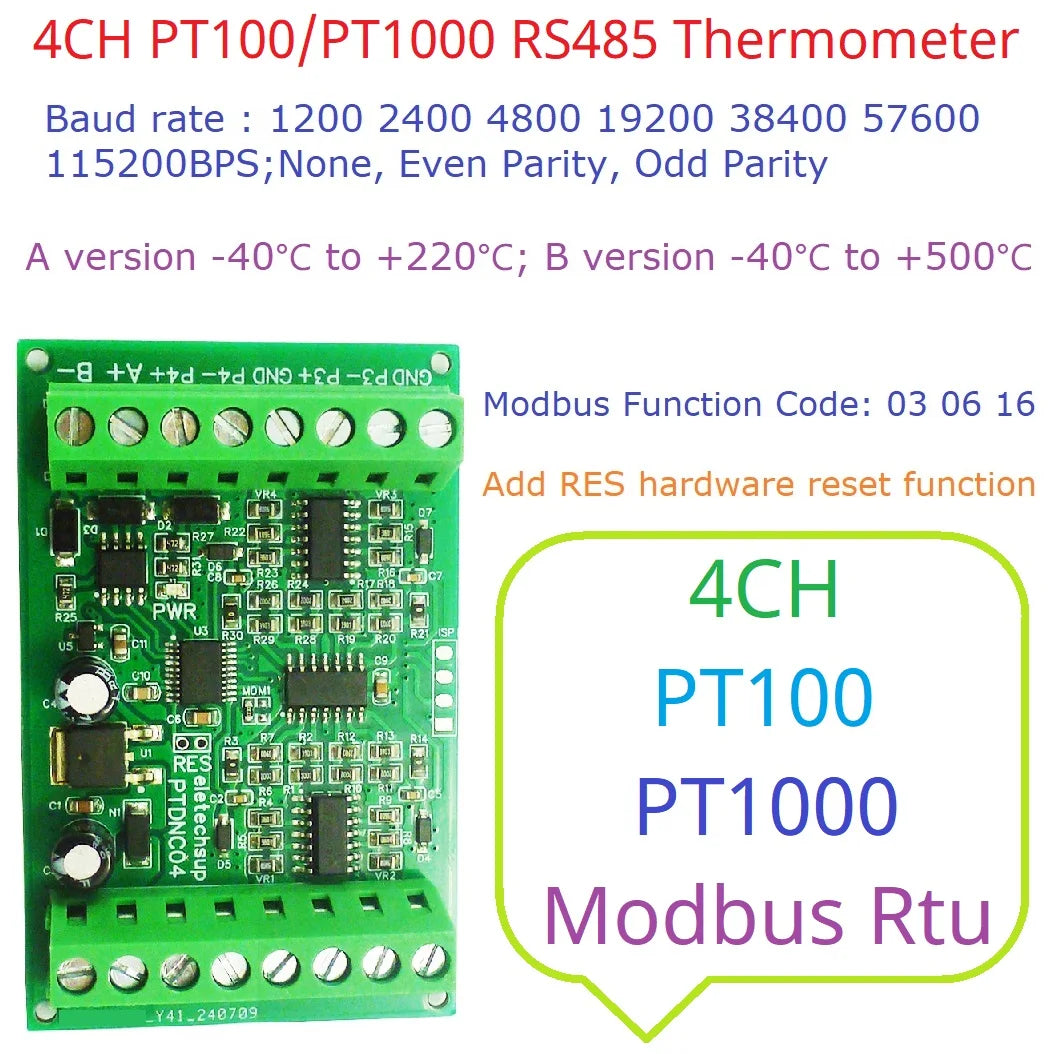

PTDNC04 PT100/PT1000 RS485 Acquisition module Description:
Power supply voltage: DC 6~25V
Working current: 20MA
MODBUS RTU protocol, 03 read command, 06 or 16 write command.
Serial port baud rate: 1200-115200,9600 (default), N, 8, 1
By modifying the 485 address, up to 247 modules can be cascaded (please use RS485 repeater for more than 16)
Can read temperature and PT100/PT1000 resistance value
Applicable sensor: PT100/PT1000 3-wire or 2-wire sensor

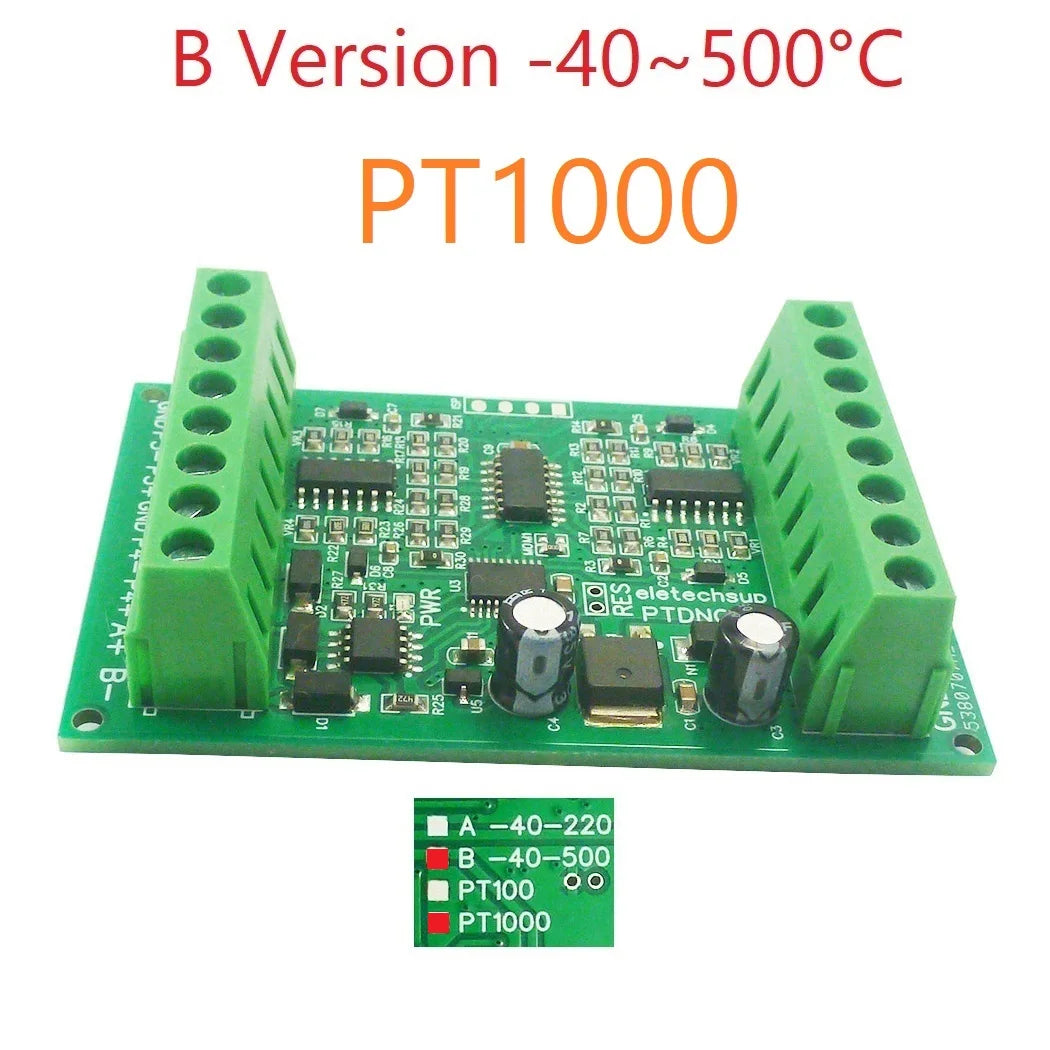

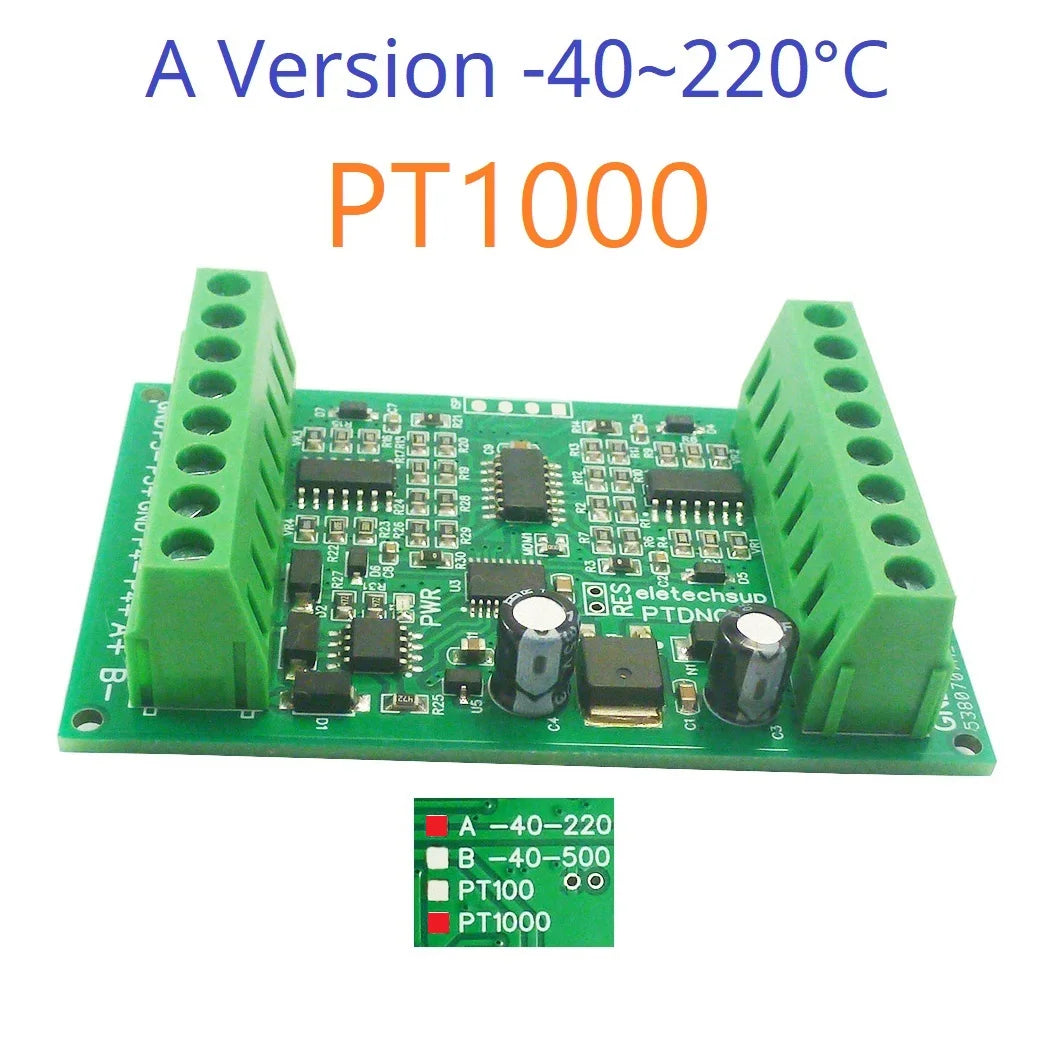

Temperature measurement range: A version -40℃ to +220℃; B version -40℃ to +500℃. It is recommended to choose a version with a smaller range within the measurement range.
Temperature measurement accuracy: 1%, if the temperature deviation is too large, please recalibrate

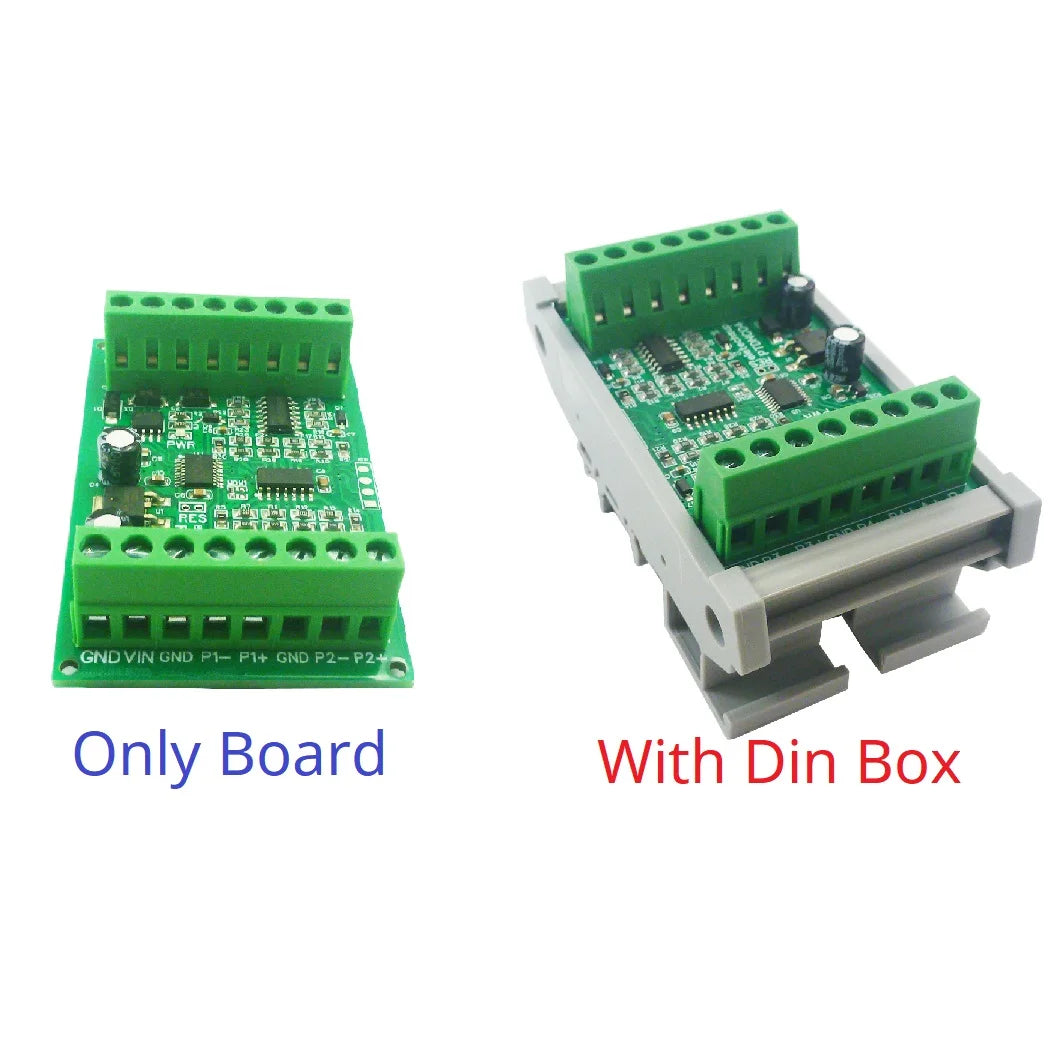

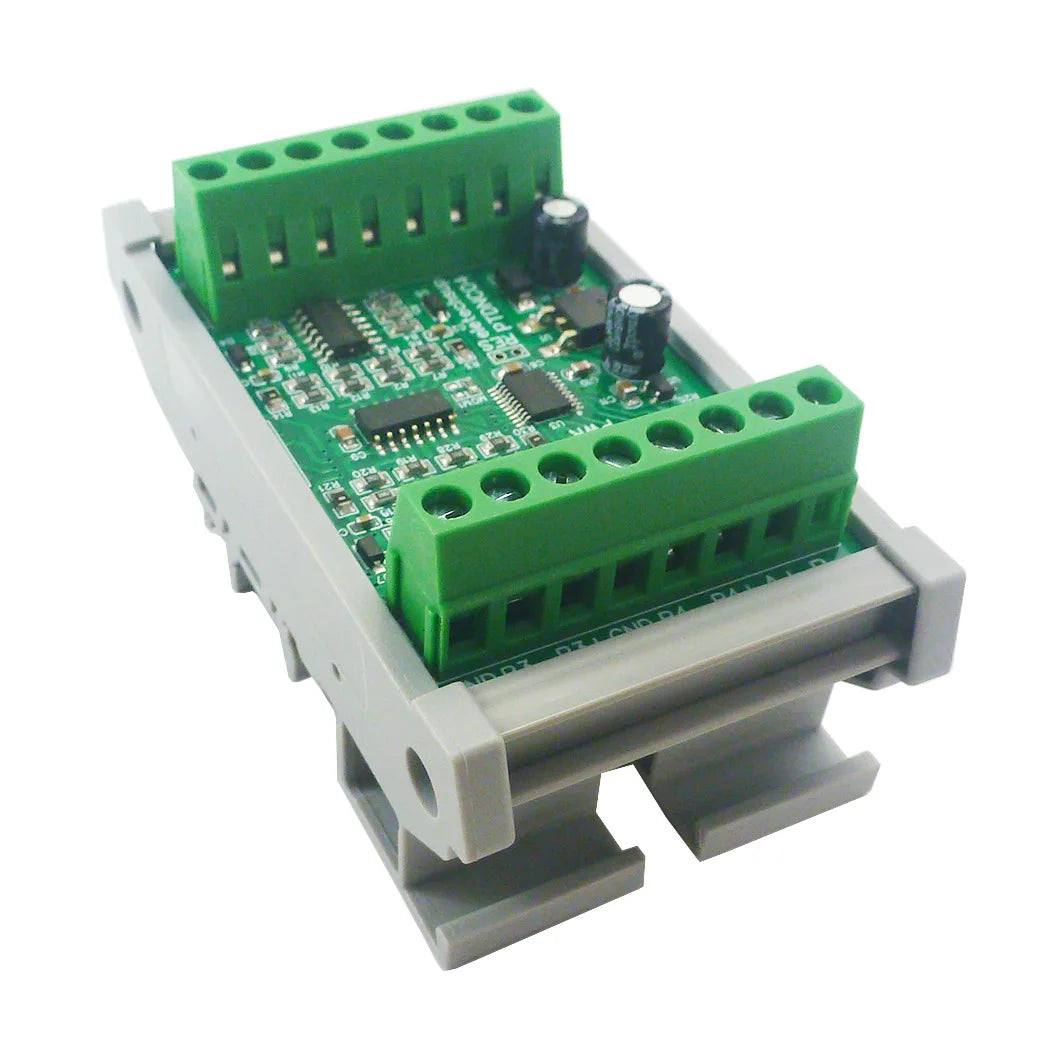

Dimensions: 72 X 46 X18MM (board only), 79 X 49 X40MM (with shell)
Weight: 32g (board only), 78g (with shell)
MODBUS RTU protocol please refer to : ''PTDNC04 Modbus Rtu Command ''

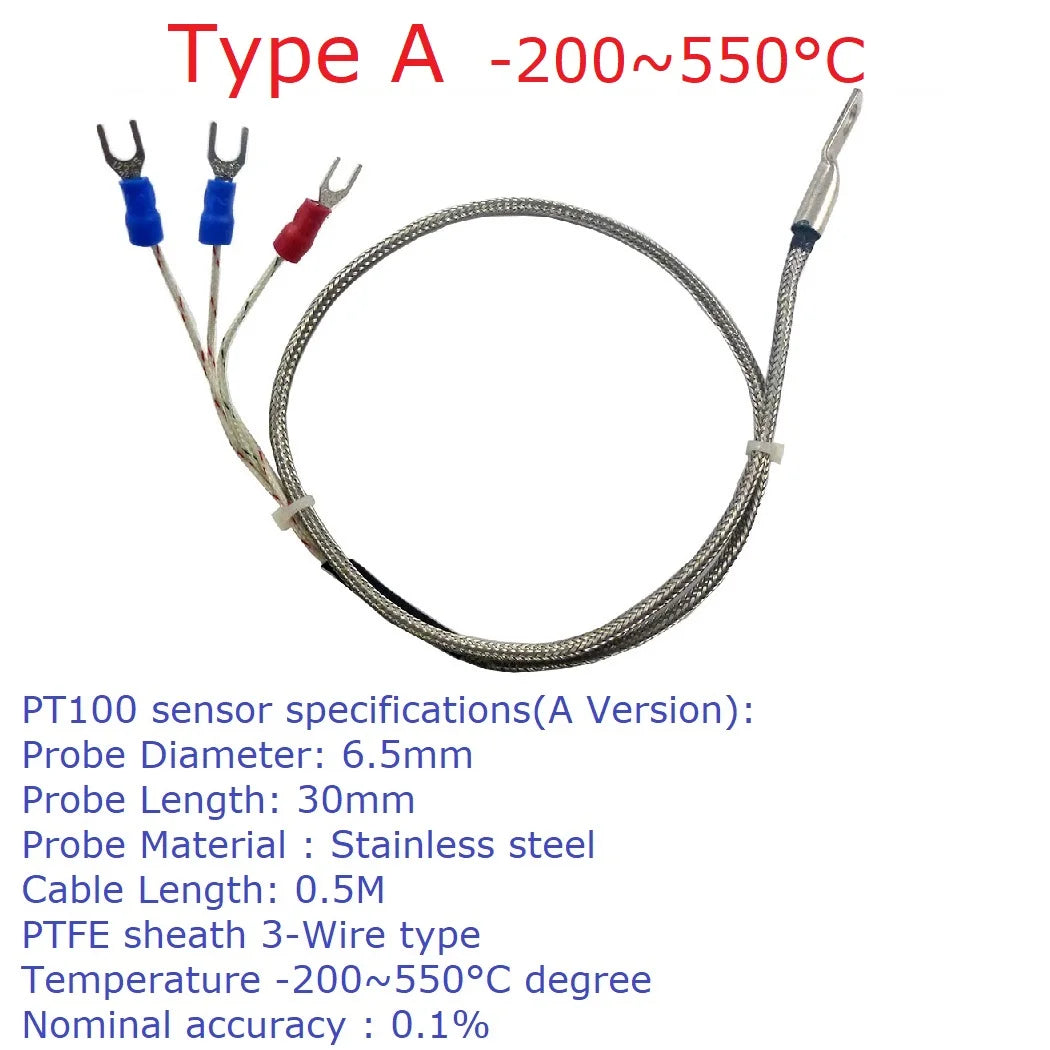

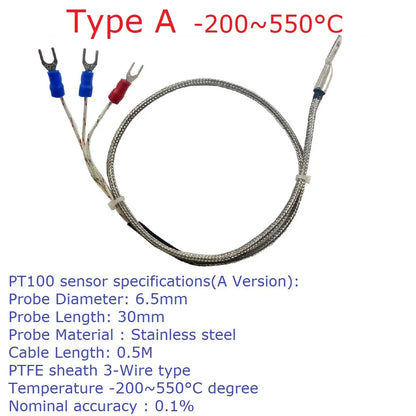

PT100 sensor specifications:
Type: PT100
Probe Diameter: 6.5mm
Probe Length: 30mm
Probe Material : Stainless steel
Cable Length: 0.5M
PTFE sheath 3-Wire type
Temperature -200~550°C degree
Nominal accuracy : 0.1%

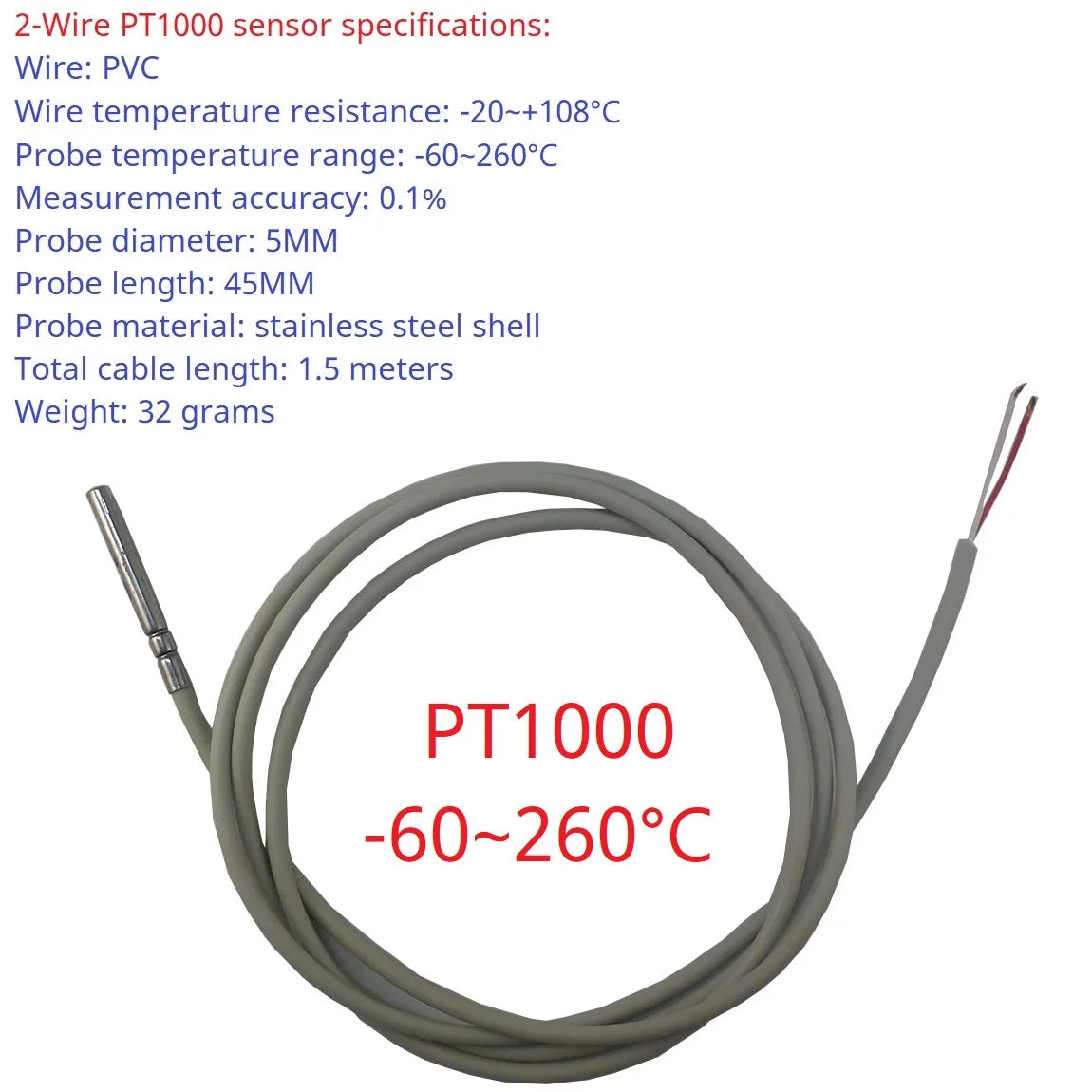

PT1000 sensor specifications:
Wire: PVC
Wire temperature resistance: -20~+108℃
Probe temperature range: -60~260℃
Measurement accuracy: 0.1%
Probe diameter: 5MM
Probe length: 45MM
Probe material: stainless steel shell
Total cable length: 1.5 meters
Weight: 32 grams
The PT100/PT1000 sensor probe is a variable resistor, regardless of positive or negative poles.

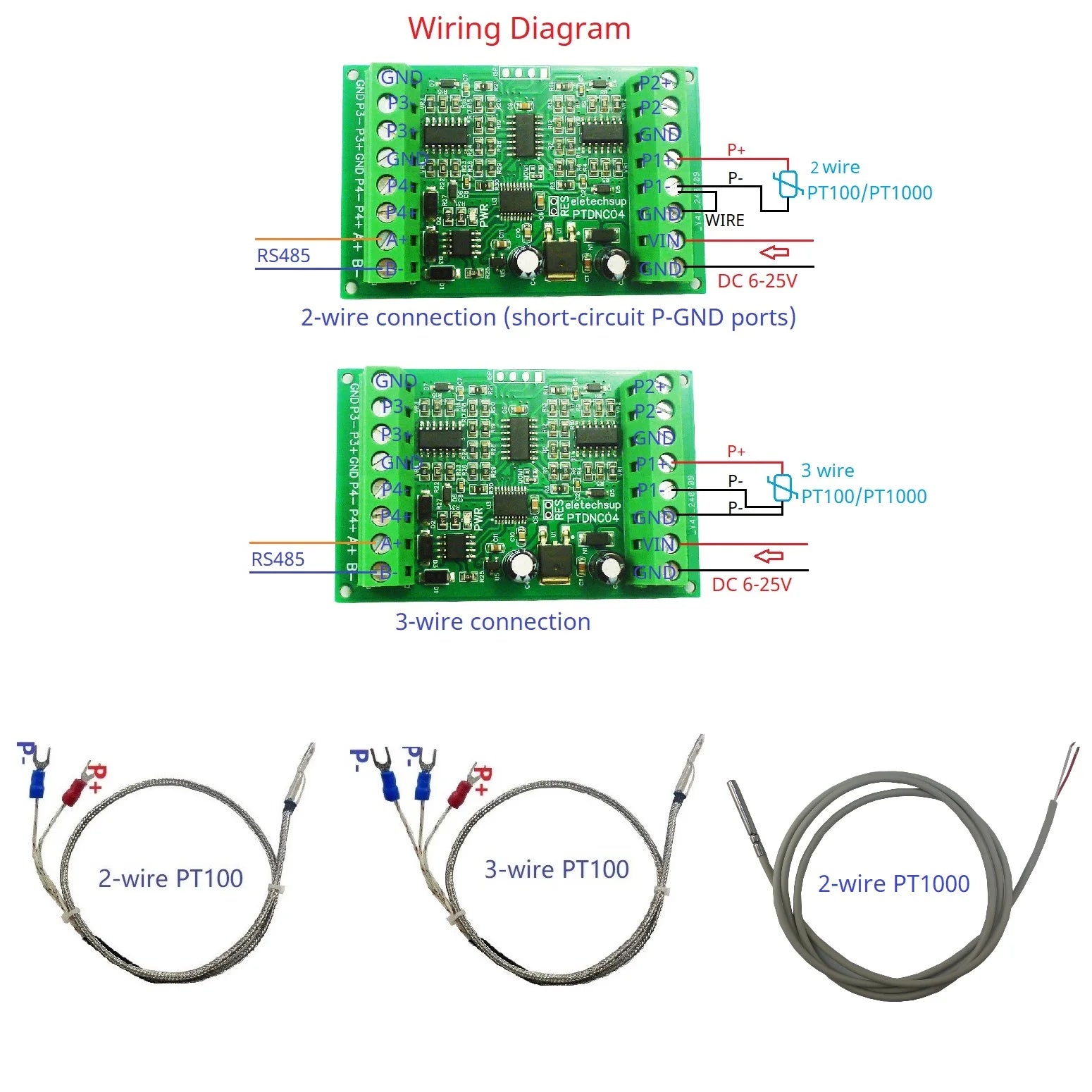

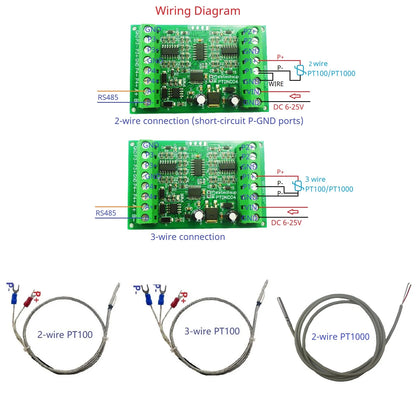

3-wire probe wiring method: red wire connected to P+, the other two wires of the same color connected to P- and GND (without distinguishing between ports).
2-wire probe wiring method: red wire connected to P+, blue wire connected to P-, P- and GND are connected with wires.
