Product Name: 5 PCS 8ch 5V 12V 24V RS232 IO Control Switch Board Com DB9 Serial port Relay Module
Package inlcuded:

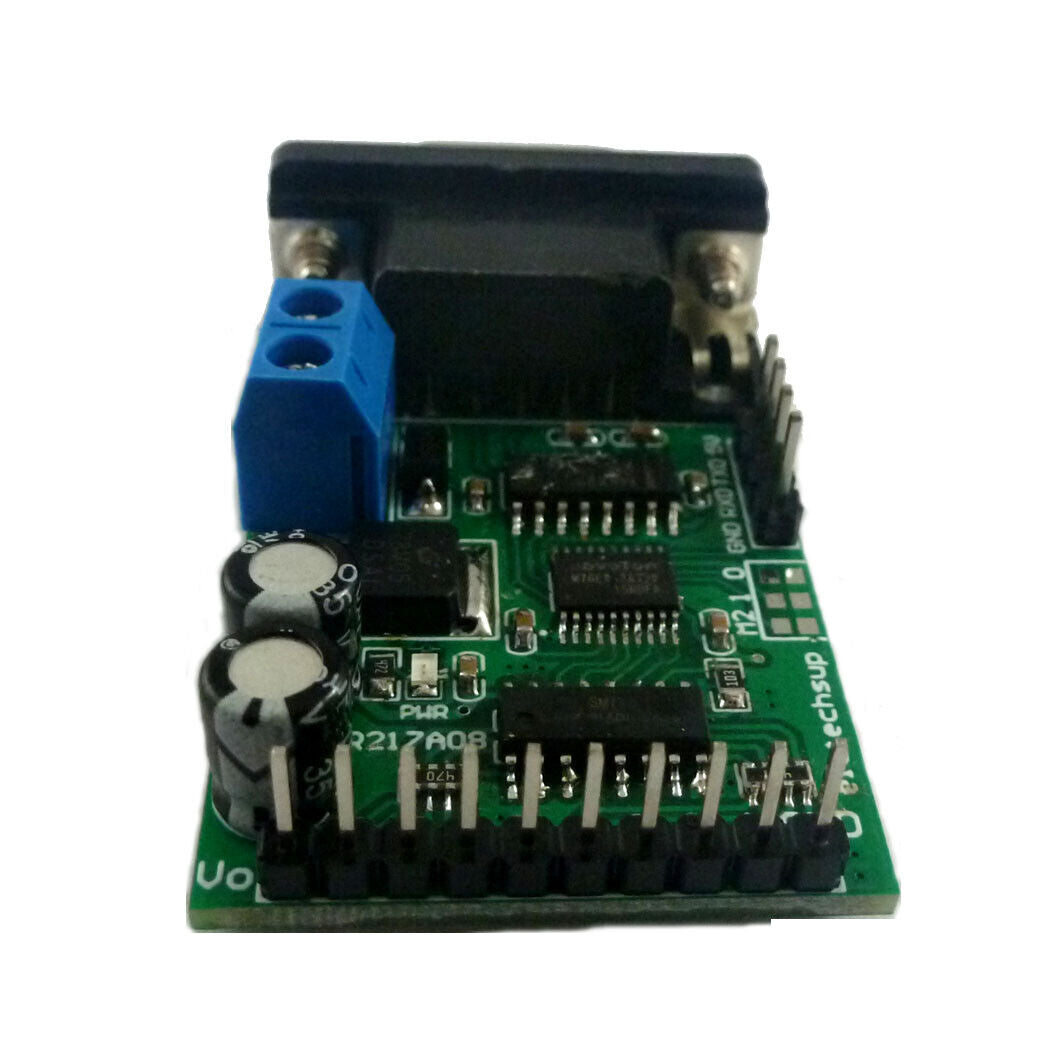

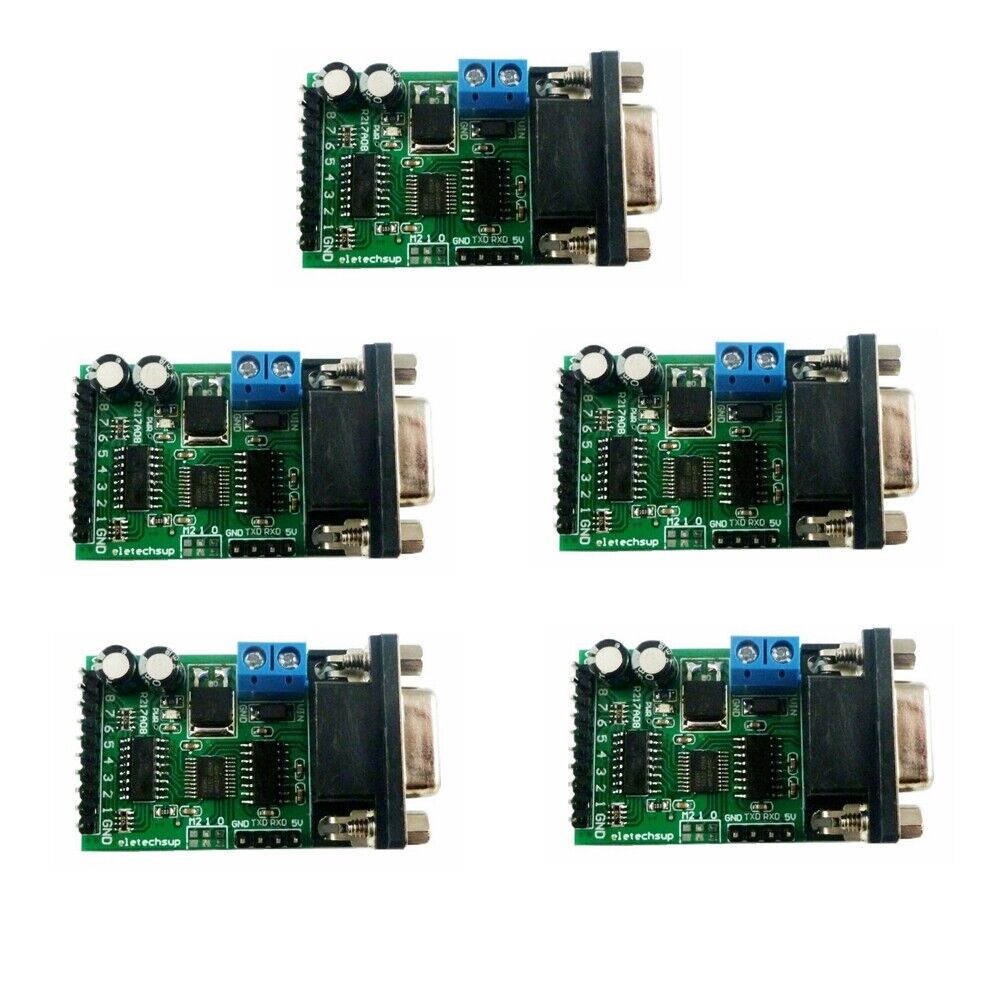

5 x 5-24V 8 Channel Multifunction RS232 TTL232 Control Board for 1-8 CH Relay Module
Description:
1: Operating Voltage : DC 5V(5V Version) / DC 6-24V(12V Version)
2: Operating Current : 10-15MA
3: Two serial ports: RS232 DB9 interface, TTL 232 interface
4: 8 Output control pins, 5V TTL level, low level (default) / high level output
5: "Open" "Close" "Momentary" "Self-locking" "Interlock" "Delay"(Only AT command) "All Relays Open" "All Relays Close" 8 Commands
6 Two kinds of commands: AT command and 8-byte command, the two commands are automatically recognized, no need to switch.
7 Under the "Delay" command ,the maximum delay is 9999 seconds(Only AT command)
8 Size: 54 * 31 * 17mm
9 Weight: 16 g
2: Operating Current : 10-15MA
3: Two serial ports: RS232 DB9 interface, TTL 232 interface
4: 8 Output control pins, 5V TTL level, low level (default) / high level output
5: "Open" "Close" "Momentary" "Self-locking" "Interlock" "Delay"(Only AT command) "All Relays Open" "All Relays Close" 8 Commands
6 Two kinds of commands: AT command and 8-byte command, the two commands are automatically recognized, no need to switch.
7 Under the "Delay" command ,the maximum delay is 9999 seconds(Only AT command)
8 Size: 54 * 31 * 17mm
9 Weight: 16 g
Instruction manual Please ask us after the purchase
Application
Automated industry PLC
Relay Module
Smart Home,Home Automation ;
Identification system;
Motor FW & BW;
CCTV Camera PTZ Control;
Security system;
LED dot matrix screen;
RS232 remote control;
Relay Module
Smart Home,Home Automation ;
Identification system;
Motor FW & BW;
CCTV Camera PTZ Control;
Security system;
LED dot matrix screen;
RS232 remote control;

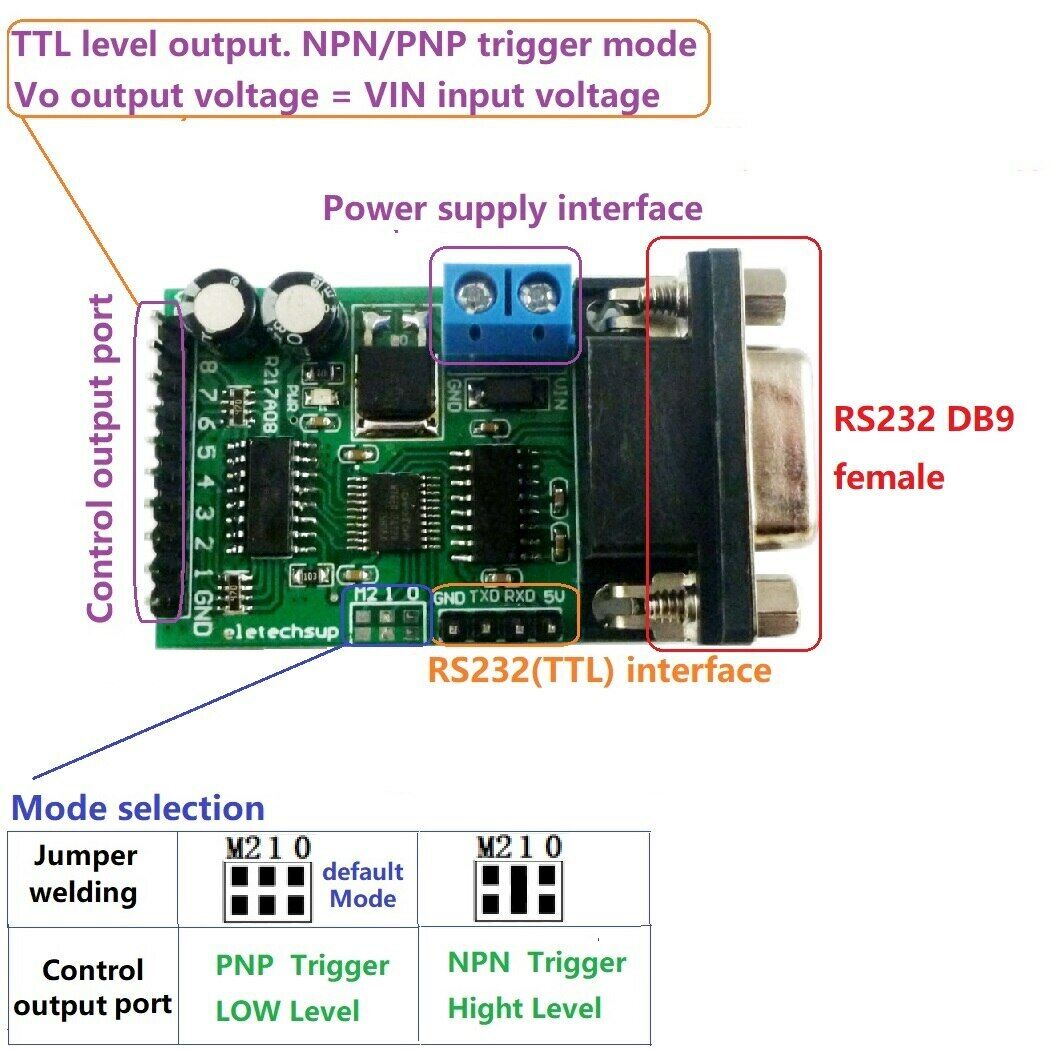

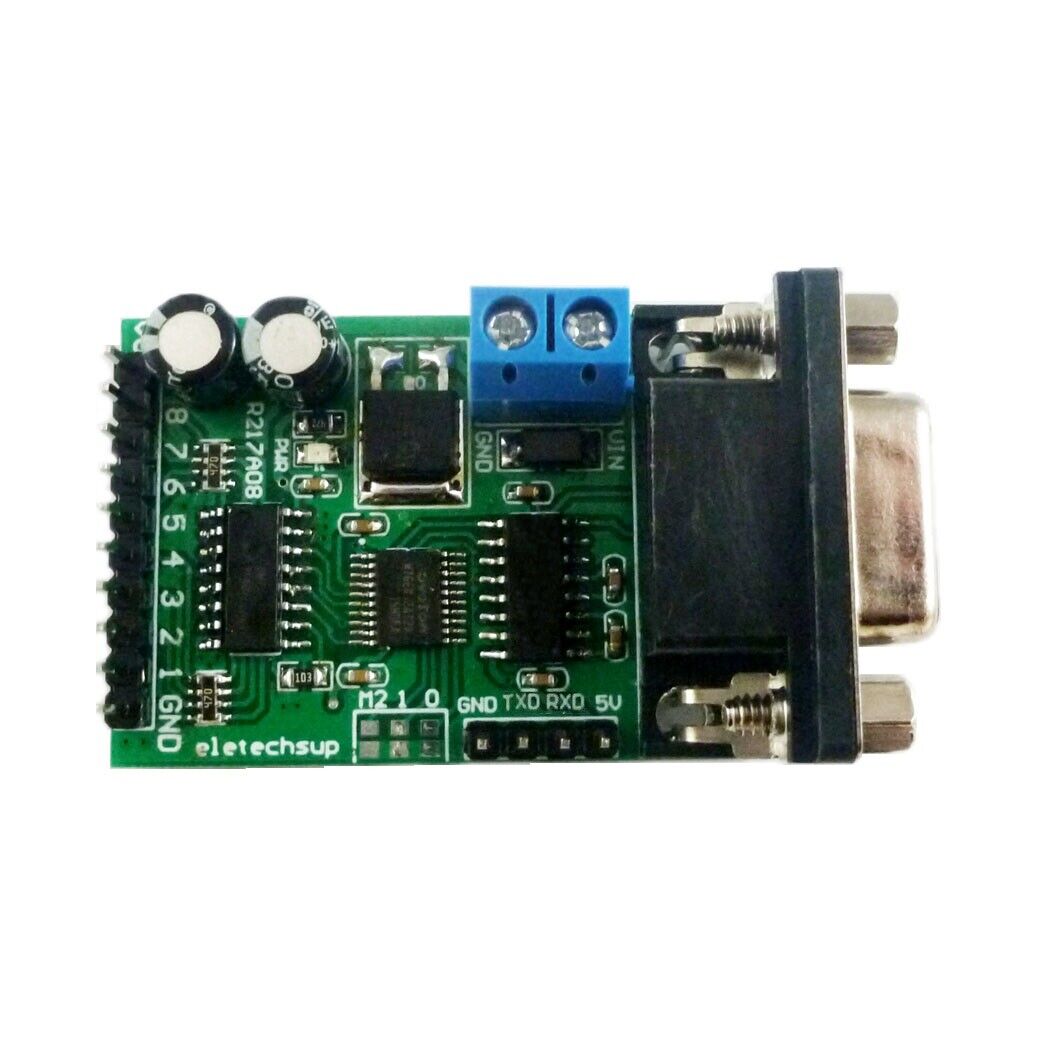

Output level: M1 disconnect (default) is low-level trigger, M1 connectis is high-level trigger
Glossary:
Open : Control port output low level (default)
Close : Control port output high level (default)
Momentary : Input command, Port output low level, return to high level after 1 second;
Self-locking : Input command, port output low level, input command again, port output high level, and so on;
Latched : Enter the Channel 1 Latched command, port 1 output low level, port 2-8 output high level. Enter the Channel 2 Latched command , port 2 output low level, port 1/3-8 output high level
Delay : Enter the Delay command, port output low level, delay of 0-9999 seconds(
only AT command )after, port output high level;
During the delay, Eter the Close command, immediately return to high level

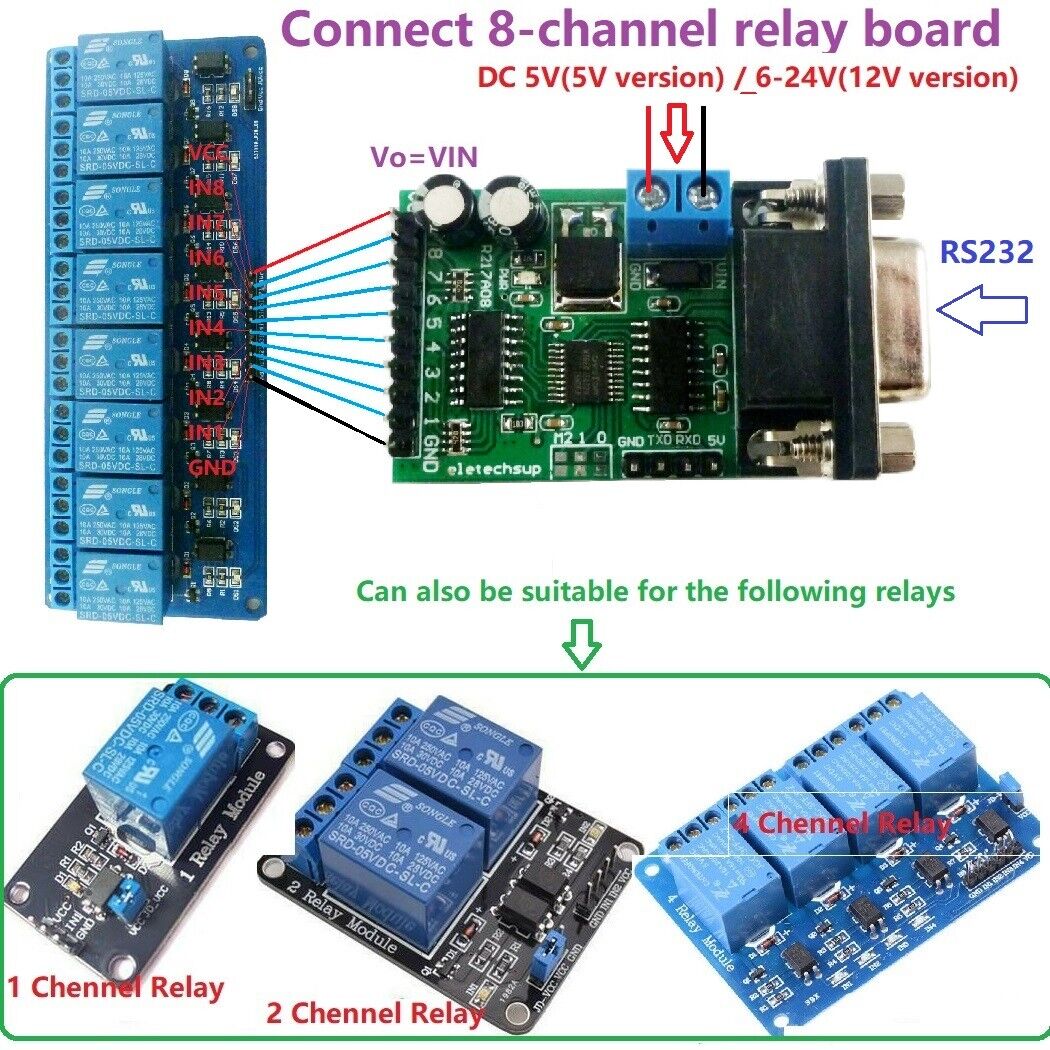

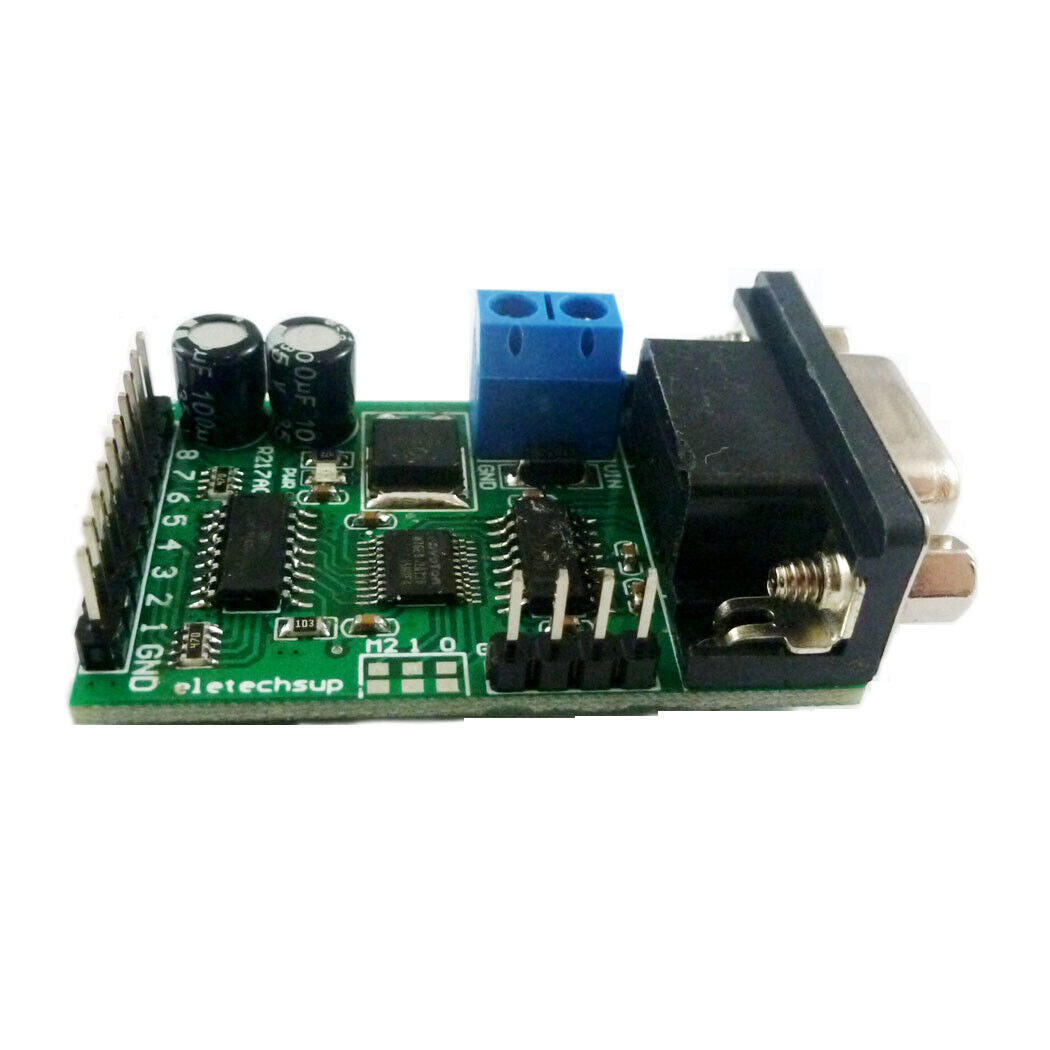

It can control 1-8 channels 5V/6V/9V/12V/24V Relay Module

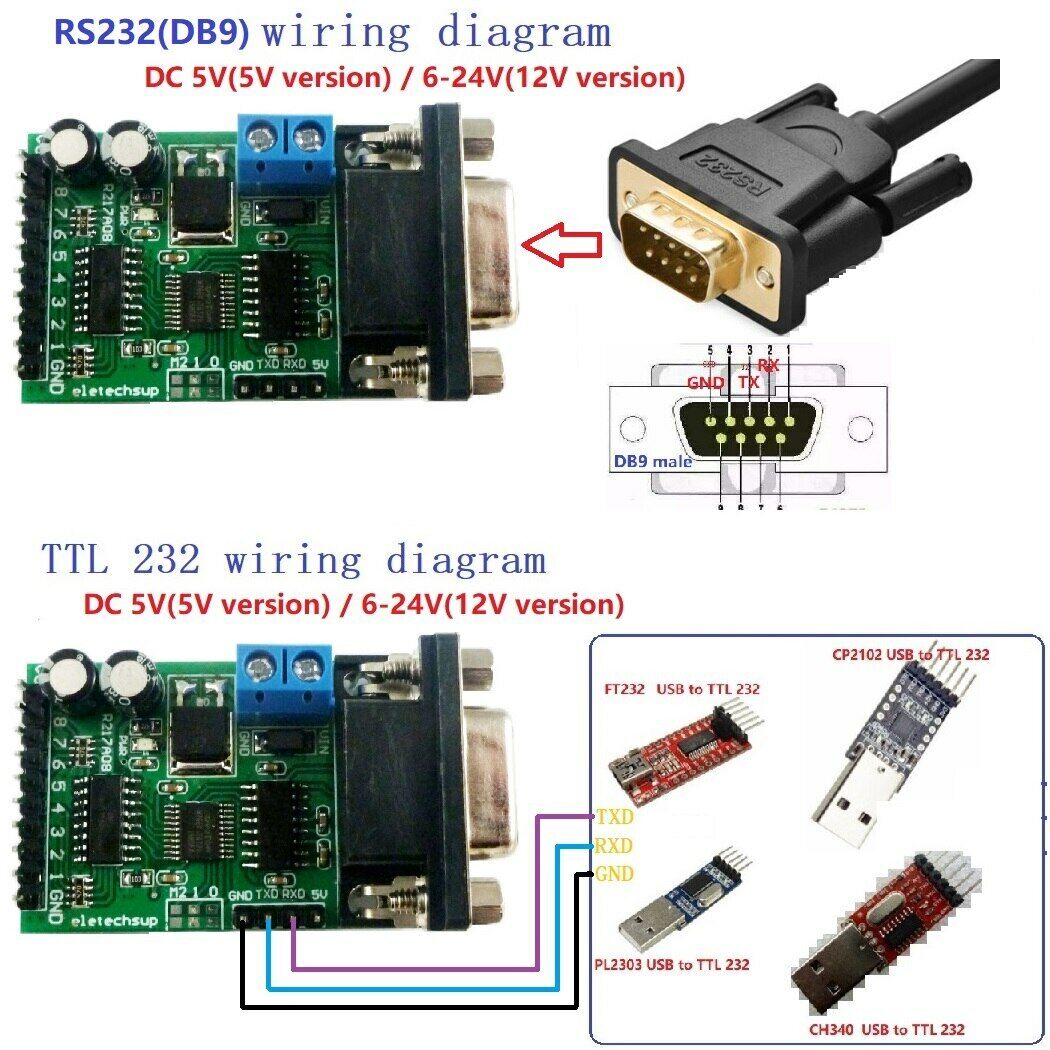

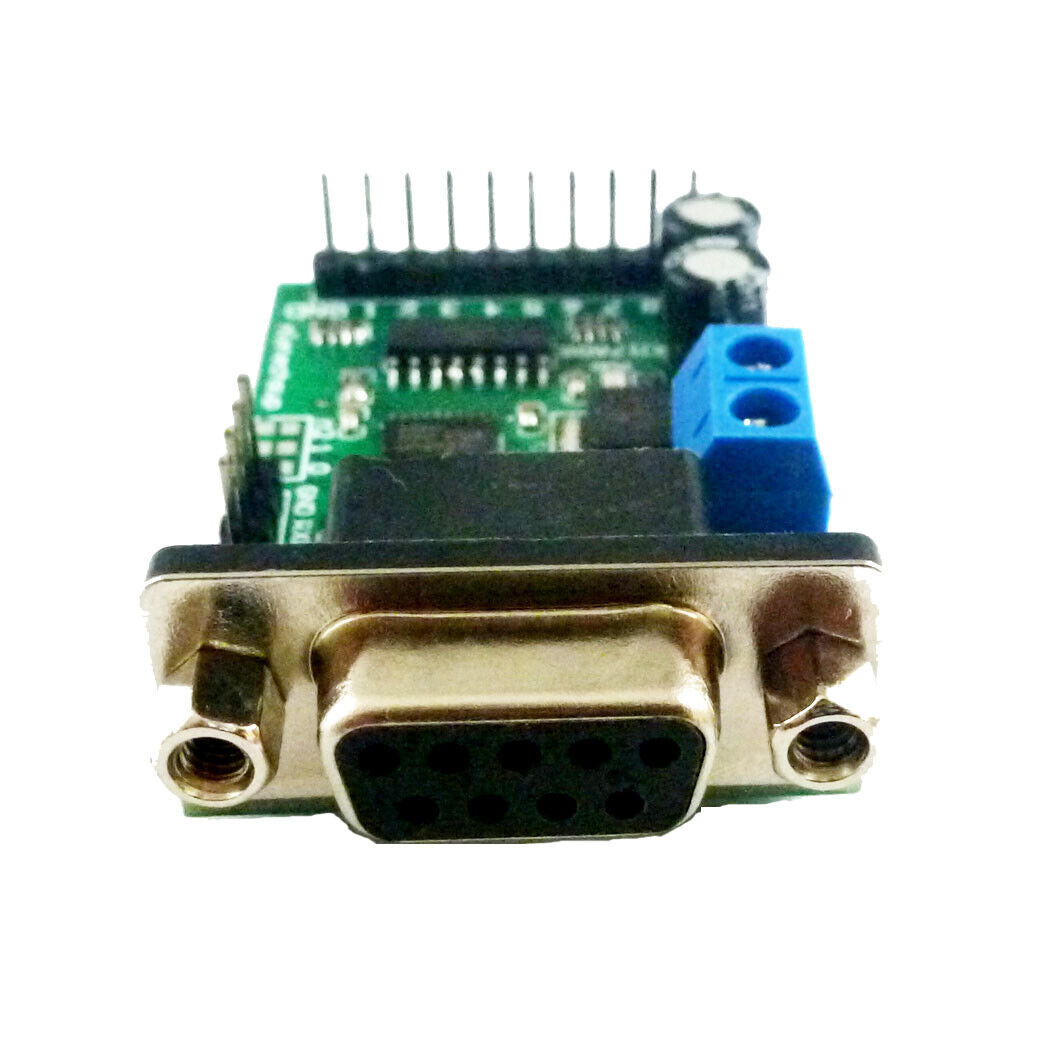

With RS232 DB9 interface and TTL 232 interface

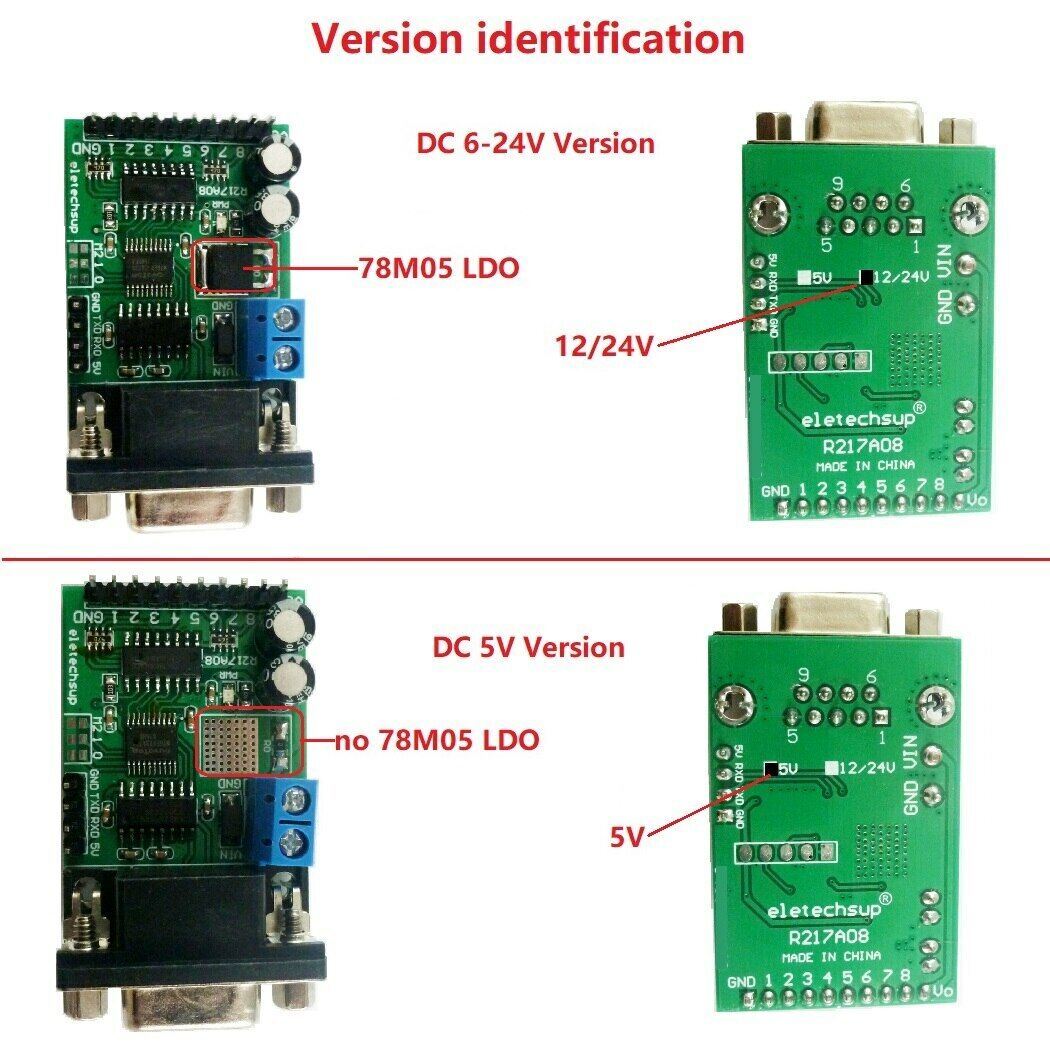

Version identification:

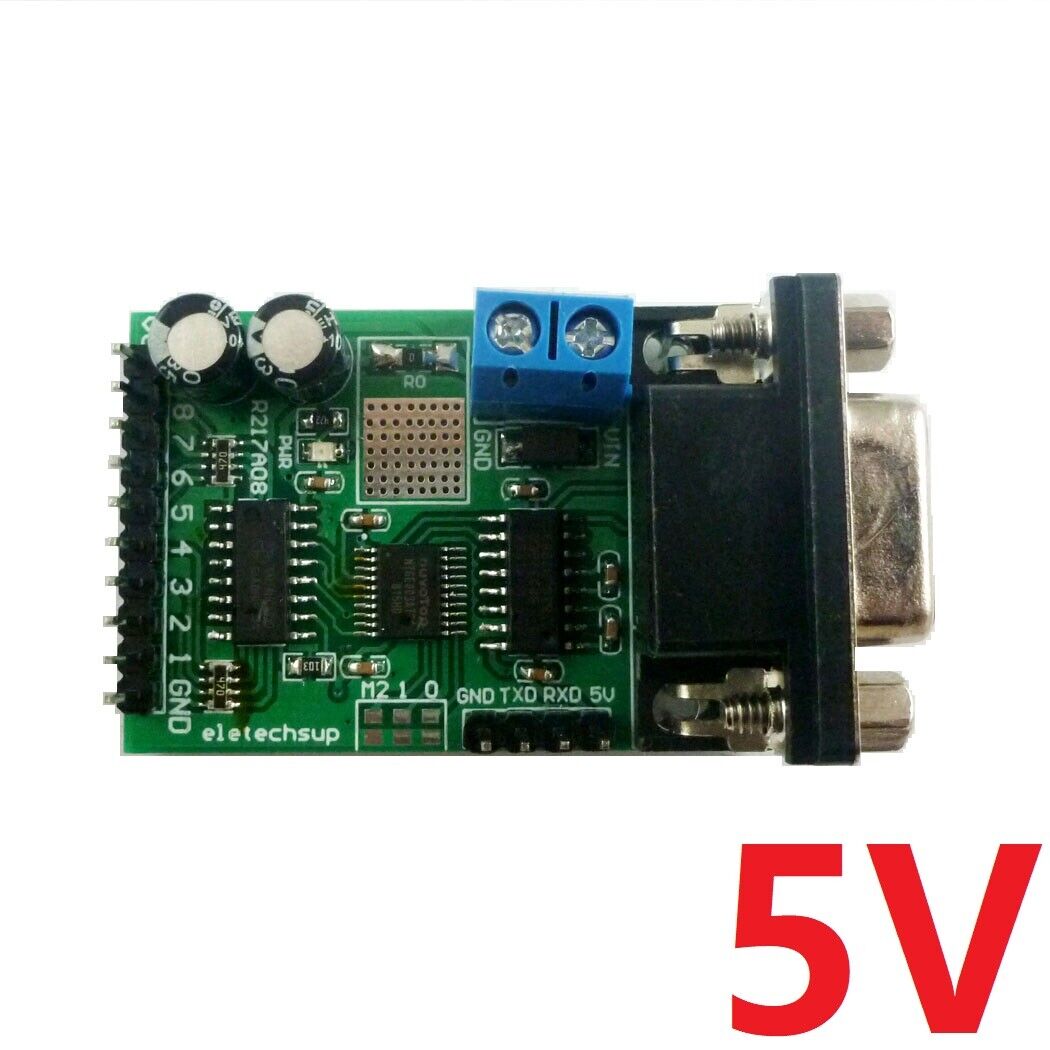

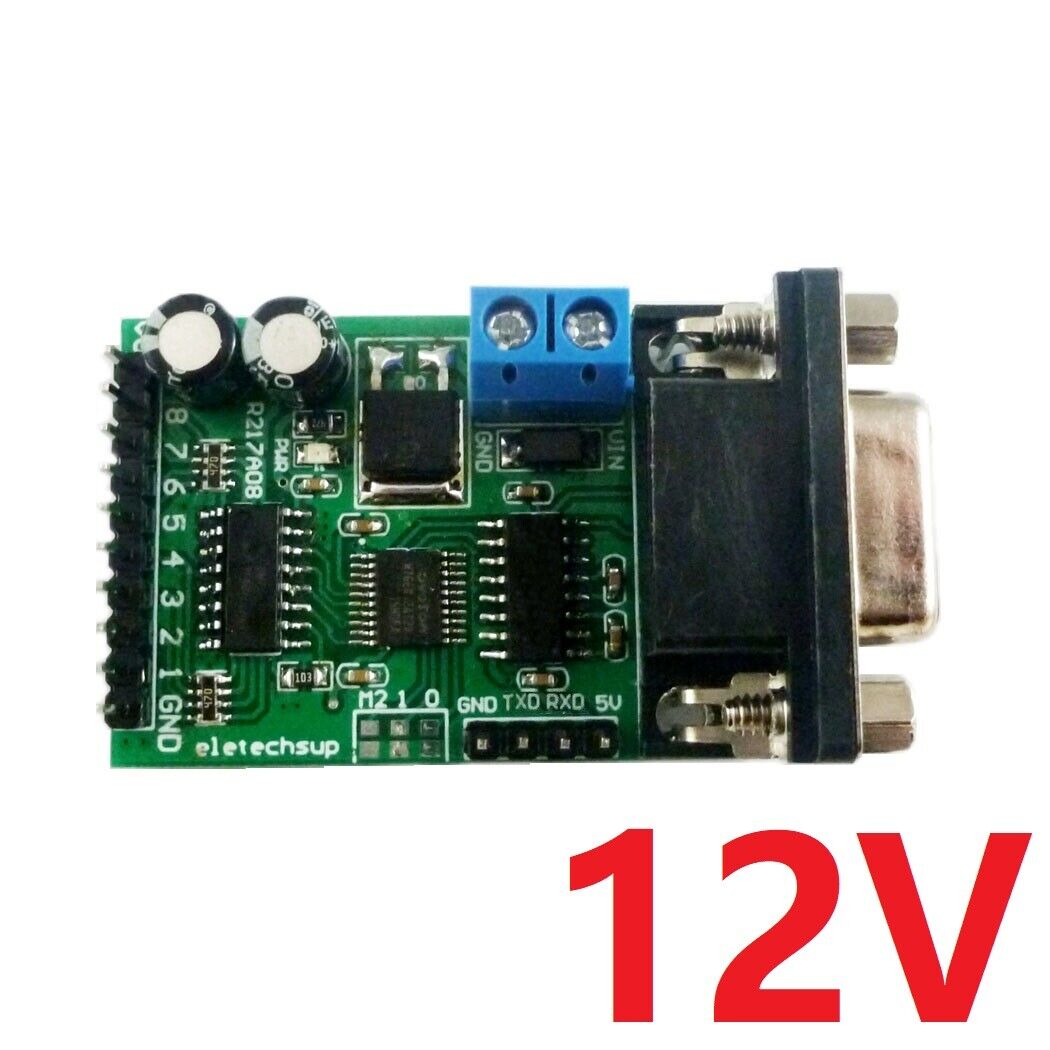

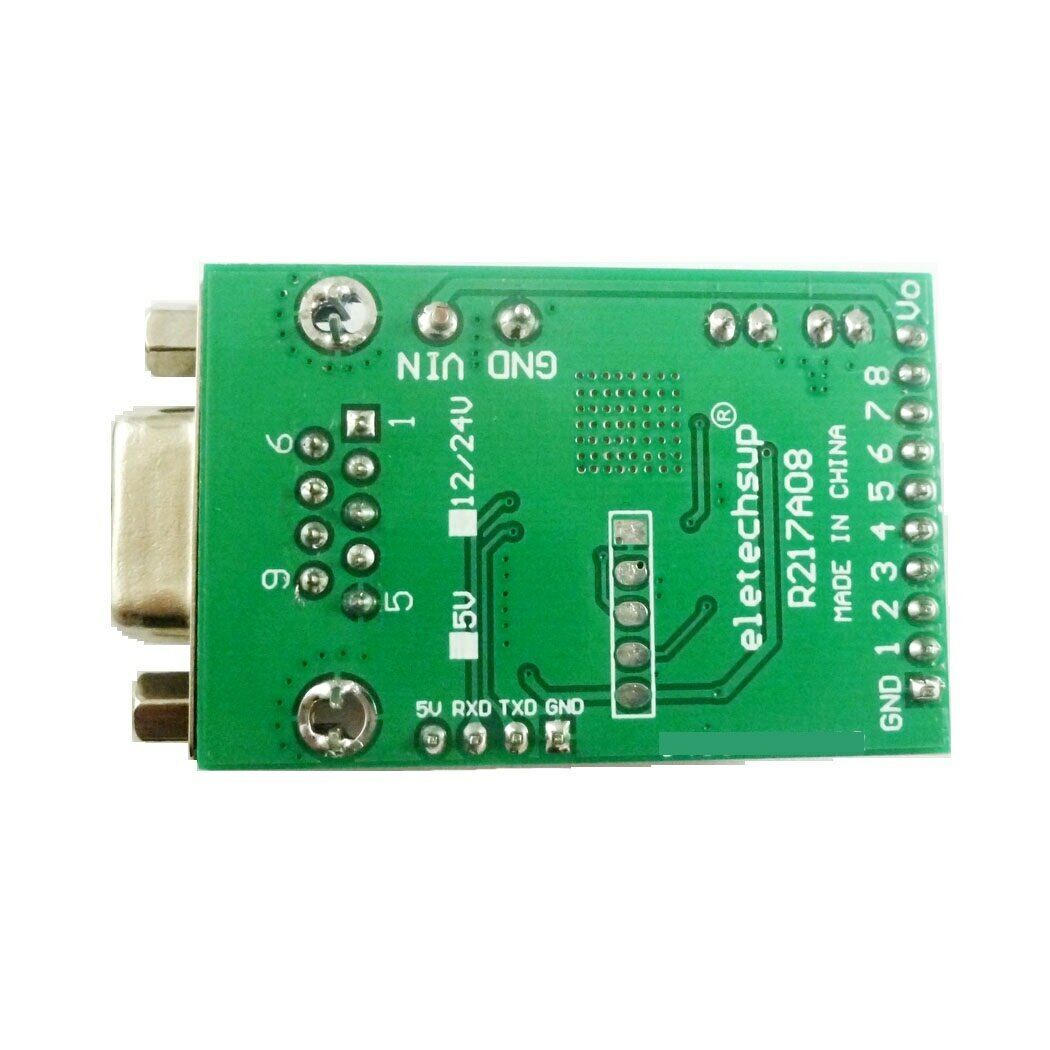

The 6-24V version comes with a 78M05 chip, and the back of the PCB board is labeled 12/24V.
The 5V version does not have a 78M05 chip, and the back of the PCB board is labeled as 5V.
