R422B02 3.3V 5V UART PWM GPIO Digital Signal Full-Duplex Transceiver RS232 TTL to RS422 Converter Module for Raspberry Pico Pi Zero W
R422B02 3.3V 5V UART PWM GPIO Digital Signal Full-Duplex Transceiver RS232 TTL to RS422 Converter Module for Raspberry Pico Pi Zero W
SKU:R422B02_PIN
1000 in stock
Regular price
$3.49
Regular price
$3.40
Sale price
$3.49
Unit price
per
Couldn't load pickup availability
Description:

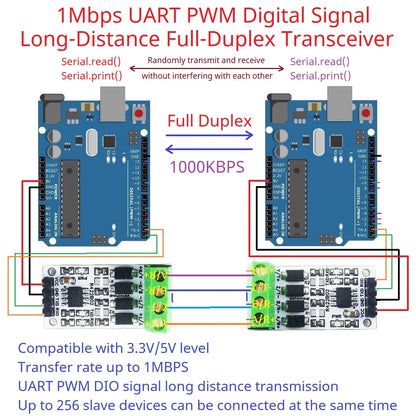

Eletechsup R422B02 is a full-duplex TTL signal to differential signal(RS422) module, which can convert digital signals within 1M into differential signal transmission. The longest distance can reach 1000 meters, and the maximum transmission rate is 1MBPS.
It is an ideal high-speed and long-distance transmission solution for MCU UART PWM GPIO signals.

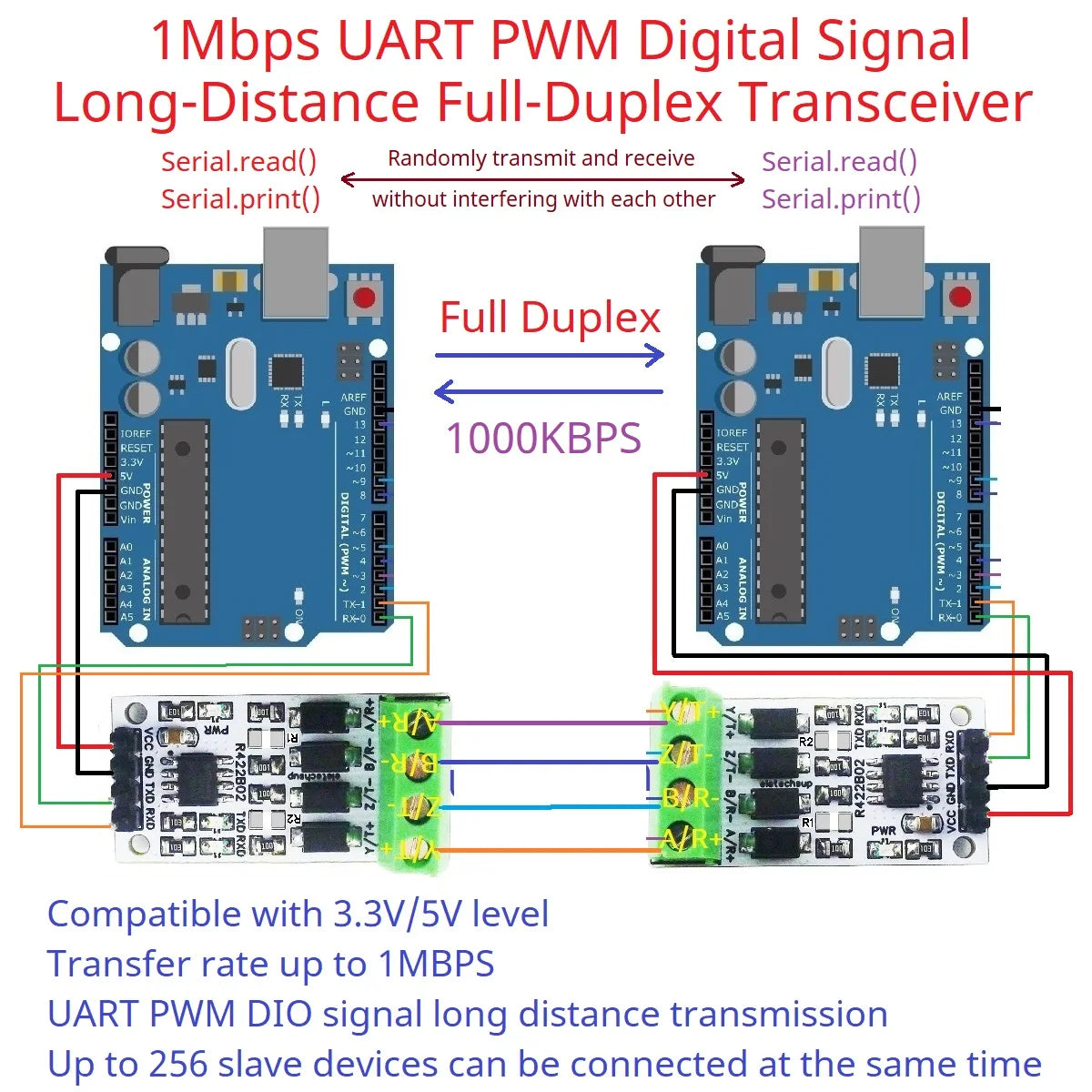

1Mbps UART PWM GPIO Signal Long-Distance Full-Duplex Transceiver
Working voltage: DC 3.3-5V
Stand-by current :1MA
Working Current : 5-50MA
TTL level: DC 3.3V/5V
ESD protection:±15KV
Anti-surge protection: 6.5V
Allow Up to 256 Transceivers on the Bus
Supported baud rate range: 1-1000000BPS

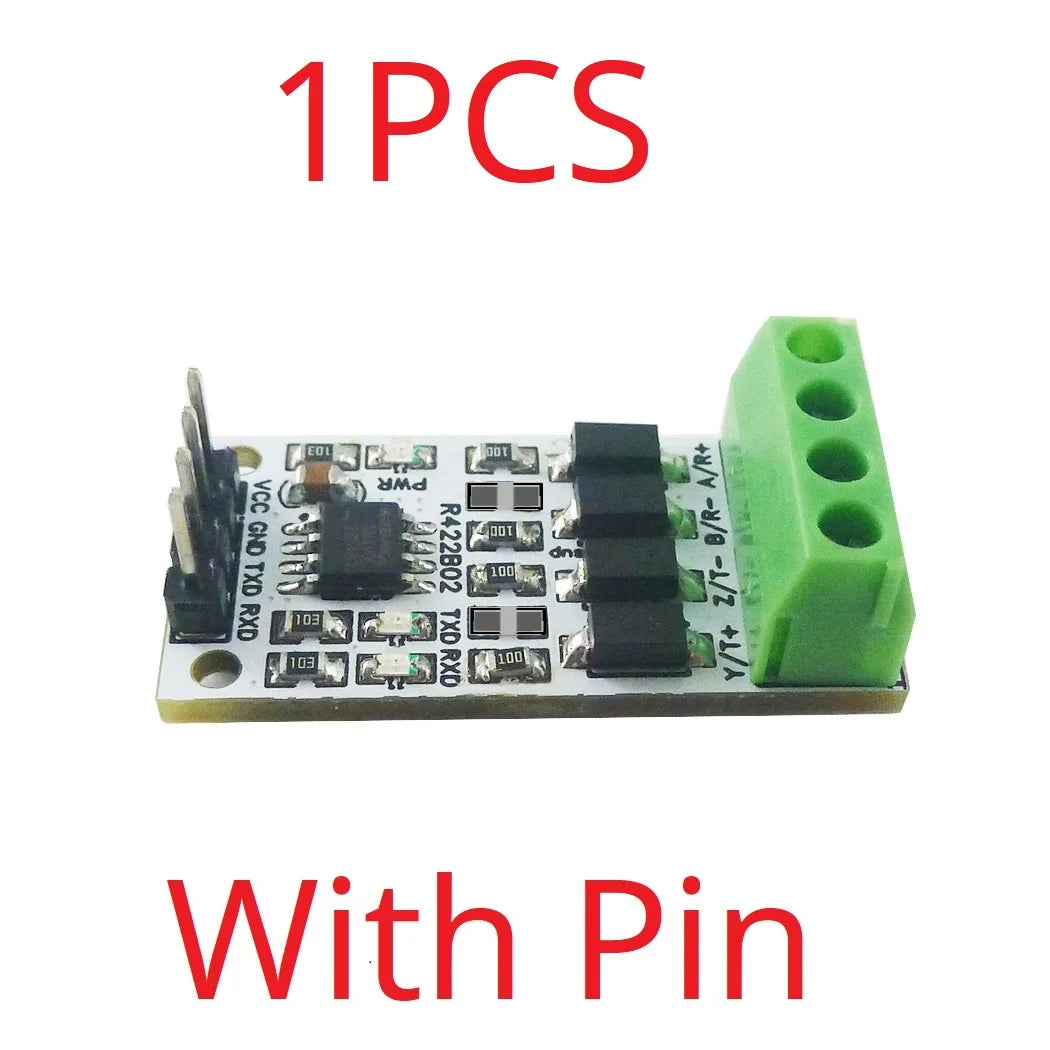

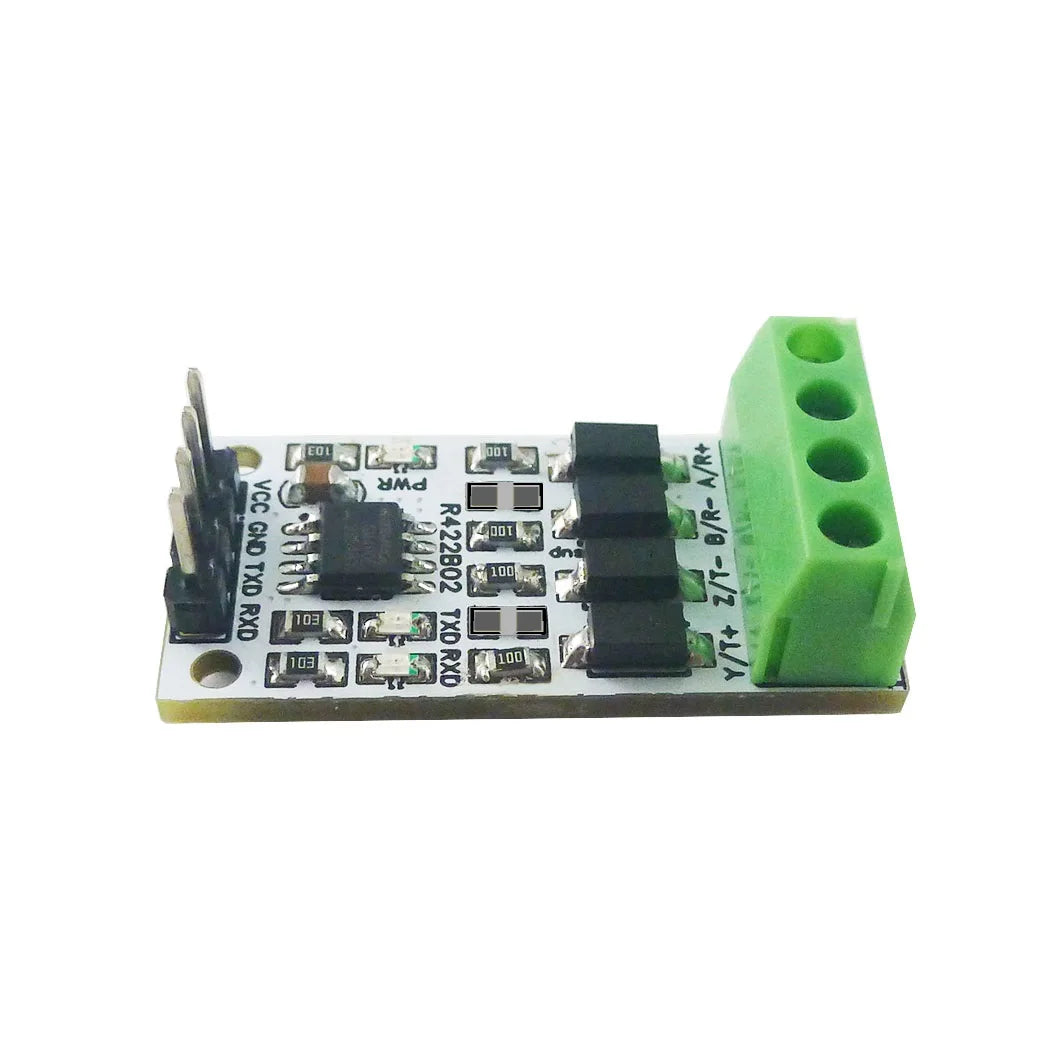

The 2.54MM pitch pins can be easily embedded into panels and MUC development boards.
Operating temperature : -40-85℃

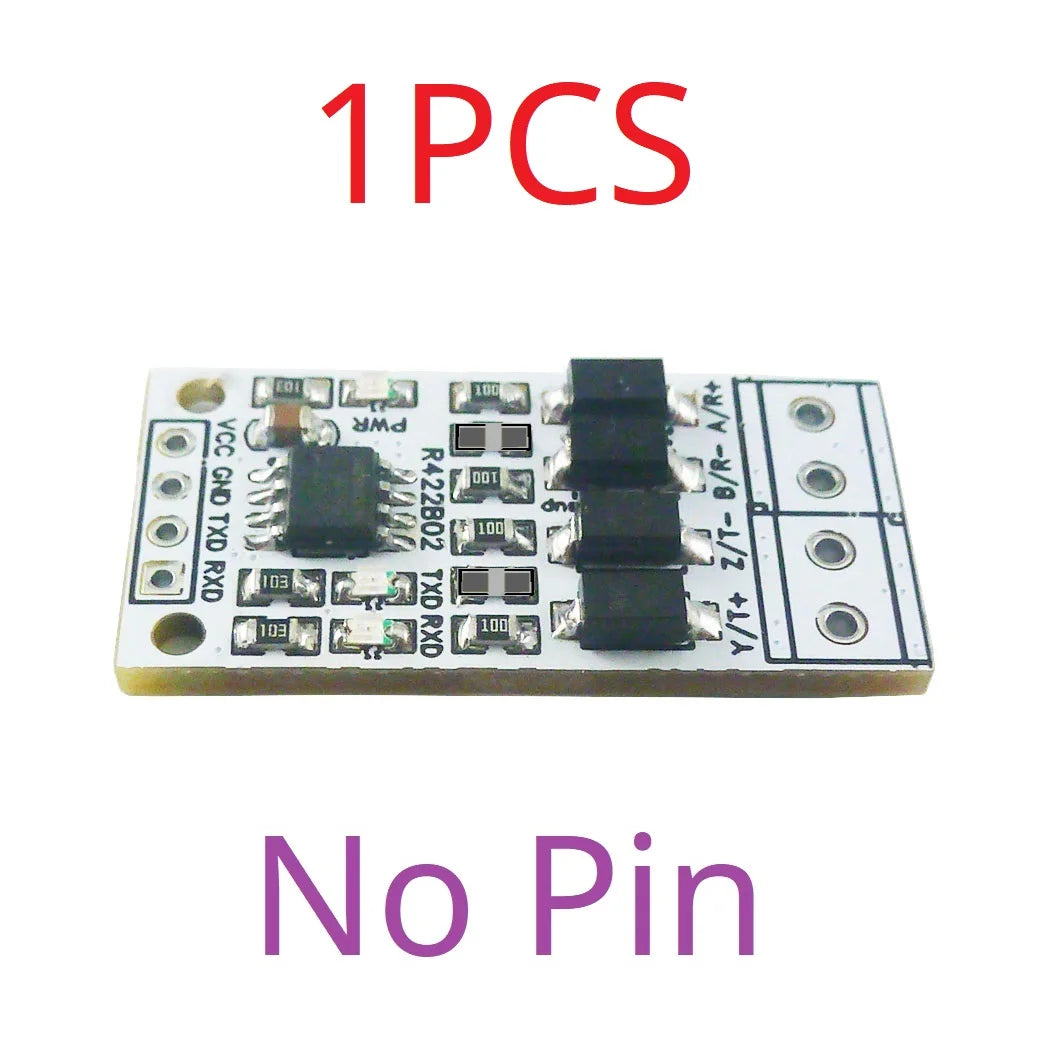

Size : 34x17x4mm(No Pin),34x17x12mm(With Pin)
Weight(No Pin) :2.3g(No Pin),4.5g(With Pin)

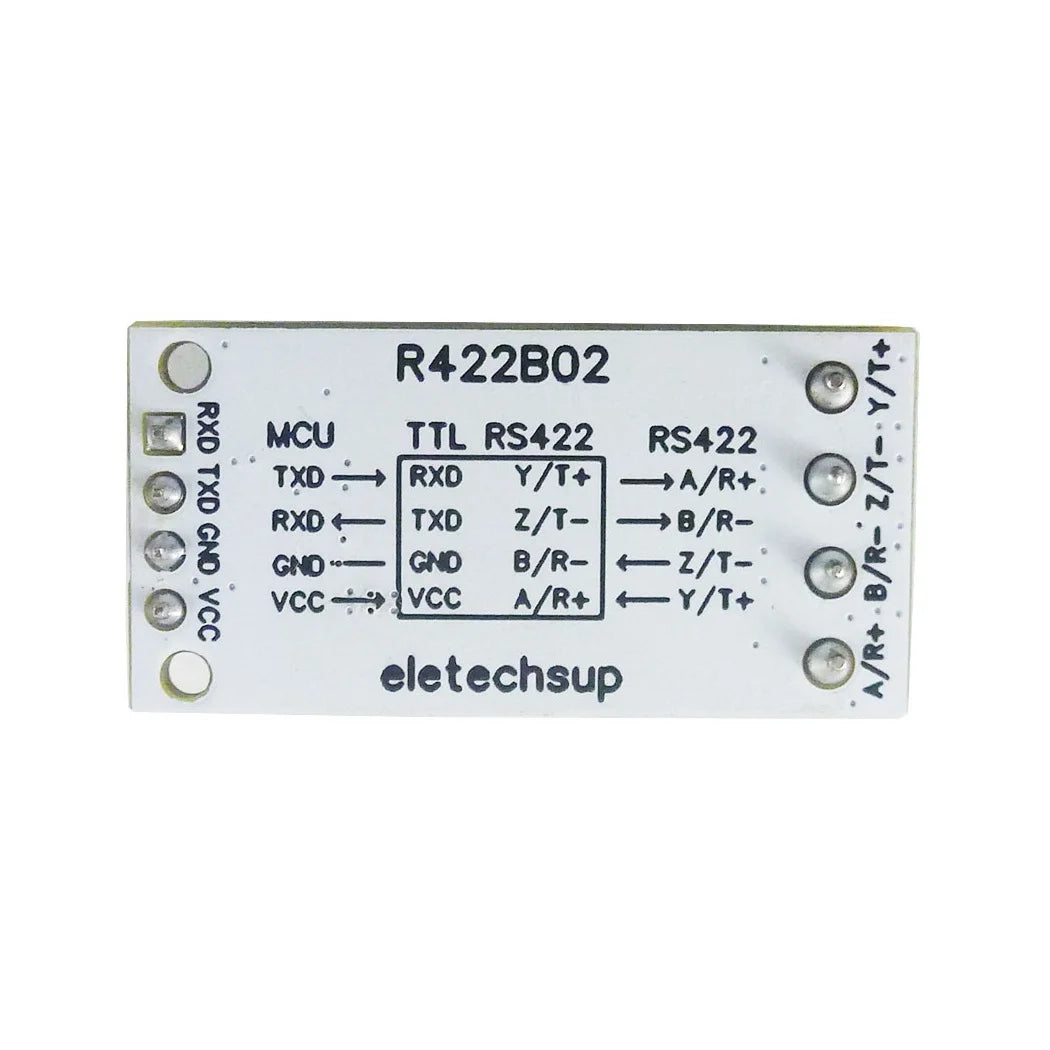

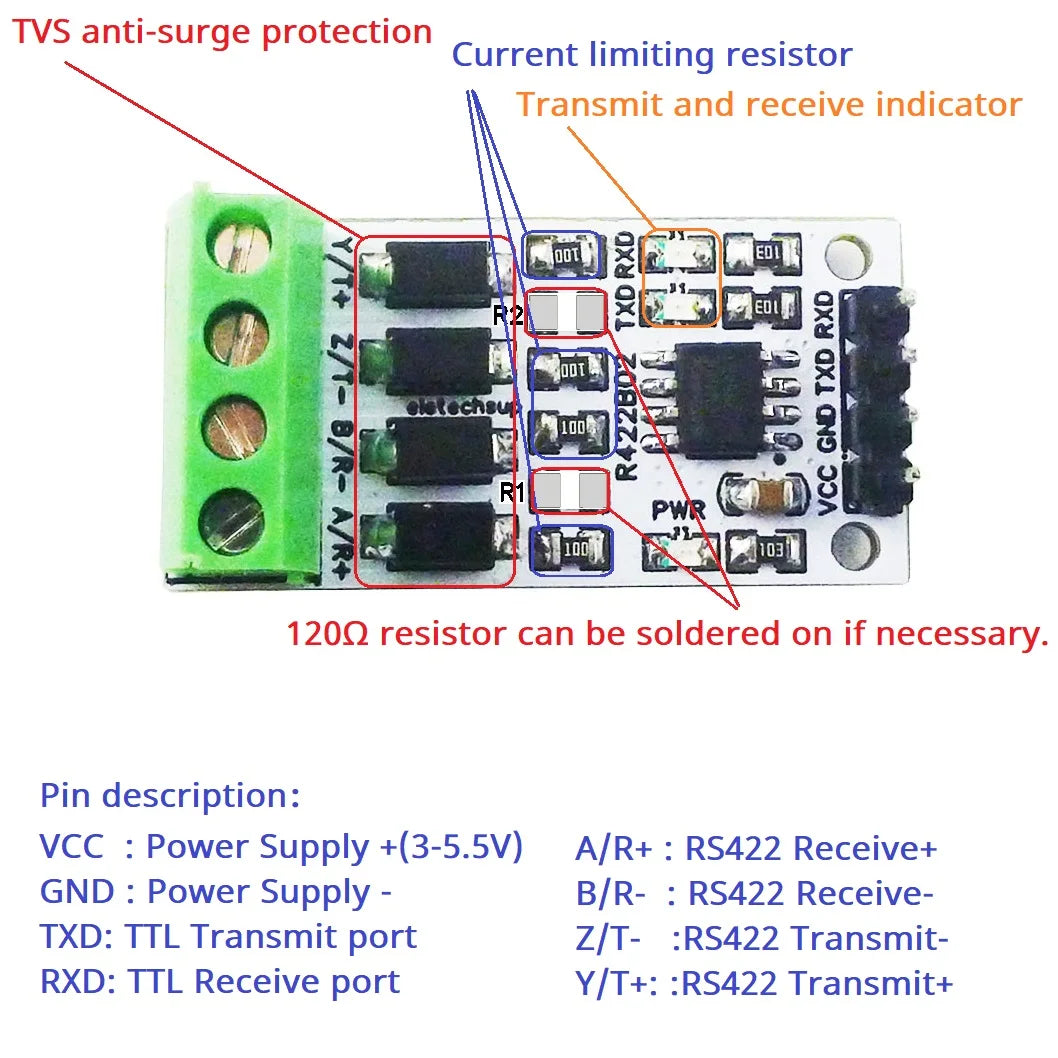

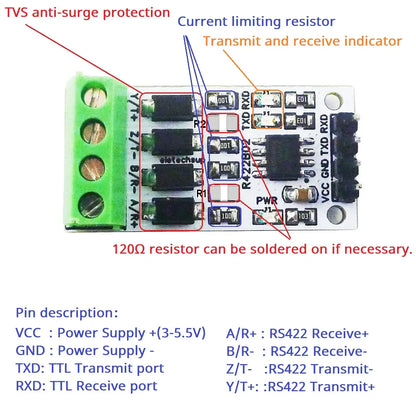

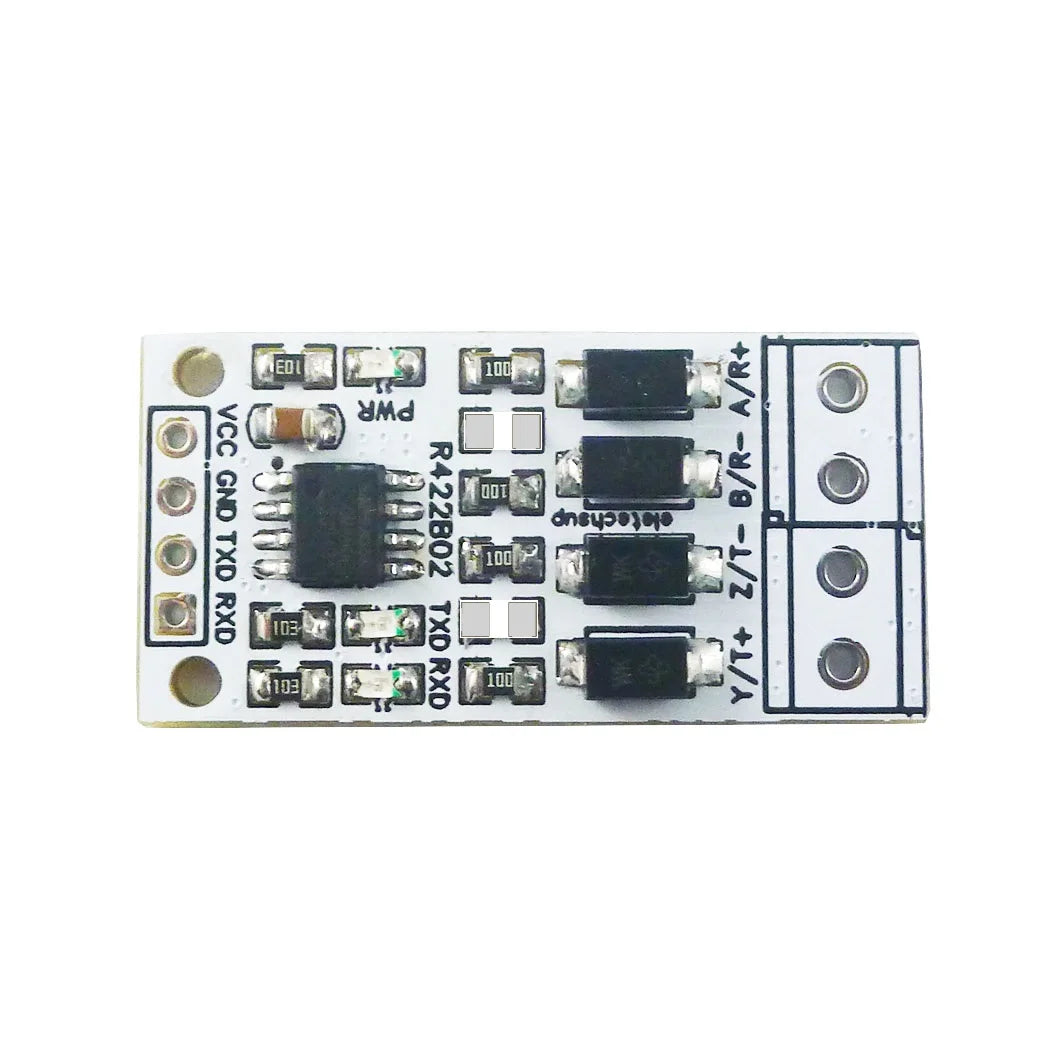

Pin description
VCC : Power Supply +(3-5.5V)
GND : Power Supply -
TXD: TTL Transmit port
RXD: TTL Receive port
A/R+ : RS422 Receive+
B/R- : RS422 Receive-
Z/T- :RS422 Transmit-
Y/T+: :RS422 Transmit+

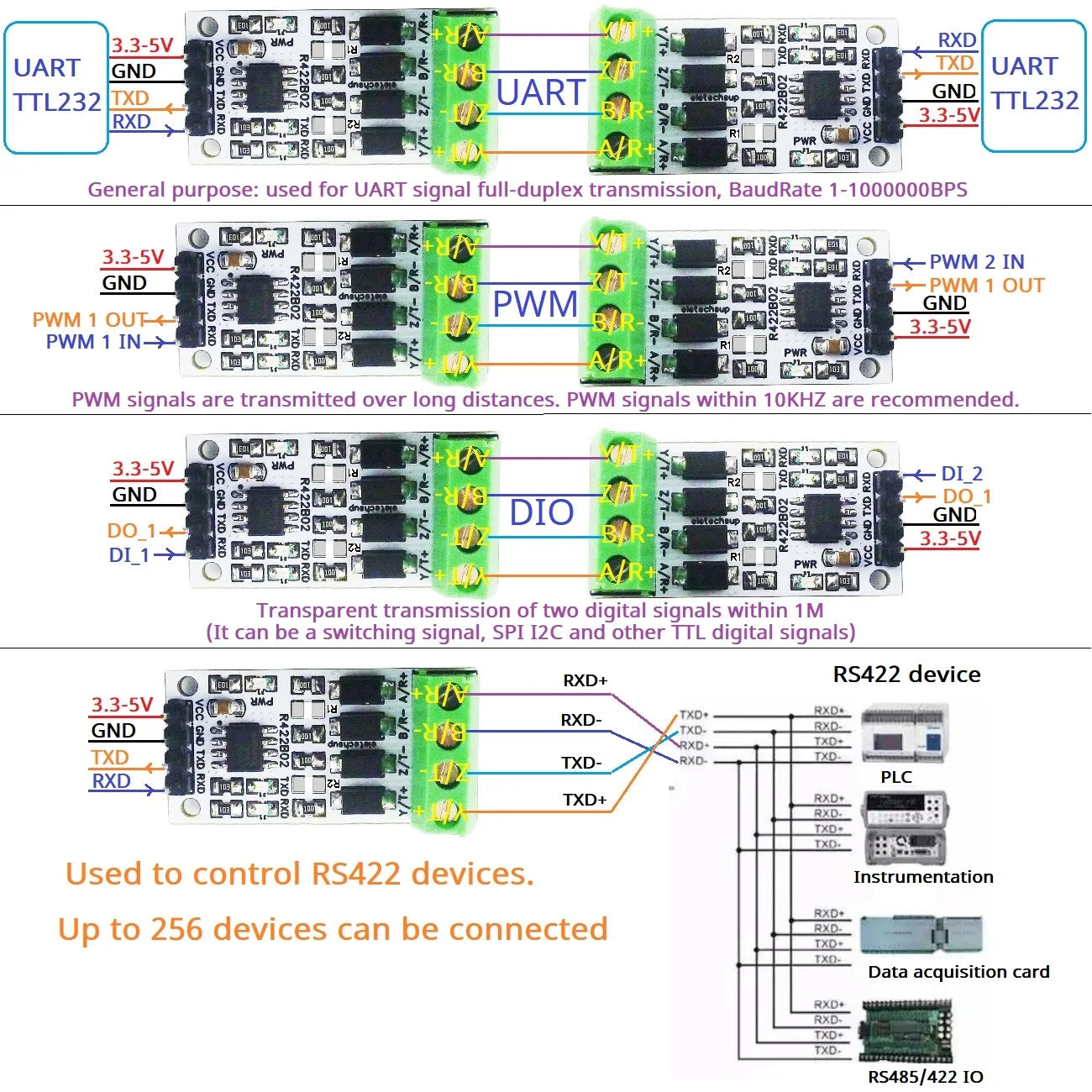

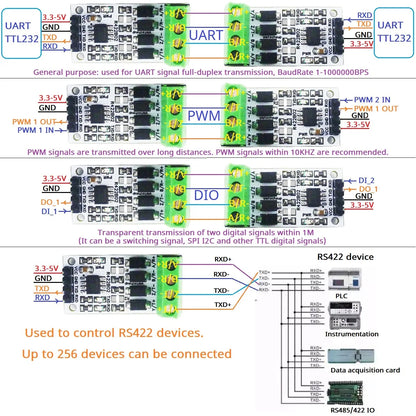

Application
RS422 RS422 Equipment
MODBUS RTU IO
RS485/RS422 Relay/Switch/Sensor
Automated Manufacturing line
for FPGA/CPLD STM32 ATMEGA328P MGEA2560
for Raspborry Pi Zero W PIRO
