R4D3C32 Eletechsup DC 12V 24V 32Ch Modbus RTU RS485 Bus Relay UART Serial port DIN35 Rail

R4D3C32 Eletechsup DC 12V 24V 32Ch Modbus RTU RS485 Bus Relay UART Serial port DIN35 Rail

R4D3C32_12V

201 in stock

$49.99
$49.99 $49.99
Sale Sold out

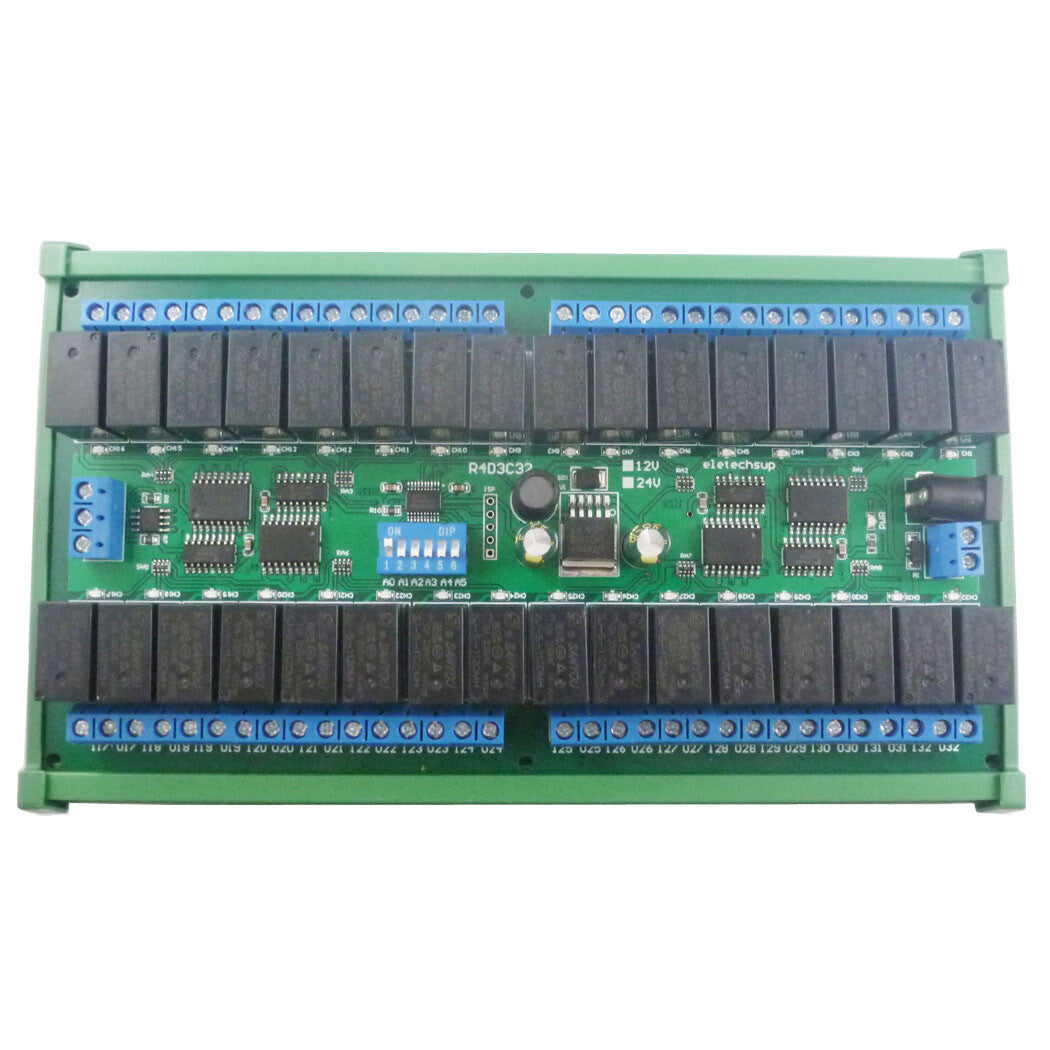

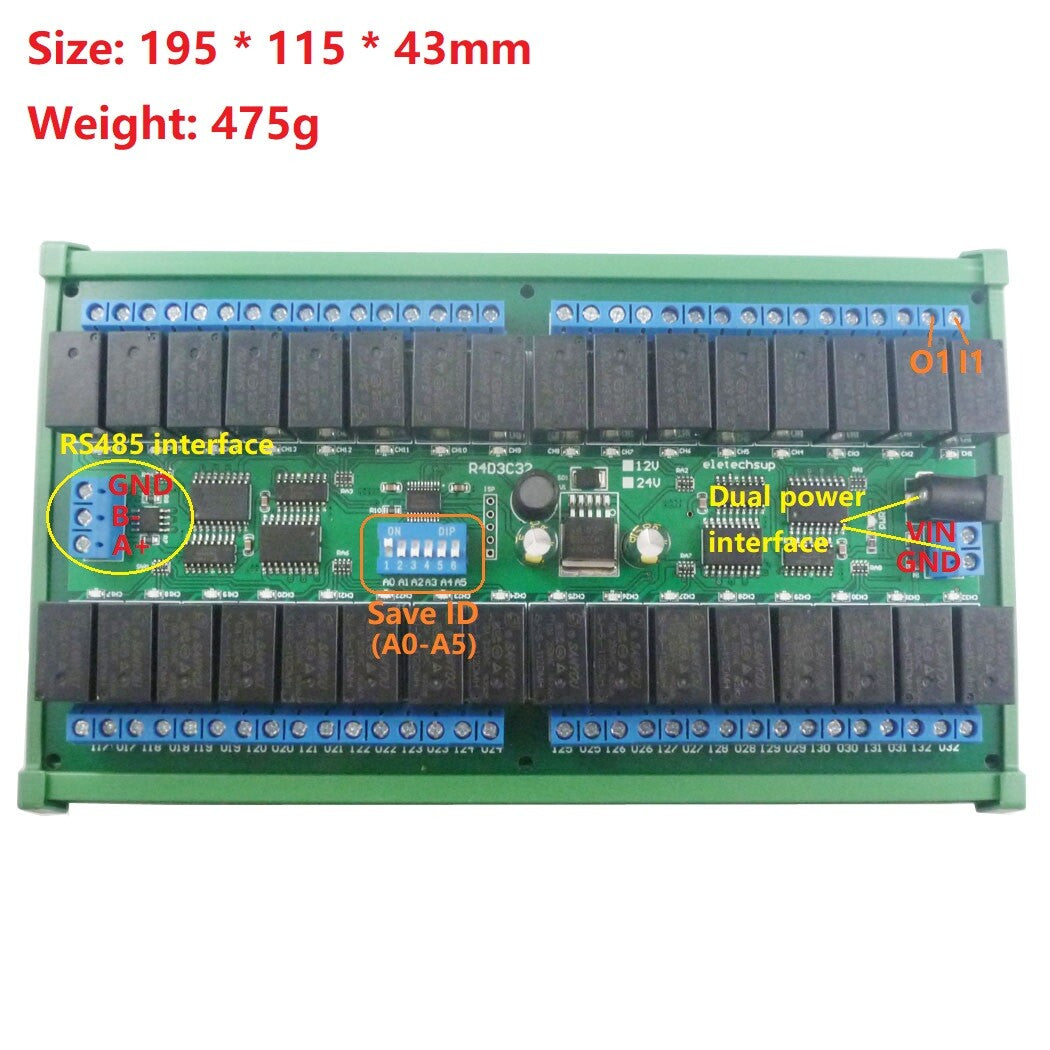

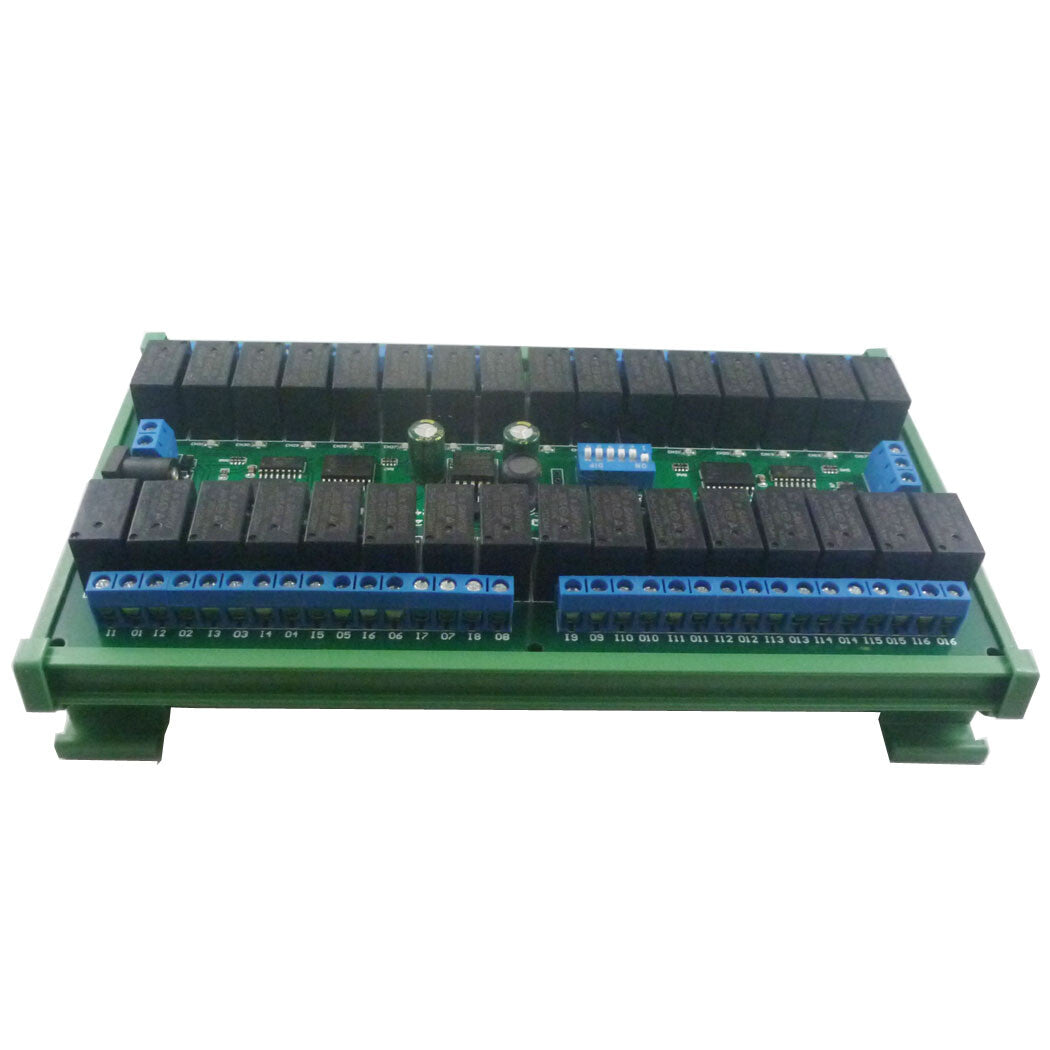

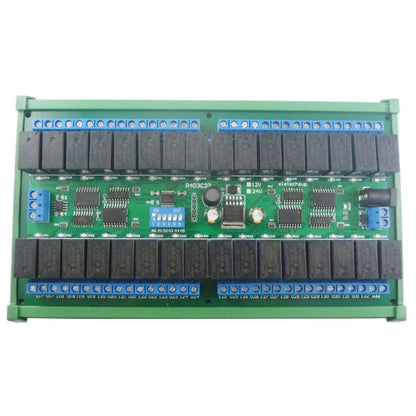

Product Name: R4D3C32 DC 12V 24V 32Ch Modbus RTU RS485 Bus Relay Module UART Serial port DIN35 Rail










Package inlcuded:


1 x DC 12V/24V 32 Channels Rail RS485 Modbus RTU Relay Module











Description:









1: 12V (12V version)/24V (24V version).





2: (12V version) Standby current (all relays closed) 8MA, all 32 relay open 1050mA





3: ''open'' ''close'' ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay'' 6 Commands





4: MODBUS RTU command





5: Under the ''Delay'' command ,the maximum delay is 255 seconds





6 MODBUS commands can be made serial HyperTerminal (serial assistant) OR ''Modbus Poll'' Enter.





7 Under the MODBUS command mode, it can support up to 64 devices in parallel





8 Size: 195 * 115 * 43mm(with DIN Rail Box)





9 Weight: 475g(with DIN Rail Box)





10 Maximum load: 10A / 250VAC, 10A / 125VAC

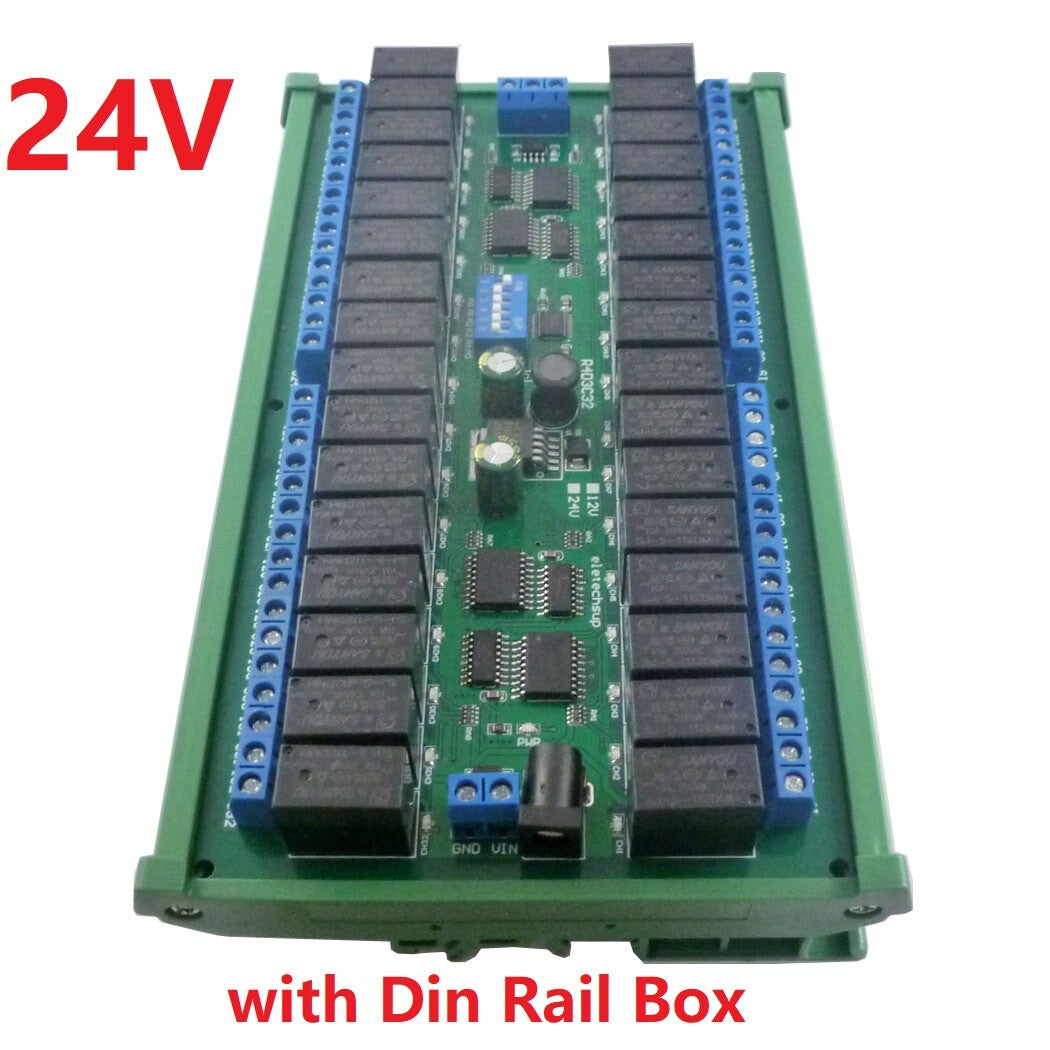

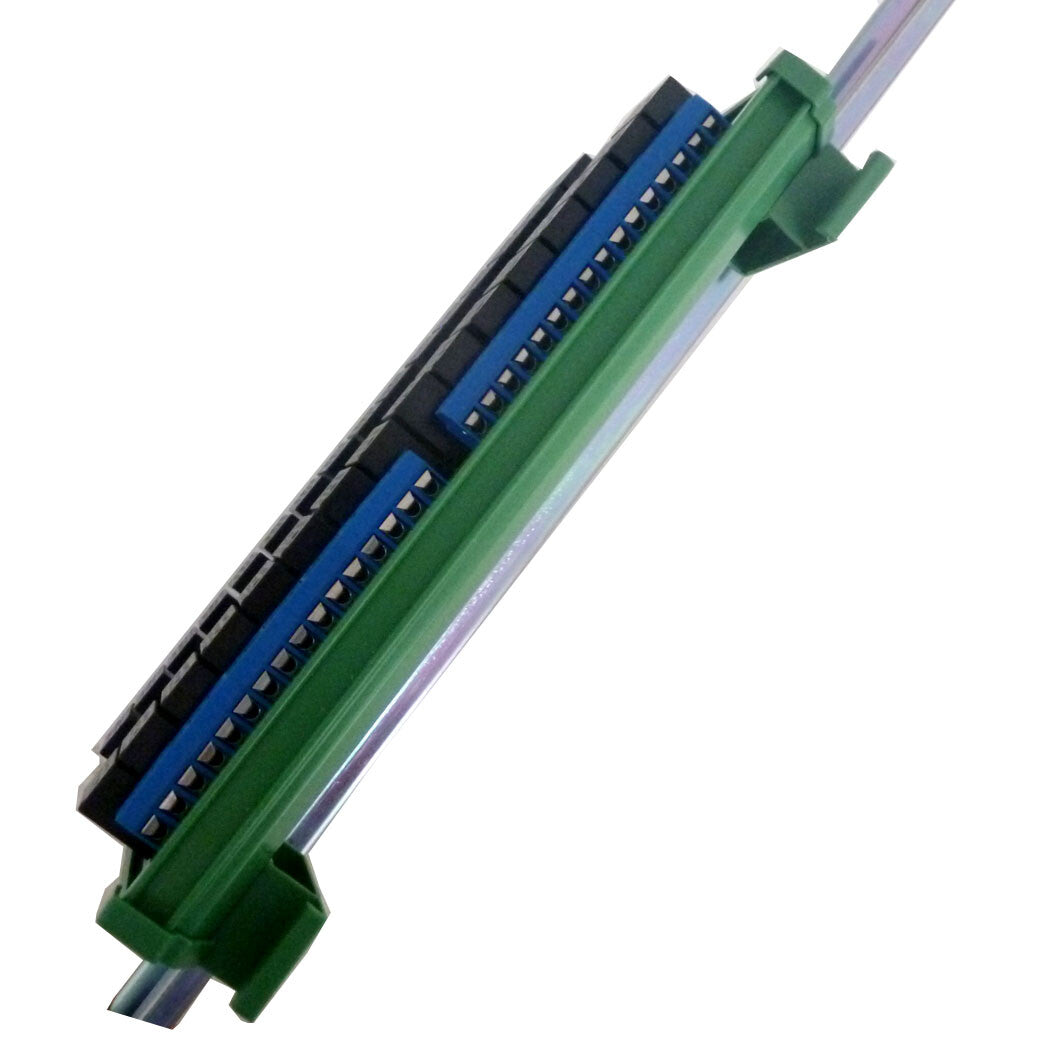

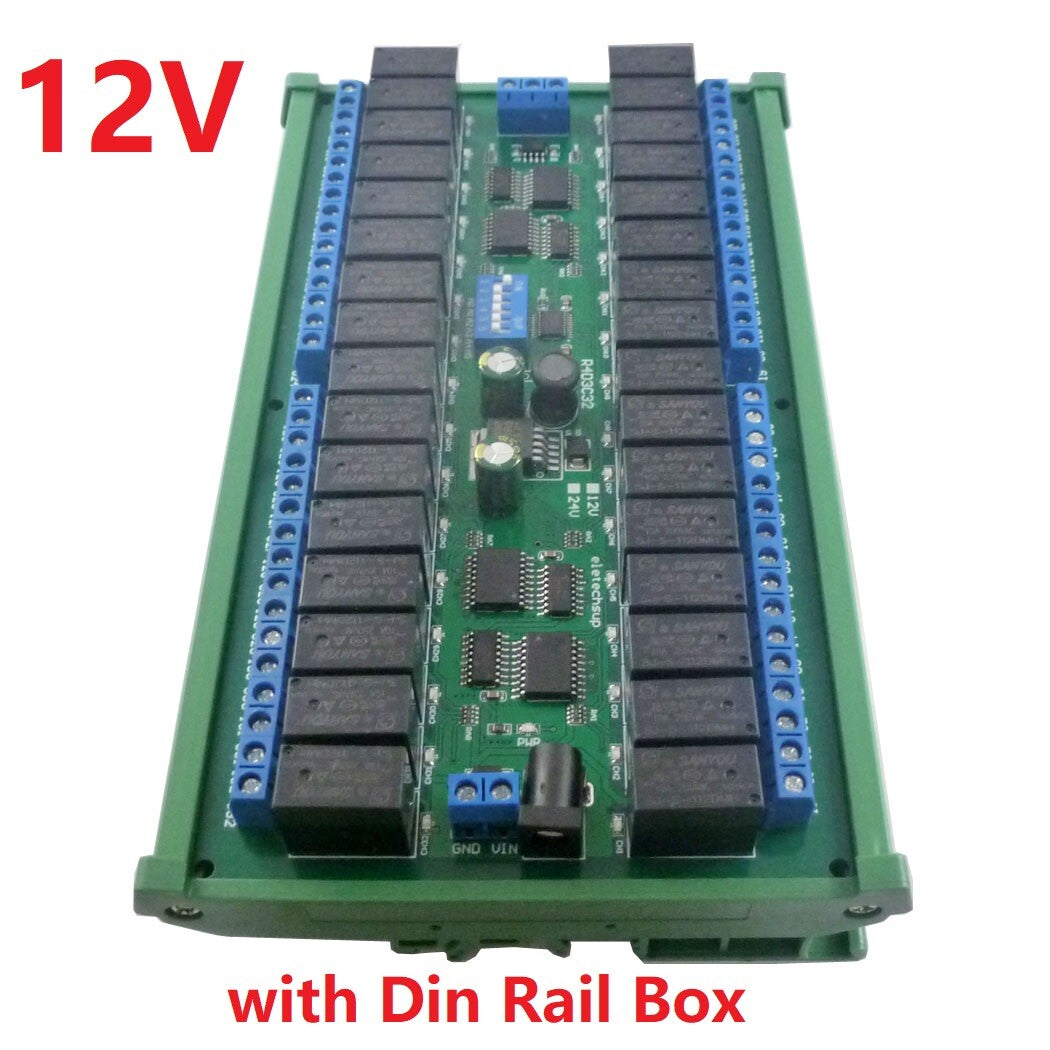

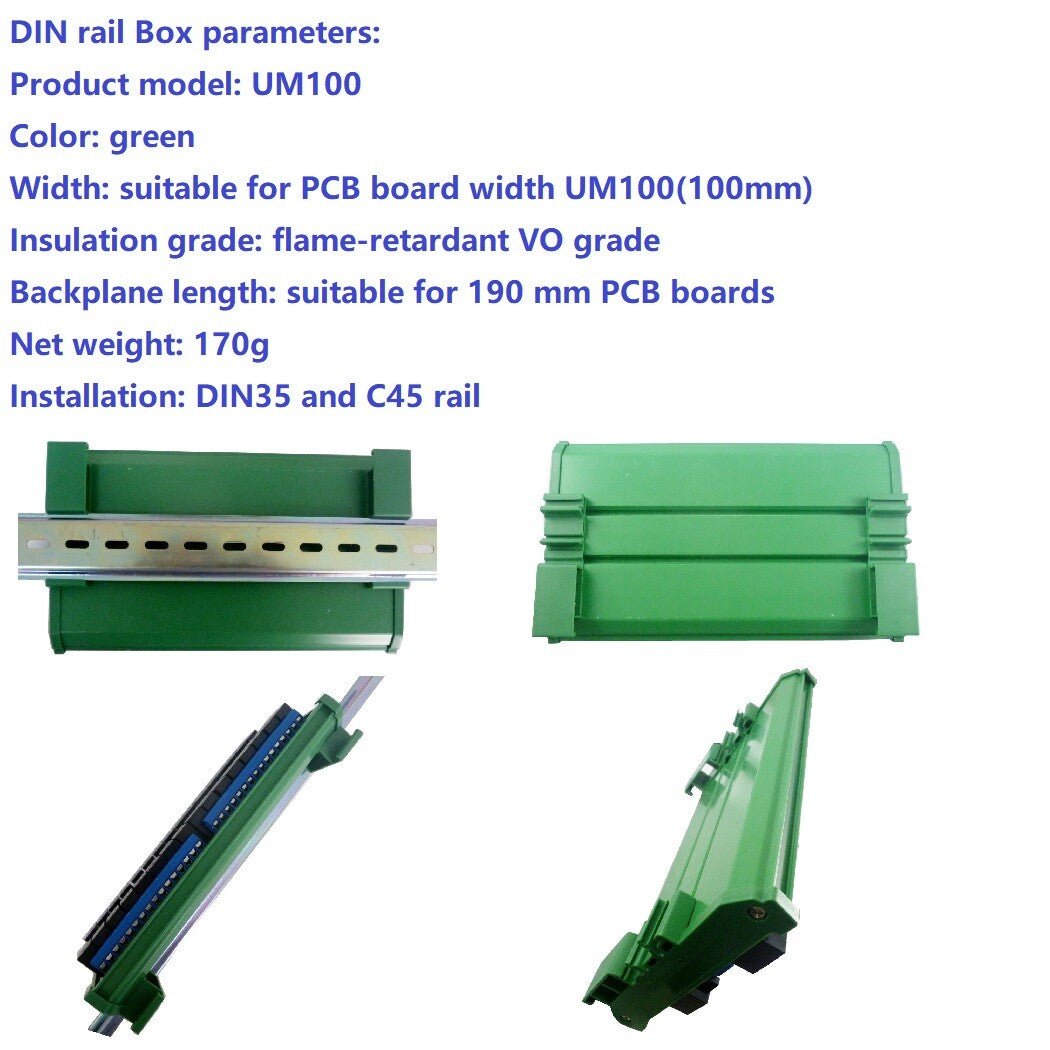

DIN rail Box parameters(DIN Rail Box Version):

Product model: UM100

Color: green

Width: suitable for PCB board width UM100(100mm)

Insulation grade: flame-retardant VO grade

Backplane length: suitable for 190 mm PCB boards

Net weight: 170g

Installation: DIN35 and C45 rail







For more information, please contact me






Application





Automated industry PLC expanding board


Smart Home,Home Automation ,Wiser Home;


IP PTC Camera


Security Monitoring


Identification system;


Motor FW & BW


​LED Home lighting

Door Lock

diy electronic





Typical applications:



MODBUS RTU command mode (HEX), you can control a variety of ways: Serial Hyper Terminal Control (need to manually add the CRC), Modbus Poll software control (software automatically add the CRC), PLC or MCU process control

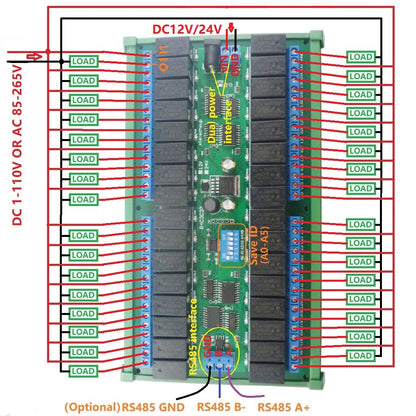

Wiring Diagram:

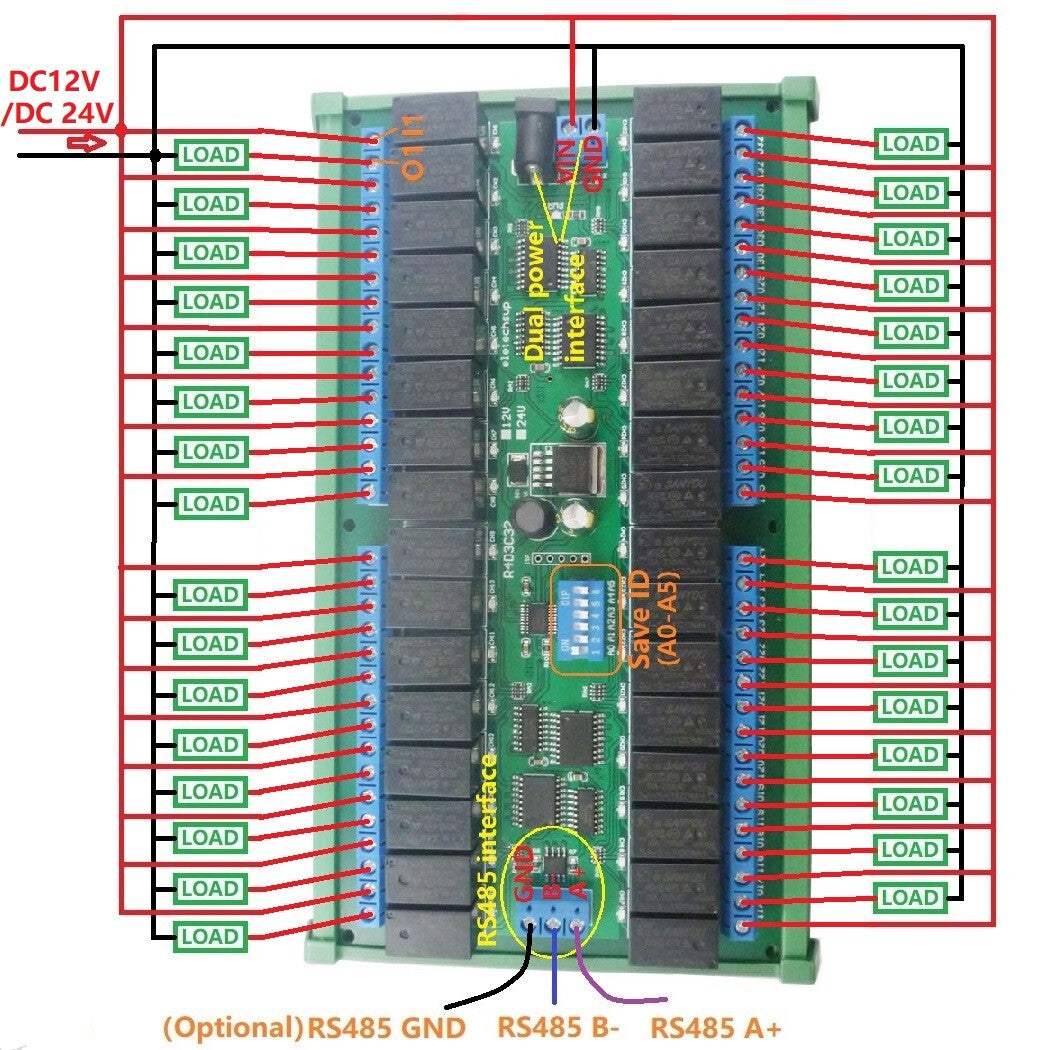

1 DC 12V/24V control circuit,Wiring diagram below. ''LOAD'' may be camera,LED lights, fans, motors and other DC 12V/24V equipment

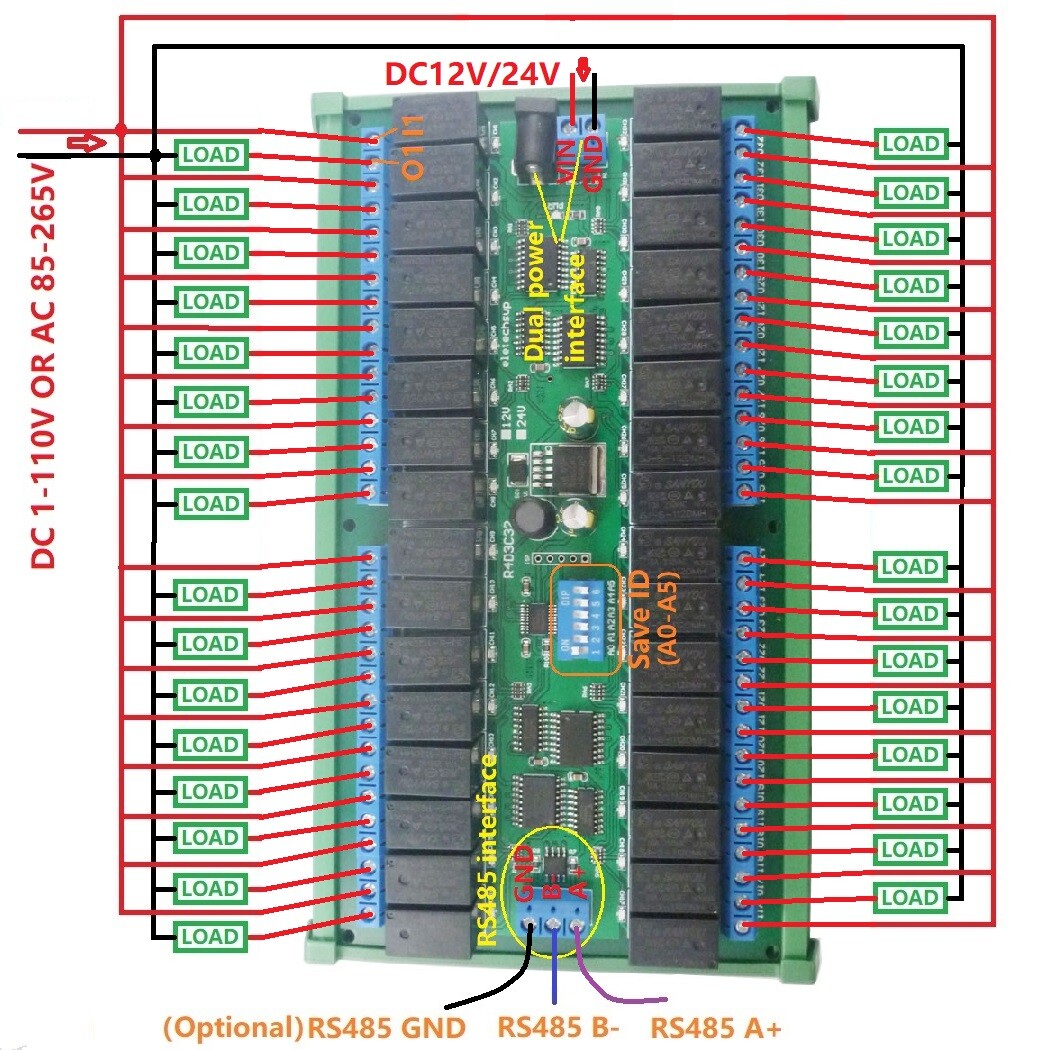

2 DC 1-110V OR AC 85-265V control circuit,Wiring diagram below(Note:If not DC 12V/24V load, need another DC 12V power supply). ''LOAD'' may be LED lights, fans, motors Lights, fluorescent lights, solar water heaters and other DC AC equipmen
