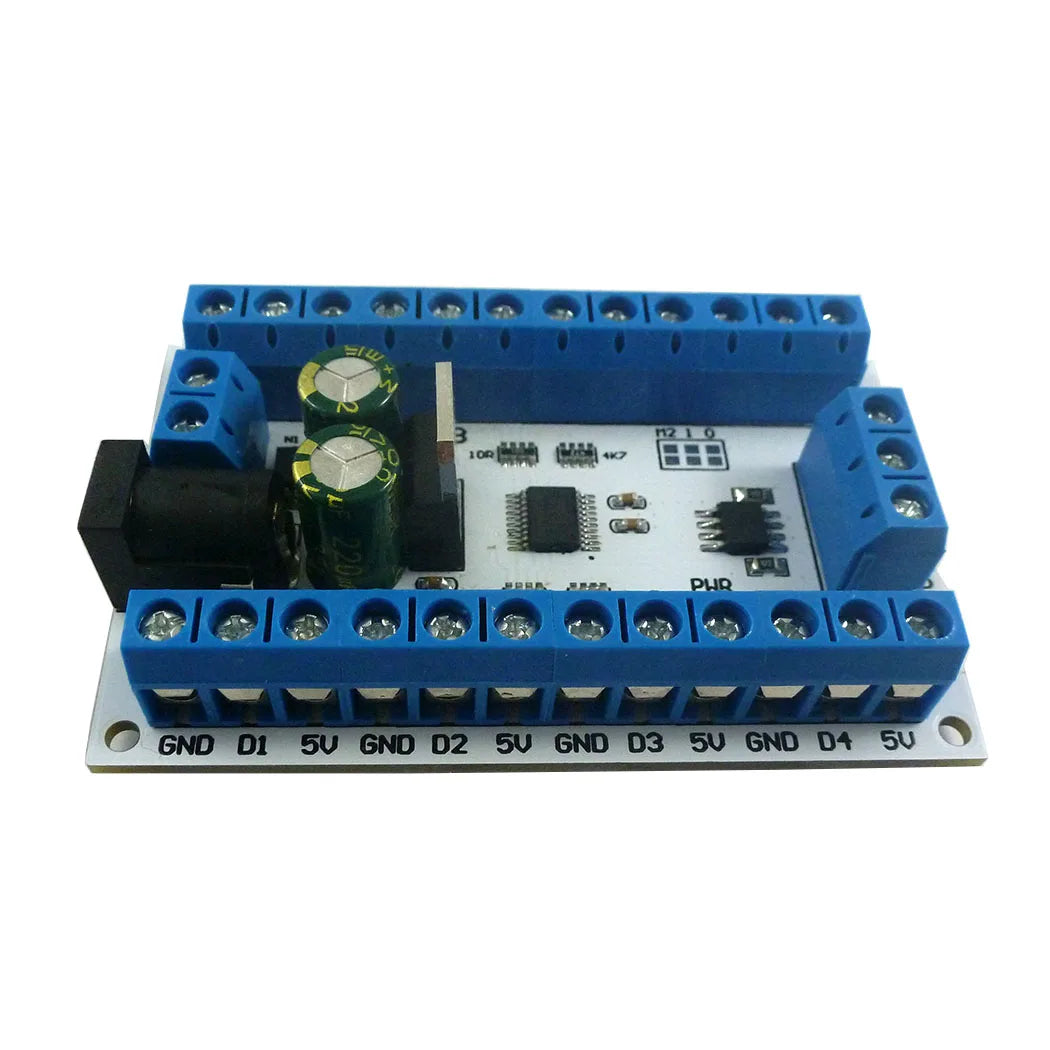

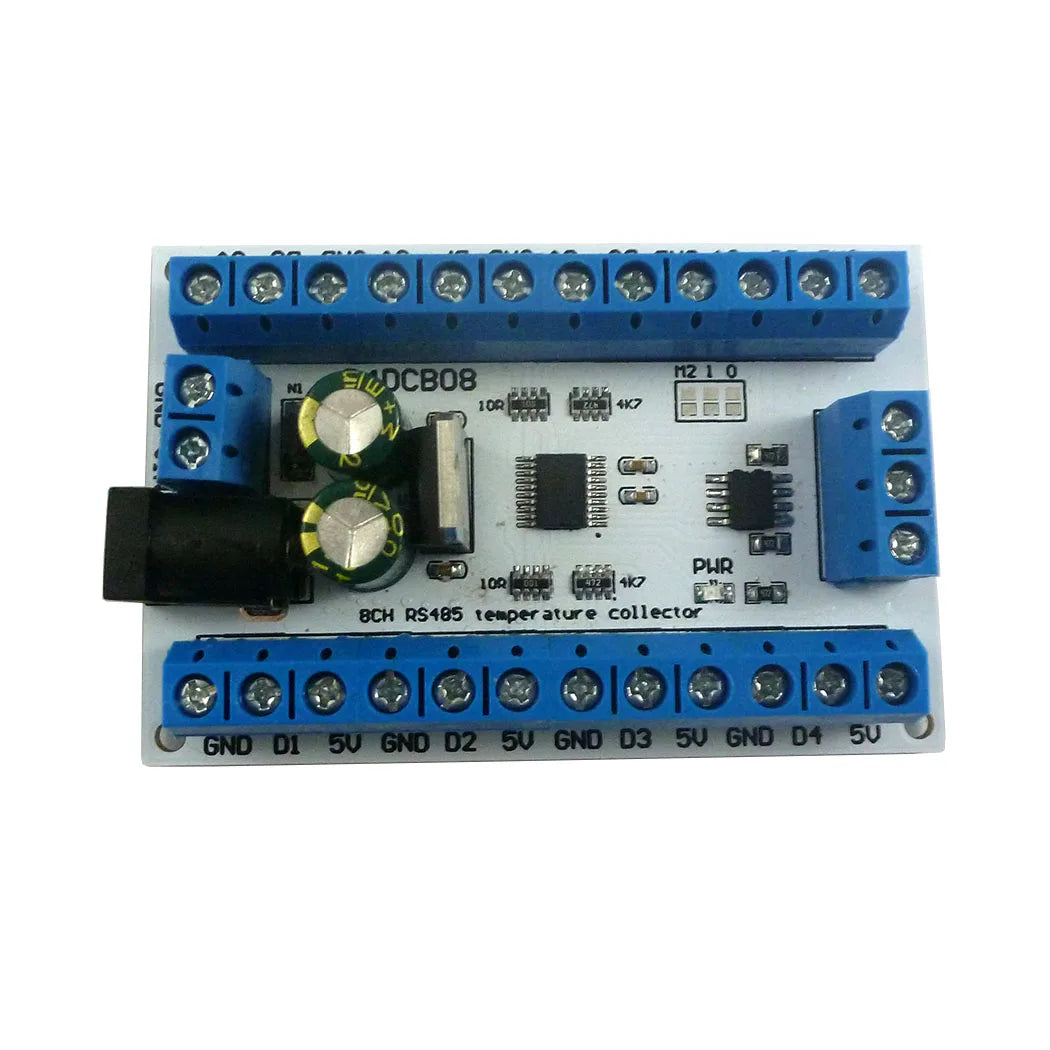

R4DCB08 8CH DC 12V RS485 DS18B20 Temperature Sensor Temperature acquisition collector module for Paperless recorder PLC Configuration

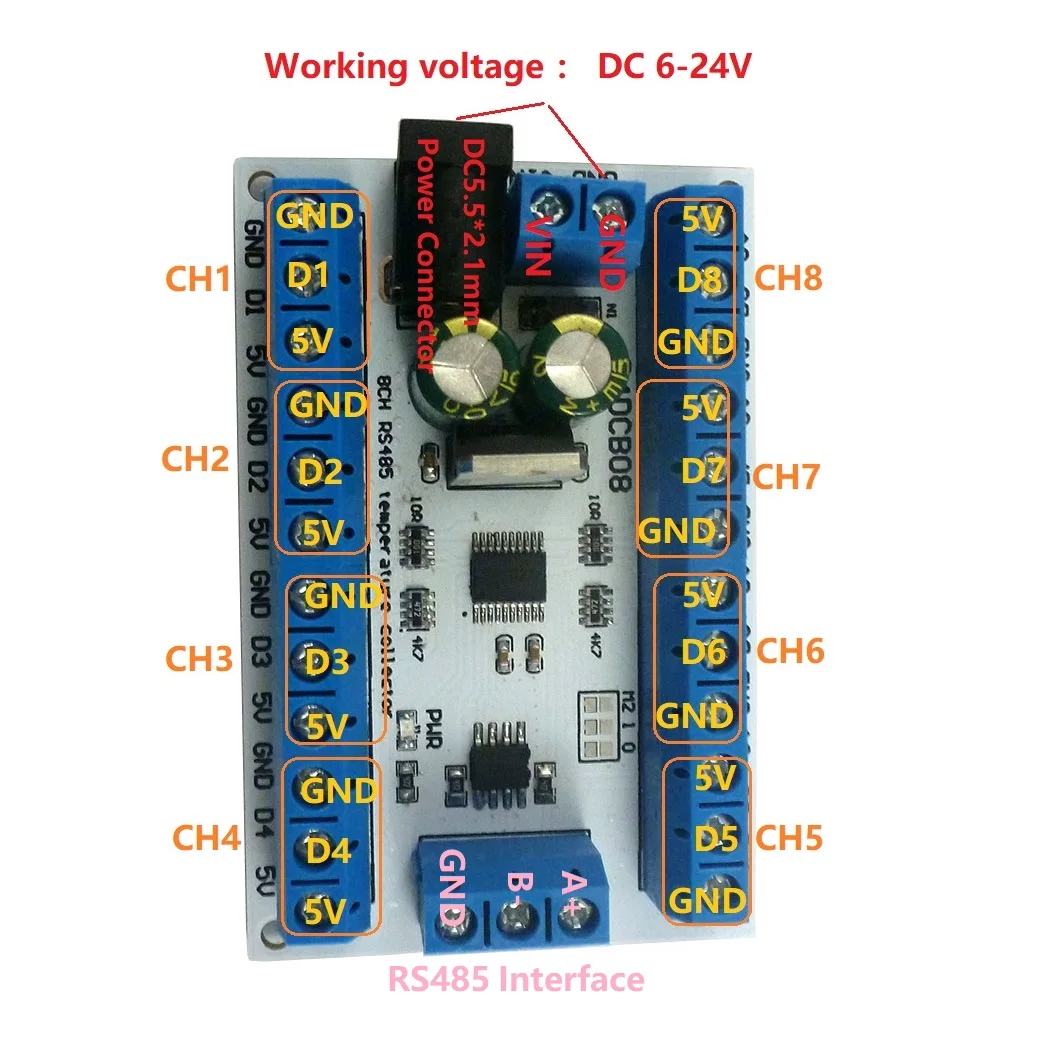

1: Operating Voltage : DC 6-24V(DC 9V 12V 15V 24V)

2: Operating Current :8-13MA(It is related to the number of external DS18B20)

3: MODBUS RTU Command support 03 06 function code

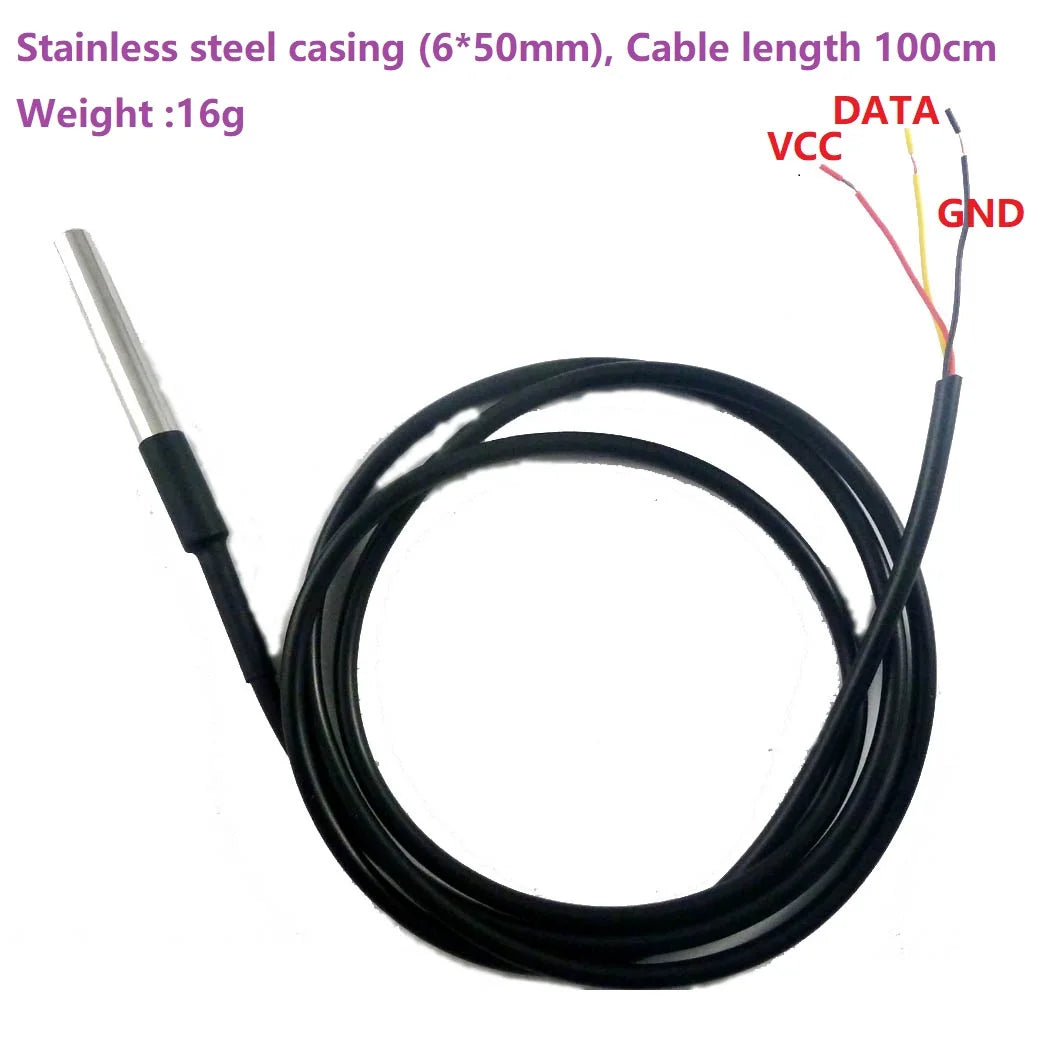

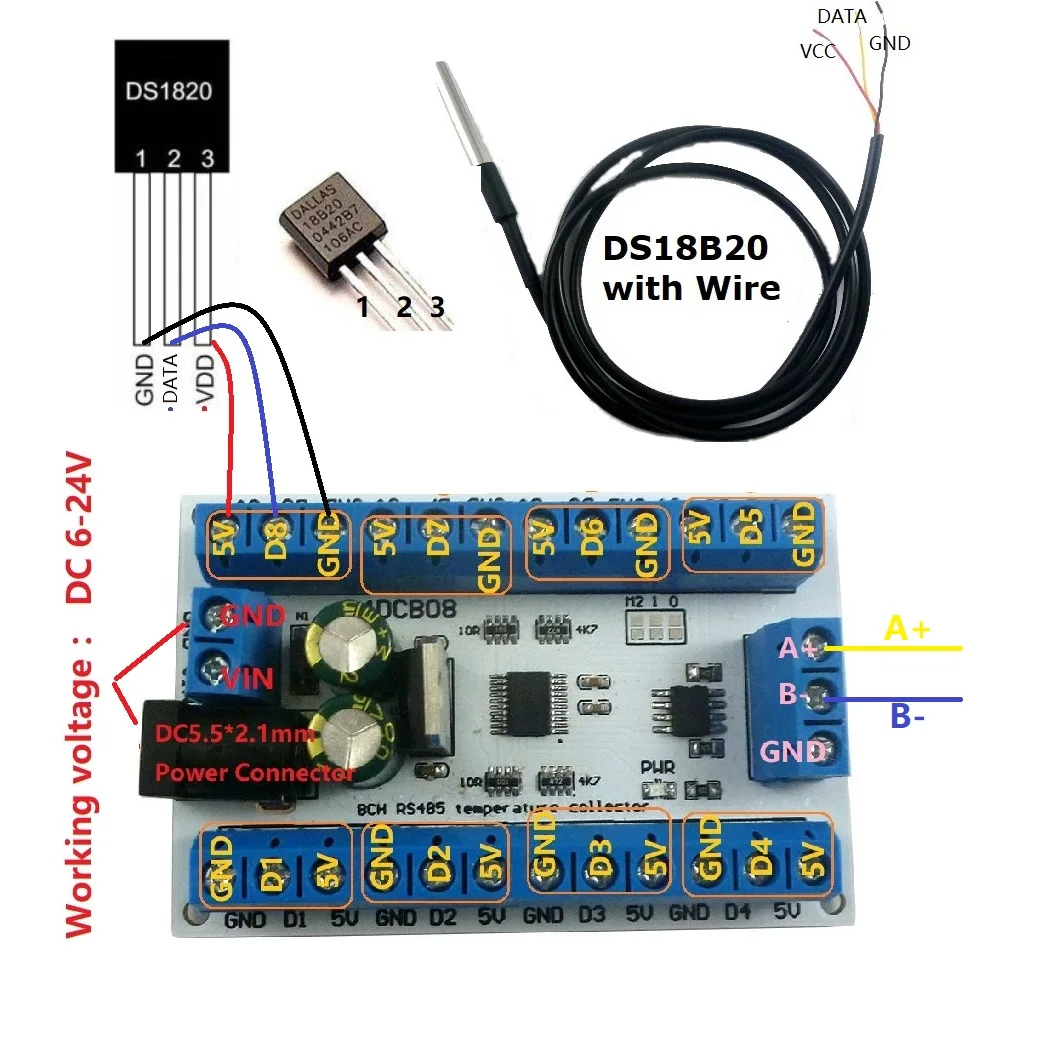

4Temperature sensor is DS18B20, Up to 8 DS18B20 temperature sensors can be connected at the same time

5 Measures Temperatures from -55°C to +125°C(-67°F to +257°F)
±0.5°C Accuracy from -10°C to +85°C

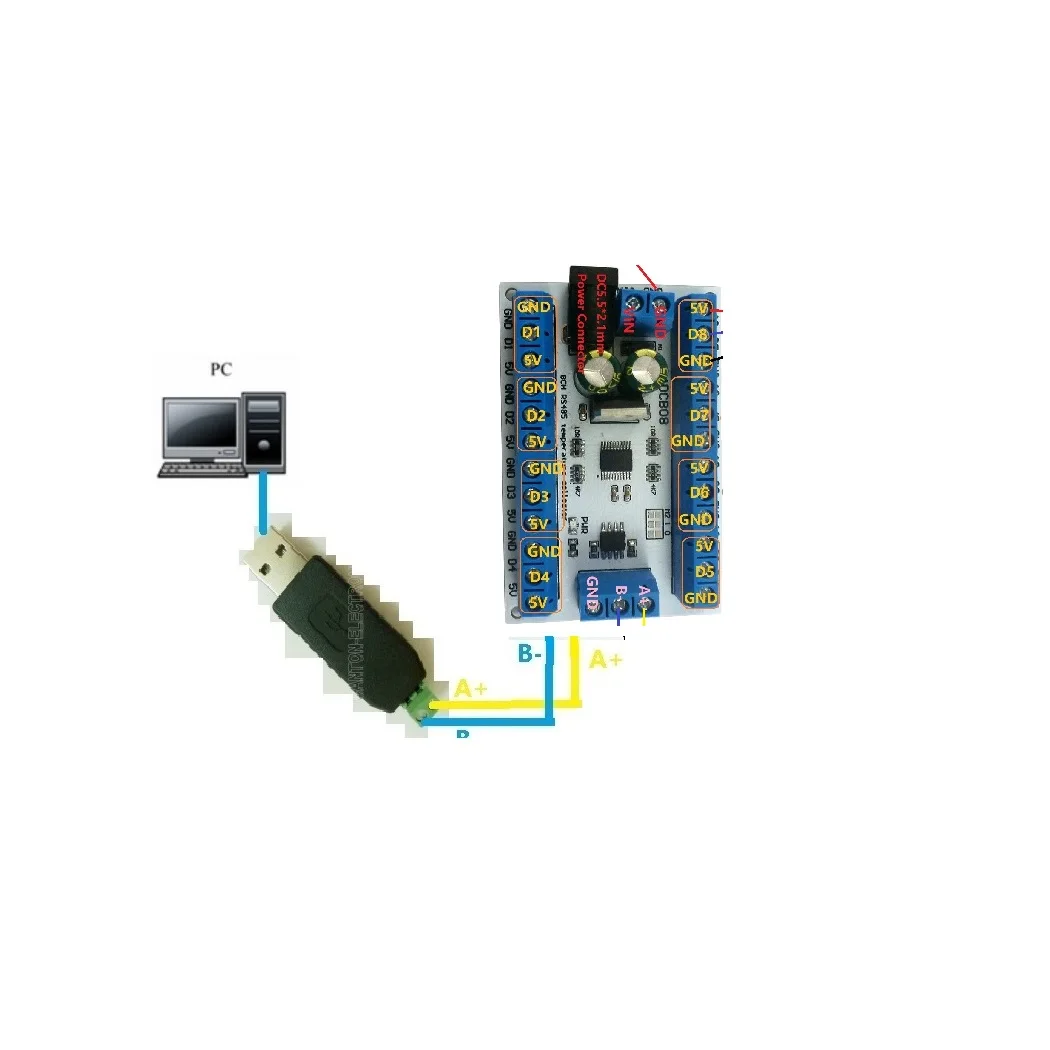

6 :MODBUS commands can be made serial HyperTerminal (serial assistant) OR PLC Enter;

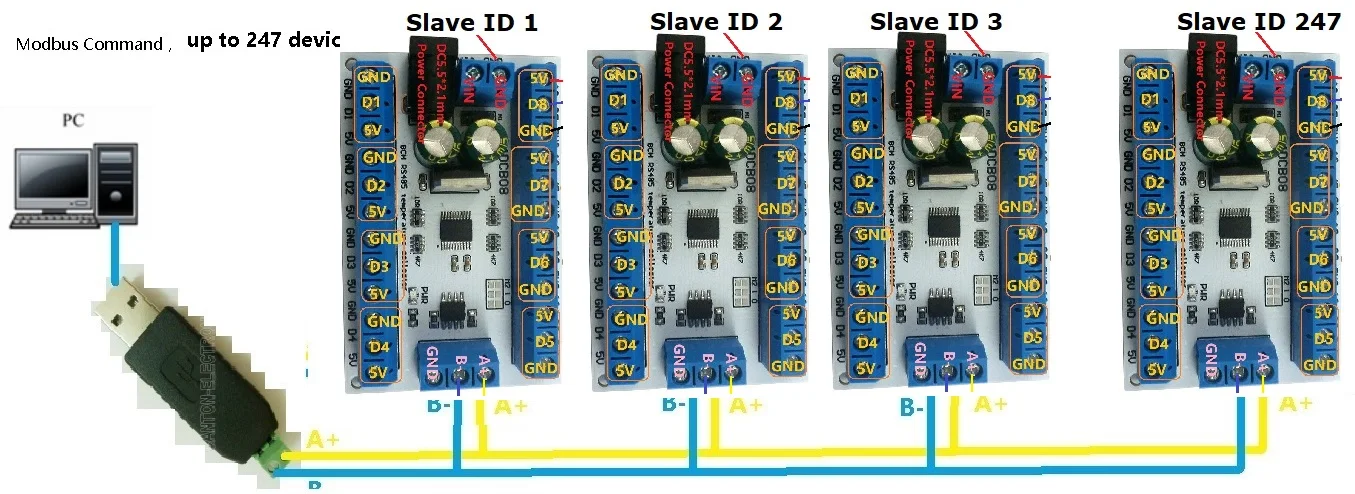

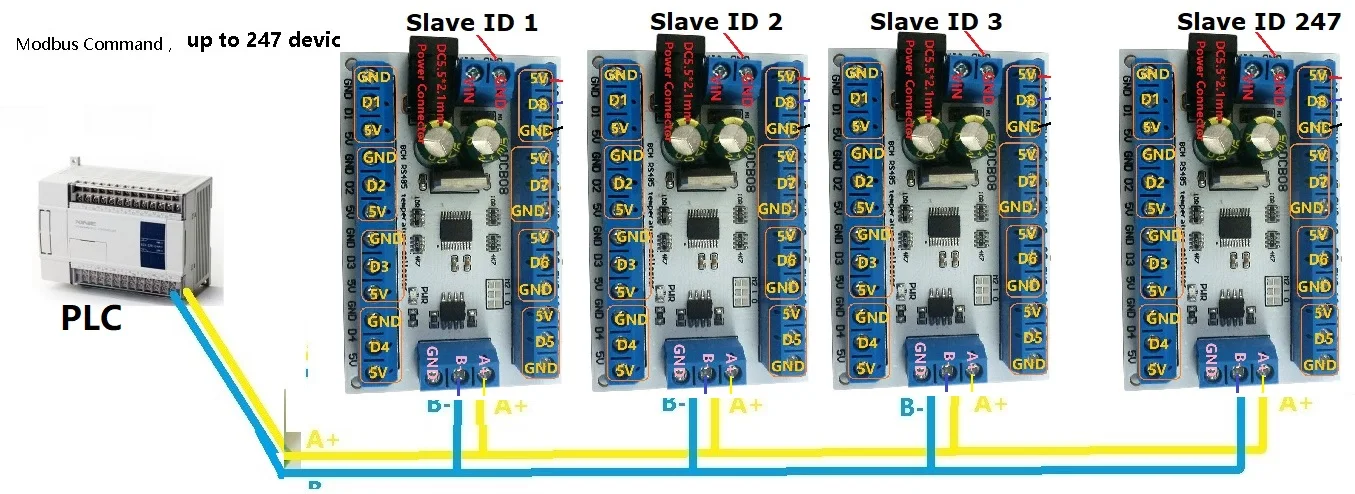

7 :Under the MODBUS command mode, it can support up to 247 devices in parallel

8 :Size: 70 * 46 * 18mm
9 :Weight: 40 g







Thermostatic Controls
Paperless recorder
Industrial Systems
Consumer Products
Thermometers
Thermally Sensitive Systems
Indoor and outdoor temperature measurement
Temperature in vegetable garden
Weather forecasting, and monitoring
Temperature in Computer Room
Warehouse temperature
PLC
Configuration Software
