R4DIF08 8 Digital Switch RS485 Acquisition Board TTL LvTTL CMOS IO for PLC Expand Relay Industrial automation

R4DIF08 8 Digital Switch RS485 Acquisition Board TTL LvTTL CMOS IO for PLC Expand Relay Industrial automation

R4DIF08

100 in stock

$3.89
$3.89 $3.89
Sale Sold out

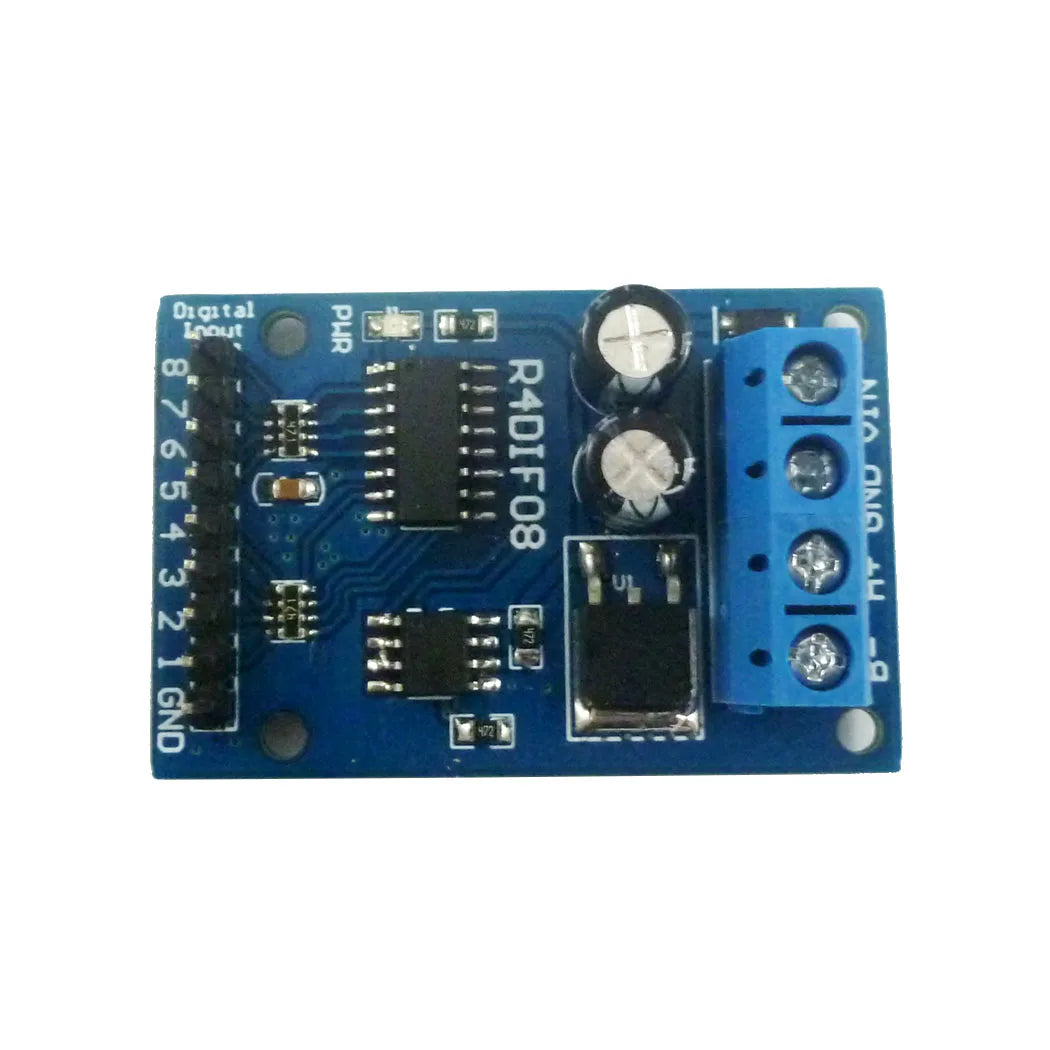

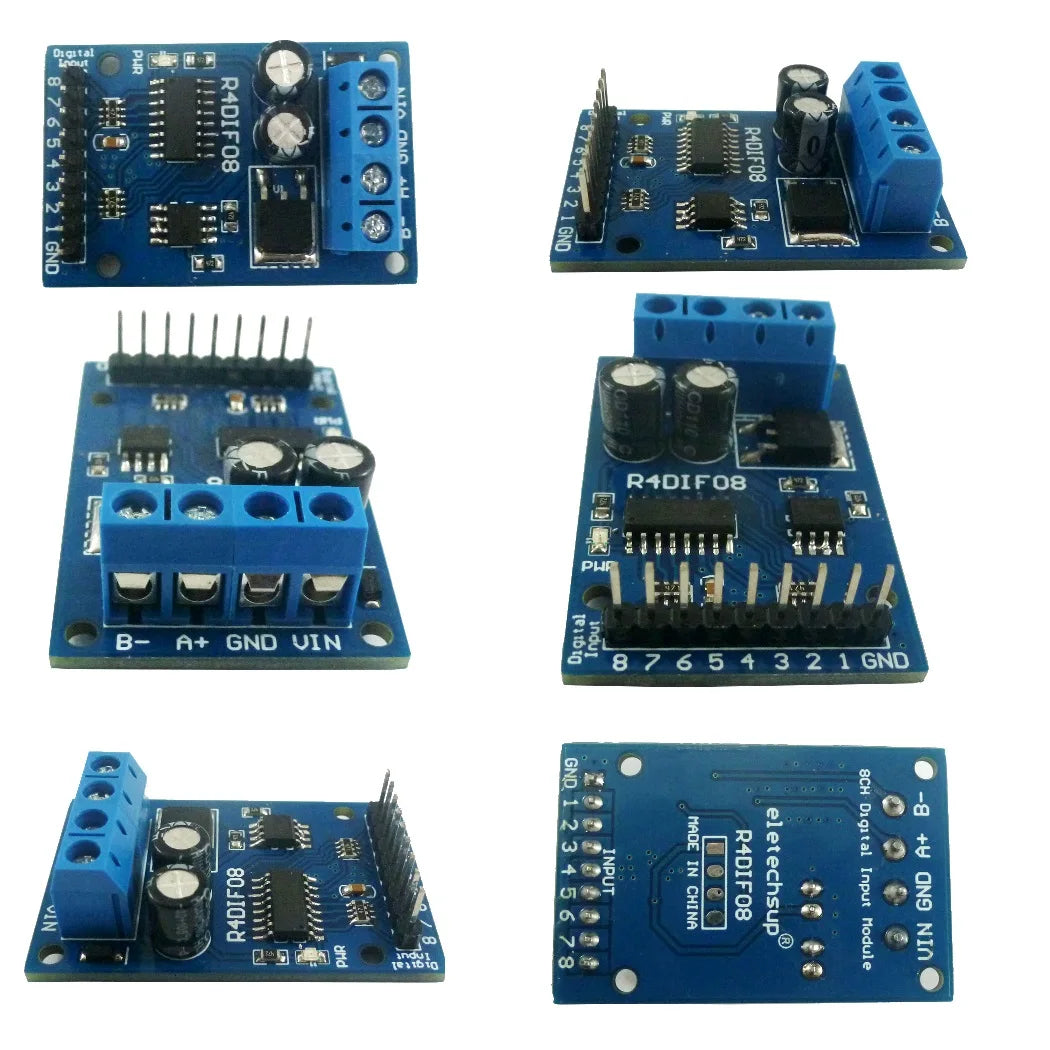

Product Name: 8 Digital Switch RS485 Acquisition Board TTL LvTTL CMOS IO for PLC Expand Relay Industrial automation









Package inlcuded:


1 x 8 bit Digital Switch TTL LvTTL CMOS IO Input UART RS485 Modbus







Description:








1 Working voltage: DC 12V (6-24V)



2 Working current: 8-12MA



3 MODBUS RTU 03 06 command control mode

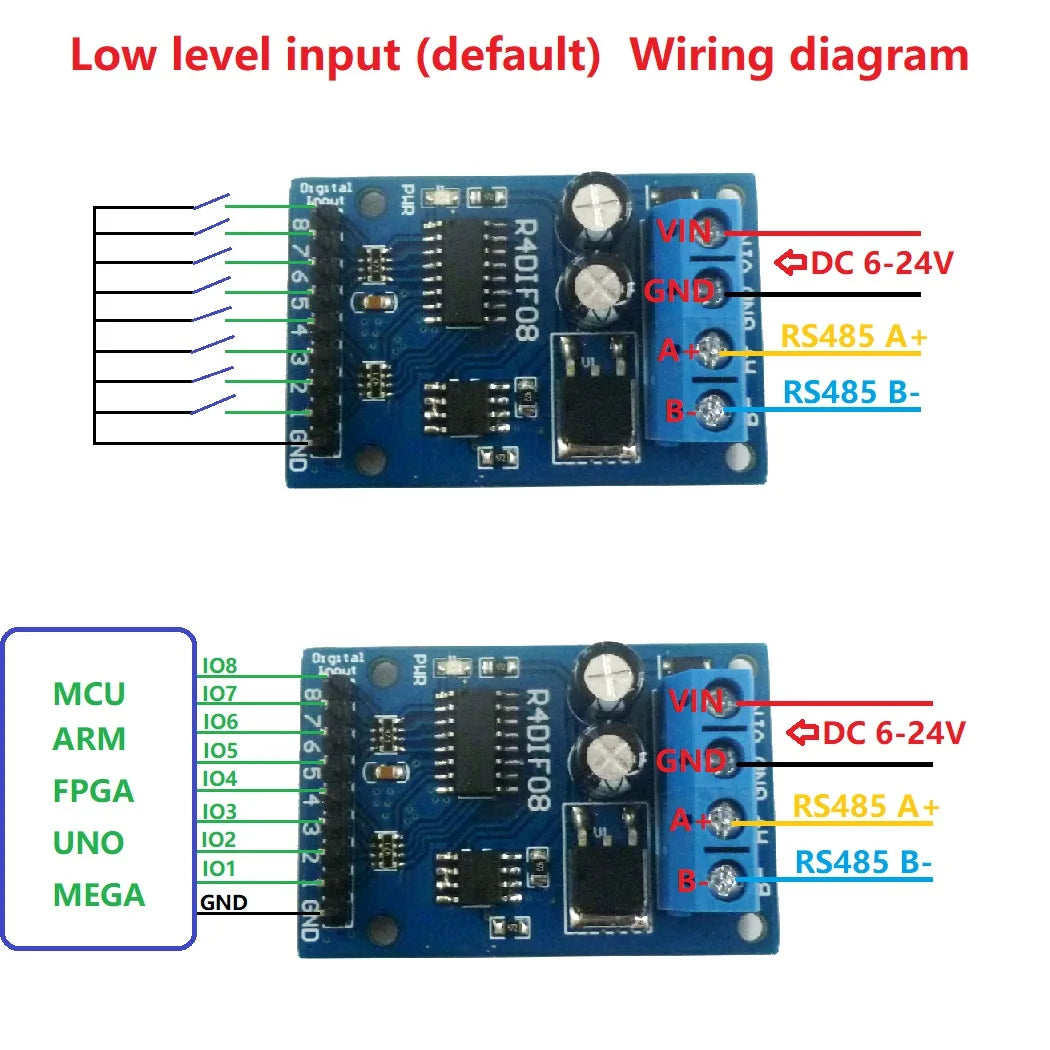

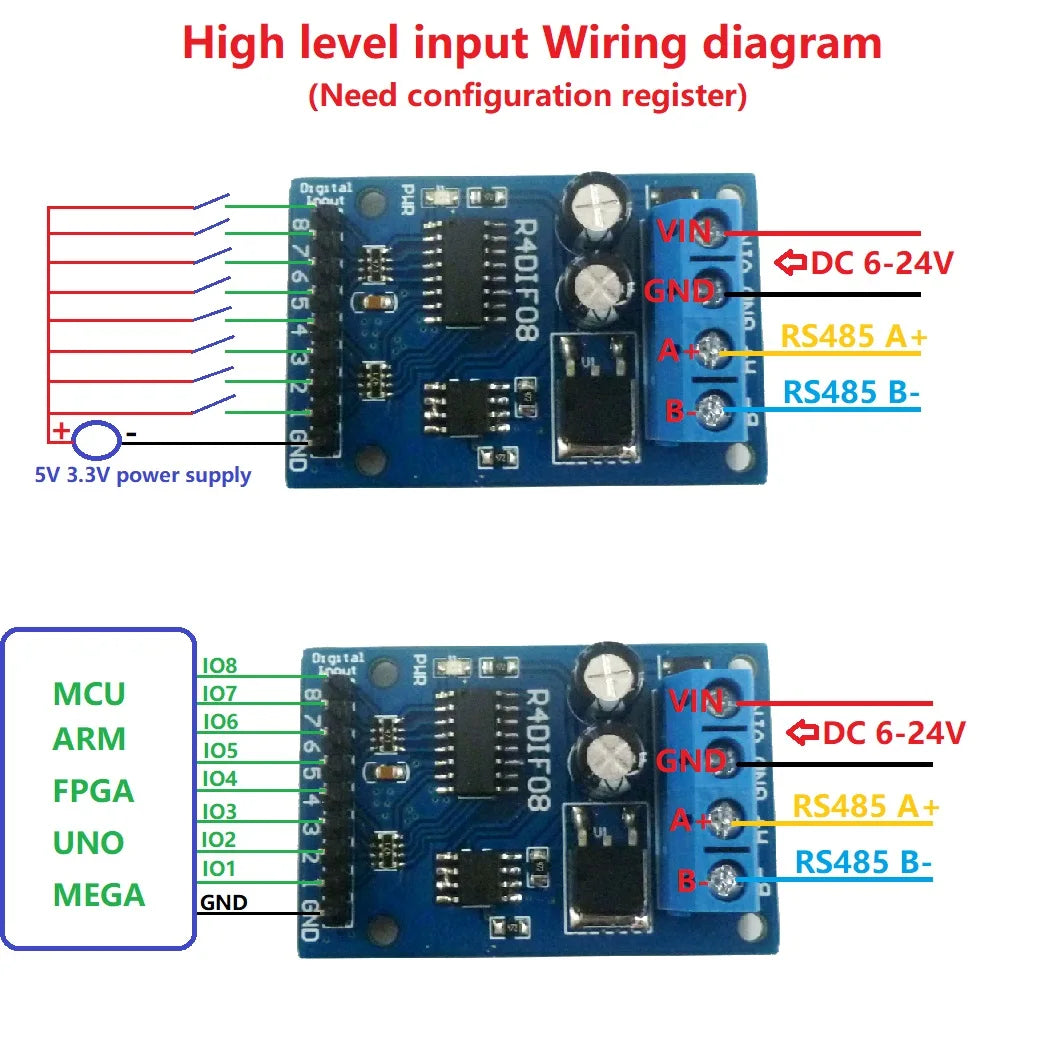

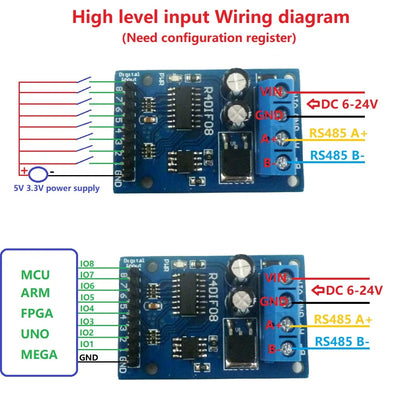

4 There are two input modes: low-level input (default) and high-level input

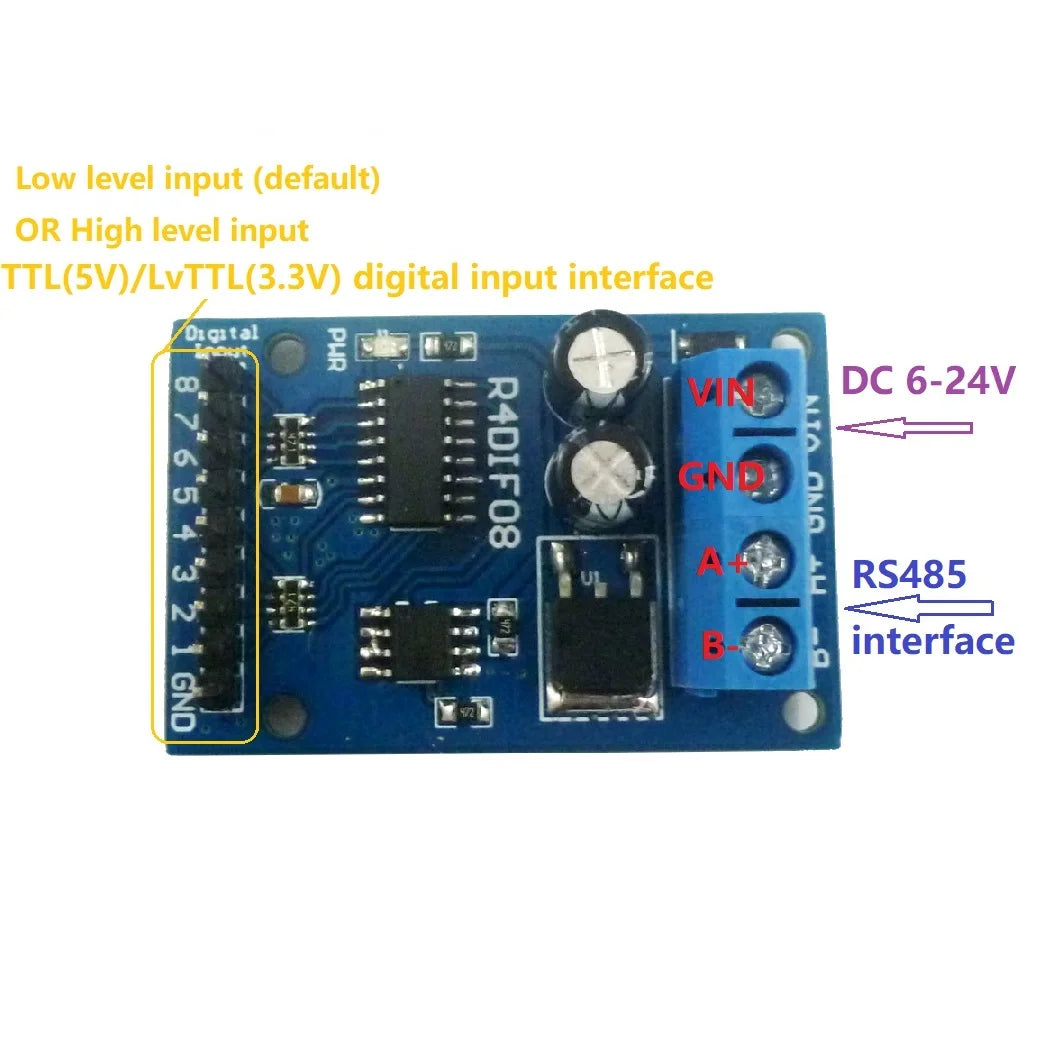

5 Input ports support TTL (5V) /LvTTL(3.3V) and compatible level



6 In MODBUS command mode, it can support up to 247 devices to be used in parallel



7 Input port status supports query (default) and automatic reporting



8 The default baud rate is 9600BPS, which can be configured to support 1200 2400 4800 19200 baud rate



9 Size: 44*29*15

10 Weight: 10 grams











Instruction manual Please ask us after the purchase








Application


Automated industry PLC

Digital to RS485

Smart Home,Home Automation ;

Identification system;

CCTV Camera PTZ Control;

Security system;

RS485 remote control;
