TB258 Red Mini LED Board for Arduno UNO MEGA2560 Nano Breadboard starter kit
TB258 Red Mini LED Board for Arduno UNO MEGA2560 Nano Breadboard starter kit
SKU:TB258
Low stock: 10 left
Regular price
$0.99
Regular price
$4.99
Sale price
$0.99
Unit price
per
Couldn't load pickup availability
Product Name:

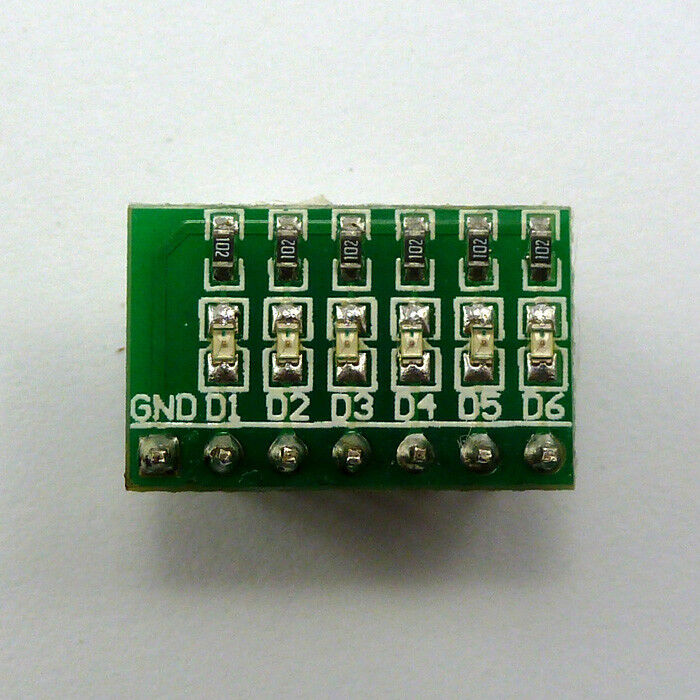

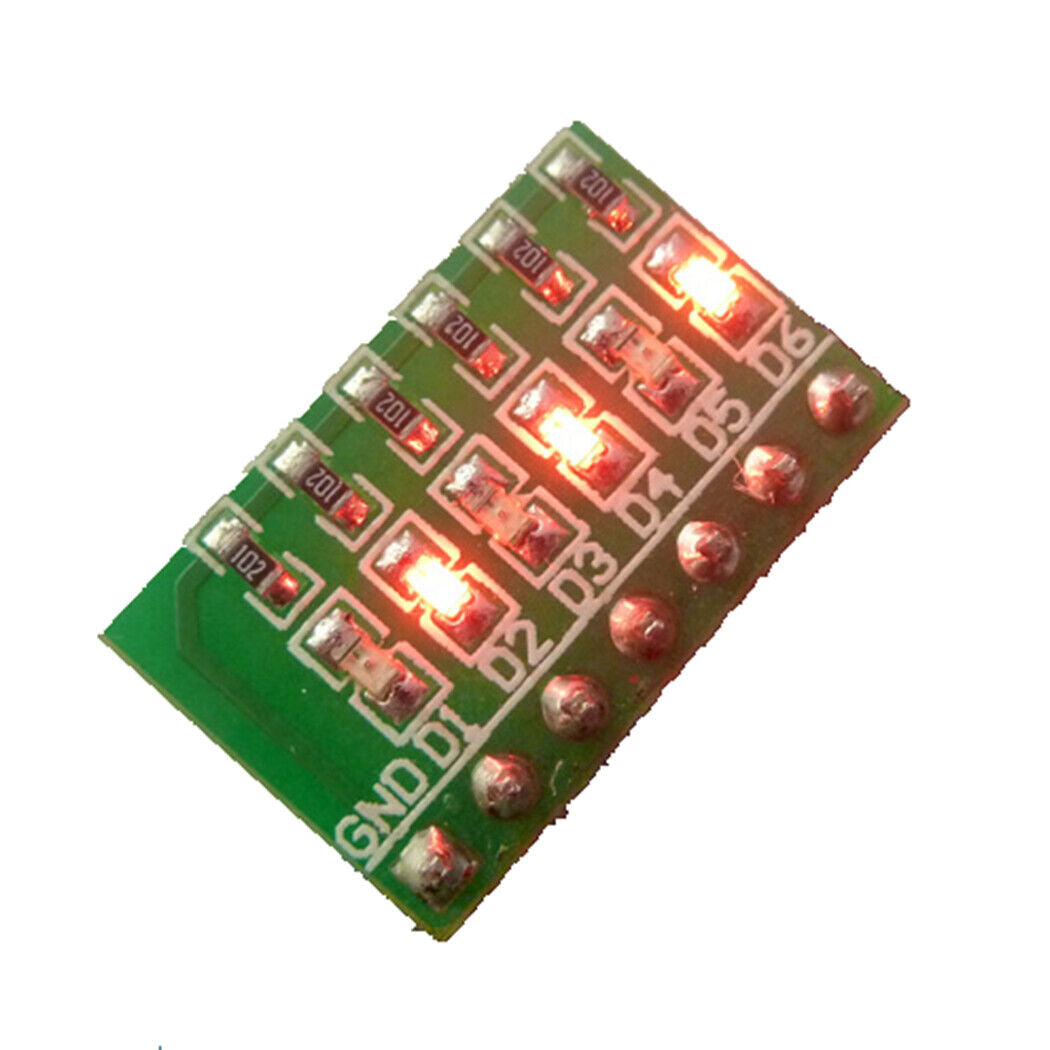

1PCS Red Mini LED Board for Arduino UNO MEGA2560 Nano Breadboard starter kit
Packing list:
1 pcs Red 6 bit LED's Board;
Description:
Can be inserted directly into Arduino uno mega2560,Ideal for linking up to your Arduino UNO Mini Nano Mega2560 etc,or others MCU ( AVR STM32 ARM PIC AT89C51 STC MSP430 FPGA CPLD etc.)
1 6 bit RED Common Cathode LEDS.
2 7 PIN OUT 2.54mm
3 1K ohm Limiting resistor
4 Power Supply Voltage: 3.3-12V;
5 Size: 17.78MM x 11.43MM.

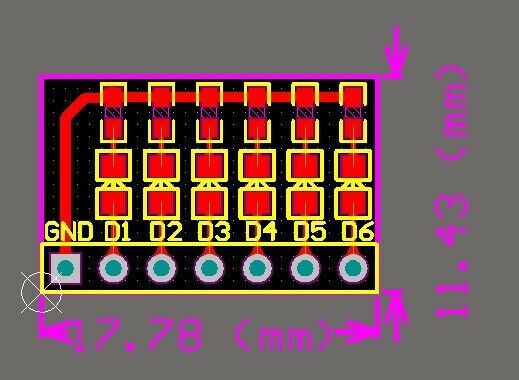

PCB :

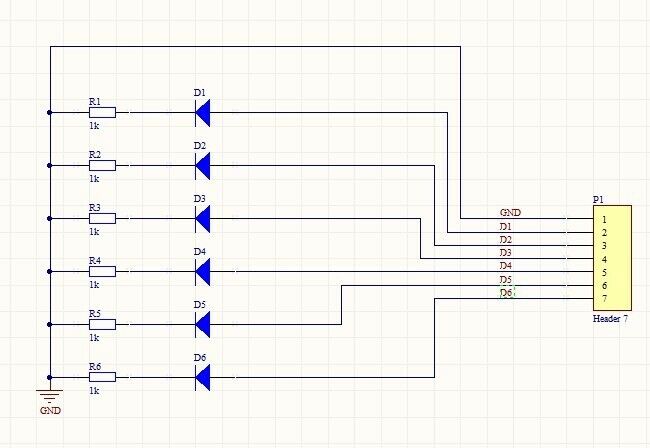

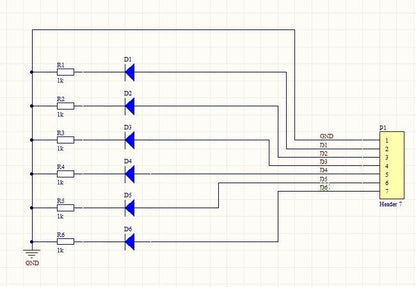

Circuit schematics :

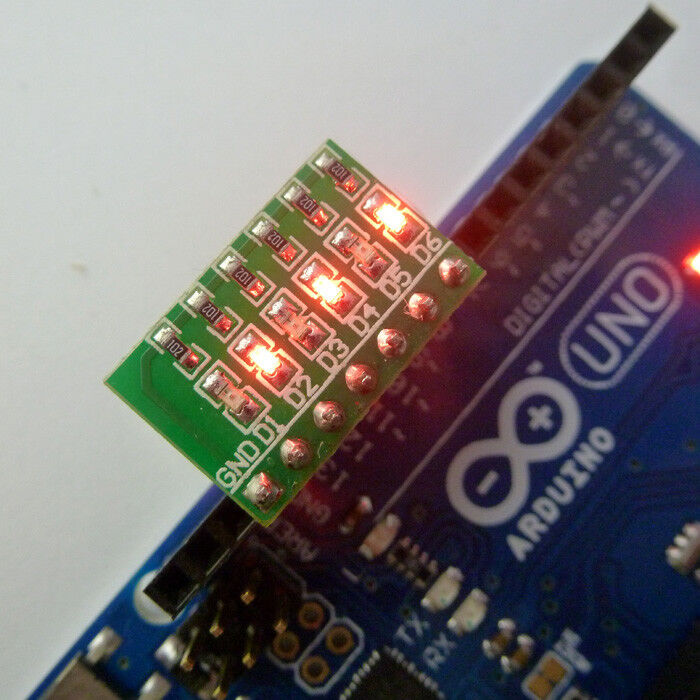

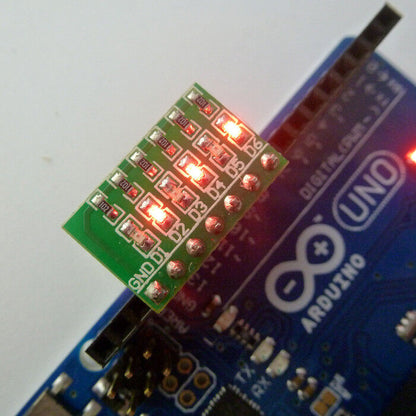

Connection with Arduino(Only 6 bit LED's Board ,Does not include ARDUINO UNO R3) :
Arduino uno/mega2560 Code
//******************************************************//
/*
Arduino_6led
This example code is in the public domain.
*/
// give it a name:
int D1 = 13;
int D2 = 12;
int D3 = 11;
int D4 = 10;
int D5 = 9;
int D6 = 8;
// the setup routine runs once when you press reset:
void setup() {
// initialize the digital pin as an output.
pinMode(D1, OUTPUT);
pinMode(D2, OUTPUT);
pinMode(D3, OUTPUT);
pinMode(D4, OUTPUT);
pinMode(D5, OUTPUT);
pinMode(D6, OUTPUT);
}
// the loop routine runs over and over again forever:
void loop() {
digitalWrite(D1, HIGH); // turn the LED on (HIGH is the voltage level)
delay(200); // wait for a 200 Millisecond
digitalWrite(D1, LOW); // turn the LED off by making the voltage LOW
digitalWrite(D2, HIGH); // turn the LED on (HIGH is the voltage level)
delay(200); // wait for a Millisecond
digitalWrite(D2, LOW); // turn the LED off by making the voltage LOW
digitalWrite(D3, HIGH); // turn the LED on (HIGH is the voltage level)
delay(200); // wait for a Millisecond
digitalWrite(D3, LOW); // turn the LED off by making the voltage LOW
digitalWrite(D4, HIGH); // turn the LED on (HIGH is the voltage level)
delay(200); // wait for a Millisecond
digitalWrite(D4, LOW); // turn the LED off by making the voltage LOW
digitalWrite(D5, HIGH); // turn the LED on (HIGH is the voltage level)
delay(200); // wait for a Millisecond
digitalWrite(D5, LOW); // turn the LED off by making the voltage LOW
digitalWrite(D6, HIGH); // turn the LED on (HIGH is the voltage level)
delay(200); // wait for a Millisecond
digitalWrite(D6, LOW); // turn the LED off by making the voltage LOW
}
//******************************************************//
