Eletechsup Original Factory Official Store
RF OOK Remote Modules Control Transceiver RX TX ASK modules AM Modules 433MHZ
RF OOK Remote Modules Control Transceiver RX TX ASK modules AM Modules 433MHZ
Regular price
$13.48 USD
Regular price
$13.48 USD
Sale price
$13.48 USD
Unit price
/
per
Couldn't load pickup availability

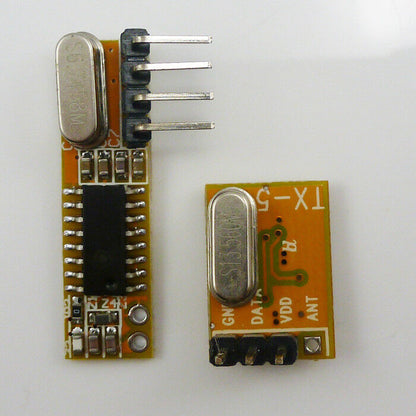

Qty: 1 PCS receiver module and 1 pcs transmitter module .
Typical Applications
• Automotive RKE systems
• Automotive alarm systems
• Automotive immobilizers
• Gate and garage door openers
• Burglar alarm systems

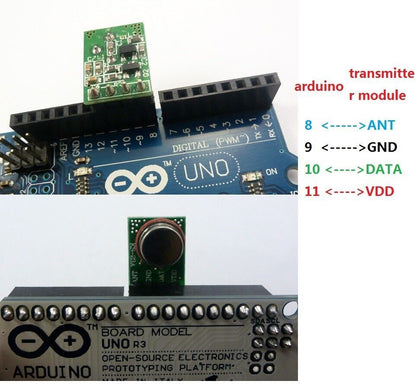

Transmitter module :
Item Description ：
Technical Data :
Transmitter module No.: BX-TM05 -433
High output power: +10dBm;
Low operation voltage: VCC= 1.8 to 3.6 V;
Operating frequency (MHz): 433.92MHz ( 315MHZ is available if required , other frequency can be custom made if order 100 pcs );
Frequency tolerance: ±50 KHz;
Frequency tolerance: ±50 KHz;
The rang can be upto 300-500m matching with XLC-RM08;
Operating temperature: -40℃～+80℃;
Small Size with Size of PCB: 11x16x5.5MM;
Bit rate: <3kbps;
Circuit Shape: PLL;

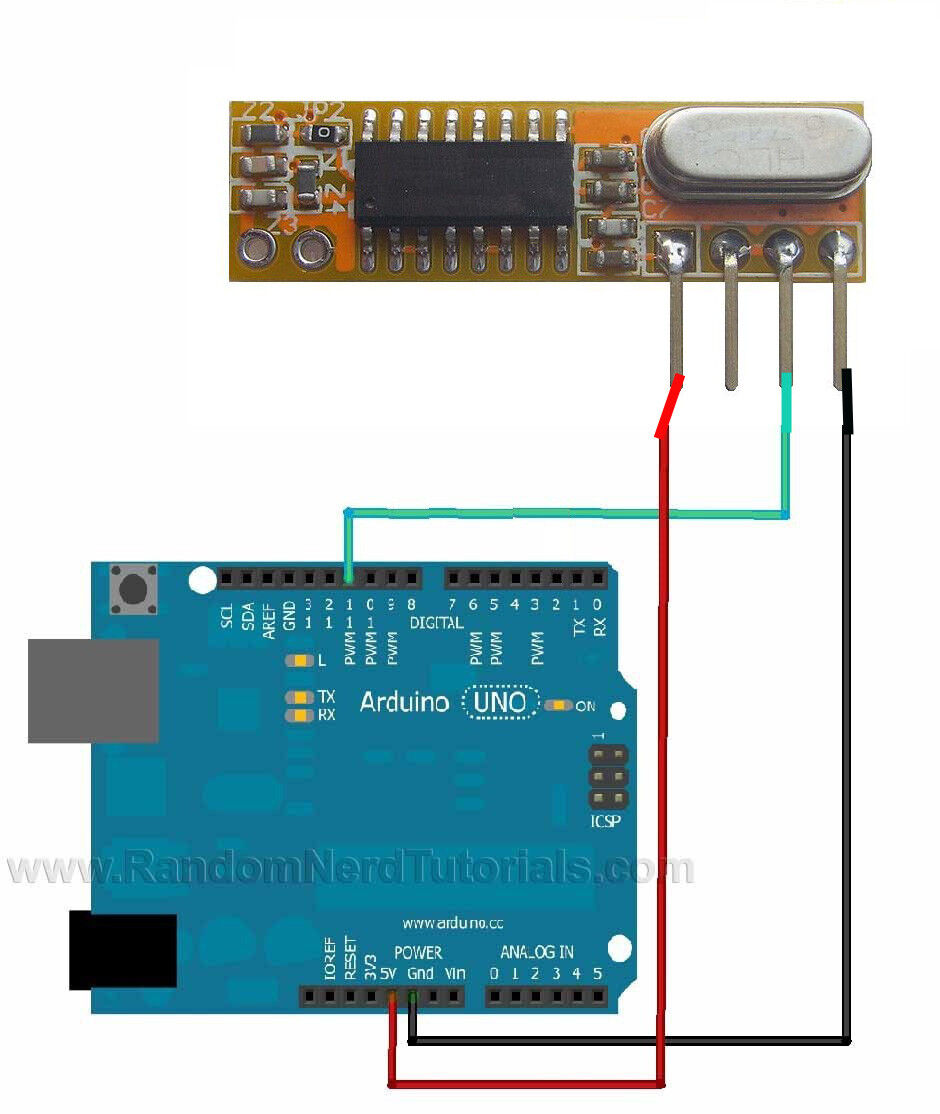

Receiver module :
Smal package : SIL-6PIN (2.54 of pin distance);
Receiver Module No.: BX-RM12 -433
Item Description ：
BX-RM12 -433 is an ASK/OOK receiver super-heterodyne module adopted SYN400R chips, which is designed specifically for unlicensed remote-control and wireless security receiver operating at 315/433.92MHZ under FCC Part 15 regulation or pass ETSI certification. BX-RM12 -433 is based on a single-conversion, super-heterodyne receiver architecture and incorporates an entire Phase-Locked Loop(PLL)for precise local oscillator generation. It can be used in OOK/HCS/PWM modulation signal and demodulate it to digital signal. BX-RM12 -433 have a high performance at a competitive cost and easily to design your products.
Feature:
Receiver Module No. : BX-RM12 -433 (match with our BX-TX01 -433 or BX-TX05 -433 module)
Low cost ASK/AM radio superhet receiver ;
High frequency stability ( no adjust components) & coherence;
Very low RF Re-radiation at the antenna;
Operation temperature : -20 ℃ ~ +70 ℃;
Supply voltage:2.8-5.5V;
Operating frequency (MHz): 433.92MHz ( 315MHZ is available if required , other frequency can be custom made if order 100 pcs );
Compatable with most AM (ASK/OOK) transmitters ;
Compatable with most AM (ASK/OOK) transmitters ;
Smal package : SIL-6PIN (2.54 of pin distance);
Lead Temperature(solding 3s) : 330 degrees centigrade .
Receiver IC : SYNOXO SYN470R (Made in France );
Typical Applications
• Smart home systems;
• Remote controls systems;
• Remote fan and light control;
• Garage door and gate openers;
• Alarm and security system ;
