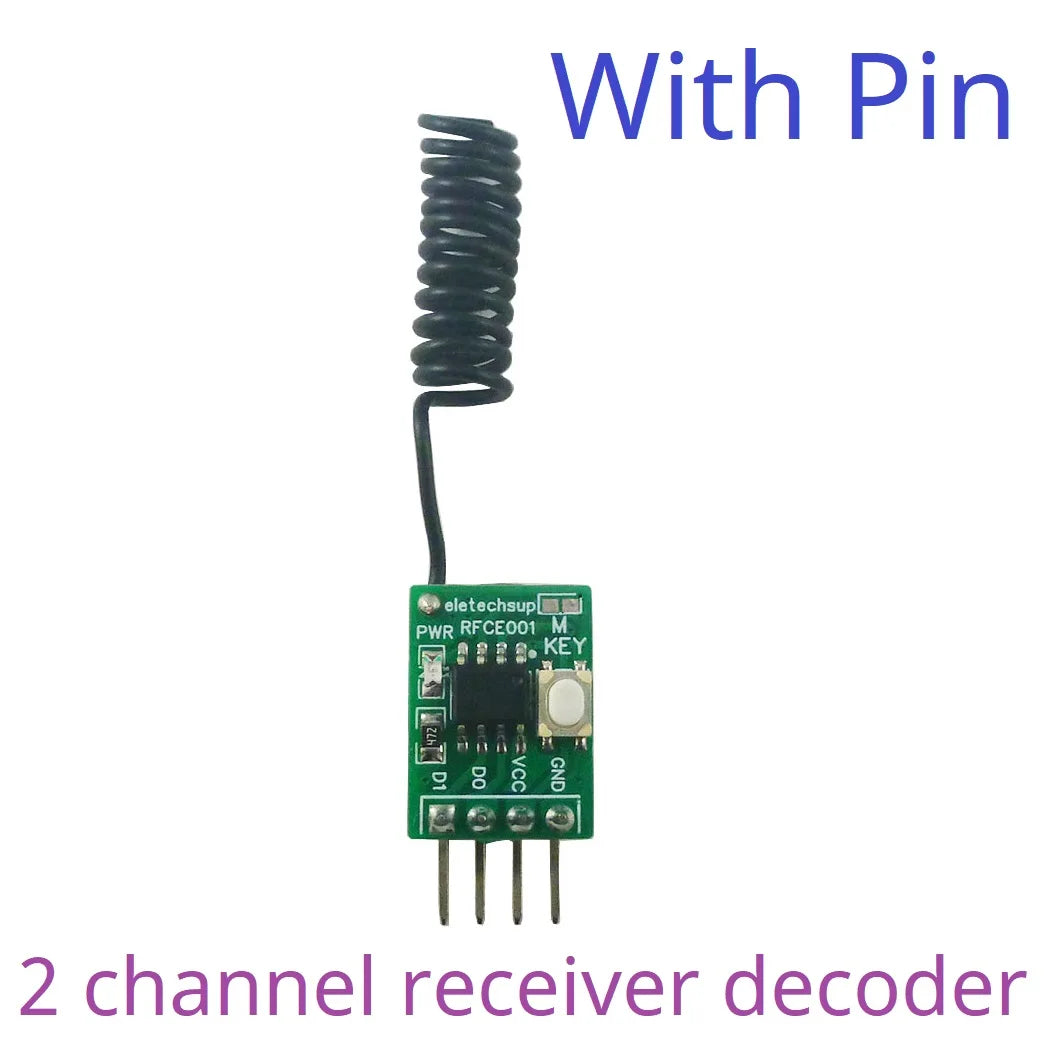

RFCE001 Mini 2CH 433M UHF Wireless Receiver PT2262 2264 EV1527 Decoder ASK OOK Learning Fixed Code Decoding Module Smart Home Automation
RFCE001 Mini 2CH 433M UHF Wireless Receiver PT2262 2264 EV1527 Decoder ASK OOK Learning Fixed Code Decoding Module Smart Home Automation
SKU:RFCE001_PIN
999 in stock
Regular price
$3.84
Regular price
$3.84
Sale price
$3.84
Unit price
per
Couldn't load pickup availability

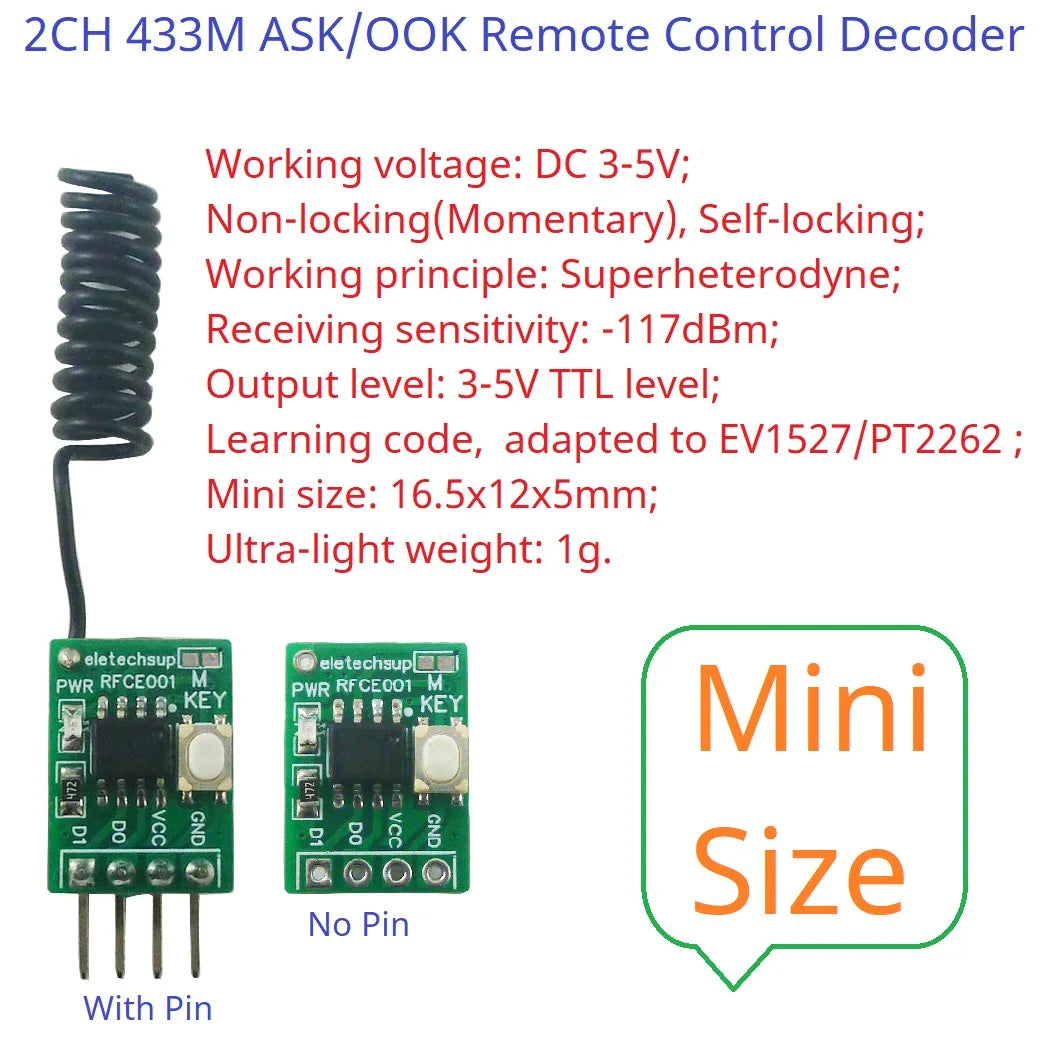

Description:
Working voltage: DC 3-5V;
Standby current : about 5mA (DC 5V)
Output Mode: Non-locking (Momentary ), Self-locking (Toggle);
Working principle: Superheterodyne;
Receiving method: OOK/ASK;
Working frequency: 433.92MHz;
Receiving sensitivity: -117dBm;
Output level: 3-5V TTL level, low level standby, maximum drive current 8MA;
Decoding type: Learning code, can be adapted to EV1527/PT2262 and compatible remote controls, and can store up to 32 remote control key positions;

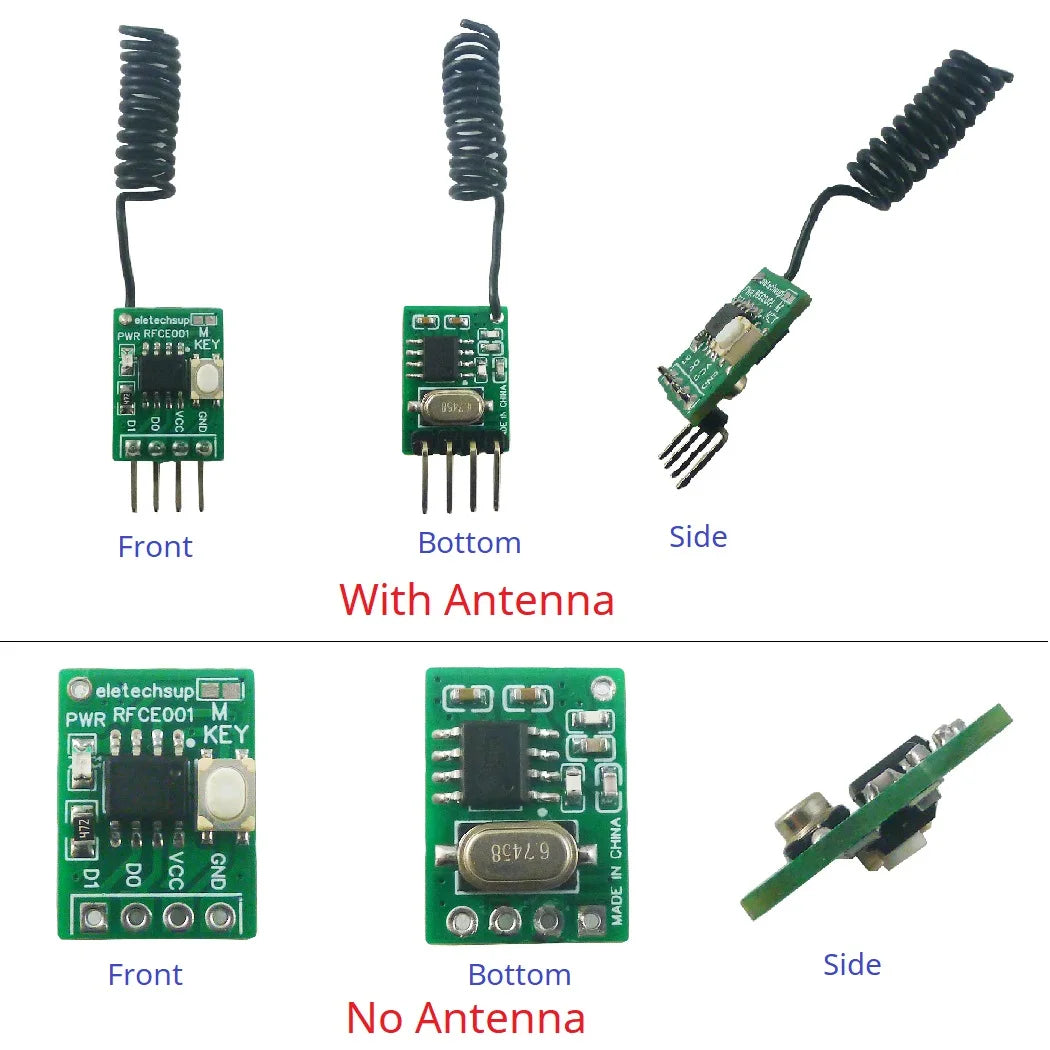

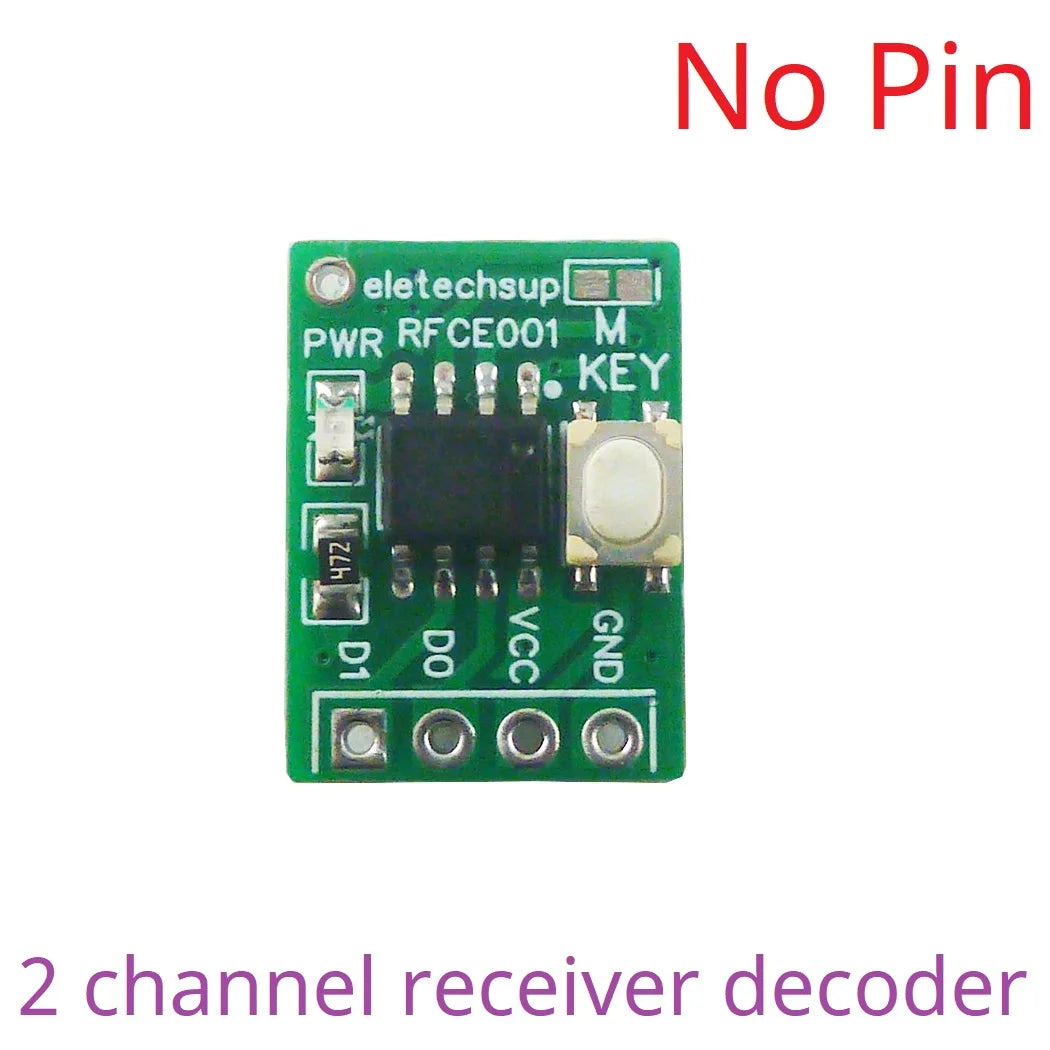

Mini size: 16.5x12x5mm (No Pin );
Ultra-light weight: 1g (No Pin ); 2g (with No Pin and Antenna).
For more information, please contact me
Working voltage: DC 3-5V;
Standby current : about 5mA (DC 5V)
Output Mode: Non-locking (Momentary ), Self-locking (Toggle);
Working principle: Superheterodyne;
Receiving method: OOK/ASK;
Working frequency: 433.92MHz;
Receiving sensitivity: -117dBm;
Output level: 3-5V TTL level, low level standby, maximum drive current 8MA;
Decoding type: Learning code, can be adapted to EV1527/PT2262 and compatible remote controls, and can store up to 32 remote control key positions;
Mini size: 16.5x12x5mm (No Pin );
Ultra-light weight: 1g (No Pin ); 2g (with No Pin and Antenna).
For more information, please contact me

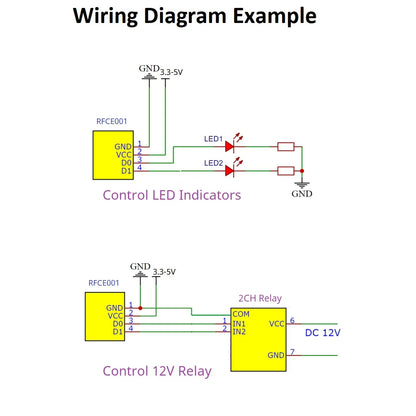

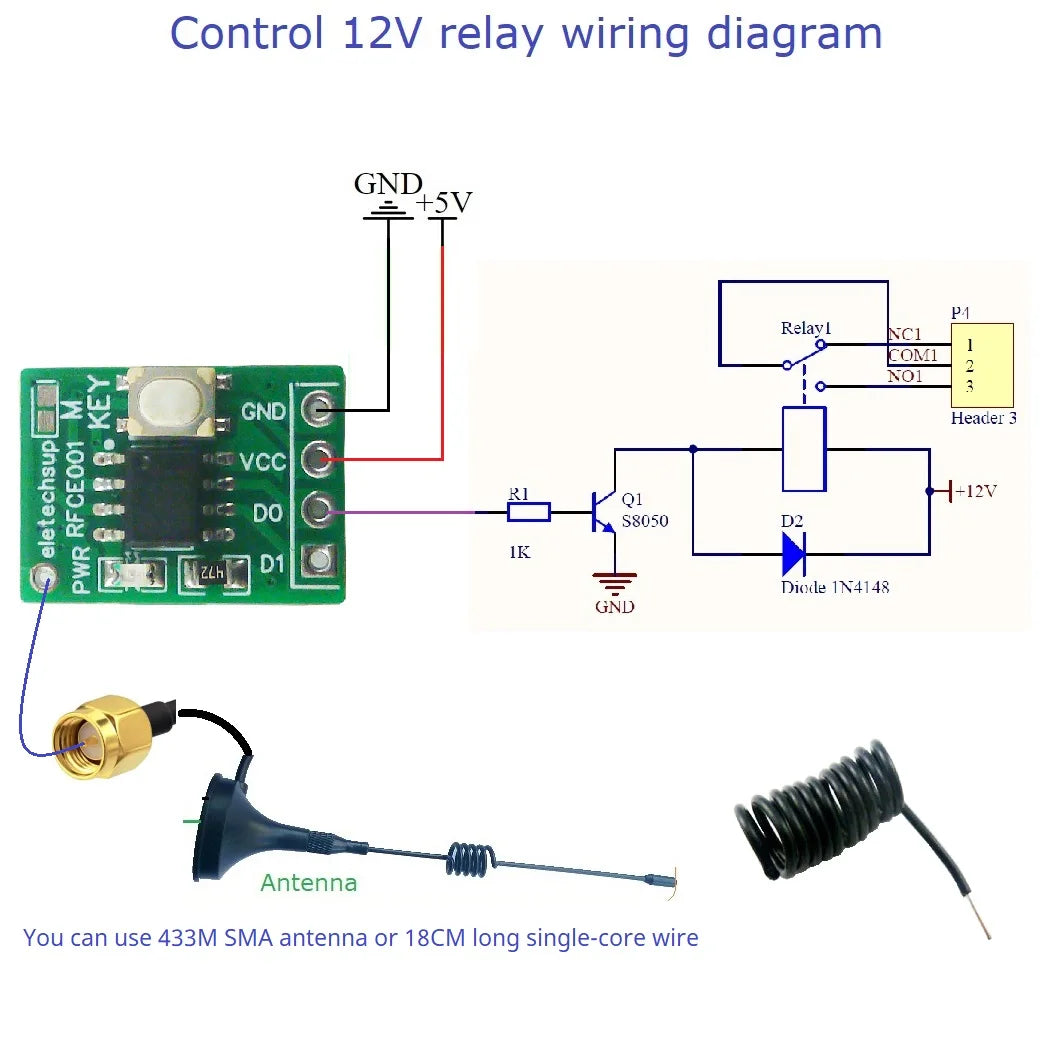

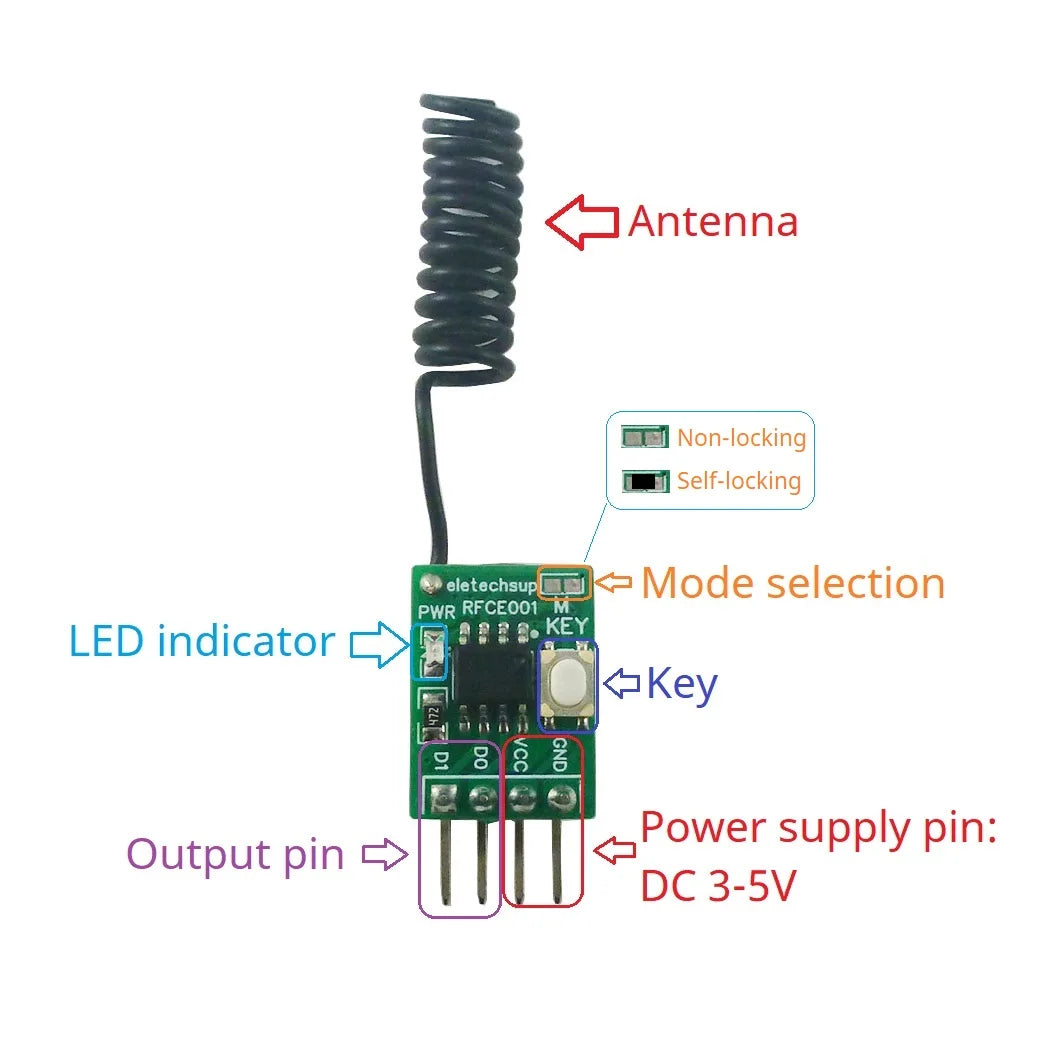

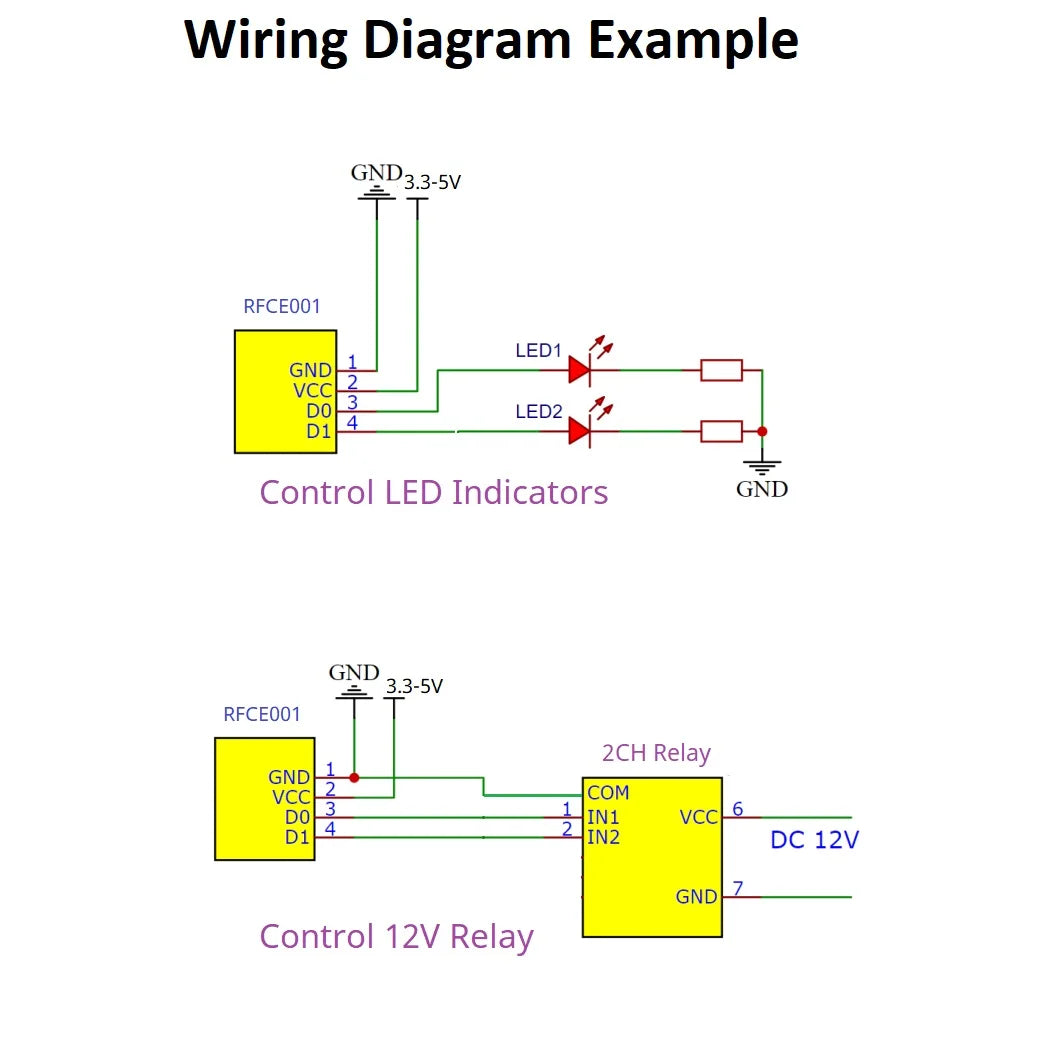

Pin description
GND: GND pin, DC 3-5V power supply negative;
VCC: VCC pin, DC 3-5V power supply positive ;
D0 : Channel 1 output, active high;
D1 : Channel 2 output, active high;
Adapter remote control (learning remote control)
After powering on, the LED light (PWR) flashes once and then goes off. When receiving a valid remote control (EV1527/PT2262) key value, the LED will flash quickly.
Adaptation (learning):
1 Press the KEY button, the LED light turns on
2 Press button 1 to be learned, the LED will flash quickly, button 1 is learned successfully, and the LED will remain on.
3 Press button 2 to be learned, the LED flashes quickly, and button 2 is learned successfully. The LED goes off and exits the learning state.
The adaptation (learning) process must be completed within 15 seconds
Clear the code: Press and hold the KEY button, the LED will light up, and after about 8 seconds the LED will go out, indicating that the code clearing is completed (note: none of the previously saved remote controls will exist after clearing the code.
Note: The LED light (PWR) is always off and will flash only when a valid signal is received.

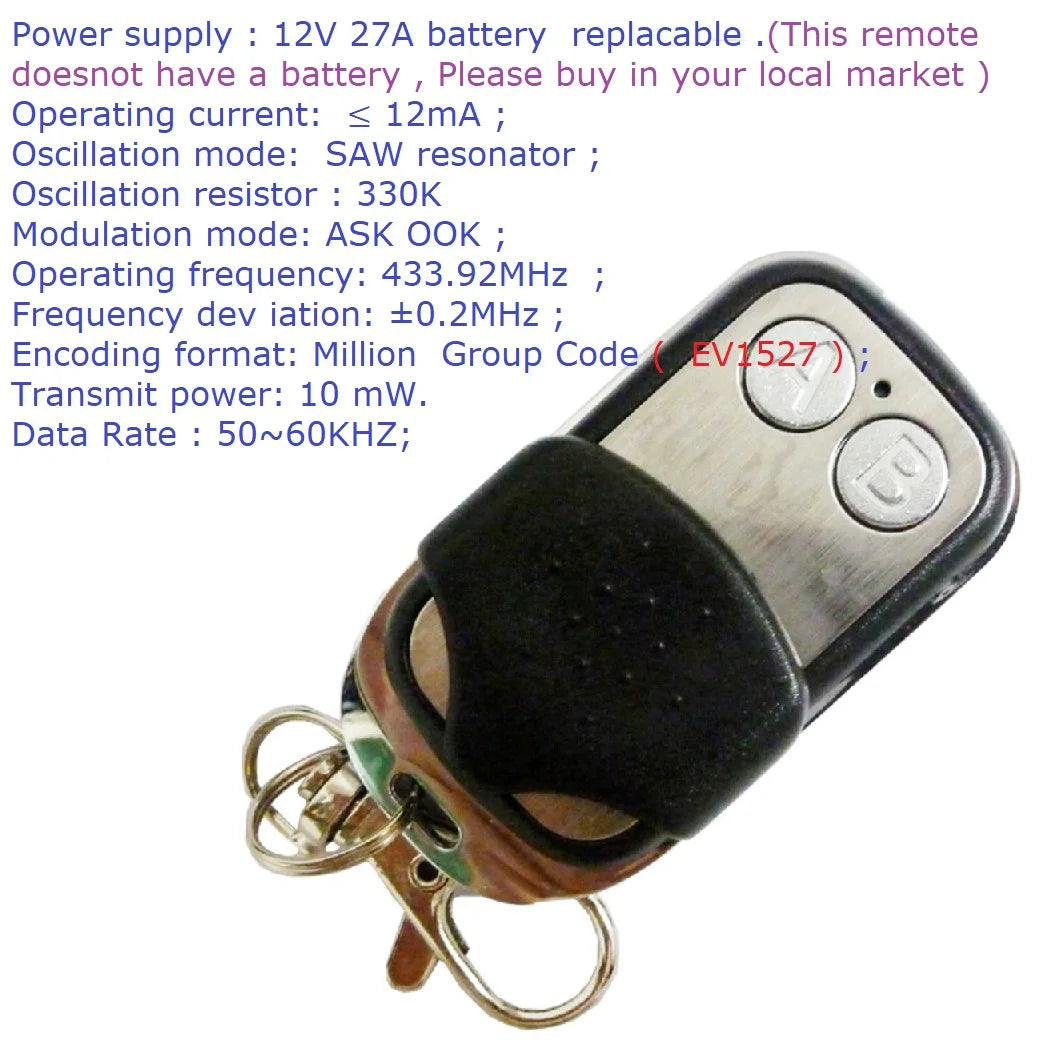

433M 2 Button EV1527 Remote Control:
Technical Data :
Power supply : 12V 27A battery replacable .(This remote doesnot have a battery , Please buy in your local market )
Operating current: ≤ 12mA ;
Oscillation mode: SAW resonator ;
Oscillation resistor : 330K
Modulation mode:ASK OOK ;
Operating frequency:433.92MHz ;
Frequency deviation:±0.2MHz;
Encoding format: Million Group Code ( EV1527 ) ;
Transmit power:10 mW.
Data Rate : 50~60KHZ;
