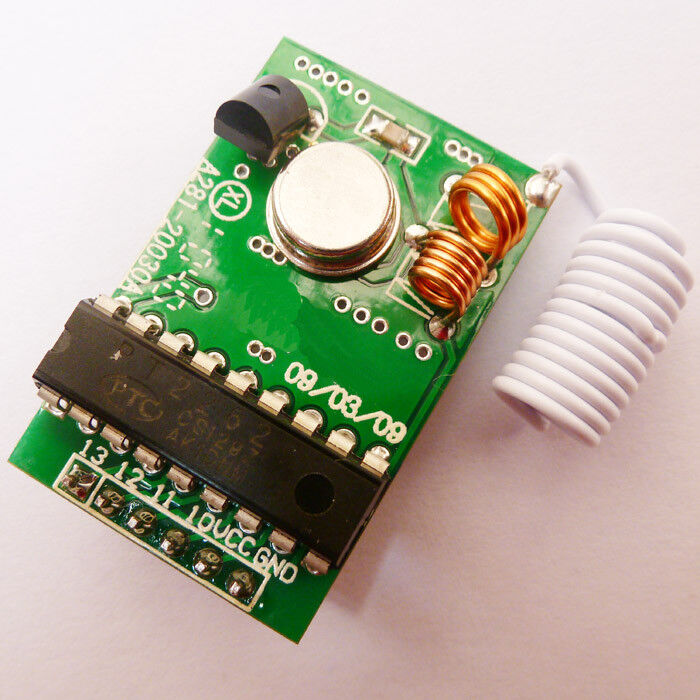

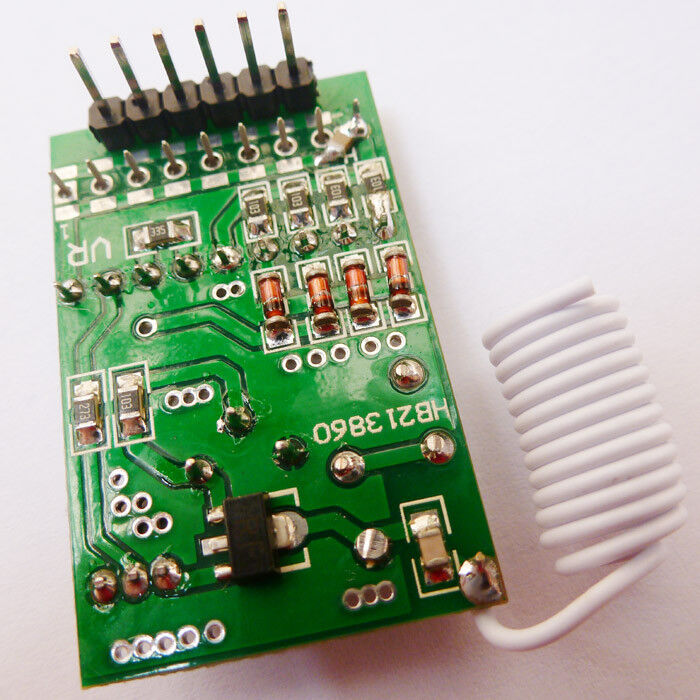

SC2262 PT2262 PT2264 433MHZ ASK OOK Encoders RF Wireless Transmitter Modules
SC2262 PT2262 PT2264 433MHZ ASK OOK Encoders RF Wireless Transmitter Modules
SKU:TB195
Low stock: 10 left
Regular price
$13.48
Regular price
$13.48
Sale price
$13.48
Unit price
per
Couldn't load pickup availability
| Model No. | TB195 Encoder Transmitter |
| Function discription | Encoder Transmitter modules |
| Operating voltage |
3V ~ 12V DC
|
| Static current |
max≤8mA(12V)， min≤2mA(3V)
|
| Operating frequency | 433MHz |
| modulation Mode | ASK/OOK |
| SAW Frequency stability | ±150kHz(max) |
| Transmitter Power | 50mW (315MHz, 12V) |
| Data rate | ≤10Kbps |
| Antenns length | 24 cm (315 MHz), 18 cm (433.92 MHz) |
| Dimension | 36 * 27mm |
| Encodeing format | PT2264 fixing code (same as PT2262 SC2262 ) ，Work with PT2272 decoder IC |
| Transmitter distance | 100M (open area) |

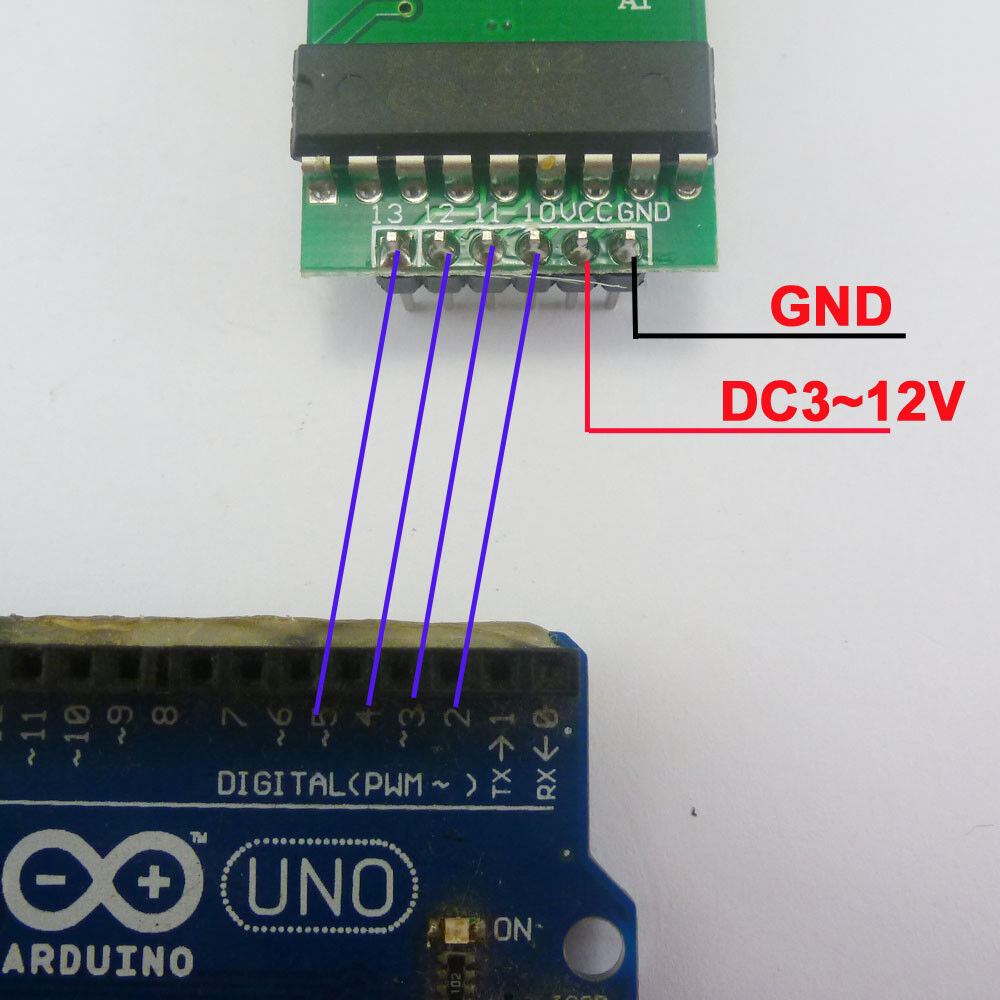

Connect to MCU or Arduino :
Connect to Switch:
