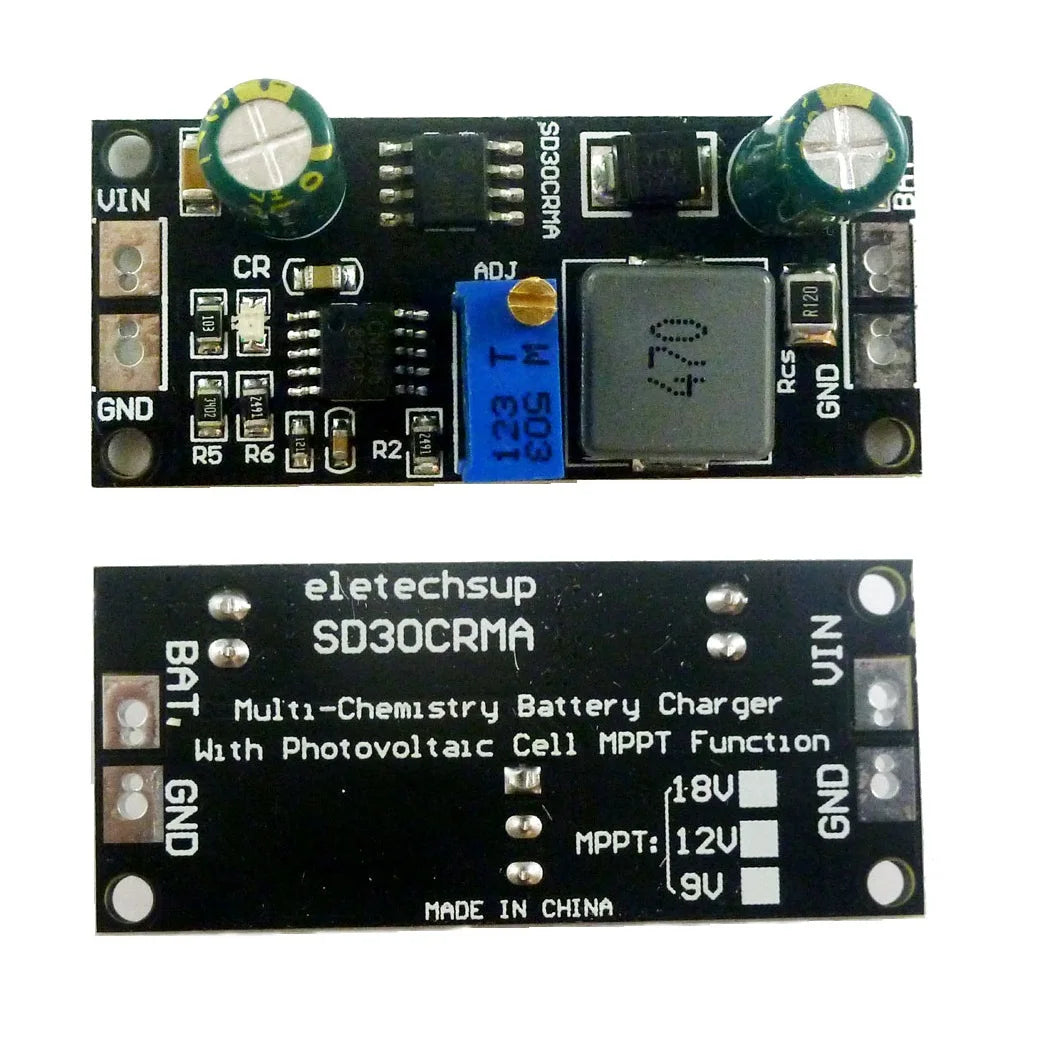

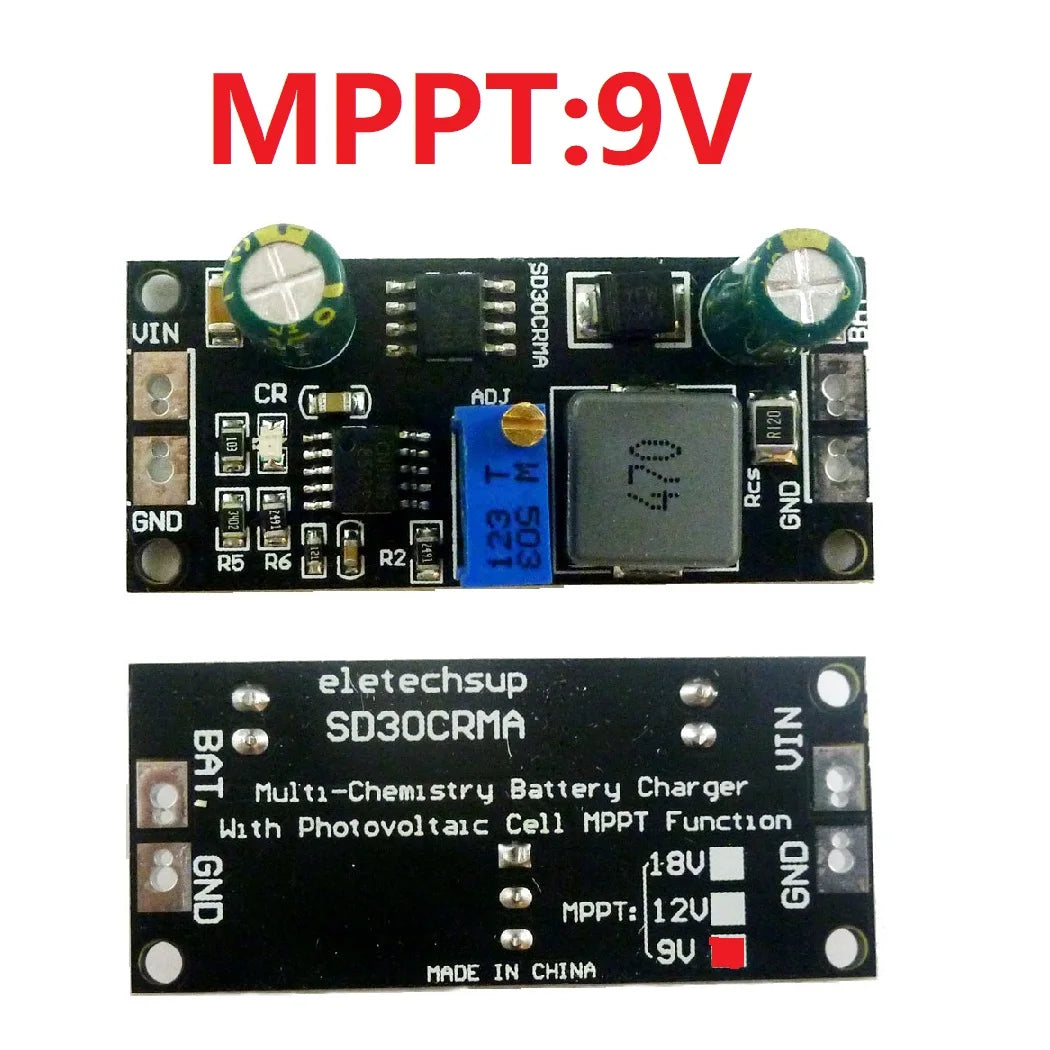

SD30CRMA MPPT 1A 3.2V 3.7V 3.8V 7.4V 11.1V 14.8V Lithium Battery Charger Module for 9V 12V 18V Solar panels

Description:

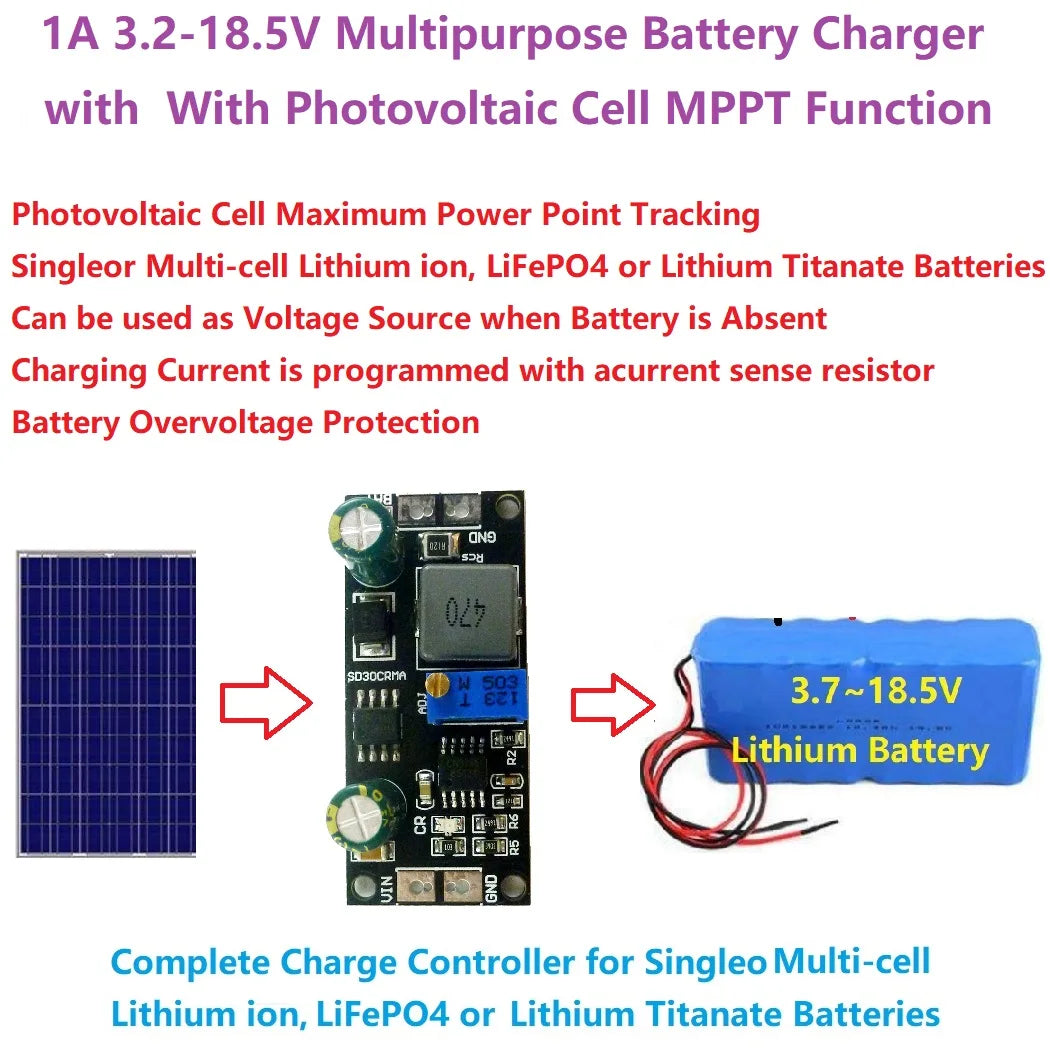

1A 3.2-18.5V Multipurpose Battery Charger with With Photovoltaic Cell MPPT Function

Complete Charge Controller for Singleor Multi-cell Lithium ion, LiFePO4 or

Lithium Titanate Batteries

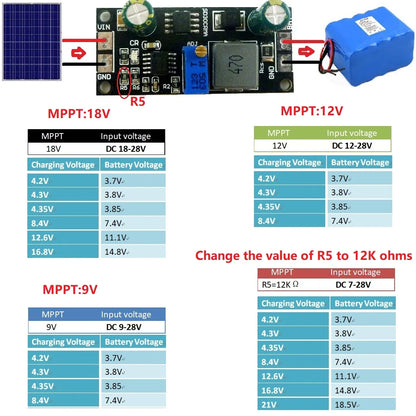

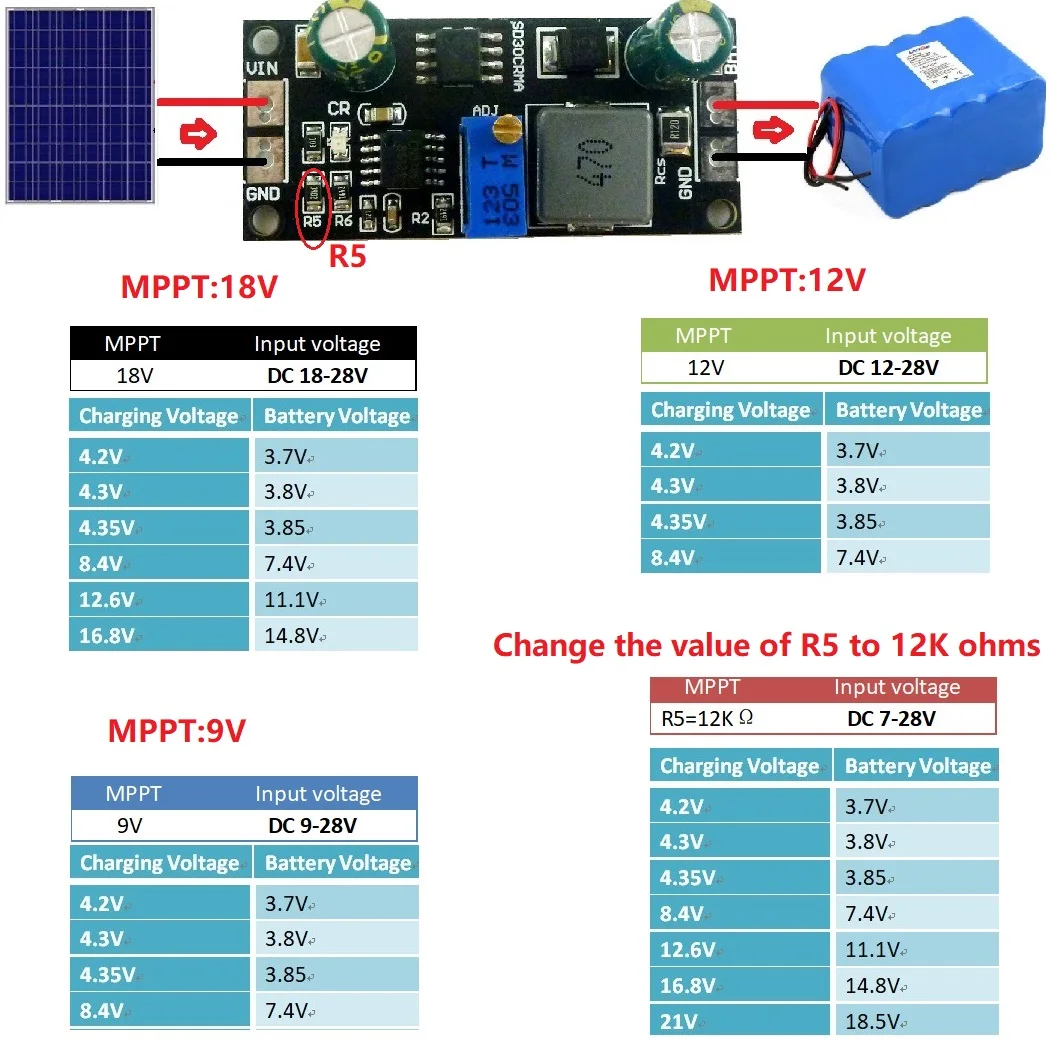

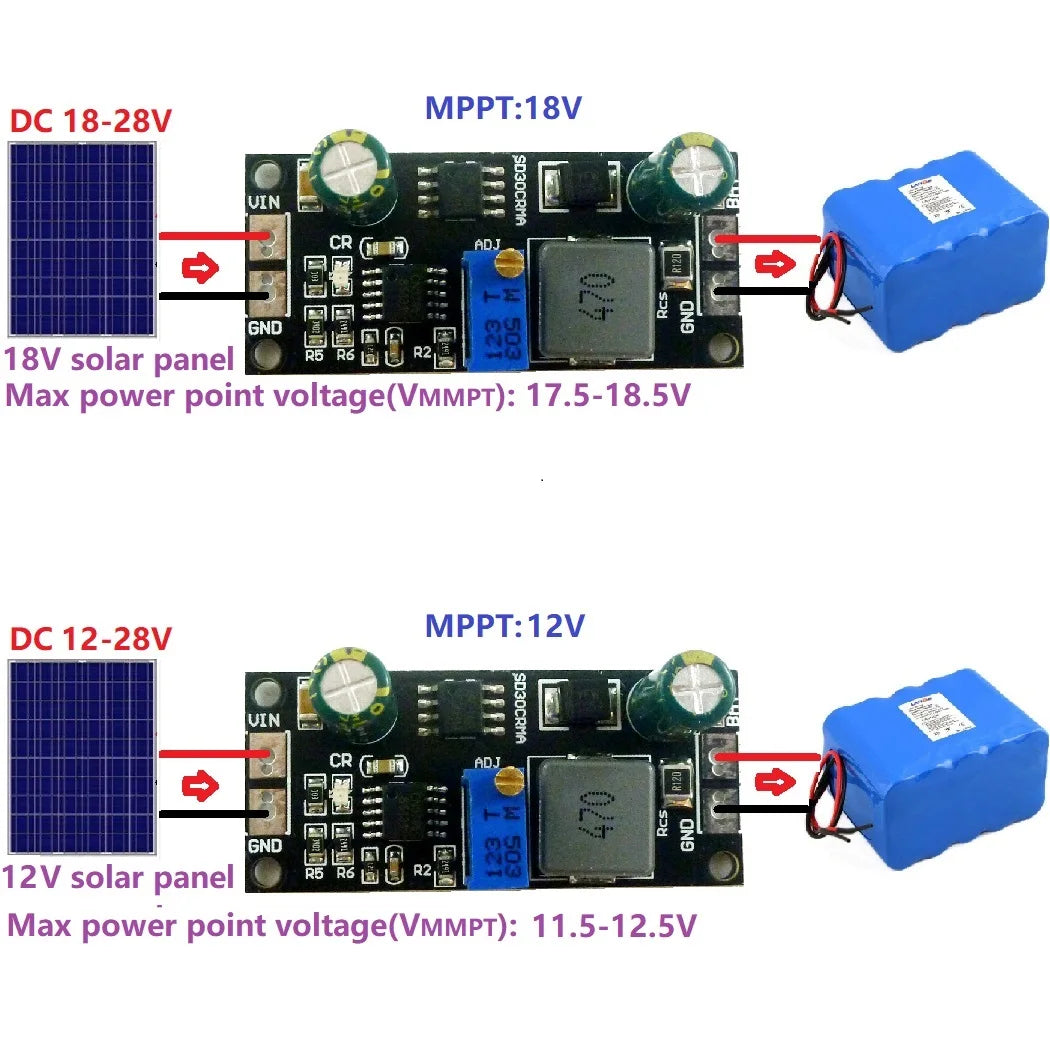

MPPT is 18V : Input DC 18-28V,Output DC 1.2-17V Adjustable(3.6V 4.2V 4.3V 4.35V 8.4V 12.6V 16.8V)

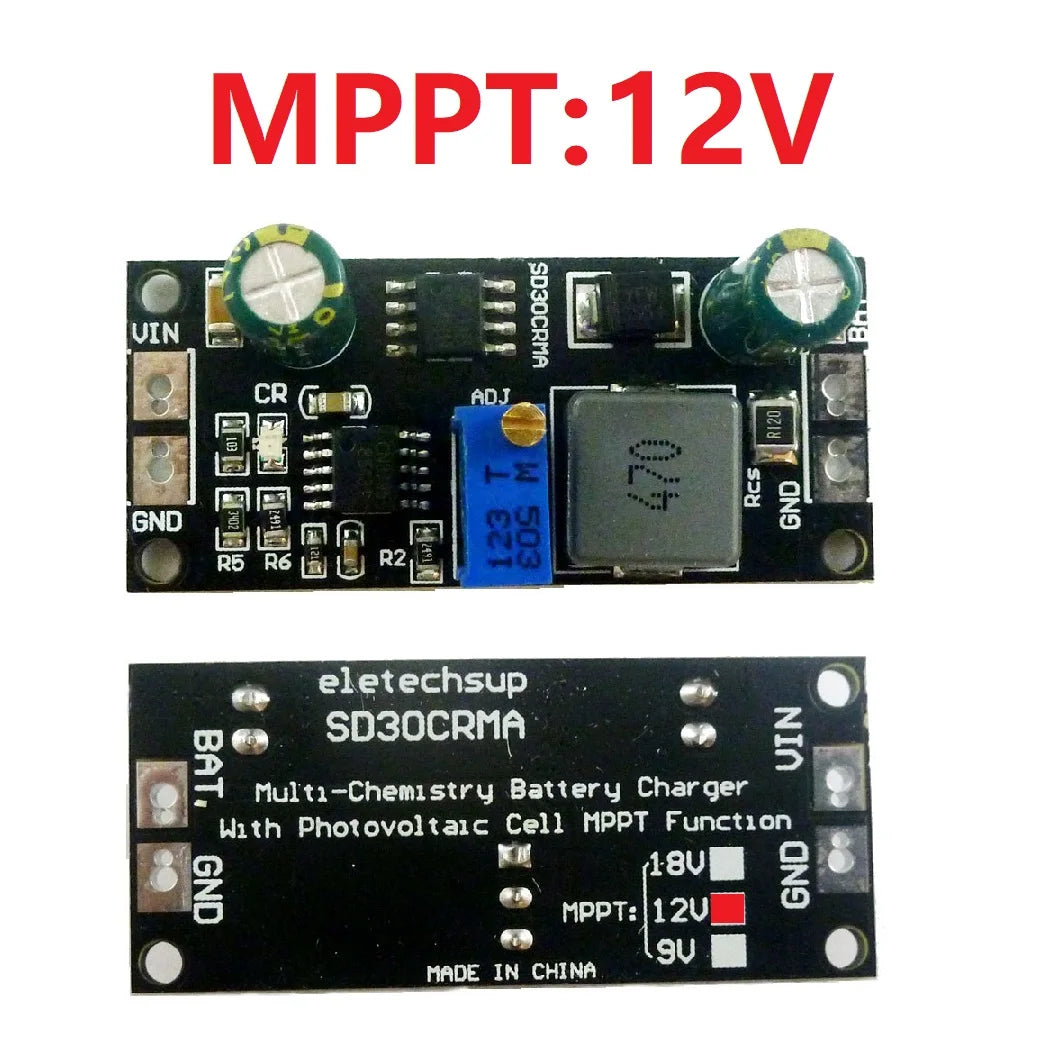

MPPT is 12V : Input DC 12-28V,Output DC 1.2-11V Adjustable(3.6V 4.2V 4.3V 4.35V 8.4V)

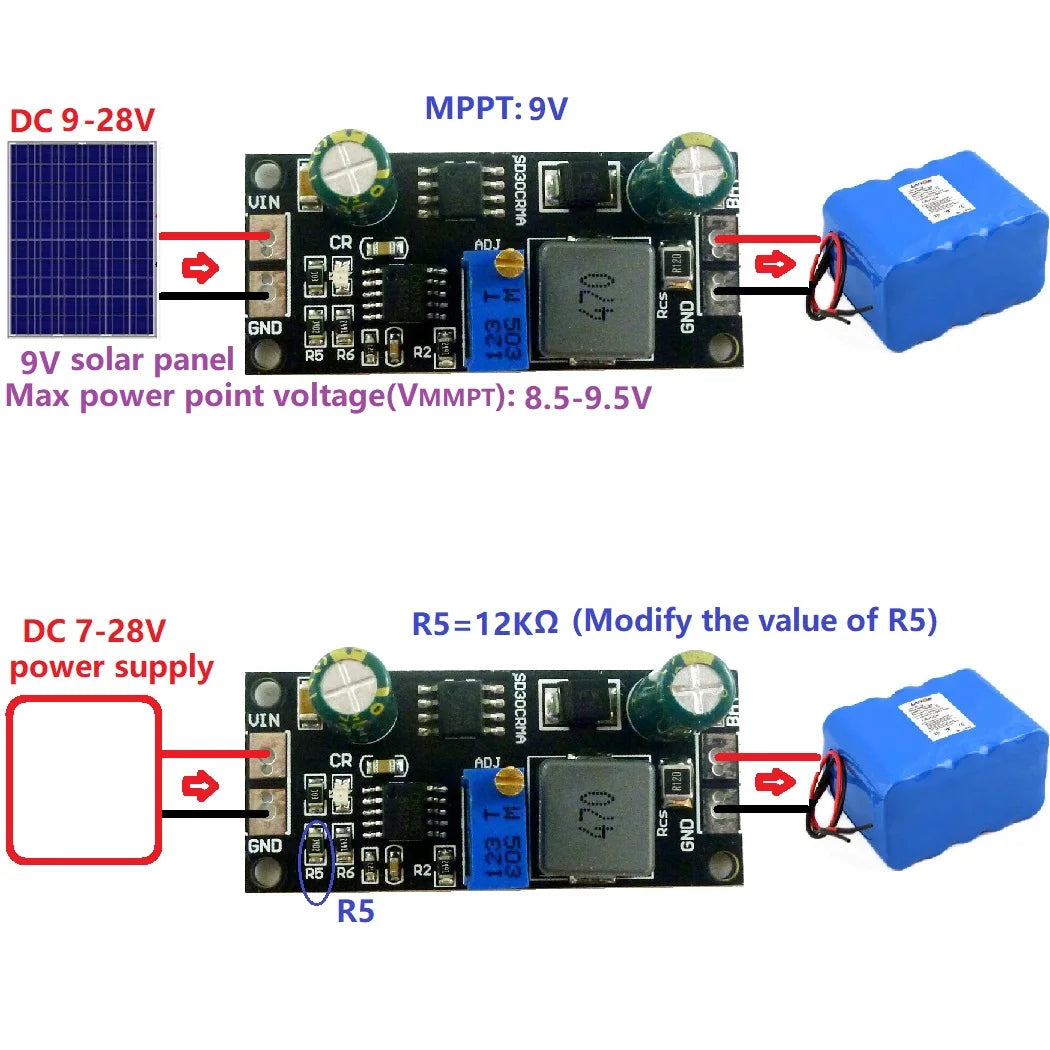

MPPT is 9V : Input DC 9-28V,Output DC 1.2-8V Adjustable(3.6V 4.2V 4.3V 4.35V 7.2V)

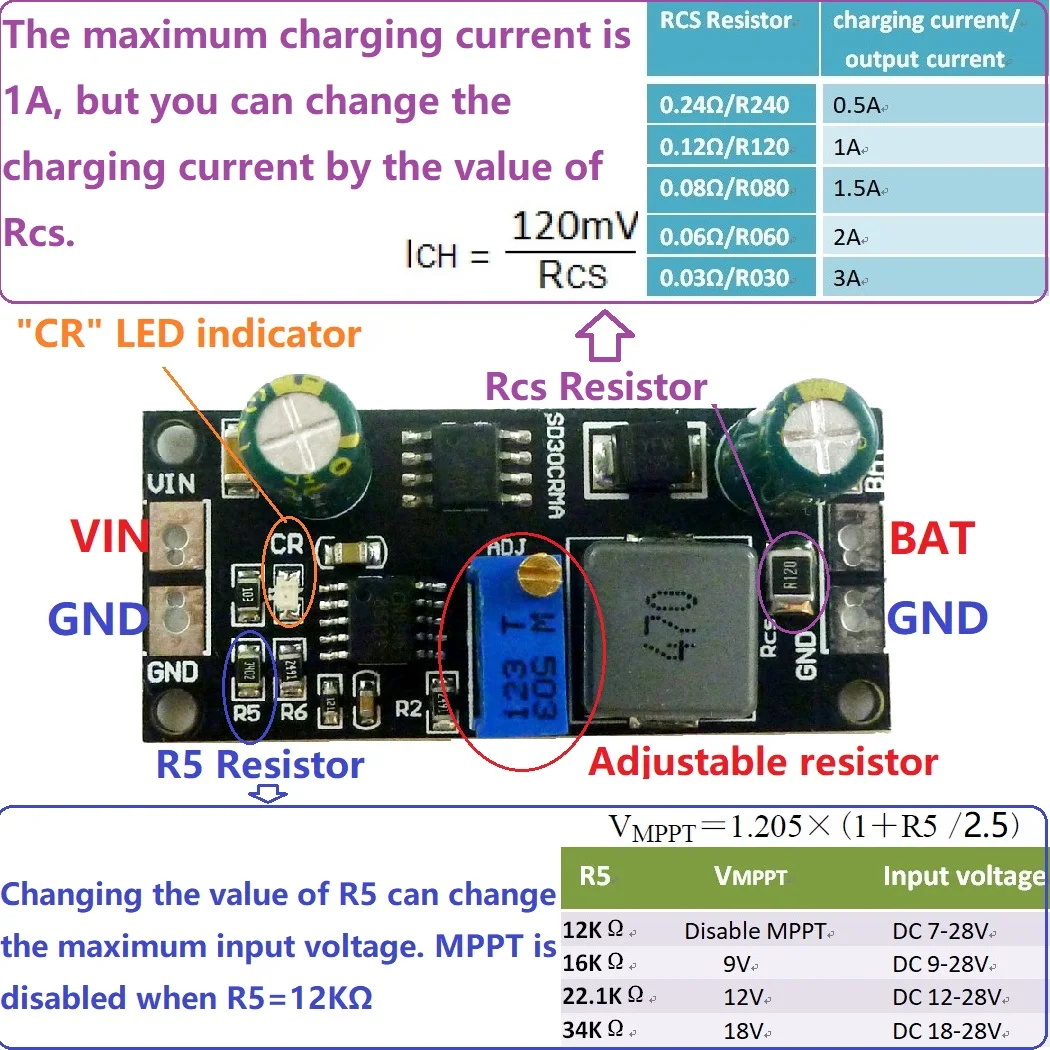

MPPT Disable(Change R5 to 12KΩ,it is recommended to buy DD28CRTA) :



Input DC 7-28V,Output DC 1.2-21V Adjustable(3.6V 4.2V 4.3V 4.35V 8.4V 12.6V 16.8V 21V)

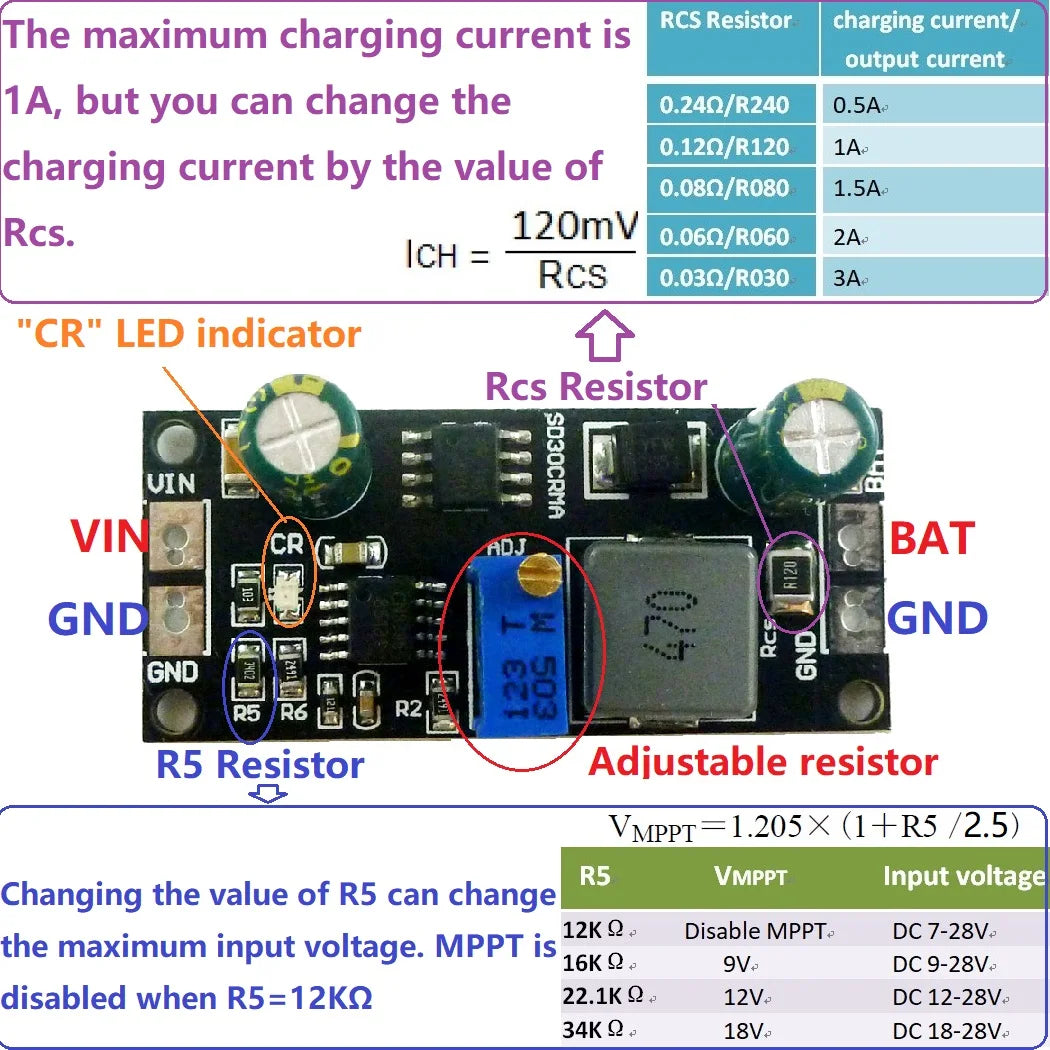

The maximum charge current / output current is 1A, but you can change the current by changing the value of the Rcs resistor.

Can be used as Voltage Source when Battery is Absent

Automatic Conditioning of Deeply Discharged Batteries

Automatic Recharge

Led indicator : ''CR'' LED is charge status indicator

Battery Overvoltage Protection

Operating Ambient Temperature－40℃ to ＋85℃

Size : 45 x 20 x 15mm

Weight : 7.3g

If you need a chip brochure please contact me

Applications:

18V 12V 9V Solar battery charging




Car battery charging

Mobile Loadspeaker

Electric Bicycle Charger

UPS

Portable Industrial and Medical Equipment

Standalone Battery Chargers

Hand-held Equipment

Battery-Backup Systems

Portable Industrial and Medical Equipment

Standalone Chargers for Lithium ion,

LiFePO4 or Lithium Titanate Batteries
