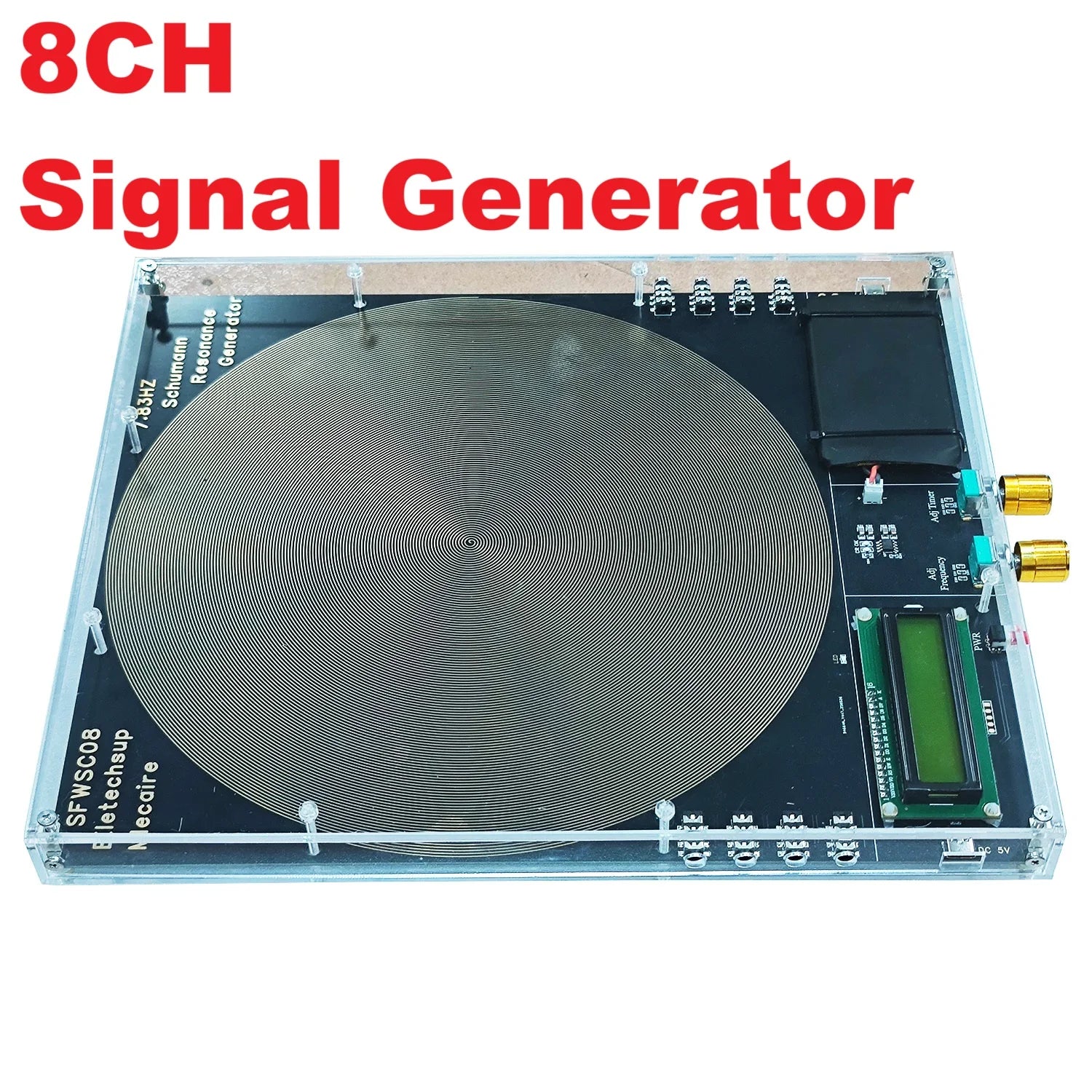

SFWSC08 8CH 250MM Strong 0-100000Hz Battery Rechargeable Batttery Schumann 25 Frequencies Sequential Output Schumann Generator

SFWSC08 8CH 250MM Large 25 Frequencies Sequential Output

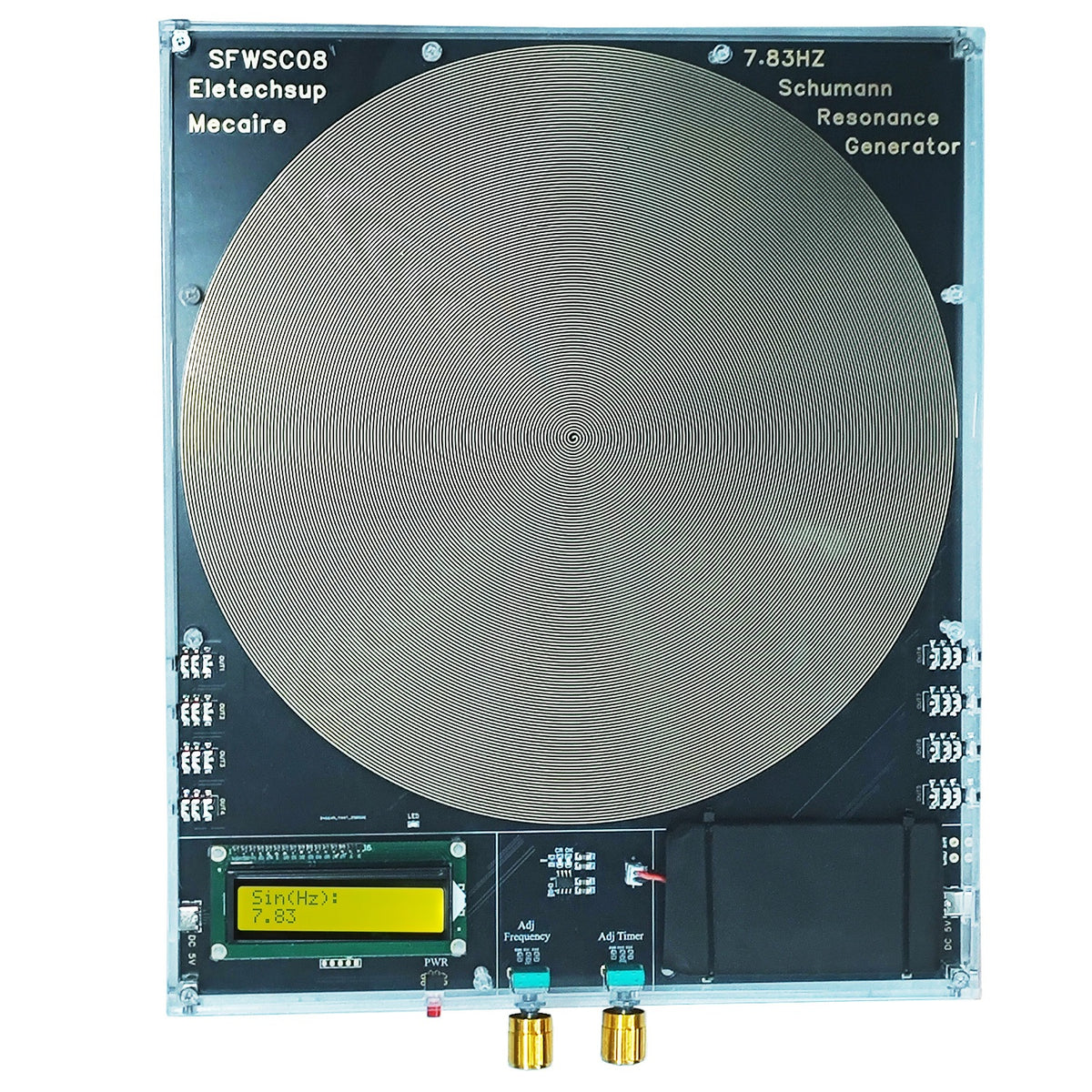

SFWSC08 is an ultra-large Schumann wave signal generator designed by eletechsup under the guidance of European professionals. It has an optimized 250MM ultra-large helical antenna, which is 6.25 times more effective than the best-selling model on the market. It has 8-channel signal output and can connect up to 8 external antennas. It can set up to 10,000 seconds of timing cycle output function. It can also set up to 25 frequency cycles or timing outputs.


1 Working voltage: DC 5V
2 Working Power: 10W
3 Charging port: TYPE-C 5V charging port (dual power ports, use either one)
4 Default frequency: 7.83Hz
5 Adjustment range: 0.01Hz~100000Hz Pure Sine Wave
6 Number of loop output frequencies: 1-25
7 Timer ON range: 0-10000seconds, 0 = continuously on
8 Timer OFF range: 0-10000seconds
9 Signal voltage amplitude: 3V
10 With 8X 3.5MM audio output
11 Size: 306*256*26MM(With shell)
12 Weight : 942g(With shell)

New features:
1 1-25 frequency cycle outputs can be set
2 Schumann wave cycle timing output function
3 250MM ultra-large onboard antenna
4 8 3.5MM audio outputs with independent dedicated amplifiers
5 Acrylic shell wraps most components
6 Encoder adjustment parameters
7 Built-in large capacity battery

How to use:
1 Press the \'\'PWR\'\' power switch, the LCD lights up (If it doesn\'t light up, please charge it first.)
2 Then place it in a suitable position to experience the Schumann Resonances signal.


Some users do not need to output Schumann wave signals all the time, so this model adds a cyclic timing output function.
The SFWSC08 signal generator timing output enable/disable time is adjustable from 0 to 10000 seconds.
\'\'ON Time\'\' adjusts the output enable time
\'\'OFF Time\'\' adjusts the output disable time
The signal will enable or disable the output in a continuous cycle according to the time set by \'\'ON Time\'\'/\'\'OFF Time\'\'.


SFWSC08 signal generator 0.01HZ-100000HZ adjustable, the steps are as follows:
0.01-99.99HZ: step 0.01HZ
100.0HZ-999.9HZ: step 0.1HZ
1000HZ-9999HZ: step 1HZ
10000HZ-99999HZ: step 10HZ
Frequency 0.01HZ-100Khz adjustable
