HY002 BX011 Small !!! New Arrival Super heterodyne ASK OOK RF Wireless RX TX Modules 433MHZ
HY002 BX011 Small !!! New Arrival Super heterodyne ASK OOK RF Wireless RX TX Modules 433MHZ
SKU:HY002*1+BX011*1
Low stock: 10 left
Regular price
$2.99
Regular price
$13.48
Sale price
$2.99
Unit price
/
per
Couldn't load pickup availability
Share

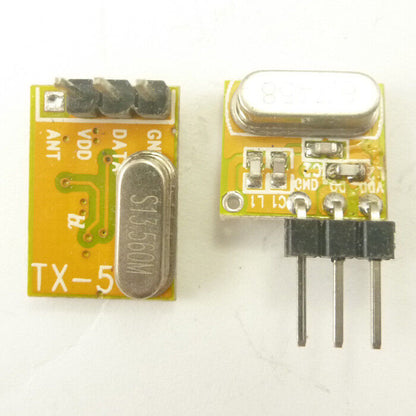

Qty: 1 PCS receiver module and 1pcs transmitter module .

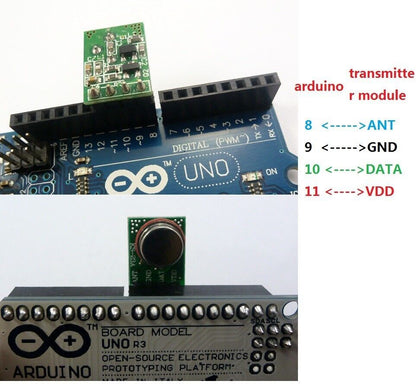

Test Platform :
Typical Applications
﹡ Remote gate controls
﹡ Remote keyless entry
﹡ Car alarm systems
﹡ Wireless security systems
﹡ Automation systems
﹡ Remote control systems
Transmitter module :
Typical Application on Atmega8 AVR microcontrollers :
Technical Data :
Transmitter module No.: BX-TM01 -433MHZ
High output power: +10dBm;
Low operation voltage: VCC= 1.8 to 3.6 V;
Operating frequency (MHz): 433.92MHz ;
Frequency tolerance: ±50 KHz;
Frequency tolerance: ±50 KHz;
The rang can be upto 300-500m matching with XLC-RM08;
Operating temperature: -40℃～+80℃;
Small Size with Size of PCB: 11x16x5.5MM;
Frequency tolerance: ±50 KHz ;
Bit rate: <3kbps;
Circuit Shape: PLL;

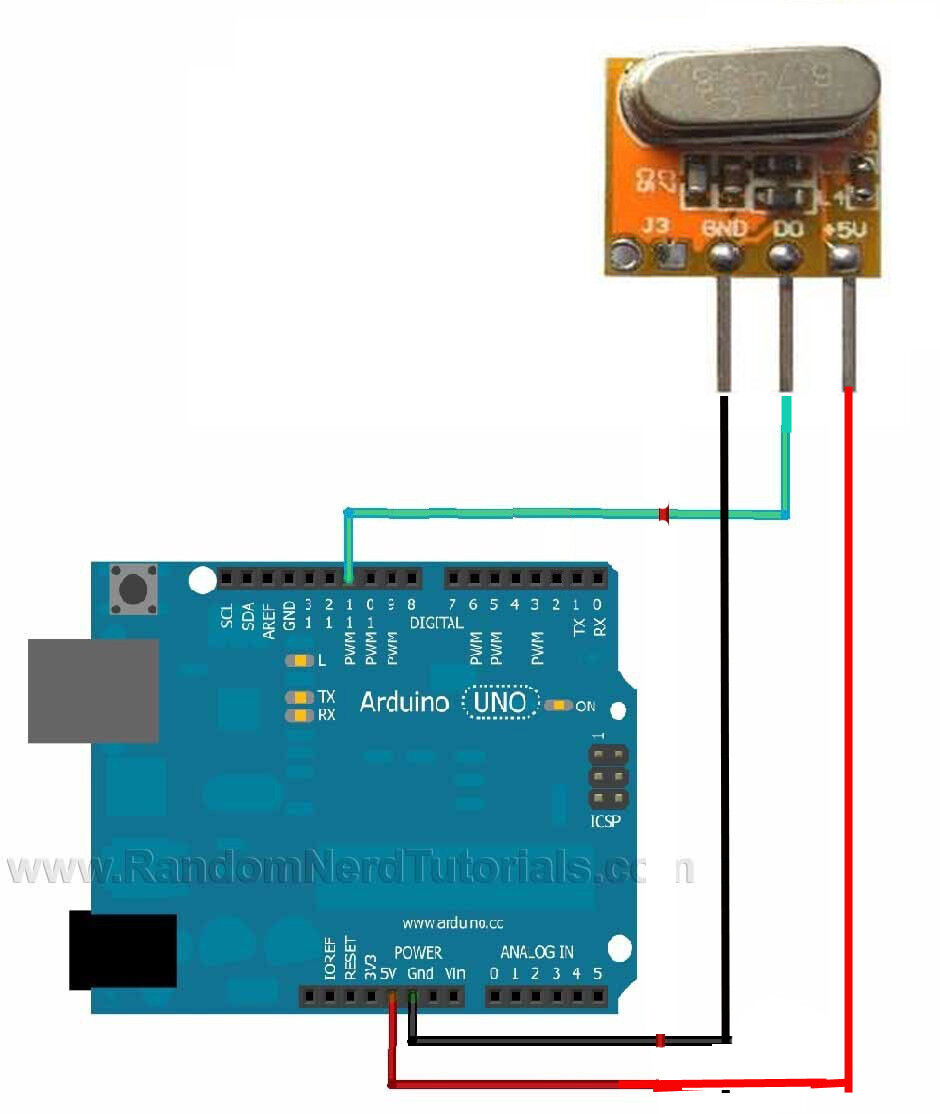

Receiver module :
Qty: 1 PCS receiver module
Technical parameter:
High sensitivity -107dBm@433.92 1kbps BER10E-2;
Frequancy: 433.92MHz;
Low operation voltage: VCC= 3.3-5.5 V;
Low Current：2.5-2.8mA. 5V@315MHZ 3.8-4.1mA. 5V@433MHZ;
Operating Temperature：-30℃~+85℃;
Small Size with Size of PCB: 12 x 10.5 x 5 MM;
