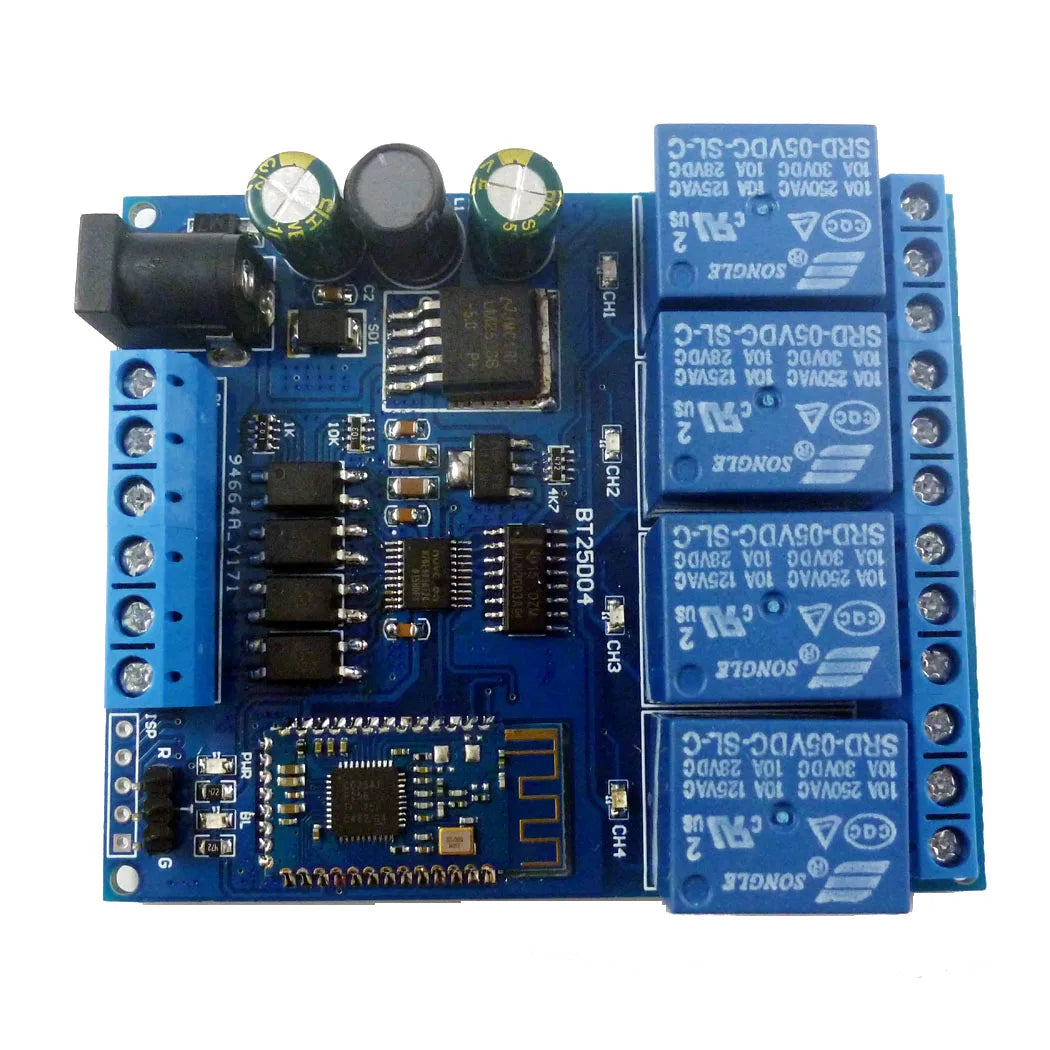

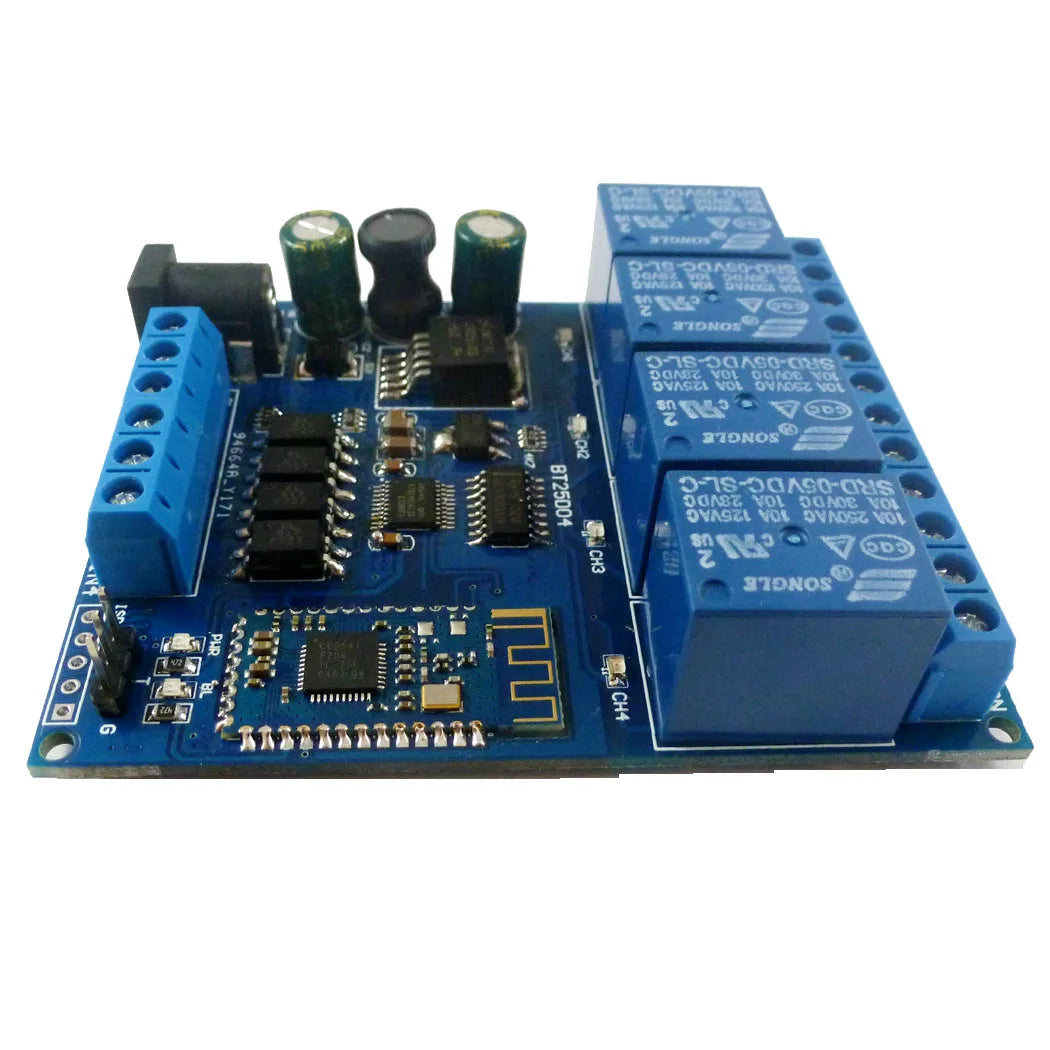

BT25D04 Smart Home Wireless Relay Switch for Apple iOS and Android Devices, DC 5-24V 4ch Bluetooth V4.0 BLE

BT25D04 Smart Home Wireless Relay Switch for Apple iOS and Android Devices, DC 5-24V 4ch Bluetooth V4.0 BLE

$14.99 USD
$14.99 USD $14.99 USD
Sale Sold out
Product Name: DC 5-24V 4ch Bluetooth-compatibleV4.0 BLE Relay RF Wireless Switch for Apple IOS Android phone Smart home LED Motro



Package inlcuded:
1 pcs DC 5-24V4-Channels Bluetooth-compatibleBLE 4.0 Relay Module














Description:

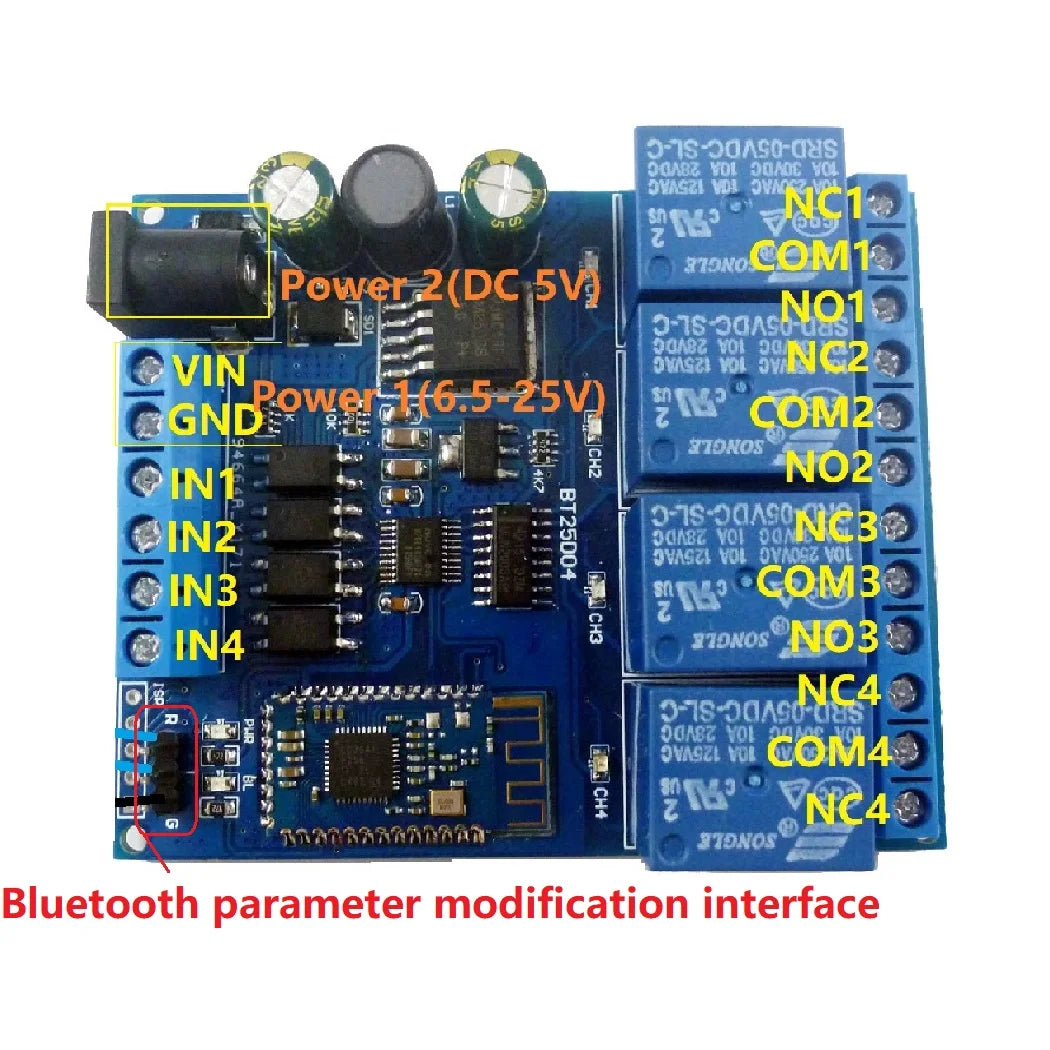

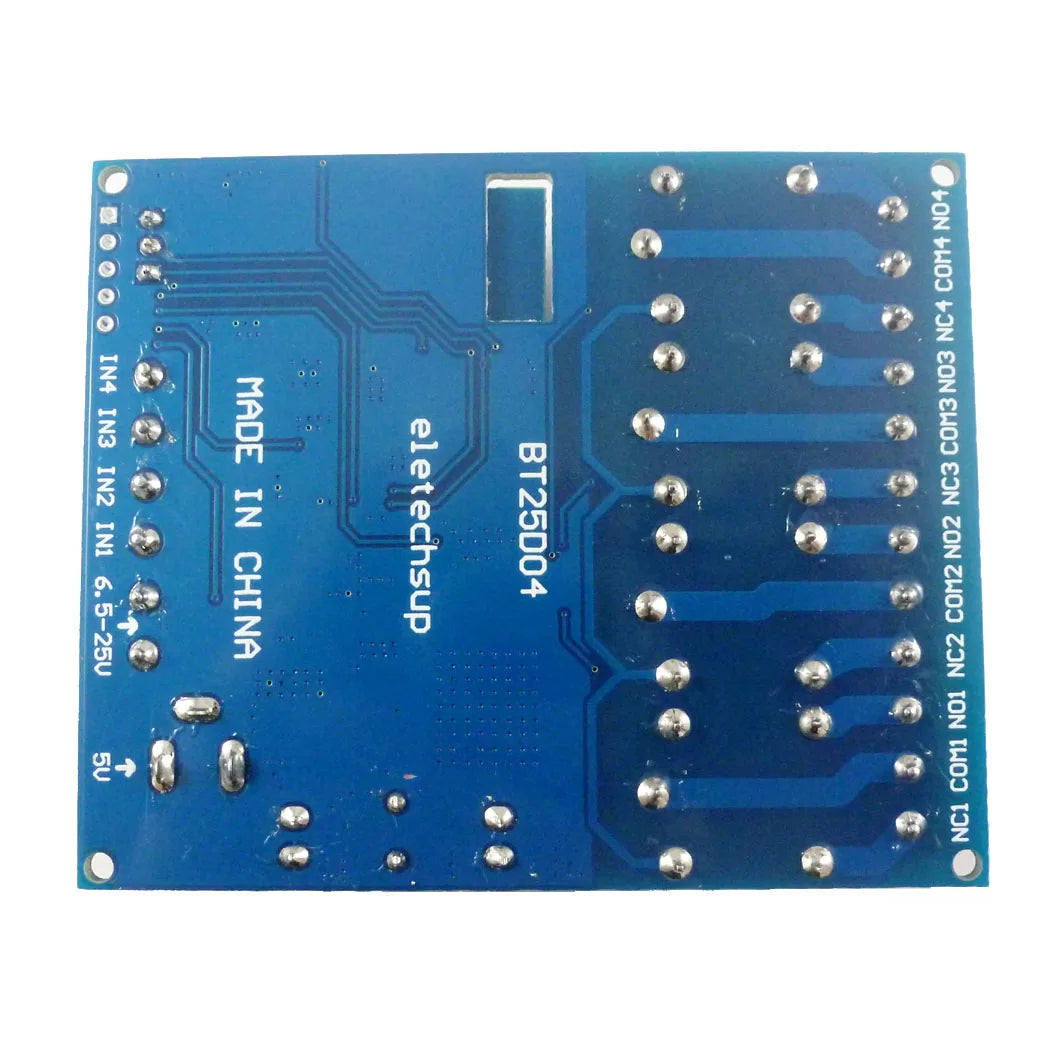

1 Operating voltage: power supply 1,DC 6.5-25V; power supply 2,DC 5V.

2 Operating Current: Standby current (all relays closed) 13MA, 1 relay open 44MA, 2 relays open 76MA,3 relays open 107MA, 4 relays open 139MA.

3 Bluetooth protocol: Bluetooth Specification V4.0 BLE.

4 Based on TI CC2541 chipset, Support android 4.3 or above,phone 4s or above (IOS8 or above) mobile control

5 2.4GHz-2.48GHz unlicensed ISM band.

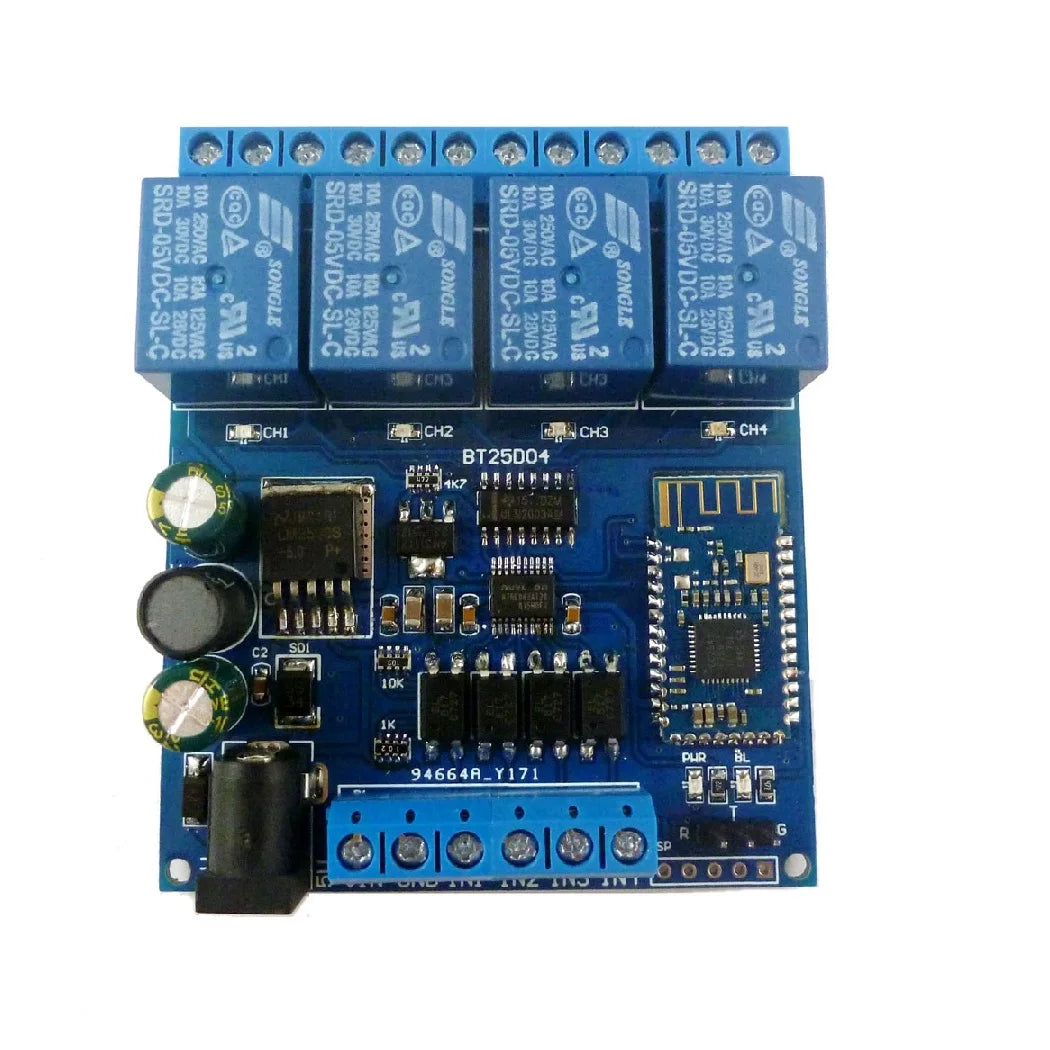

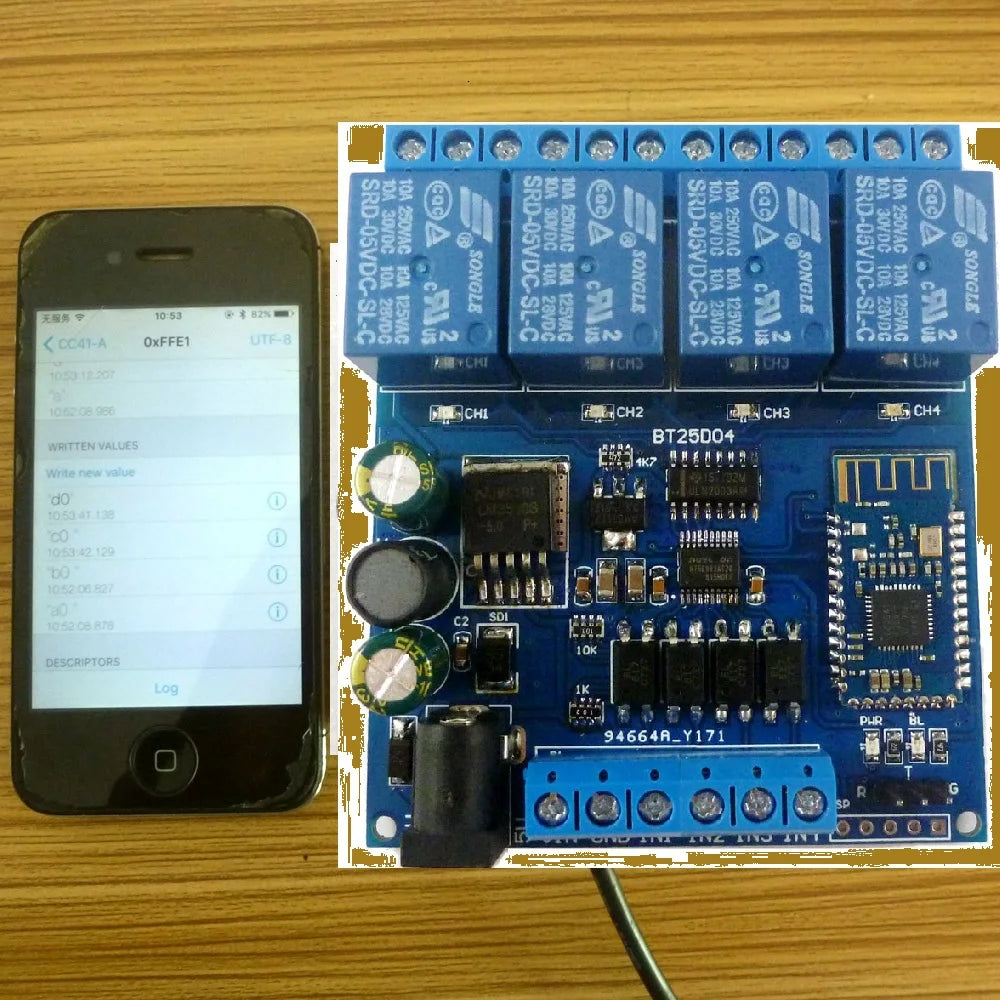

6 send commands via Android/IOS Bluetooth APP control relay turned on and off (we provide Bluetooth APP, you can also use your own APP to control relays, sending commands to control). It can also be triggered by an external pulse signal.

7 ''Momentary'' ''Self-locking'' ''Interlock'' ''open'' ''close'' ''Delay1(Second)'',''Delay2(0.1Second)'' 7 Commands

8 External trigger input, opto-isolated switch, low pulse inputs.

9 size 80*66*19mm

10 Weight : 75g






NOTE:

1 phone must support bluetooth 4.0, such as galaxy S4 (android 4.3),phone 4s(IOS8)

2 Bluetooth 4.0 without matching, so when open bluetooth mobile phone cannot search equipment

3 Without password, open software direct connection

4Baud rate is 9600BPS, Please do not modify the Bluetooth baud rate, otherwise the relay will not work



APP:
Android : Installing ''BluetoothLeGatt'' APP
IOS : In AppStore download ''LightBlue'' software


For more information, please contact me































Typical applications:

Home lighting system
Remote control switch
Remote locking
Garage door remote control
Smart Home / Home Automation
DC 5-24V LED lighting
Fluorescent lamp
DC 5-24V DC Motor
Fluorescent lamp

Automotive electronics
Industrial automation and control

PTC Camera

Air conditioning / fan remote control









1 DC 6-25V control circuit,Wiring diagram below. ''LOAD'' may be LED lights, fans, motors and other DC 6-25V equipment
















2 DC 5V control circuit,Wiring diagram below. ''LOAD'' may be LED lights, fans, toy car and other DC 5V equipment

















3 DC 1-100V OR AC 85-265V control circuit,Wiring diagram below. ''LOAD'' may be LED lights, fans, motors and other DC AC equipment




























4 All kinds of motor reversing control: DC 1-100V or AC 85-265V DC/AC Motor
