SMFEM01 Mini 7.83Hz Pure Sine Wave Schumann Resonances SR Signal Generator Earth Resonance Wave Booster

SMFEM01 is a mini size 7.83Hz Pure Sine Wave Schumann Resonances designed and produced by eletechsup. SMFEM01 is the basic version, it uses a TYPE-C power supply;


Note: Batteries need to be prepared by yourself, and the shell needs to be purchased separately

Please contact us for more information!

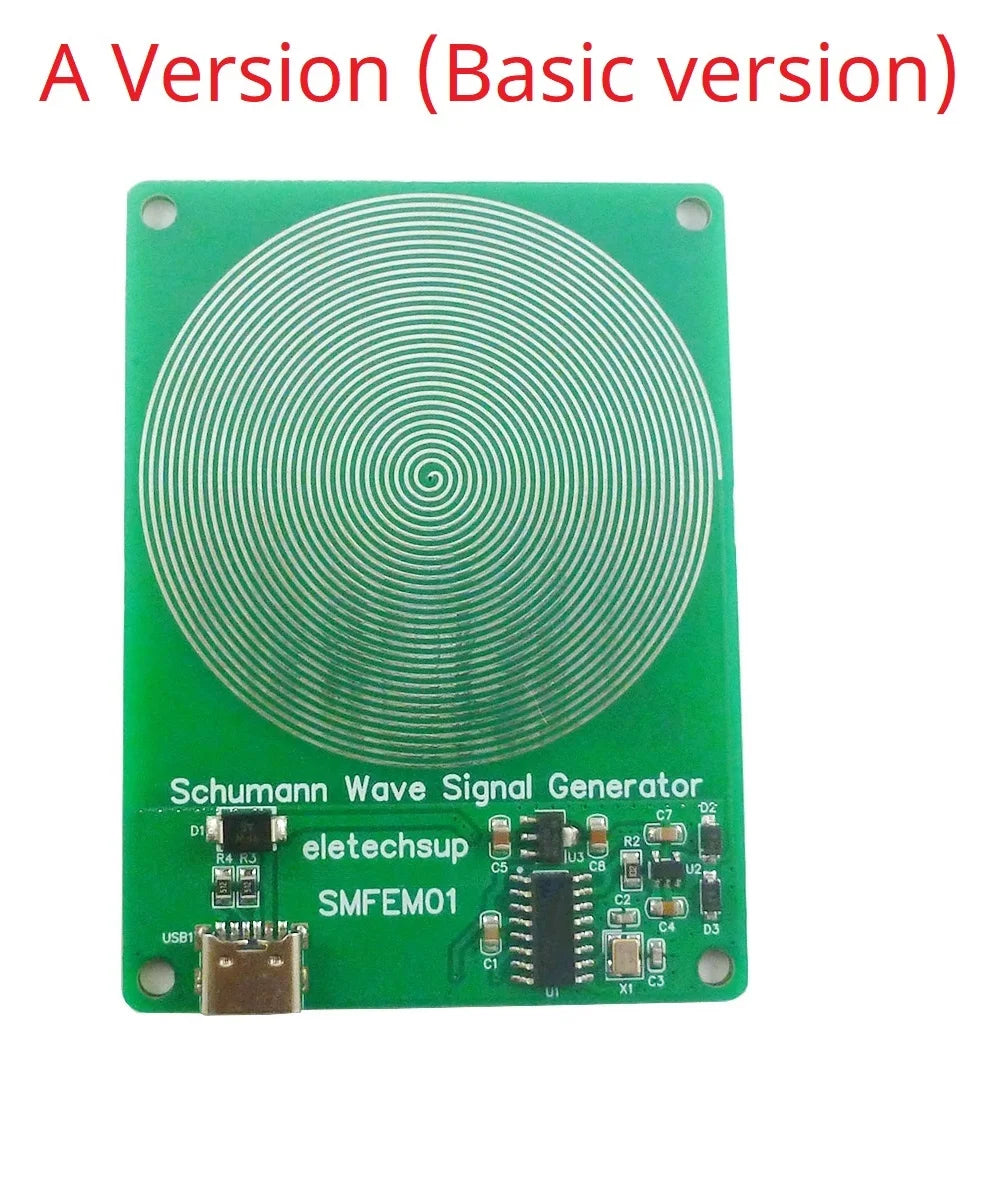

Version A (Basic Version)
Supply voltage: DC 5V
Working current: 3MA
Waveform: Sine wave(can't output Other waves)
Power supply interface: TYPE-C
Frequency: 7.83Hz sine wave
Signal voltage amplitude: 3.3V

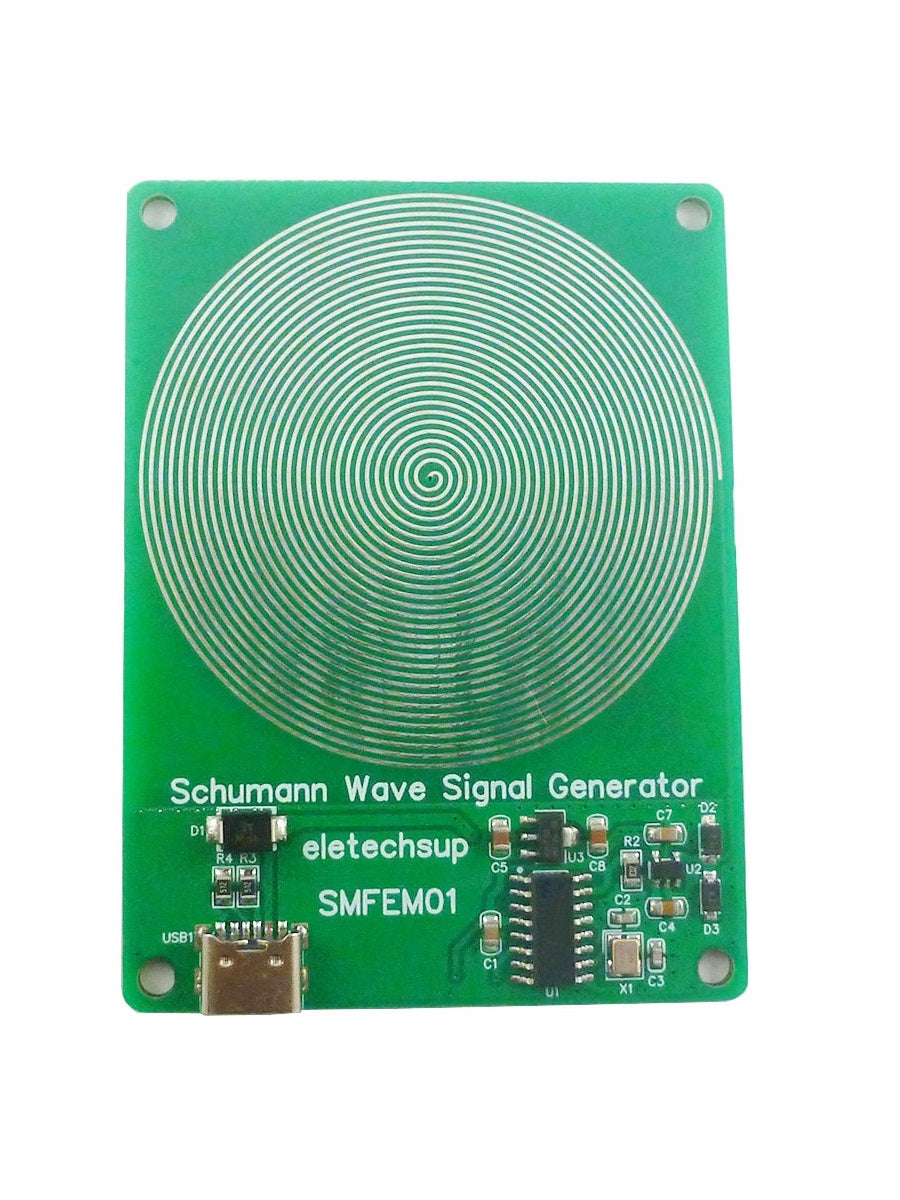

PCB Board Size: 76*57*5MM
Weight : 15g

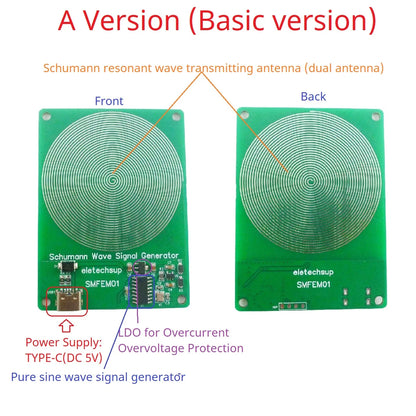

How to use: Connect the DC 5V power supply to the TYPC-C interface.





Normally, the product will work as long as you provide power
(The battery version needs to connect the battery and turn the switch to ON)

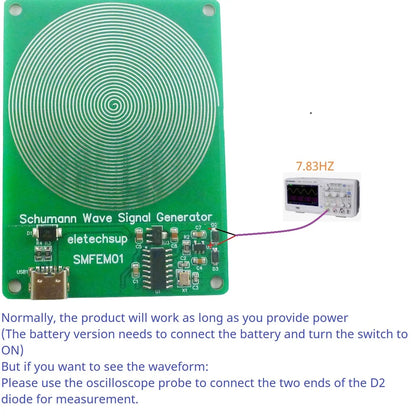

But if you want to see the waveform:
Please use the oscilloscope probe to connect the two ends of the D2 diode for measurement.

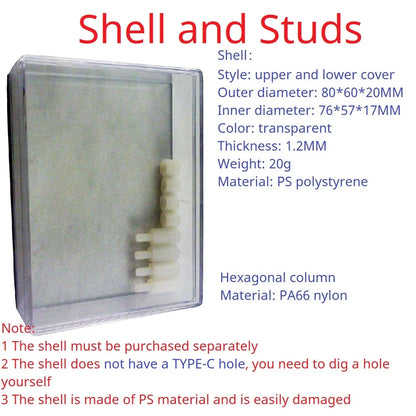

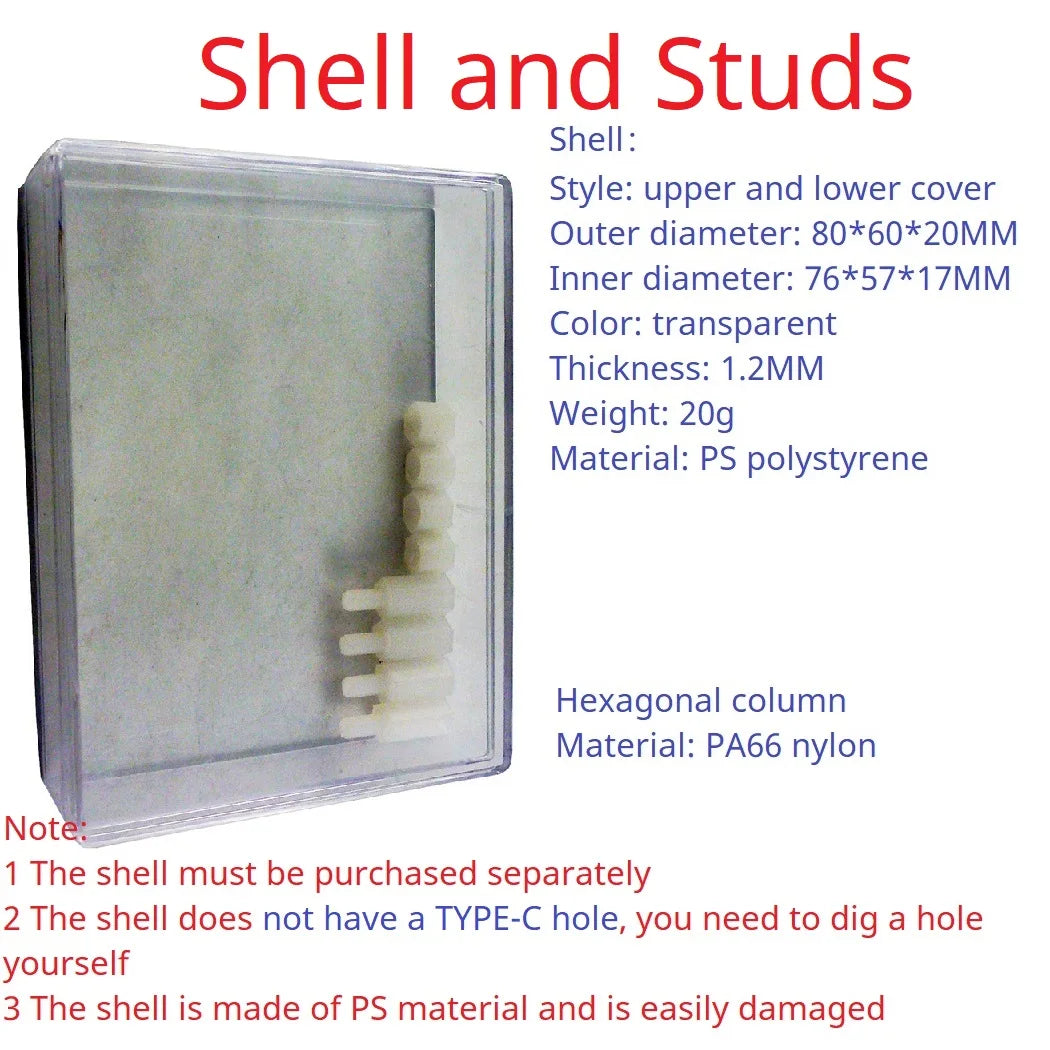

Shell:
Style: upper and lower cover
Outer diameter: 80*60*20MM
Inner diameter: 76*57*17MM
Color: transparent
Thickness: 1.2MM
Weight: 20g
Material: PS polystyrene

Hexagonal column
Material: PA66 nylon
