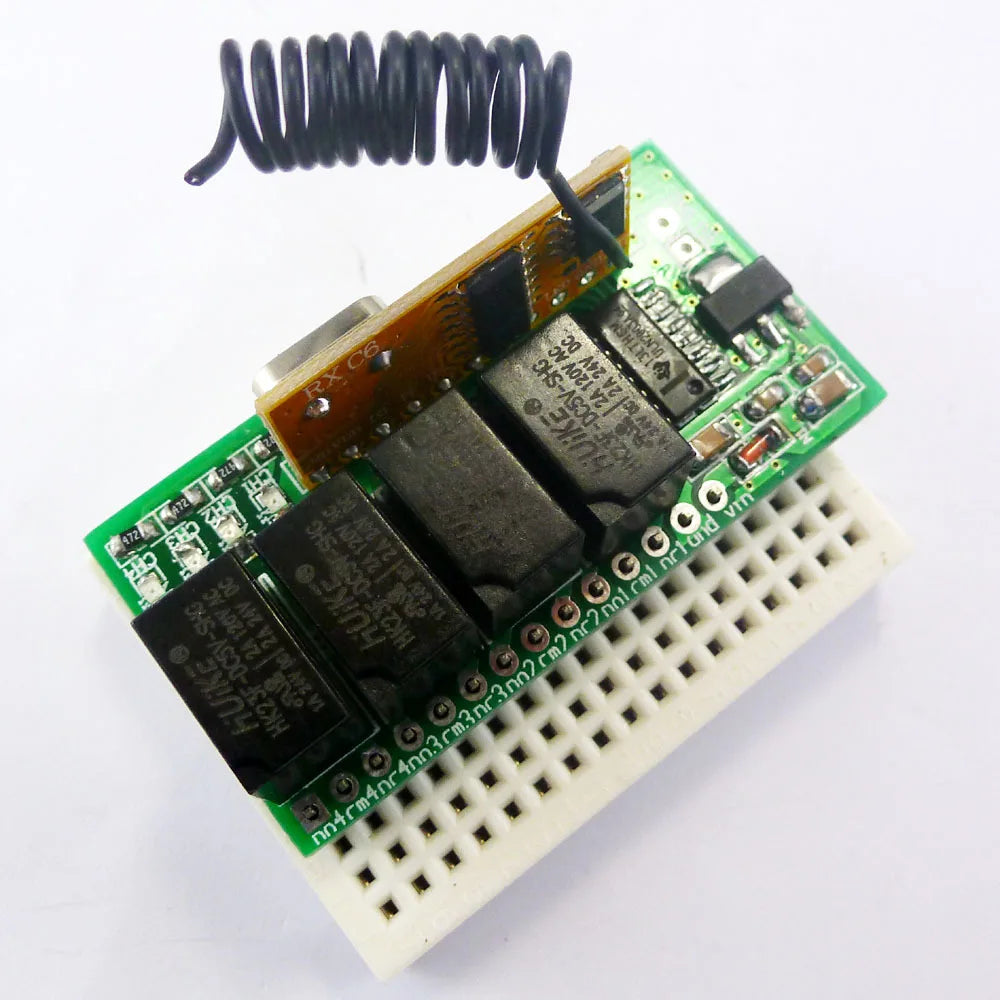

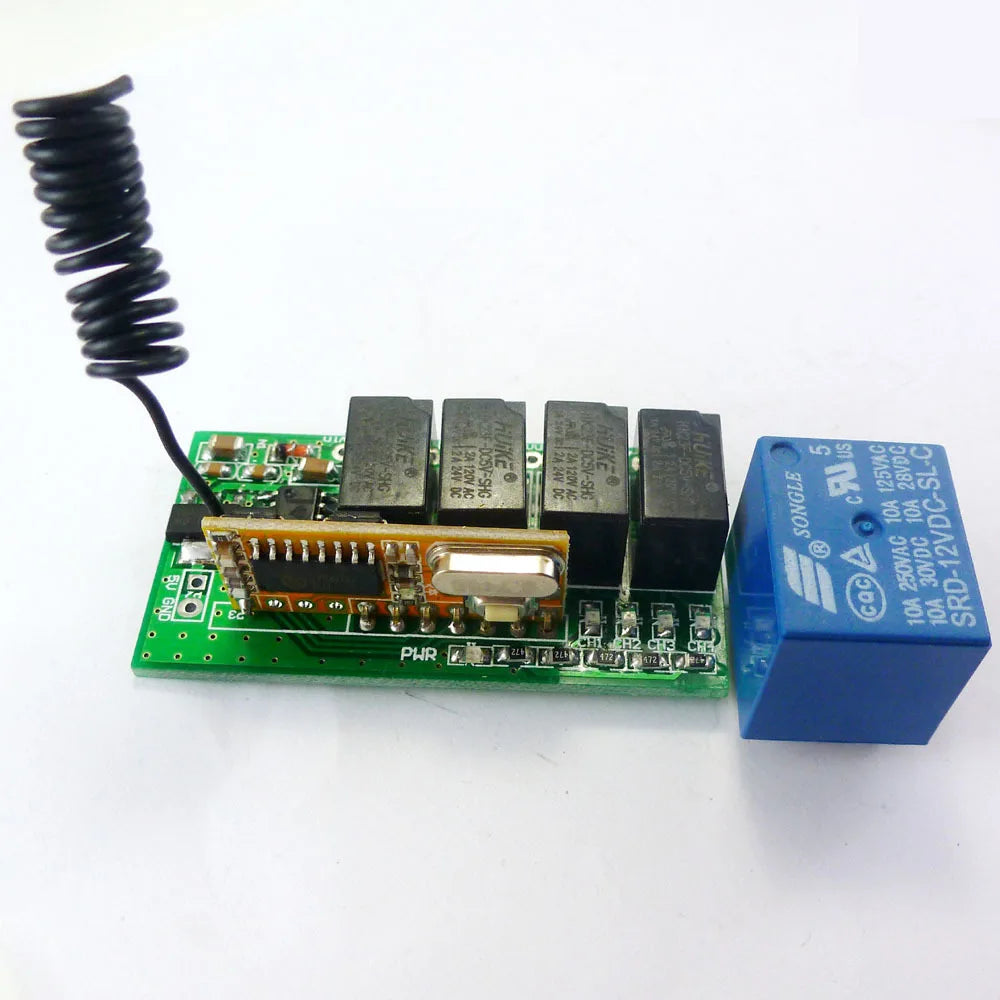

CE031 Super Mini DC 5V 9V 12V 433.92M 4CH RF Wireless remote control Relay Switch for PT2262 EV1527 Fixed Learning code

CE031 Super Mini DC 5V 9V 12V 433.92M 4CH RF Wireless remote control Relay Switch for PT2262 EV1527 Fixed Learning code

CE031

1000 in stock

$9.99
$9.99 $9.99
Sale Sold out
Compatiable PT2262 EV1527 transmitter , this board can only work with EV1527 encoder or PT2262 encoder.
Strongly recommended buy kits

Typical applications:
DC 5V 9V 12V Home lighting system
Garage Door
Elevators
Motor reversing control
Remote control switch
Smart Home / Home Automation
LED lighting
Fluorescent lamp
DC 12 DC Motor,RS360


Wiring Diagram 1:

 5.5-12V DC operating voltage DC 5.5-12V devices



Wiring Diagram 2:

5.5-12V DC operating voltage ,DC 1-48V OR AC 85-265V devices


Wiring Diagram 3:

3 5V DC operating voltage ,DC 5 V devices

Wiring Diagram 4:

4 5V DC operating voltage ,DC 1-48V OR AC 85-265V devices






Product Name :Super Mini DC 5V 9V 12V 433.92M 4CH RF Wireless remote control Relay Switch for PT2262 EV1527 Fixed Learning code


Packing list:

1 PCS MINI 433M DC 5V 9V 12V 4 Channel Wireless Controller
1 PCS Plastic shell

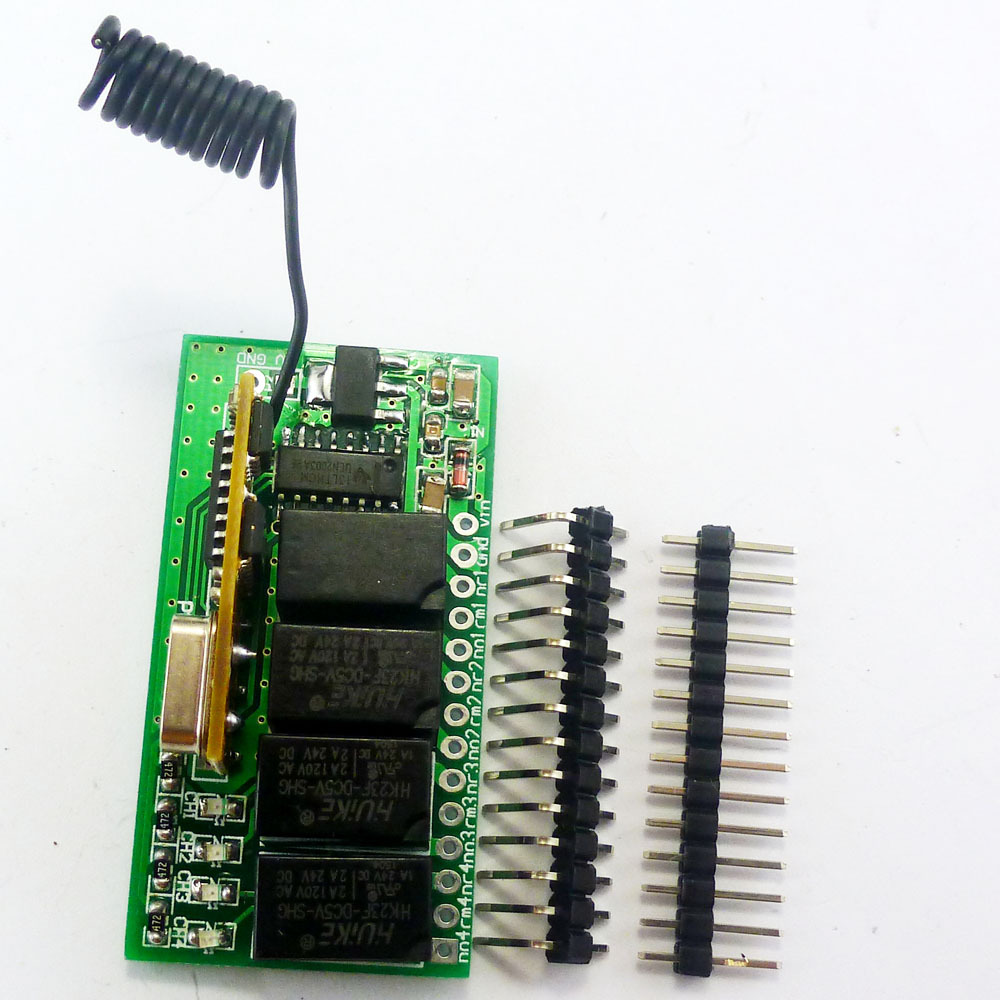

1 PCS 2.54MM straight pin
1 PCS 2.54MM curved pin
Compatiable PT2262 EV1527 transmitter , this board can only work with EV1527 encoder or PT2262 encoder.
Features:

1 Operating voltage: Power 1: DC 12V, 9V (range 5.5-15V) ; Power 2: DC 5V

2 Operating current: Standby Current(12V 8MA, 5V 8MA); each relay operating current 40MA

3 Wireless frequency: 433M(315M version can be customized)

4 Receiver sensitivity: -108dBm

5 Decode: learning code, can be adapted EV1527 / PT2262 and compatible remote control, you can store up to 6 remote control

6 work mode: Non-locking (Momentary is defult),Self-locking (Toggle),Inter-locking (Latch)

7 Relay load voltage: DC 1-48V; AC 85-265V

8 Relay load current: <= 2A

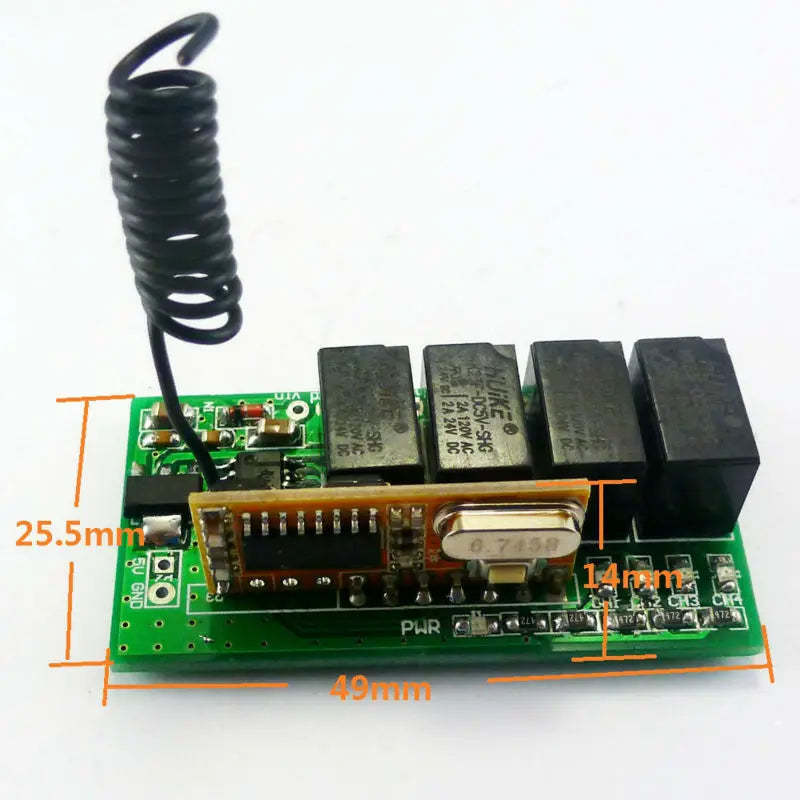

9 Size: 49mmx25.5mmx14mm (Very small)

10 Weight: 16g(Very light)

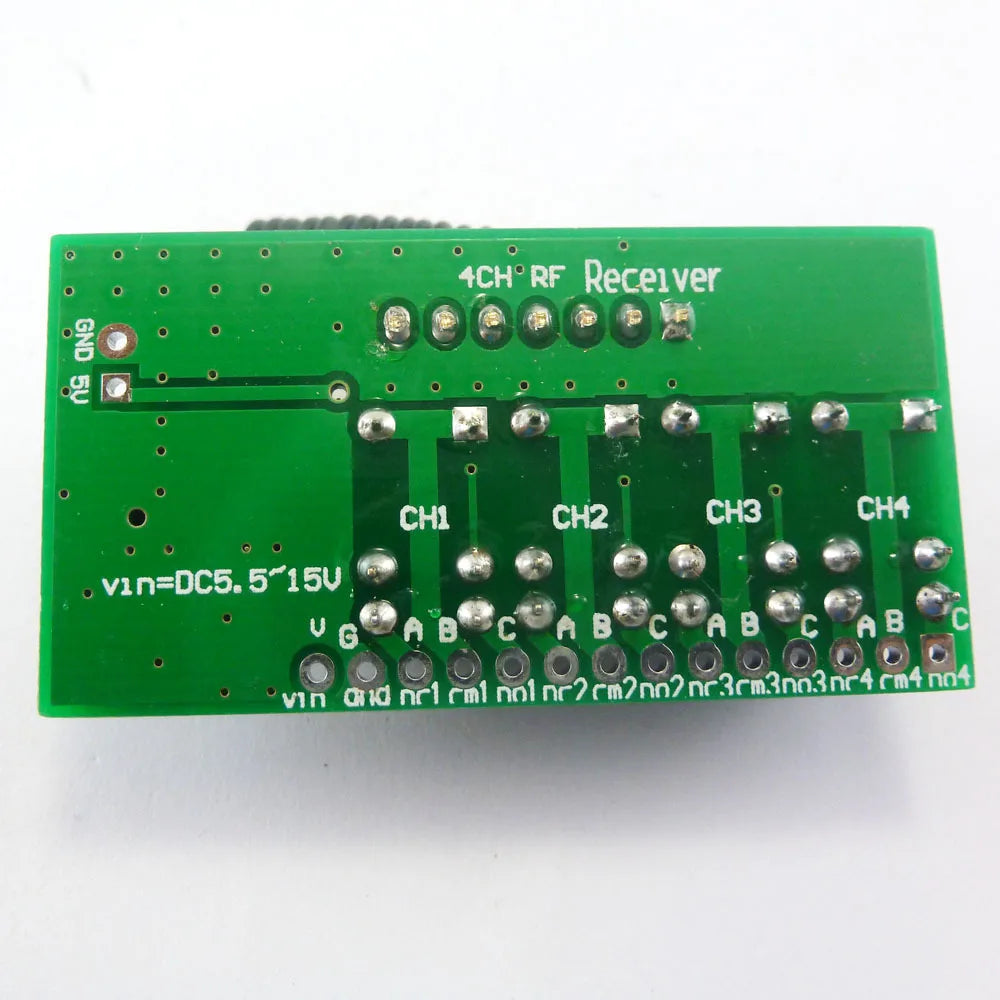

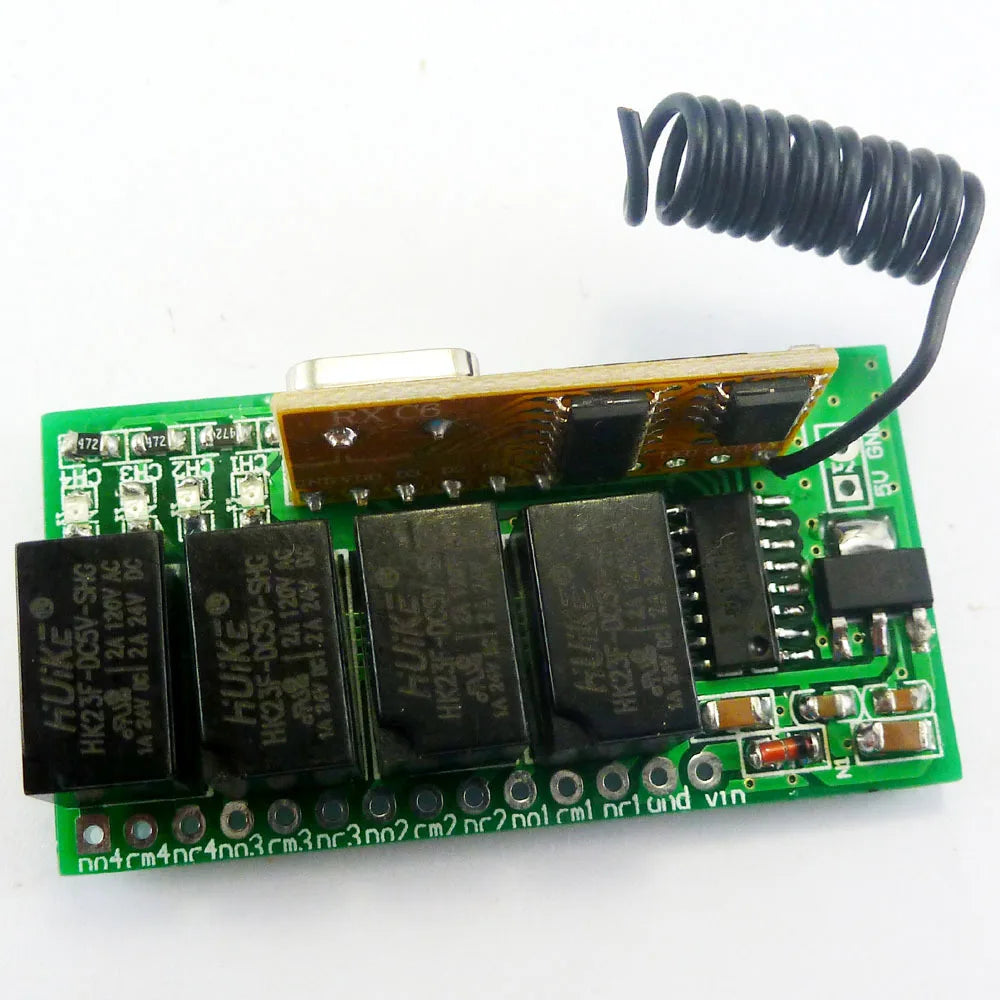

Pin Description:

Vin: Power supply 1 input positive+(voltage range: 5.5-15V, recommend 9V 12V)

5V : Power supply 2 Input positive+, DC 5V input (Note: power supply 2 can not reverse, otherwise it will burn circuit boards)

gnd: Power supply 1/2 power input ground-

NC1: Channel 1 normally closed contact

CM1: Channel 1 common contact

NO1: Channel 1 normally open contact

NC2: Channel 2 normally closed contact

CM2: Channel 2 common contact

NO2: Channel 2 normally open contact

NC3: Channel 3 normally closed contact

CM3: Channel 3 common contact

NO3: Channel 3 normally open contact

NC4: Channel 4 normally closed contact

CM4: Channel 4 common contact

NO4: Channel 4 normally open contact

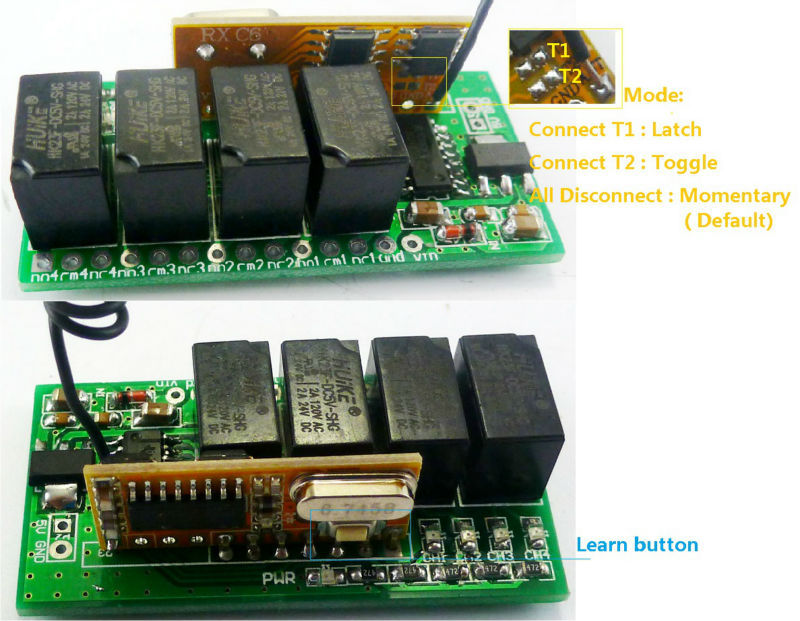

Work mode:

There are three Work modes, Non-locking (Momentary is defult),Self-locking (Toggle),Inter-locking (Latch)

two pads of T1  connected is Inter-locking (Latch) mode,two pads of T2  connected is Self-locking (Toggle),

All disconnect is Non-locking (Momentary is defult)


Mode Description:

Momentary : Press the Transmitter button A, the receiver Channel 1 is Open, release button A;     the receiver Channel 1 is Close, the same as B ,Every Channel is Independent ;

Toggle     : Press transmitter button A for 1 time , the receiver Channel 1 is Open, press button A again, the receiver Channel 1 is Close, the same as BCD. Every Channel is Independent ;

Latch      : Press transmitter button A, the receiver Channel 1 is Open, the Channel 2/3/4 is Close.Press transmitter button B, the receiver Channel 2 is Open, the Channel 1/3/4 is Close.

study method:

Clean code: Hold down the learn button down, LED stays on for 4-5 seconds and then turns off

Learning: Hold down the learn button, LED light after release; immediately press the remote control button, LED flashes three times, learning success

Note: The remote control means: EV1527 / PT2262 and compatible remote control

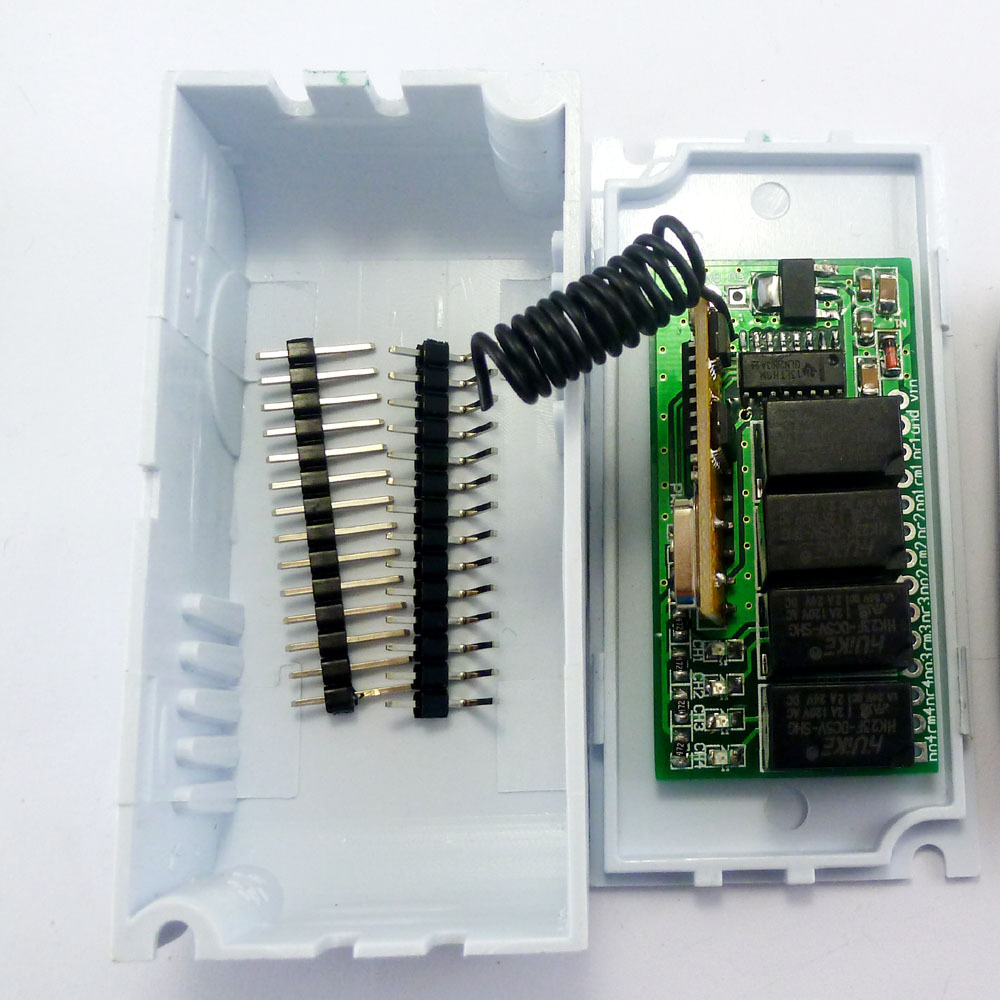

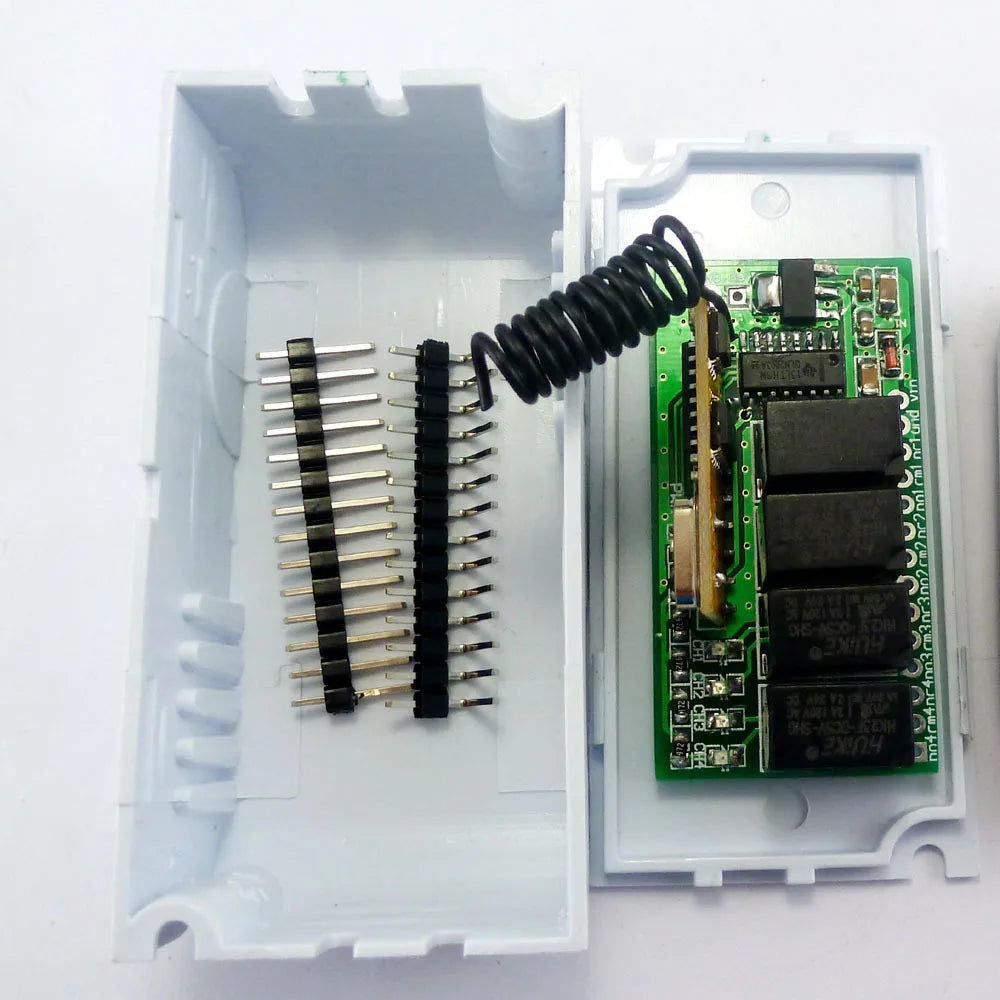

The module is equipped with housing, straight pin and curved needle. You can have a variety of installation
