TB317 1000mA DC-DC (Input 3-6V ) (Output 6V ) Step-UP Power Converter Voltage

TB317 1000mA DC-DC (Input 3-6V ) (Output 6V ) Step-UP Power Converter Voltage

TB317

Low stock: 10 left

$6.48
$6.48 $6.48
Sale Sold out

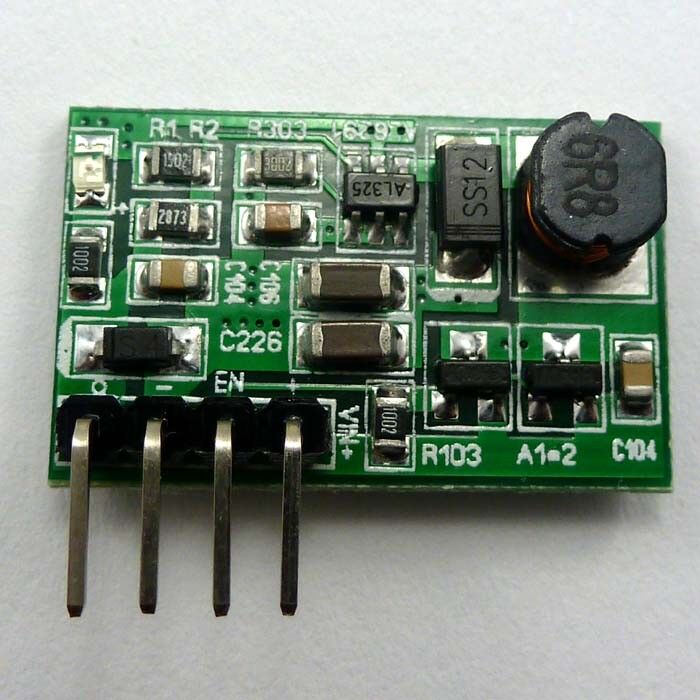

Product Name:  1A DC-DC (Input 3-6V ) (Output 6V ) Step-UP Power Converter Voltage Module for Motor LED

Module No.:  TB317

Packing list:

1 PCS 3-6V to 6V with Switch Boost Modules



Description:

Input voltage 2.8 ~ 6V, output 6V (deviation +-5%)
Maximum input current:  1.5A
Long-term work Current： 1A
Conversion efficiency : 90%

PCB size : 25MM x 15MM

Start Voltage 2.8V, Output Current 100MA

INPUT 3V   1A; OUTPUT 6V 430MA
INPUT 3.3V 1A; OUTPUT 6V 490MA
INPUT 3.7V 1A; OUTPUT 6V 550MA
INPUT 4.5V 1A; OUTPUT 6V 670MA
INPUT 5V   1A; OUTPUT 6V 750MA

This is with on/off switch voltage boost module.The master chip is FP6291GLR
Can used  the input voltage (VIN or GND)control  the switches,also use MCU IO control the switches.
Control current is very small, MCU IO port can be directly controlled. Including micro-controller : ARDUINO UNO MEGA2560 AVR STM32 ARM PIC AT89C51 STC MSP430 FPGA CPLD etc.

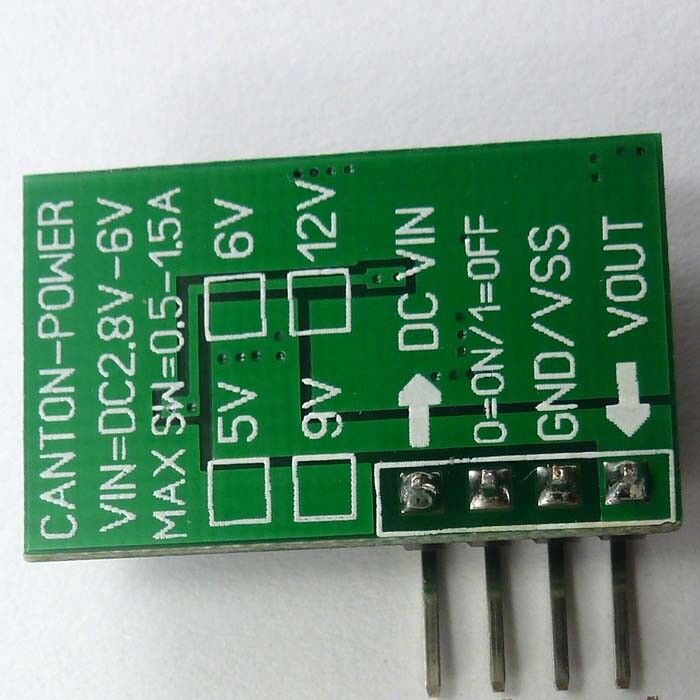

When the EN pin  = GND（OR MCU LOW level),the boost module is working properly;
When the EN pin  = VIN(or MCU HIGH level,3.3V/5V) OR Not Connected(or MCU High impedance),
the boost module into standby mode, stops working, the output voltage is 0V(Can measure the output voltage is 500~800MV, which is inductive output voltage,you  does not have to bother).
