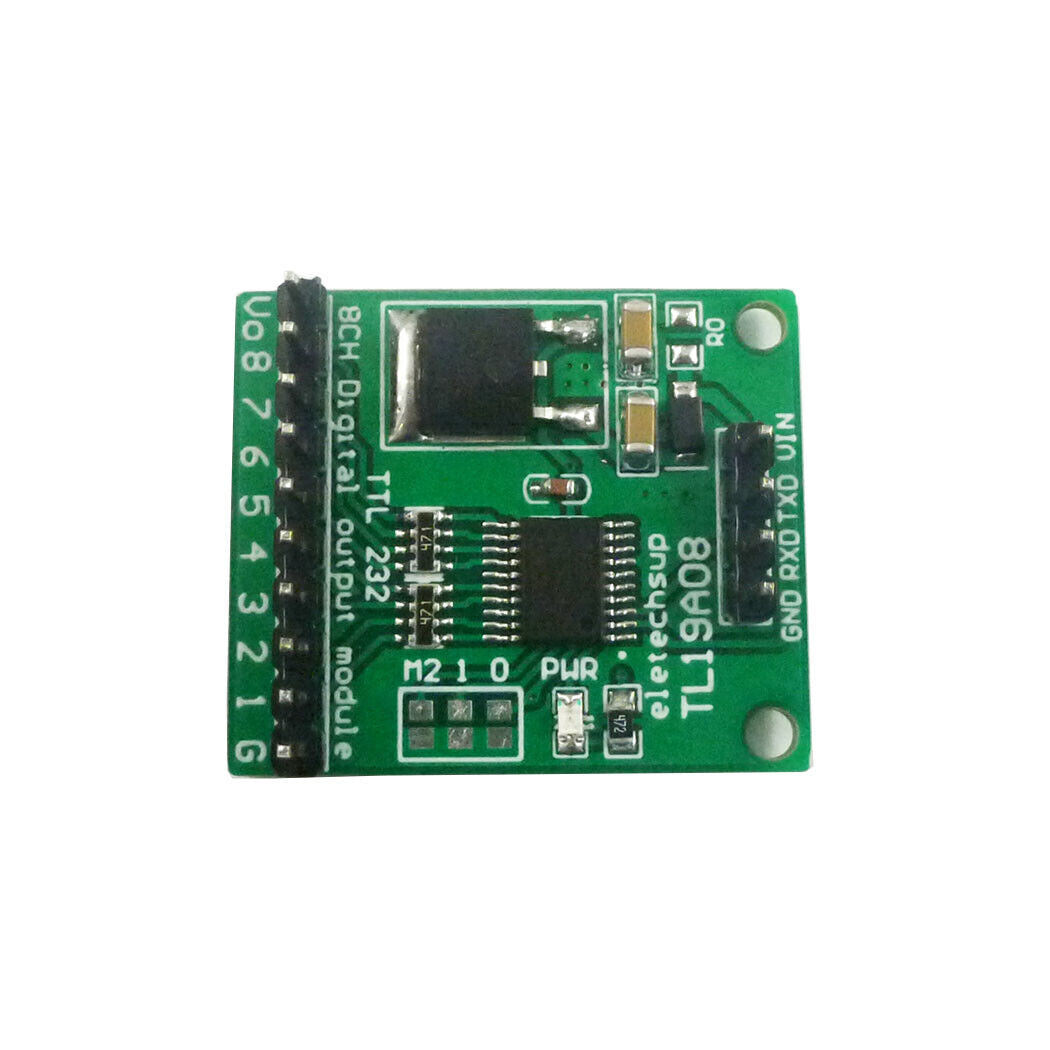

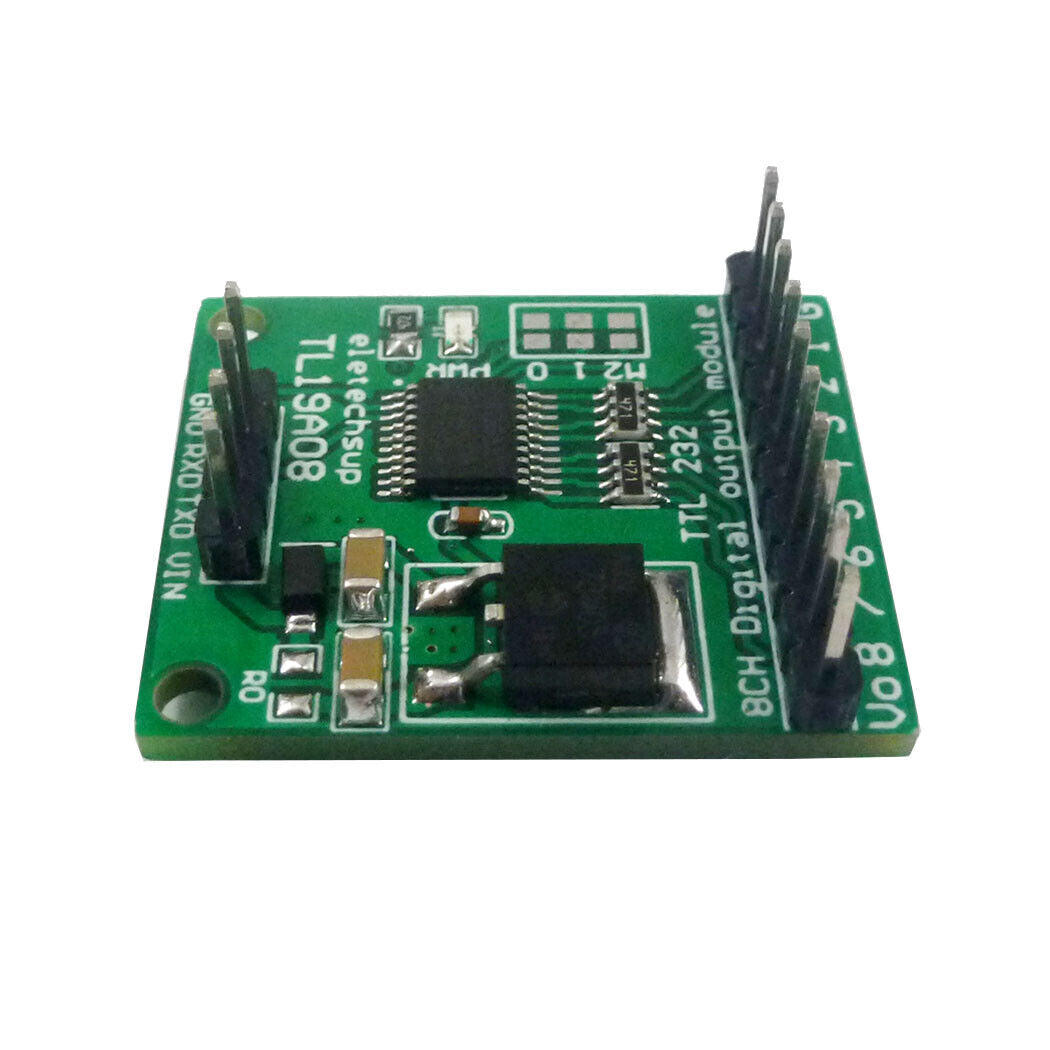

TL19A08 TL19B08 8ch Modbus Rtu AT Command RS232(TTL)PLC Module PC UART IO Control Switch Board
TL19A08 TL19B08 8ch Modbus Rtu AT Command RS232(TTL)PLC Module PC UART IO Control Switch Board
SKU:TL19B08_5V
Low stock: 10 left
Regular price
$2.99
Regular price
$13.48
Sale price
$2.99
Unit price
per
Couldn't load pickup availability

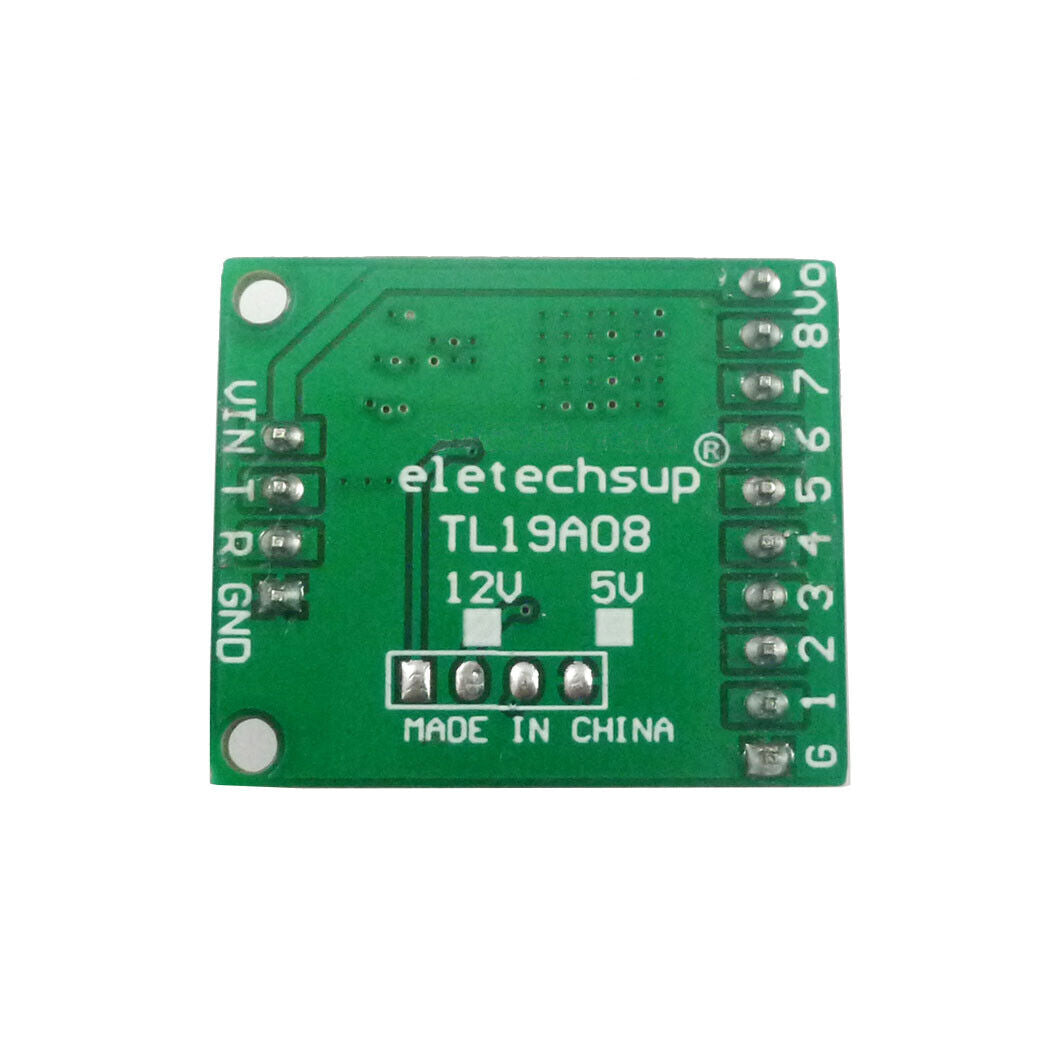

Product Name: 8ch Modbus Rtu AT Command RS232(TTL)PLC Module PC UART IO Control Switch Board for Relay Industrial automation
Package inlcuded:
1 x 5V/12V 8 Channel Multifunction TTL 232 Control Board for 1-8 CH Relay Module
Description:
1 Working voltage: DC 5V (5V version) / DC 6-24V (12V version)
2 Working current: 8-13MA
3 Two command control modes: AT command and MODBUS command
4 The maximum delay under the AT command is 9999 seconds, and the maximum delay under the MODBUS command is 255 seconds
5 AT commands can be input by the serial port super terminal (serial assistant);
MODBUS commands can also be input by ''Modbus Poll'' in addition to the serial port super terminal input
6 RS232 (TTL level) input interface
7 8 output control pins, 5V TTL level, low level (default)/high level output

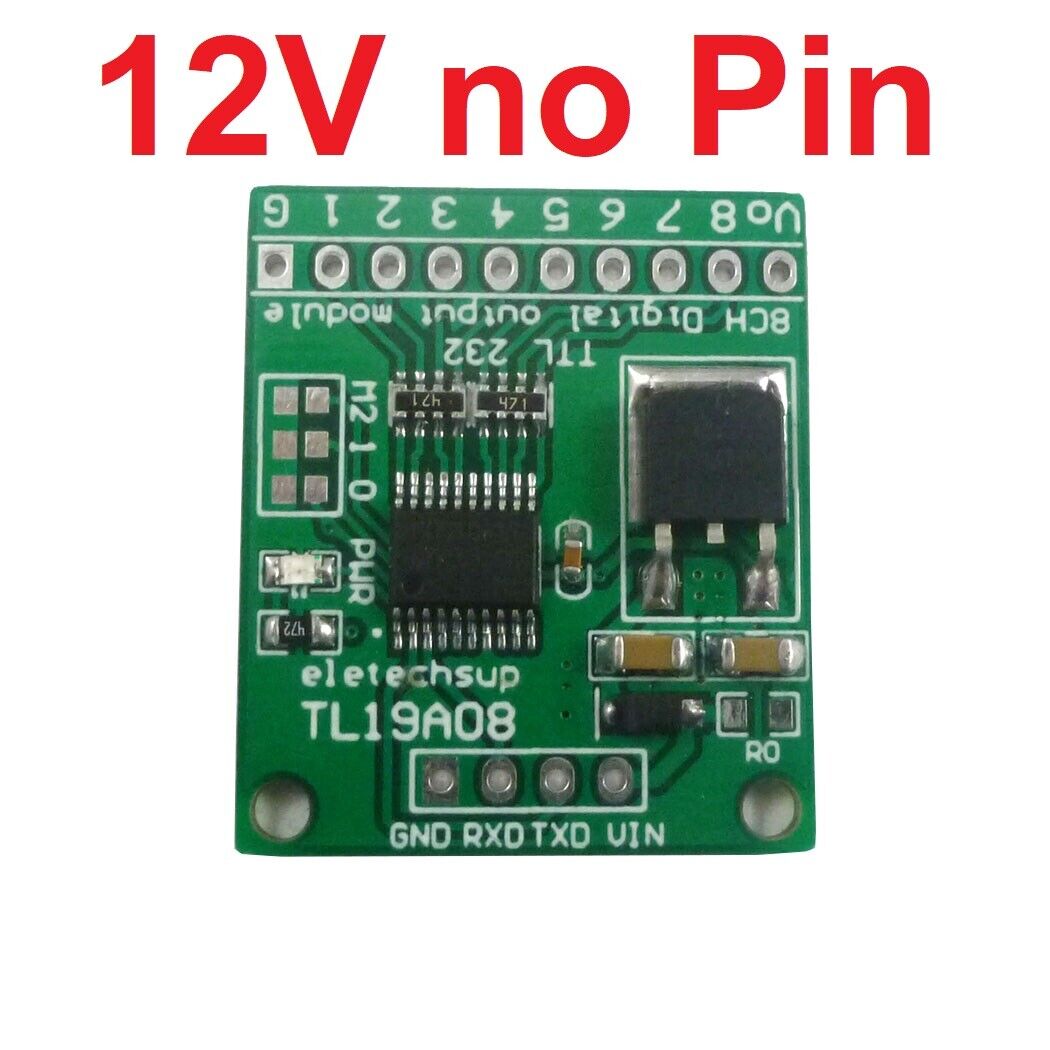

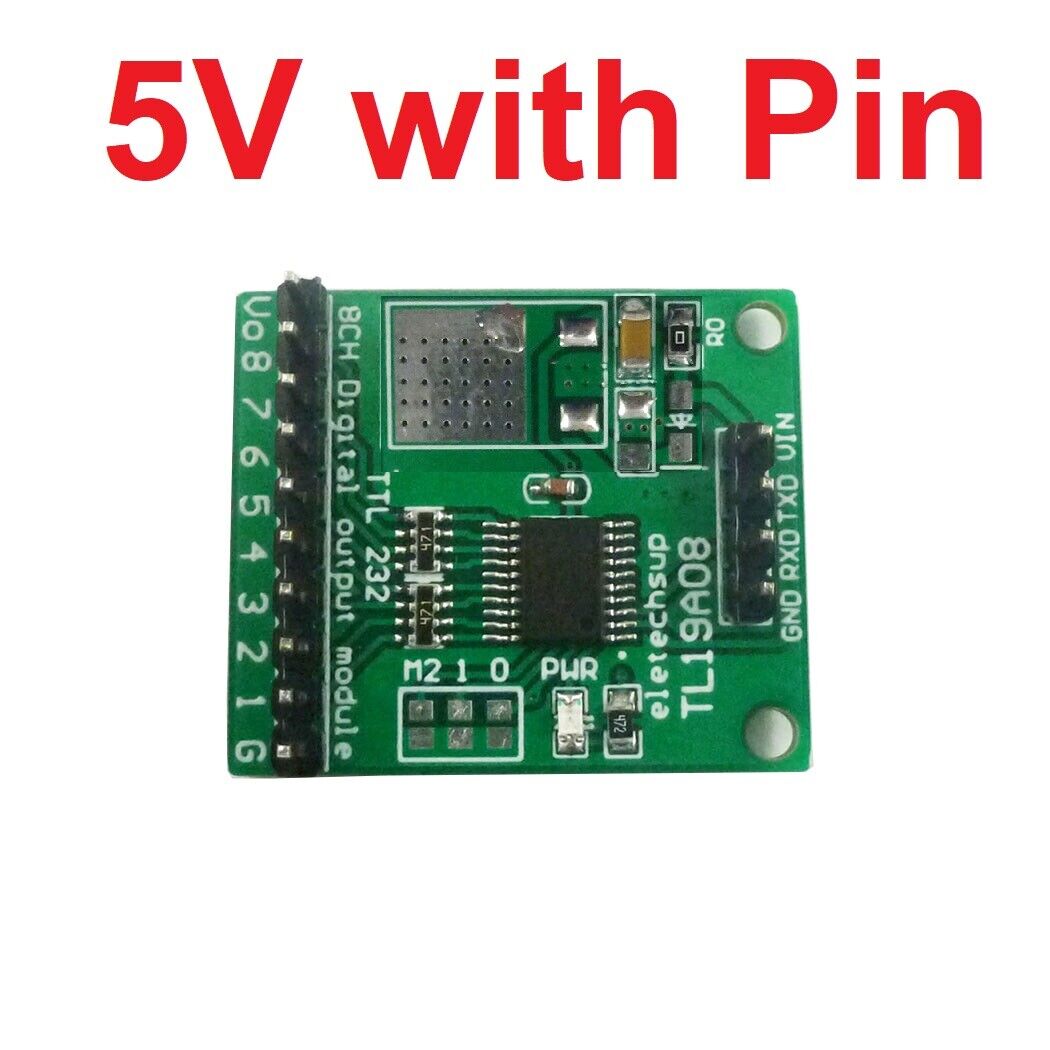

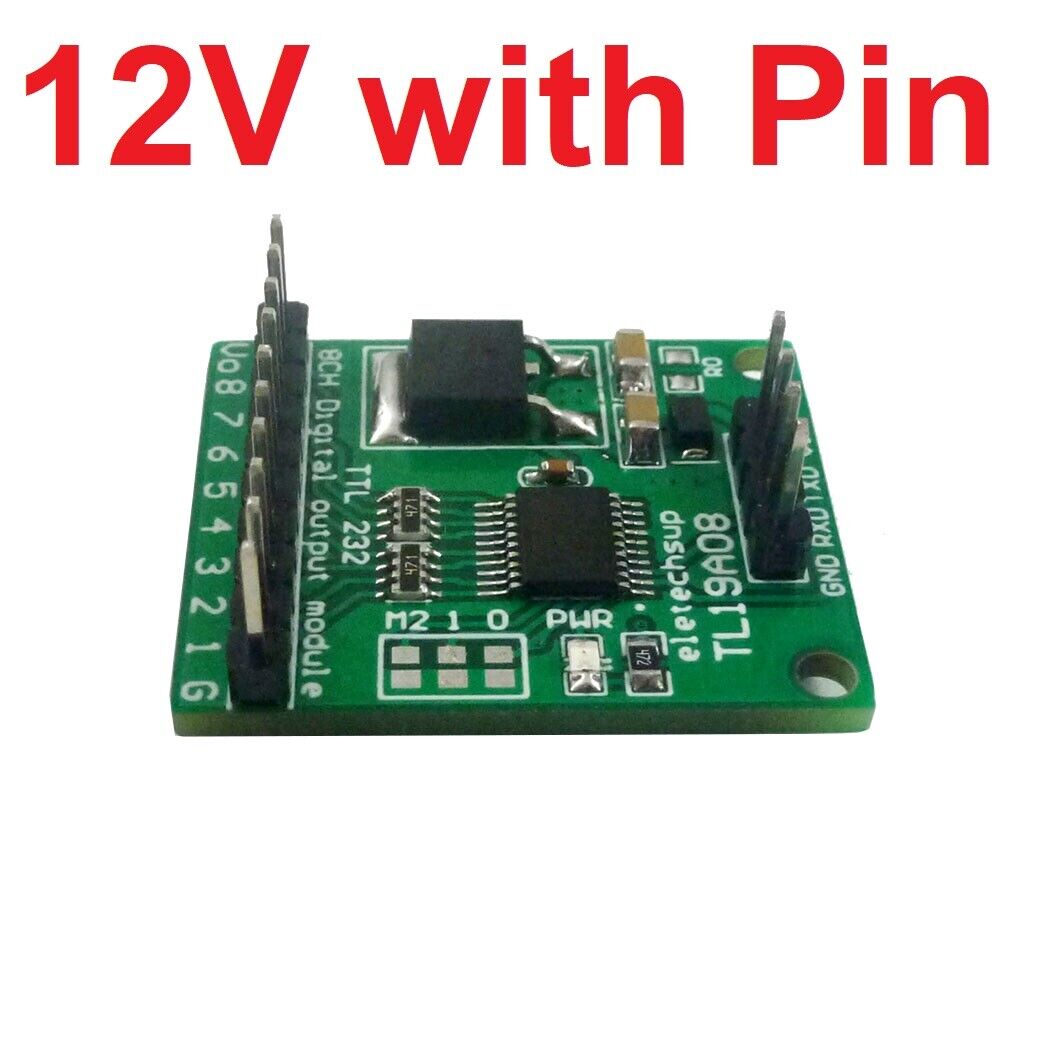

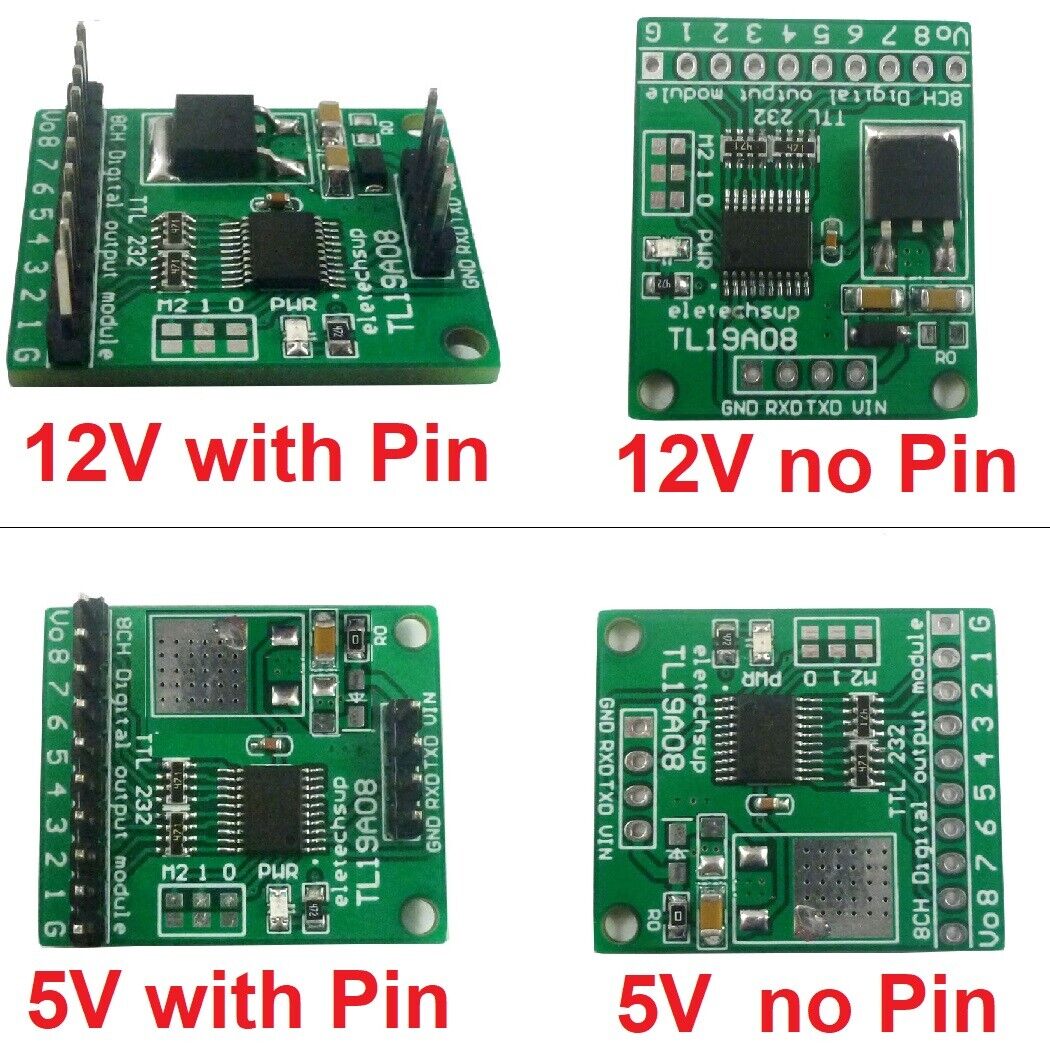

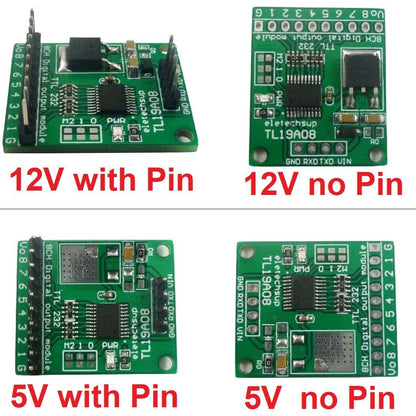

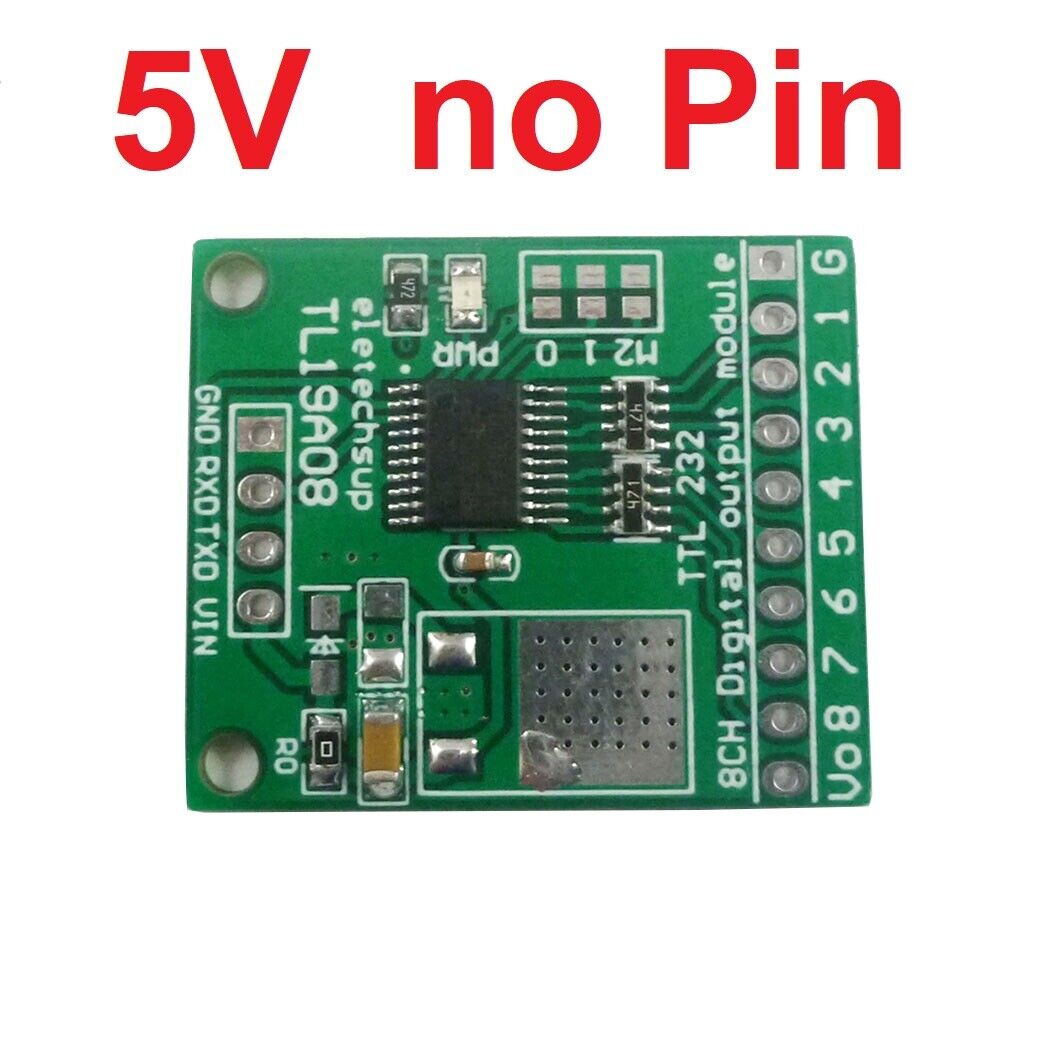

8 Four versions: 12V with needle/12V without needle/5V with needle/5V without needle
9 Size: 30*25.4*2MM
10 Weight: 4.5g with Pin, 3.5g no Pin
2 Working current: 8-13MA
3 Two command control modes: AT command and MODBUS command
4 The maximum delay under the AT command is 9999 seconds, and the maximum delay under the MODBUS command is 255 seconds
5 AT commands can be input by the serial port super terminal (serial assistant);
MODBUS commands can also be input by ''Modbus Poll'' in addition to the serial port super terminal input
6 RS232 (TTL level) input interface
7 8 output control pins, 5V TTL level, low level (default)/high level output
8 Four versions: 12V with needle/12V without needle/5V with needle/5V without needle
9 Size: 30*25.4*2MM
10 Weight: 4.5g with Pin, 3.5g no Pin
Instruction manual Please ask us after the purchase
Application
Automated industry PLC
Relay Module
Smart Home,Home Automation ;
Identification system;
Motor FW & BW;
CCTV Camera PTZ Control;
Security system;
LED dot matrix screen;
RS232 RS485 remote control;
Relay Module
Smart Home,Home Automation ;
Identification system;
Motor FW & BW;
CCTV Camera PTZ Control;
Security system;
LED dot matrix screen;
RS232 RS485 remote control;

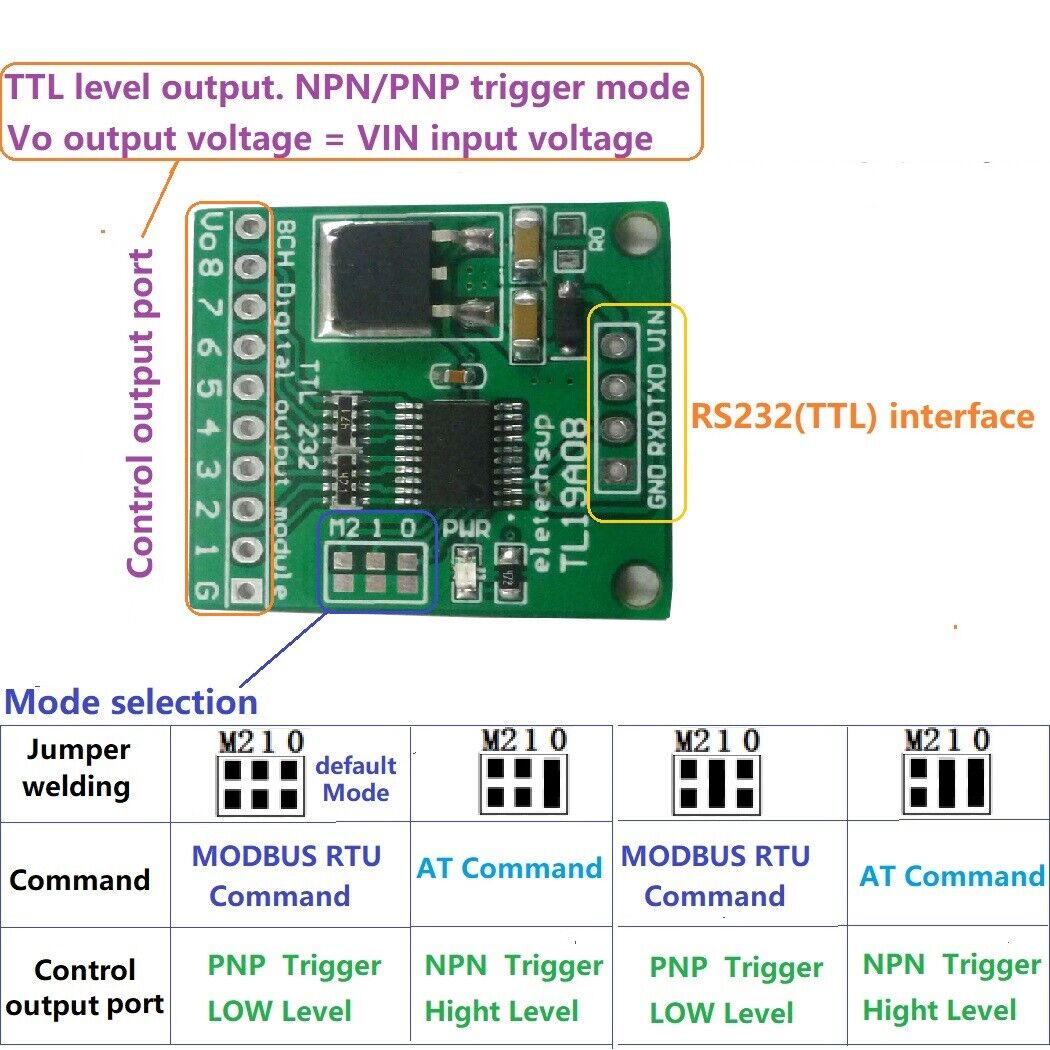

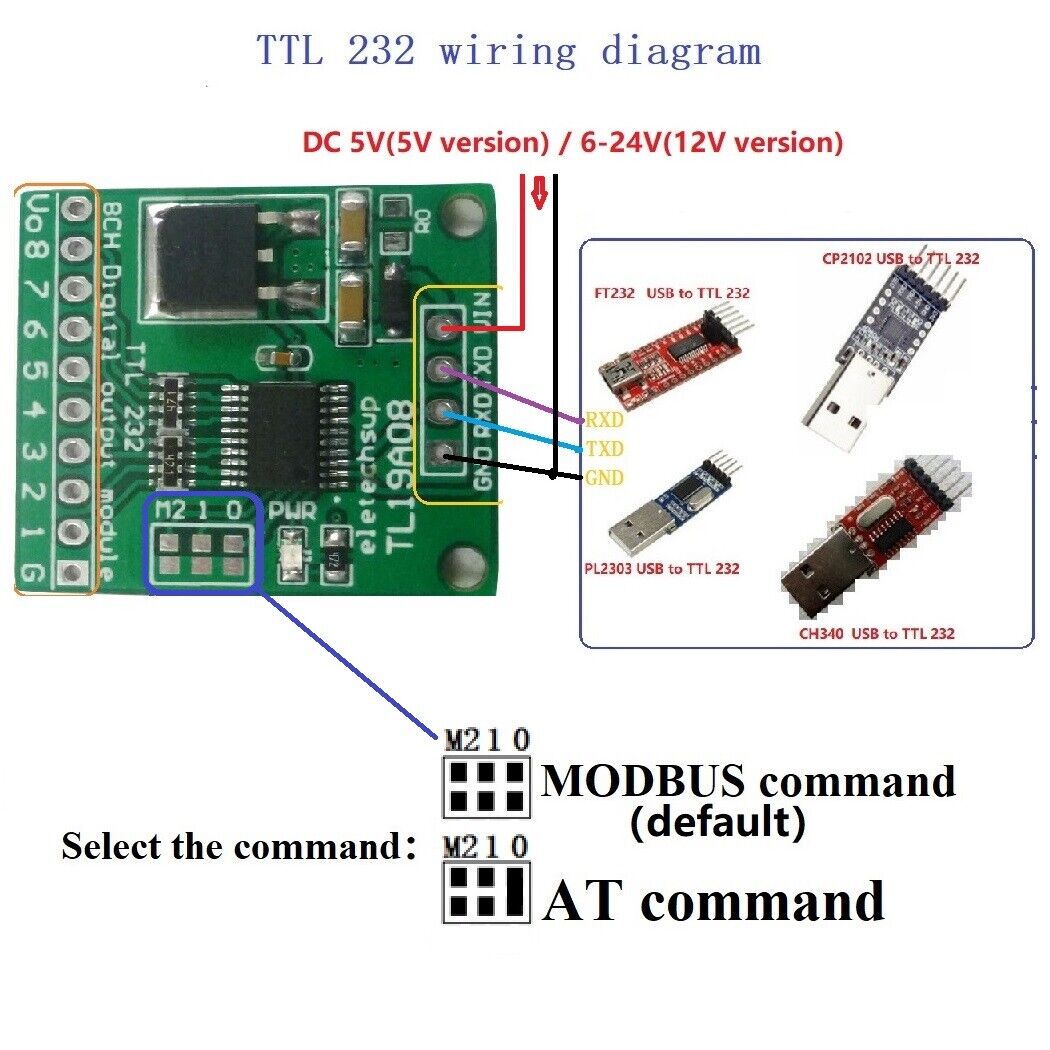

Command mode selection :( figure above) M0 disconnect is MODBUS command mode. M0 Connect is AT command mode.
Output level selection : ( figure above) M1 disconnect is Low level output. M1 Connect is Hight level output
Slave ID: Different ''Sliver ID'' can be set by command, the maximum number is 247
Under the MODBUS command mode,the slave ID must be correct
command Description, Please refer to '' TL19A08 8-channel TTL output module commamd''
Output level selection : ( figure above) M1 disconnect is Low level output. M1 Connect is Hight level output
Slave ID: Different ''Sliver ID'' can be set by command, the maximum number is 247
Under the MODBUS command mode,the slave ID must be correct
command Description, Please refer to '' TL19A08 8-channel TTL output module commamd''
Typical applications:
1 AT command mode (M0 Connect), in this mode can be through the serial HyperTerminal (serial assistant) enter a simple AT command control relay. AT command mode time up to 9999 seconds
2 MODBUS command mode (M0 disconnect), you can control a variety of ways: Serial Hyper Terminal Control (need to manually add the CRC), Modbus Poll software control (software automatically add the CRC), PLC or MCU process control

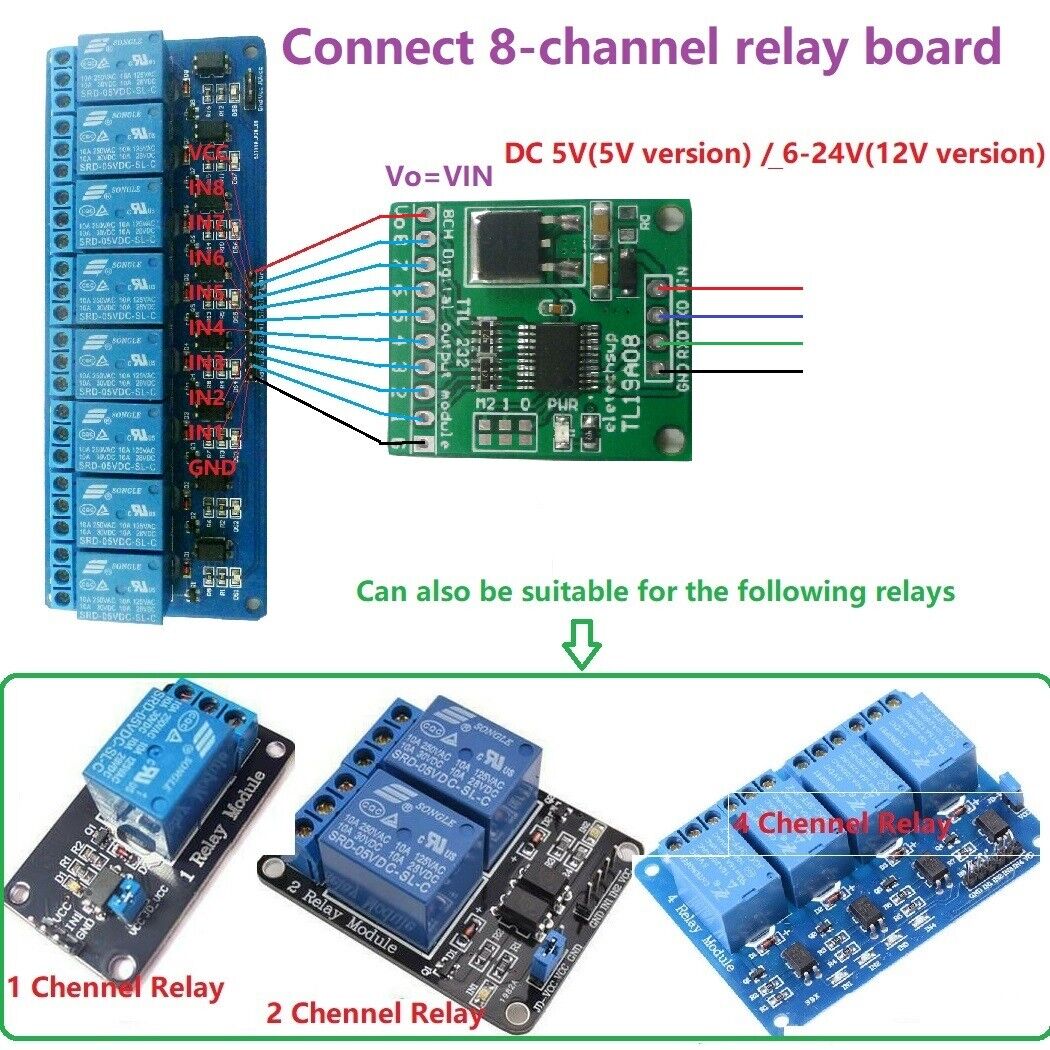

It can control 1-8 channels 5V/6V/9V/12V/24V Relay Module
With RS485 interface and RS232 (TTL) interface

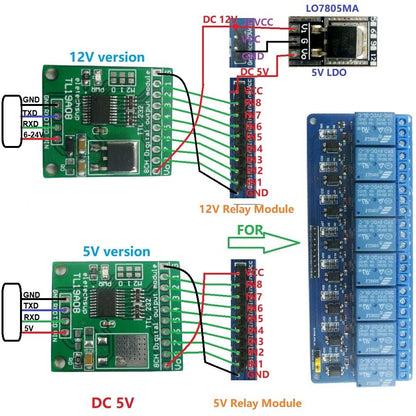

12V 5V version relay wiring diagram
Test Software(We offer a demo video):
Serial HyperTerminal
Modbus Poll
