Ultra-mini DC 5V 9V 12V 4CH RF Wireless Controller Relay Switch Kit for Arduiuo MEGA2560 breadboard
Ultra-mini DC 5V 9V 12V 4CH RF Wireless Controller Relay Switch Kit for Arduiuo MEGA2560 breadboard
Couldn't load pickup availability

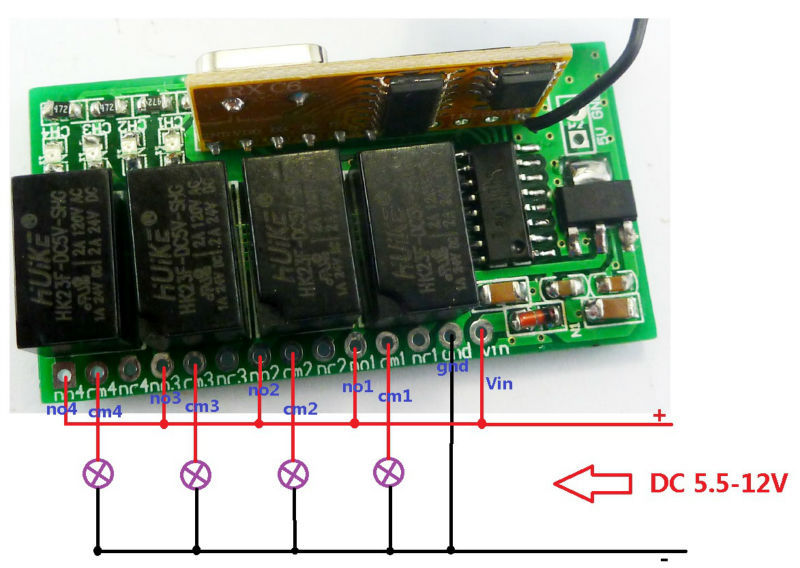

Wiring Diagram 1:
5.5-12V DC operating voltage DC 5.5-12V devices

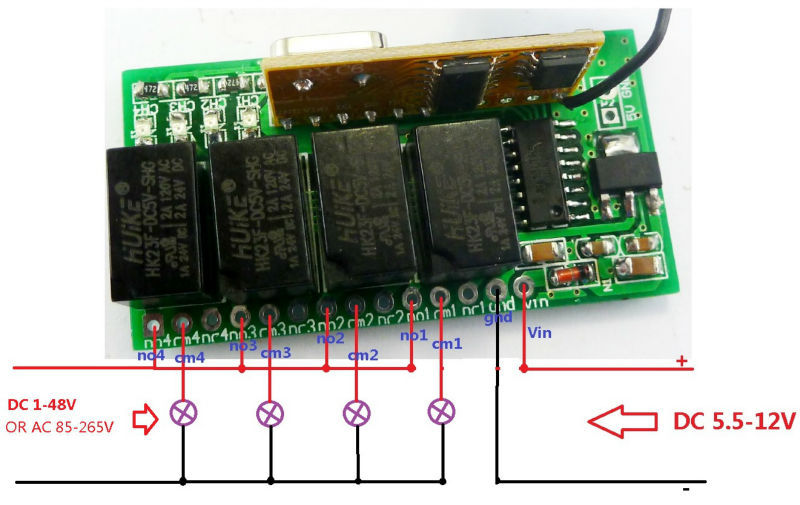

Wiring Diagram 2:
5.5-12V DC operating voltage ,DC 1-48V OR AC 85-265V devices

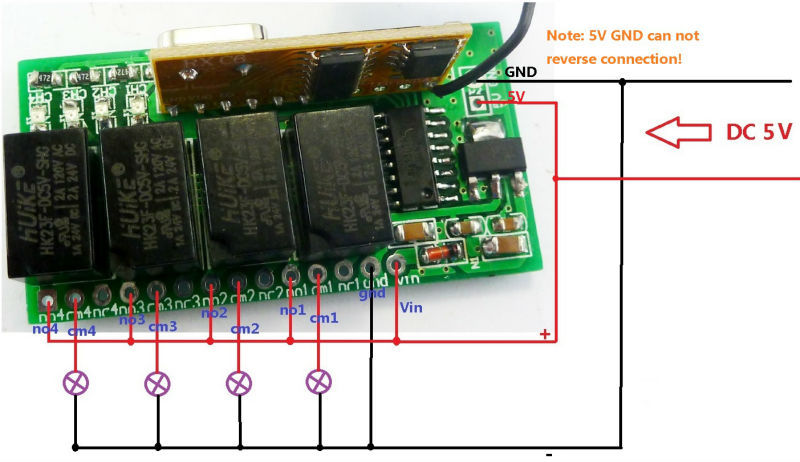

Wiring Diagram 3:
3 5V DC operating voltage ,DC 5 V devices

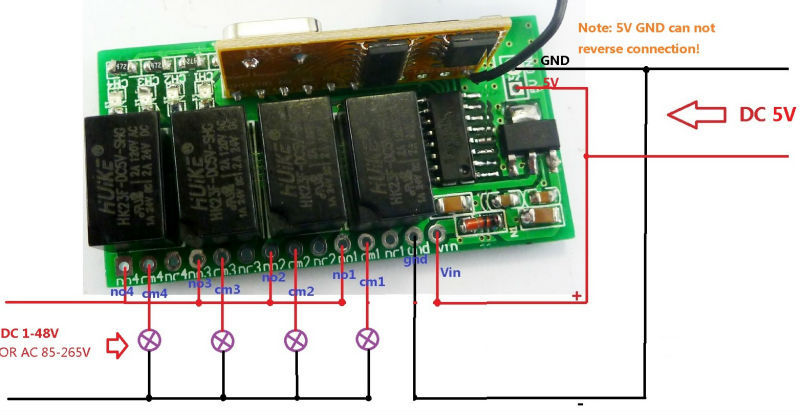

Wiring Diagram 4:
4 5V DC operating voltage ,DC 1-48V OR AC 85-265V devices

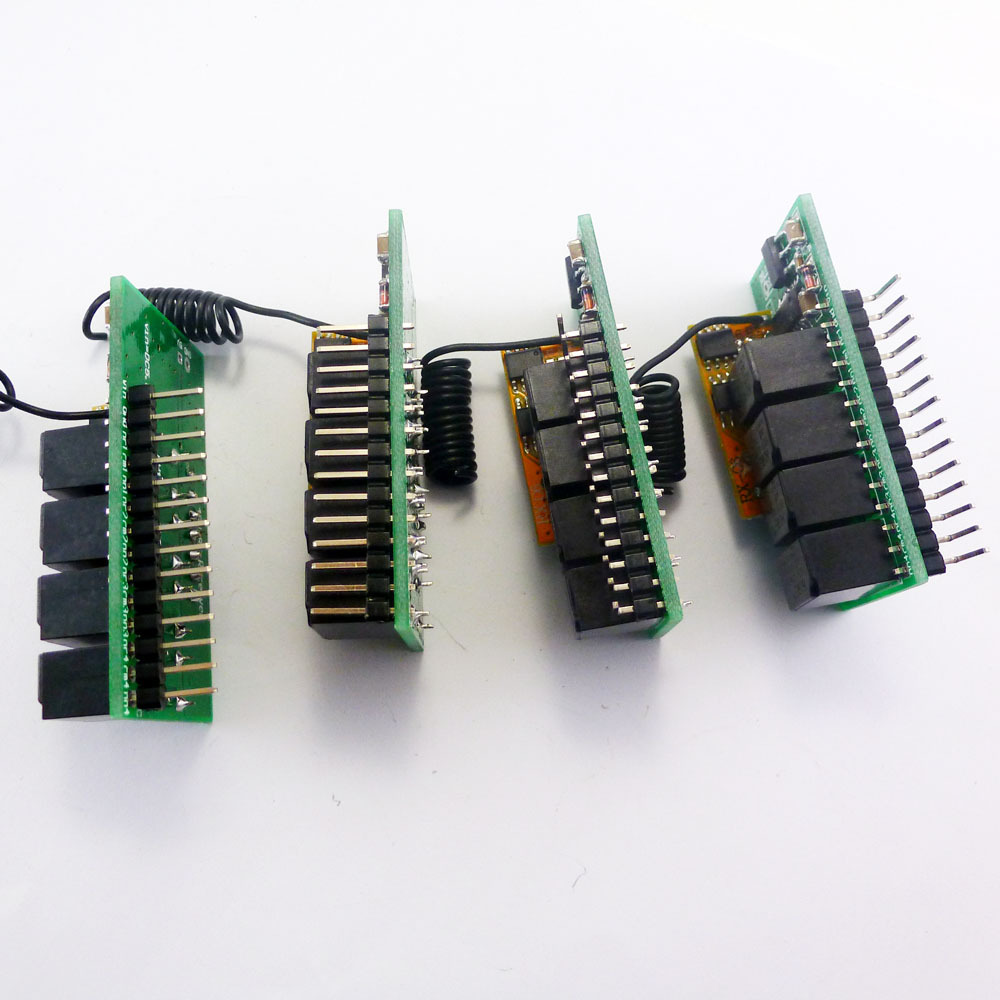

Product Name :Ultra-mini DC 5V 9V 12V 4CH RF Wireless Controller Relay Switch Kit for Arduiuo MEGA2560 breadboard

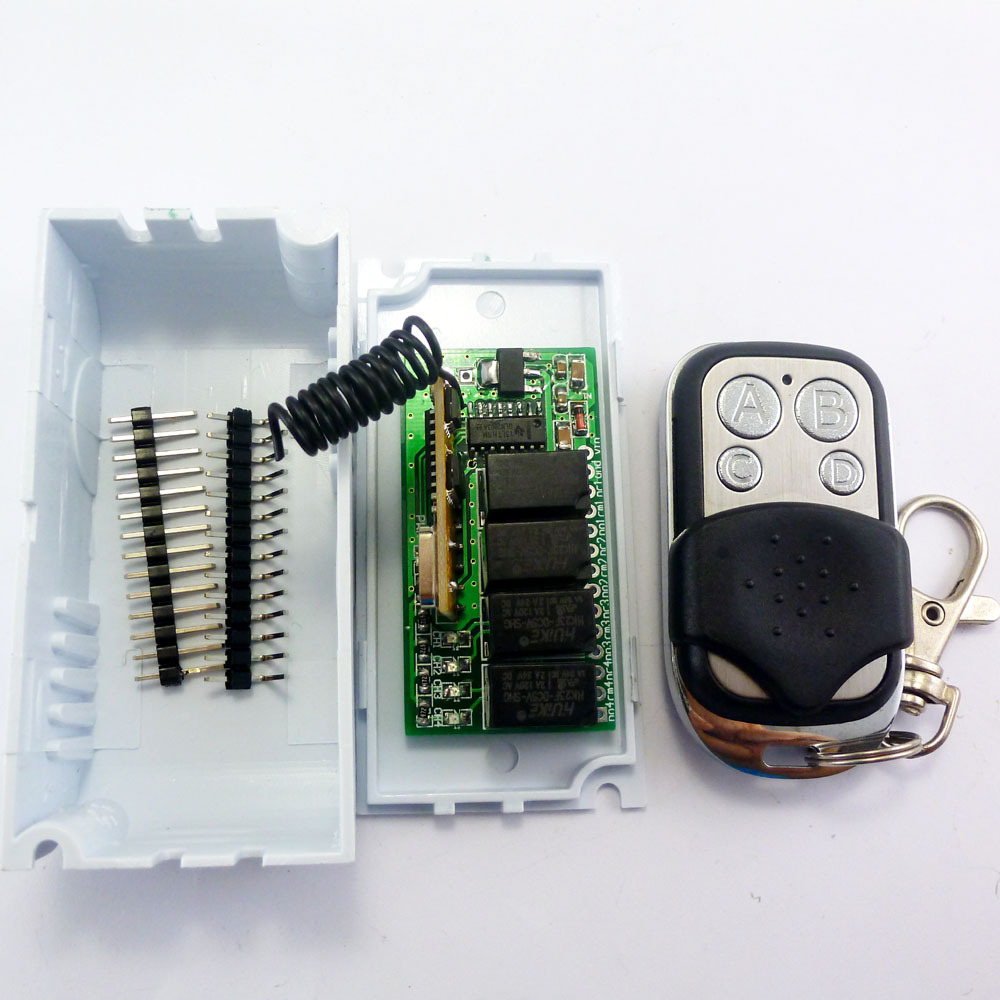

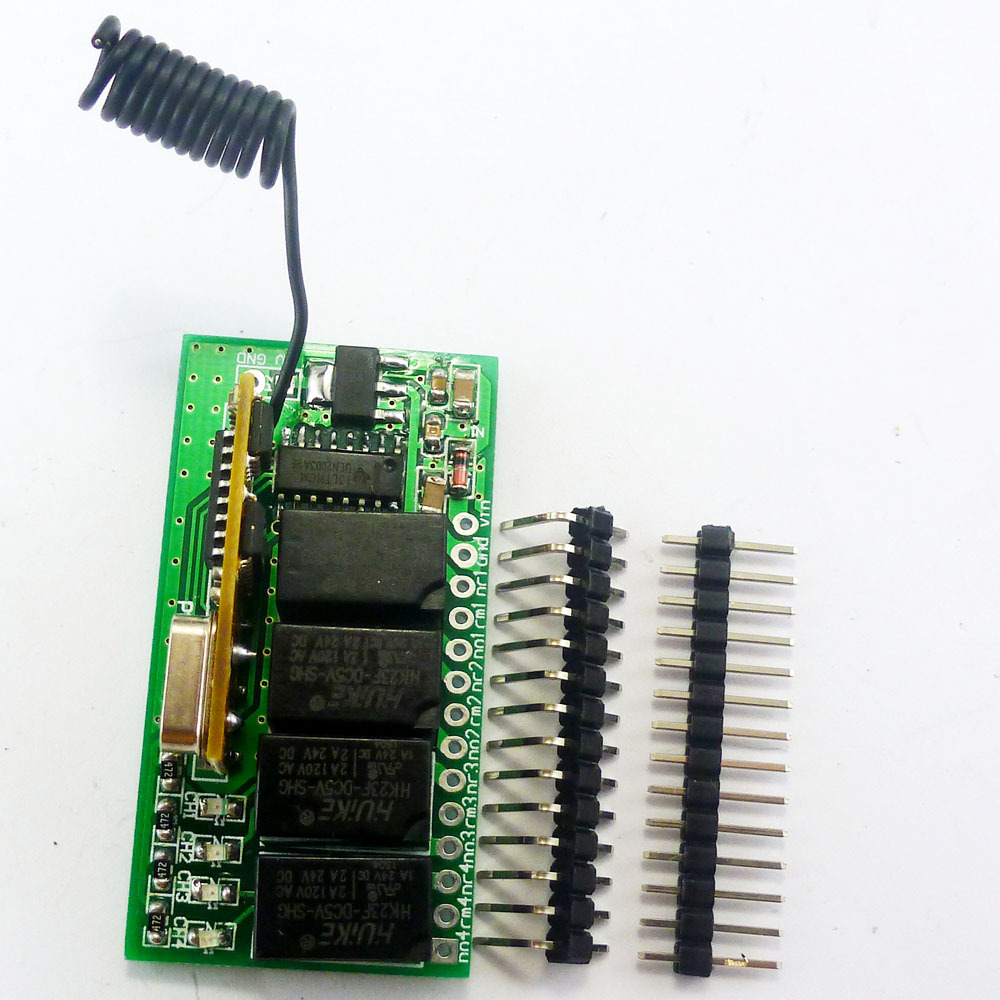

Packing list:

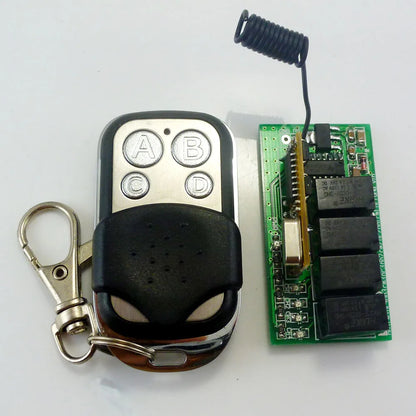

1 PCS MINI 433M DC 5V 9V 12V 4 Channel Wireless Controller
1 PCS 433M 4 Button EV1527 Remote Control( USE 12V 27A battery,Batteries not included )

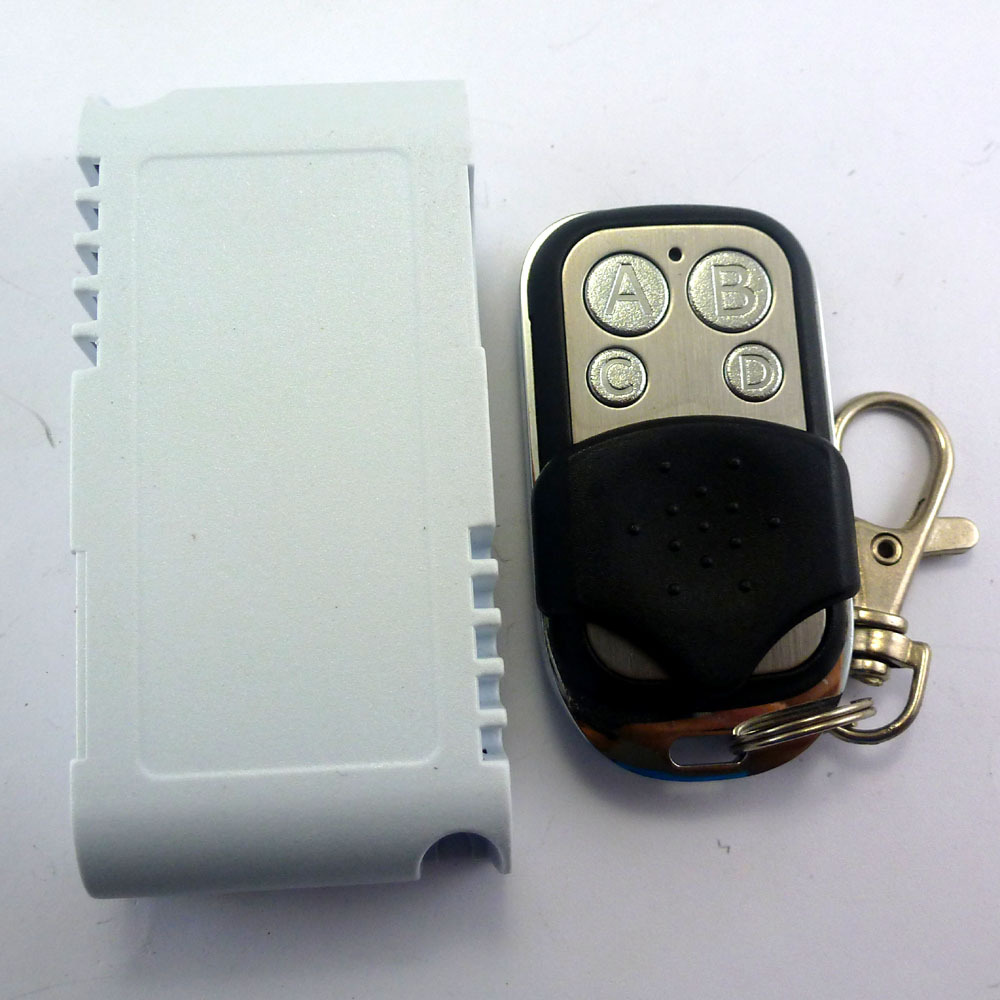

1 PCS Plastic shell
1 PCS 2.54MM straight pin
1 PCS 2.54MM curved pin

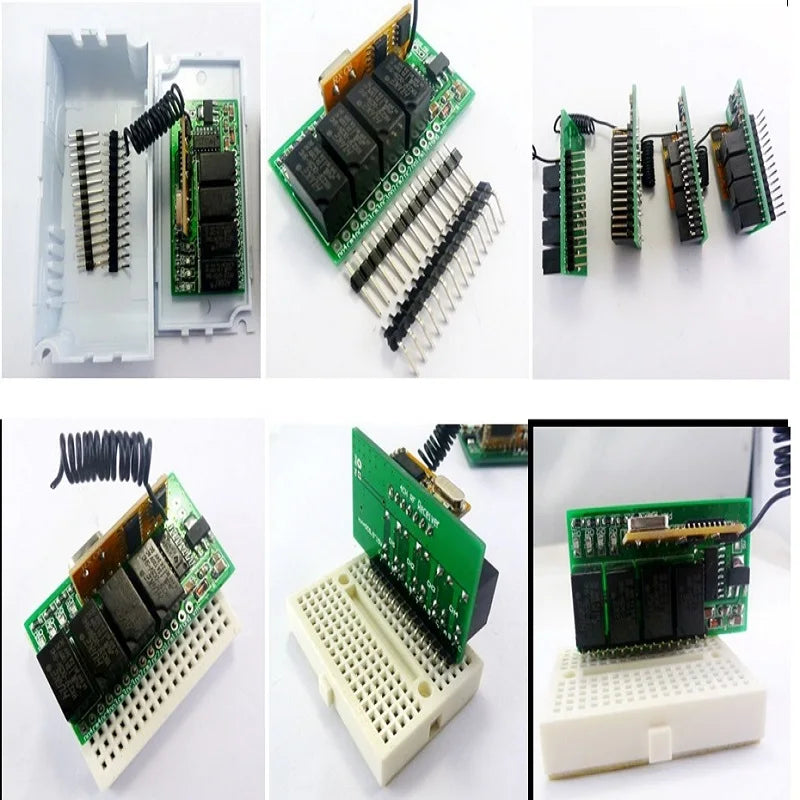

for ARDUIUO MEGA2560 DUE
breadboard PCB Universal board
FOR raspberry pi ARM
DC 5V 9V 12V Home lighting system
Smart Home / Home Automation
LED lighting
12V DC Motor,RS360
5V DC Motor
Features:
1 Operating voltage: Power 1: DC 5V , 9V, 12V (range 5 -15V) ; Power 2: DC 4.2-5V
2 Operating current: Standby Current(12V 8MA, 5V 8MA); each relay operating current 40MA
3 Wireless frequency: 433M(315M version can be customized)
4 Receiver sensitivity: -108dBm
5 Decode: learning code, can be adapted EV1527 / PT2262 and compatible remote control, you can store up to 6 remote control
6 work mode: Non-locking (Momentary is defult),Self-locking (Toggle),Inter-locking (Latch)
7 Relay load voltage: DC 1-48V; AC 85-265V
8 Relay load current: <= 2A

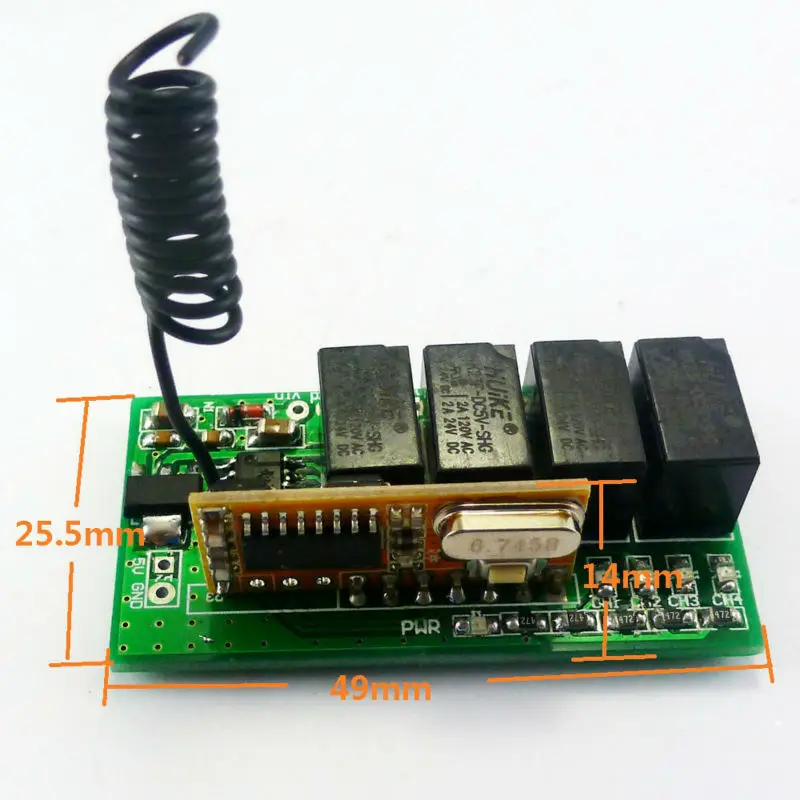

9 Size: 49mmx25.5mmx14mm (Very small)
10 Weight: 16g(Very light)
Normally, we would adapter remote control and receiver.
If the item you received has not been adapted Or you need to add accessories, Please follow the instructions below
study method:
Clean code: Hold down the learn button down, LED stays on for 4-5 seconds and then turns off
Learning: Hold down the learn button, LED light after release; immediately press the remote control button, LED flashes three times, learning success
Use more details, please click here!
Work mode:
There are three Work modes, Non-locking (Momentary is defult),Self-locking (Toggle),Inter-locking (Latch)
two pads of T1 connected is Inter-locking (Latch) mode,two pads of T2 connected is Self-locking (Toggle),
All disconnect is Non-locking (Momentary is defult)
Mode Description:
Momentary : Press the Transmitter button A, the receiver Channel 1 is Open, release button A, the receiver Channel 1 is Close, the same as B ,Every Channel is Independent ;
Toggle : Press transmitter button A for 1 time , the receiver Channel 1 is Open, press button A again, the receiver Channel 1 is Close, the same as BCD. Every Channel is Independent ;
Latch : Press transmitter button A, the receiver Channel 1 is Open, the Channel 2/3/4 is Close.Press transmitter button B, the receiver Channel 2 is Open, the Channel 1/3/4 is Close.
433M 4 Button EV1527 Remote Control:
Power supply : 12V 27A batteryreplacable .(This remote doesnot have a battery , Please buy in your local market )
Operating current: ≤ 12mA ;
Oscillation mode: SAW resonator ;
Oscillation resistor : 330K
Modulation mode: ASK OOK ;
Operating frequency: 433.92MHz ;
Frequency dev iation: ±0.2MHz ;
Encoding format: Million Group Code ( EV1527 ) ;
Transmit power: 10 mW.
Data Rate : 50~60KHZ;
