USB DC 5V TO 9V 12V 15V Step-up Boost Voltage Converter Power Supply Module for GoIP VOIP Gateway Solar Battery

Note: Adjustable resistors (potentiometers) are components that are easily damaged. Use a suitable screwdriver to slowly rotate. Click here to buy a screwdriver.

Product Name:  USB DC 5V TO 9V 12V 15V Step-up Boost Voltage Converter Power Supply Module for GoIP VOIP Gateway Solar Battery

Packing list :

1 pcs Step-up Boost Power Supply Converter Adjustable OutputModule (input DC 5V , output DC 6-15.5V)

1 pcs USB Male to DC 5.5 x 2.1mm Power Charger Cable

Power Modules Description:

Input voltage 3~6V, output 6-15.5V

Maximum input current :  1.4A

Long-term work Current : 1A

Conversion efficiency : 79-90%

Input   :  USB  MaleInterface, DC 3-6V;

Ouput :   USB Fem aleInterface ,  DC 6-15.5V;

If input dc 5v,output 6-15.5V Adjustable



Power :  Maximum 7W;



DC-DC Boost module working frequency 1.0MHZ.

Operating ambient temperature : -40~+85 Degrees Celsius.

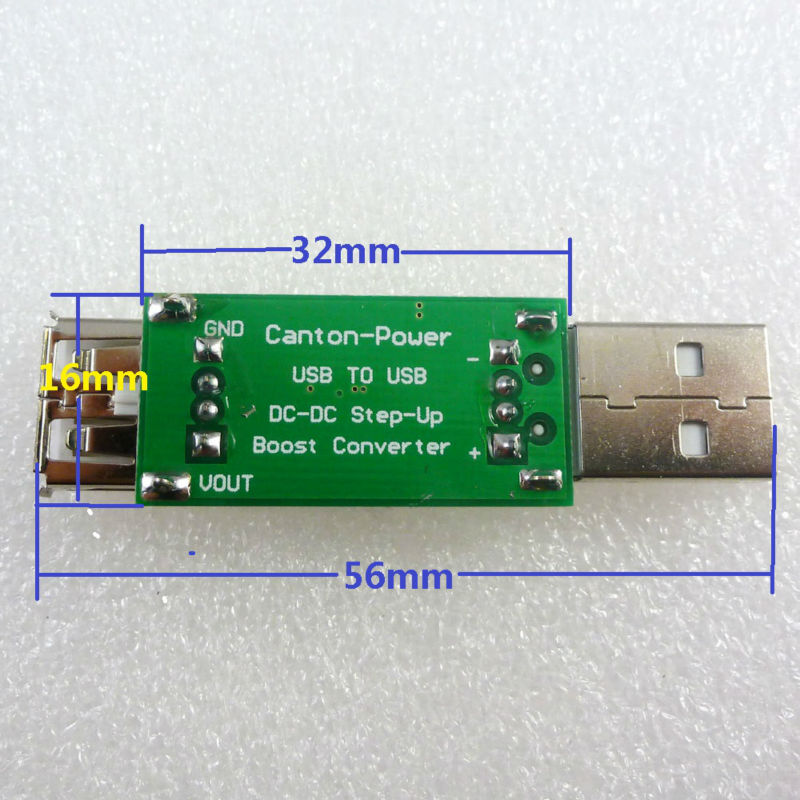

Size 56mm x 16mm

Weight : about 6g(light)

USB Male to DC 5.5 x 2.1mm Power Charger Cable

Cable Length: about 80mm(with 2 ports)

Attention :

This is a DC-DC voltage converter module,Must be noted when using:

1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself
