WHTCA01 TYPE-C USB Ultrasonic Atomizing Humidifier Module Fogger Mist Generator
WHTCA01 TYPE-C USB Ultrasonic Atomizing Humidifier Module Fogger Mist Generator
SKU:WHTCA01+TB448+TB449
1000 in stock
Regular price
$1.99
Regular price
Sale price
$1.99
Unit price
per
Couldn't load pickup availability

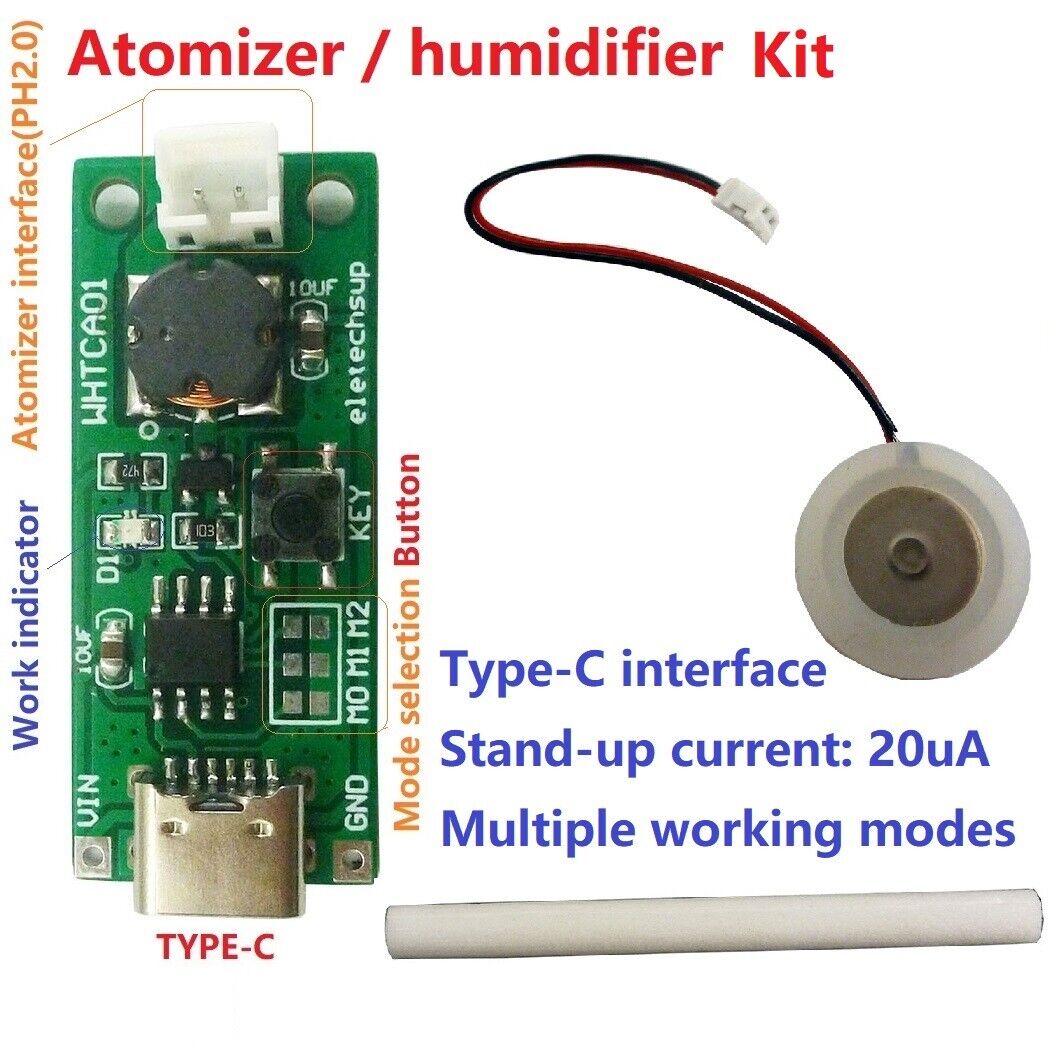

Product Name: TYPE-C USB Ultrasonic Atomizing Humidifier Module Fogger Mist Generator

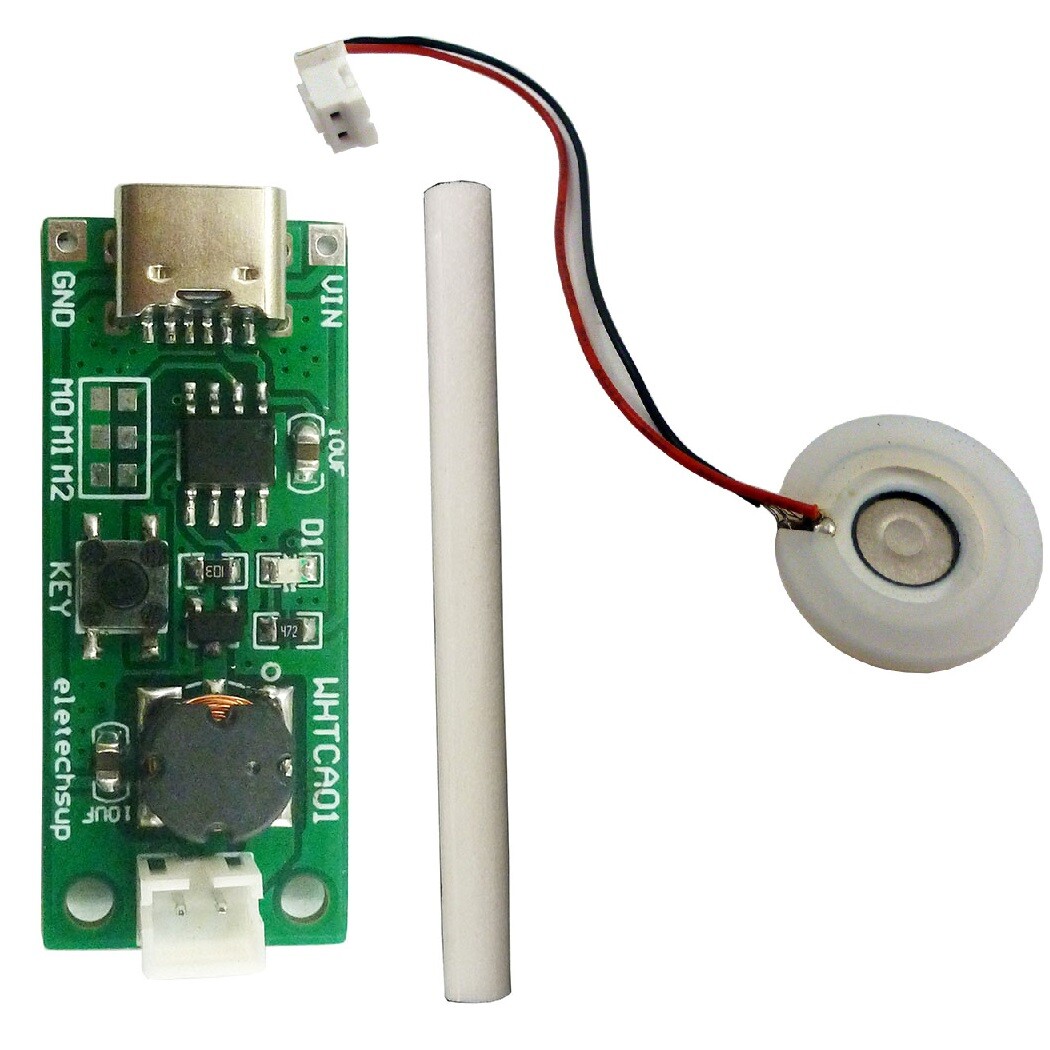

Package inlcuded:

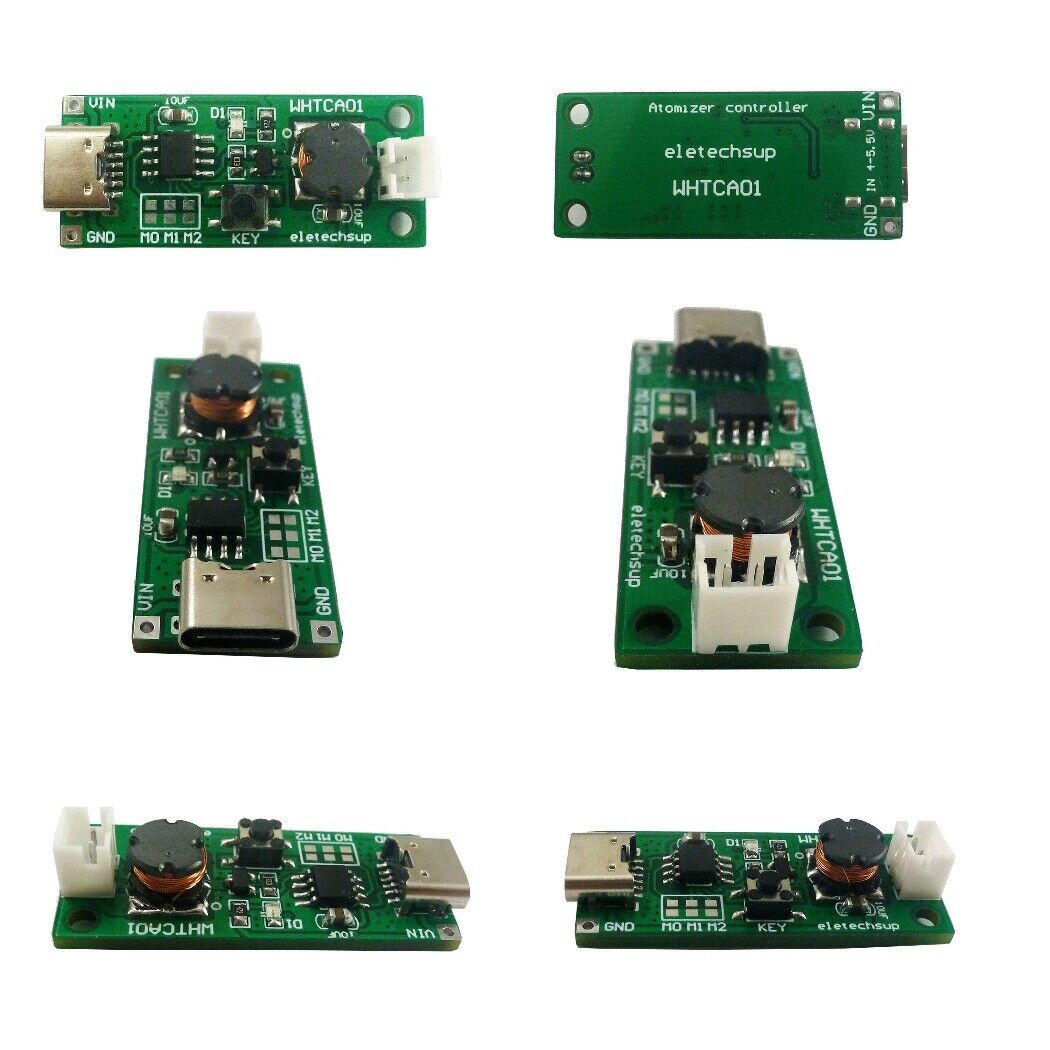

1x TYPE-C humidifier controller

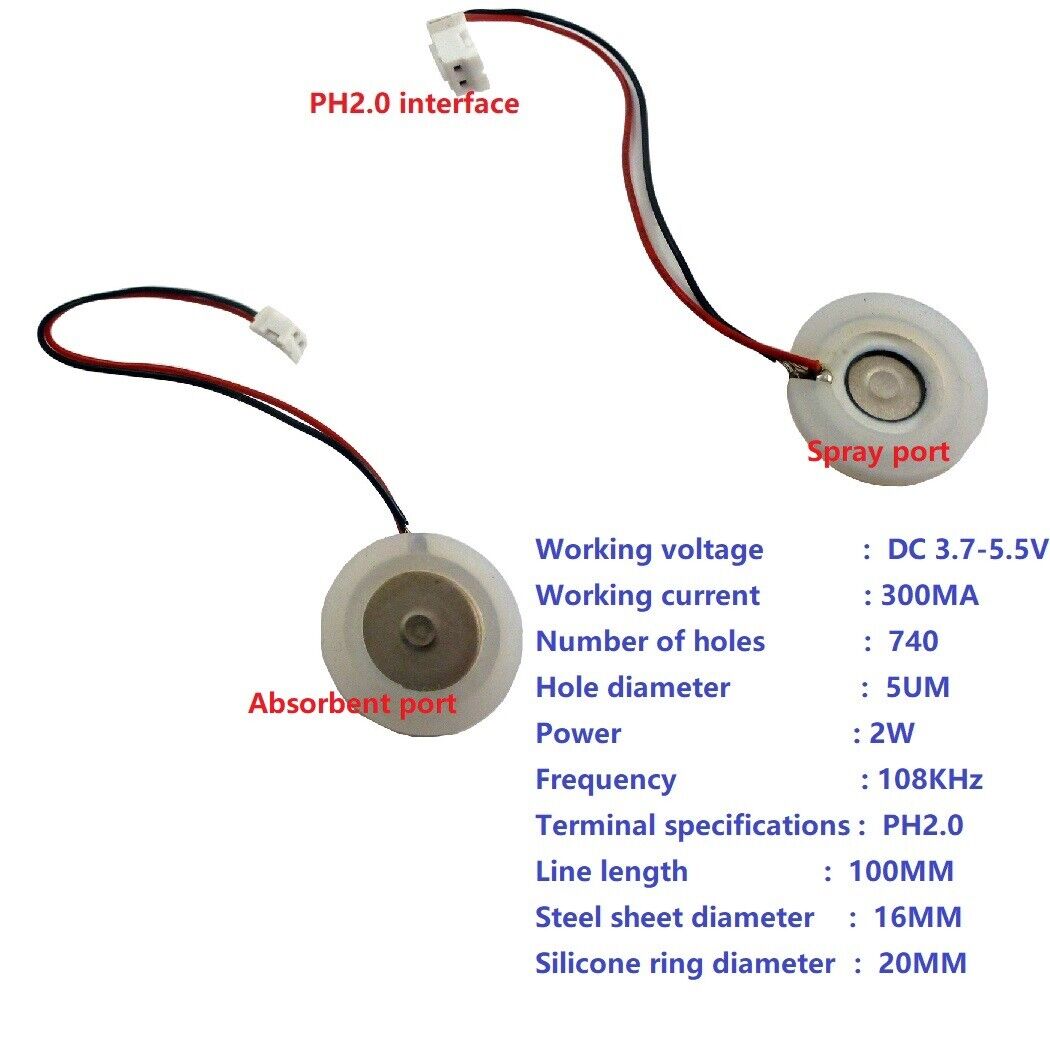

1x Atomizing sheet

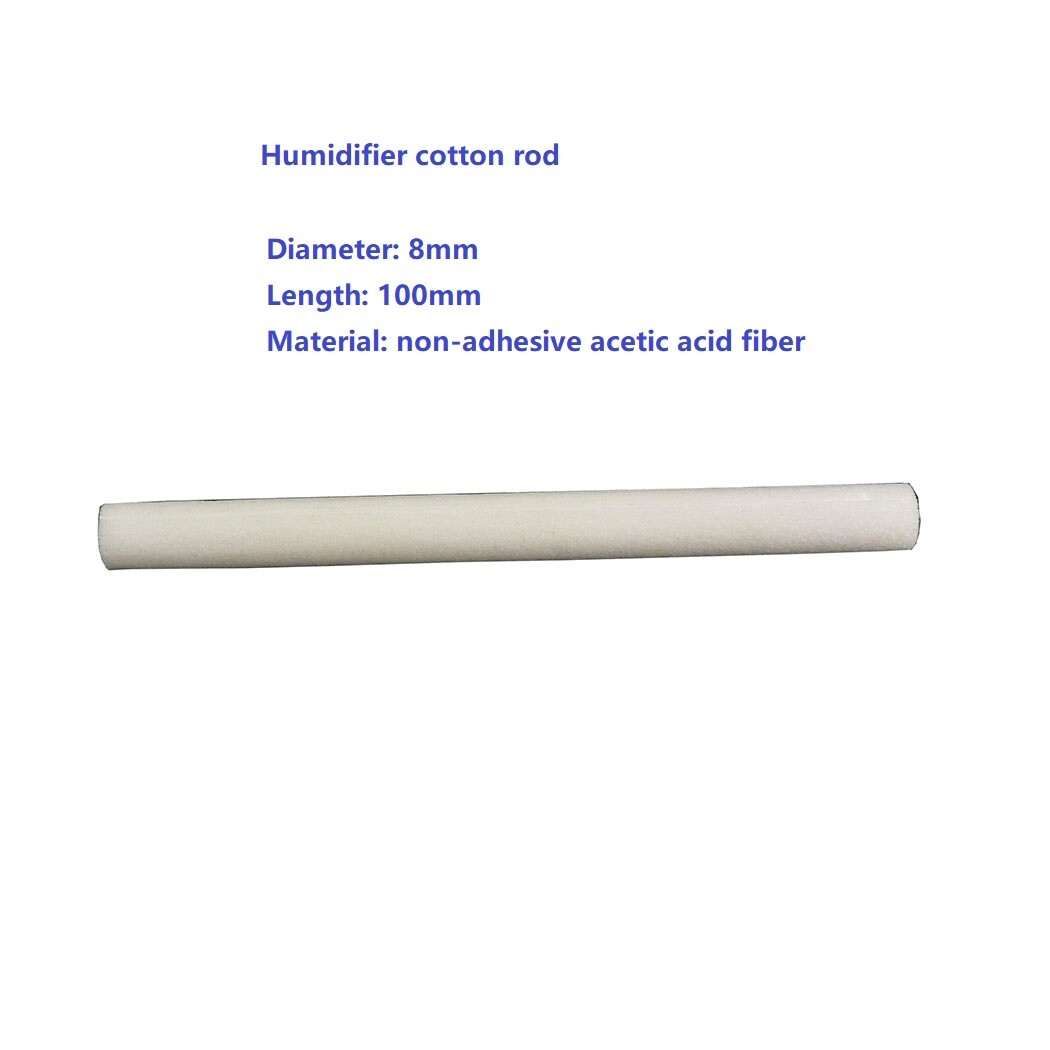

1x Humidifier cotton rod
1x Atomizing sheet
1x Humidifier cotton rod
Description:
Working voltage: DC 3.7-5.5V (recommended 5V)
Work current: 330mA
Stand-up current: 21uA
Power supply interface: Type-C USB
Output Interface: pH2.0 terminal
Frequency: 108kHz
Multiple function modes: Uninterrupted work/Intermittent work/Timing work
Size: 40 x 16.5 x 9 mm
Weight: 4.5 g

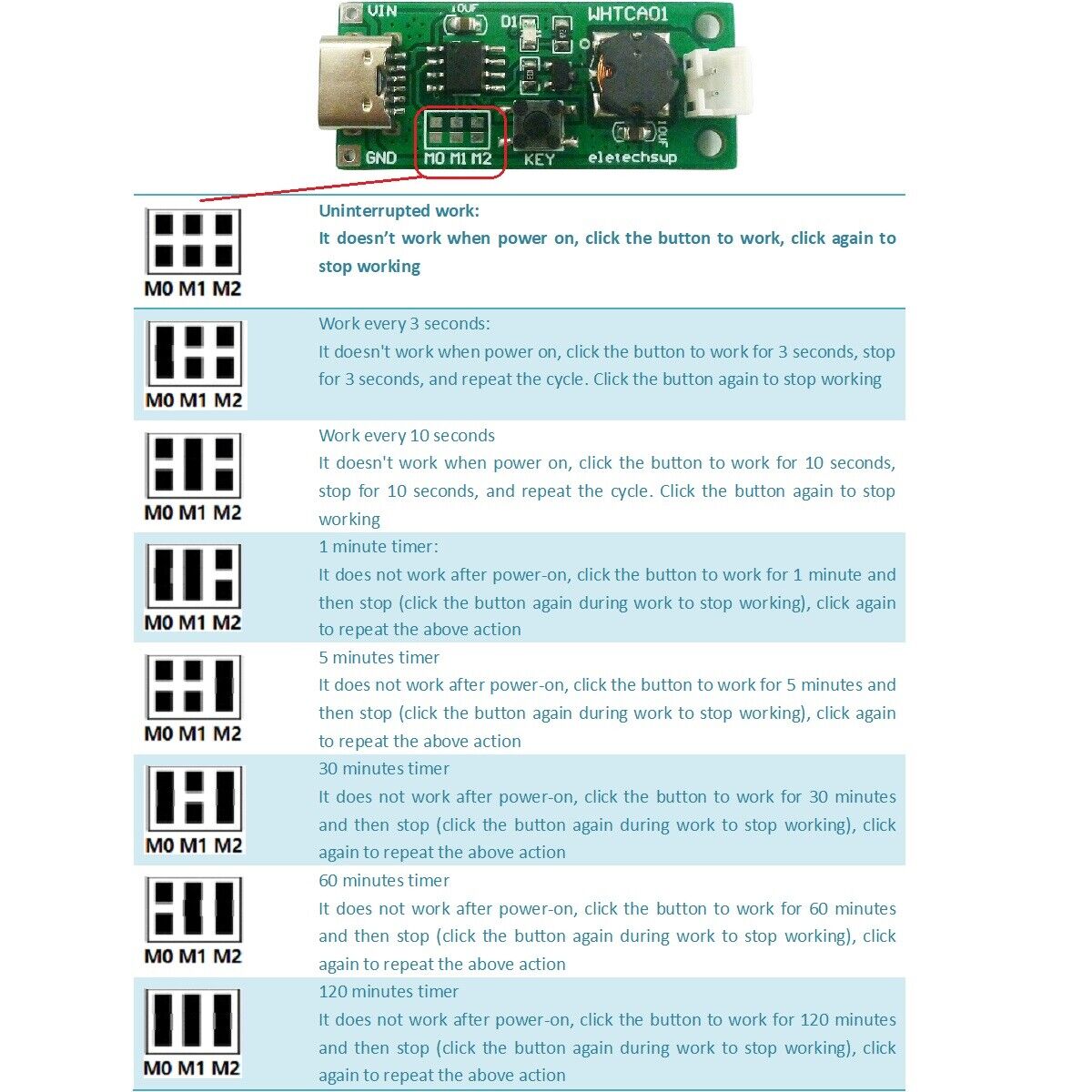

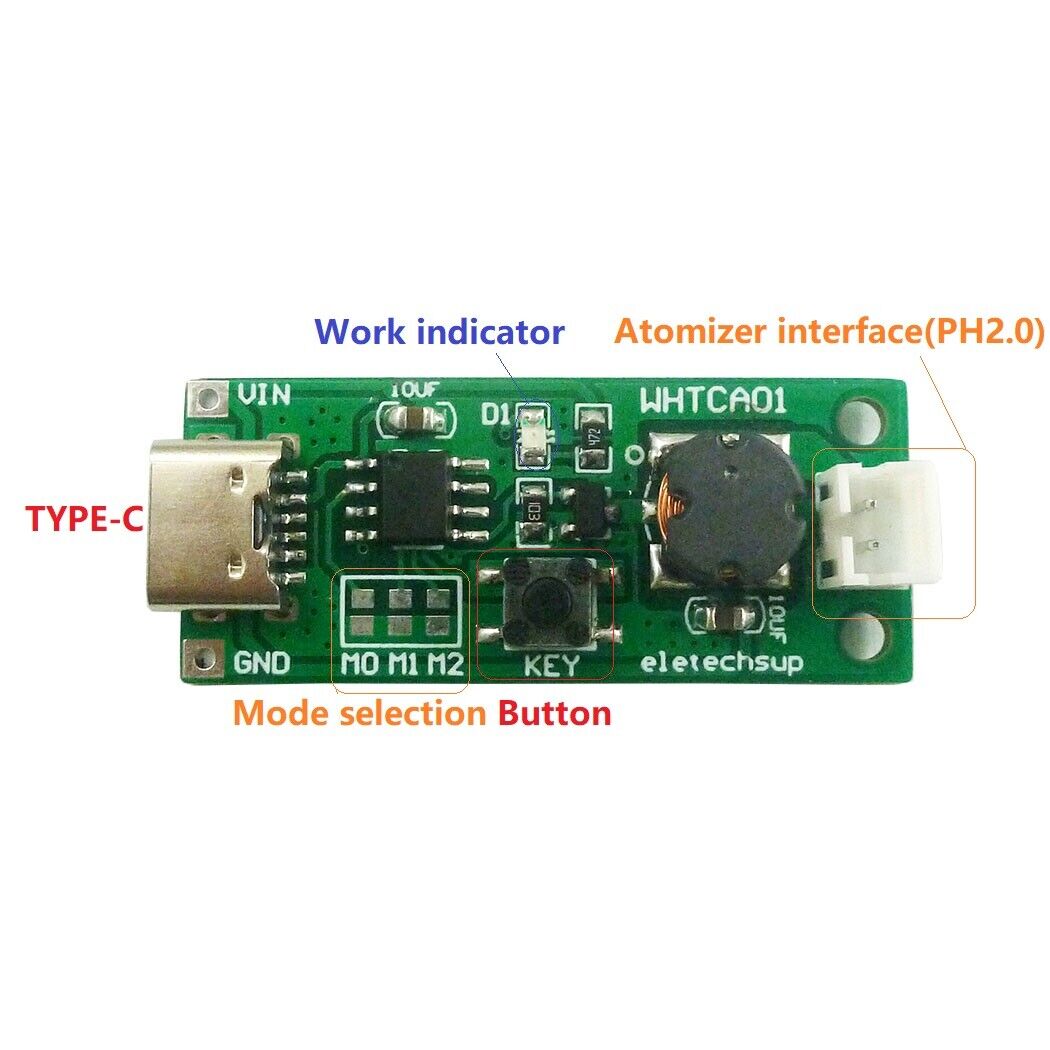

Choose different function modes by welding the M2, M1, M0 ports
Working voltage: DC 3.7-5.5V (recommended 5V)
Work current: 330mA
Stand-up current: 21uA
Power supply interface: Type-C USB
Output Interface: pH2.0 terminal
Frequency: 108kHz
Multiple function modes: Uninterrupted work/Intermittent work/Timing work
Size: 40 x 16.5 x 9 mm
Weight: 4.5 g
Choose different function modes by welding the M2, M1, M0 ports

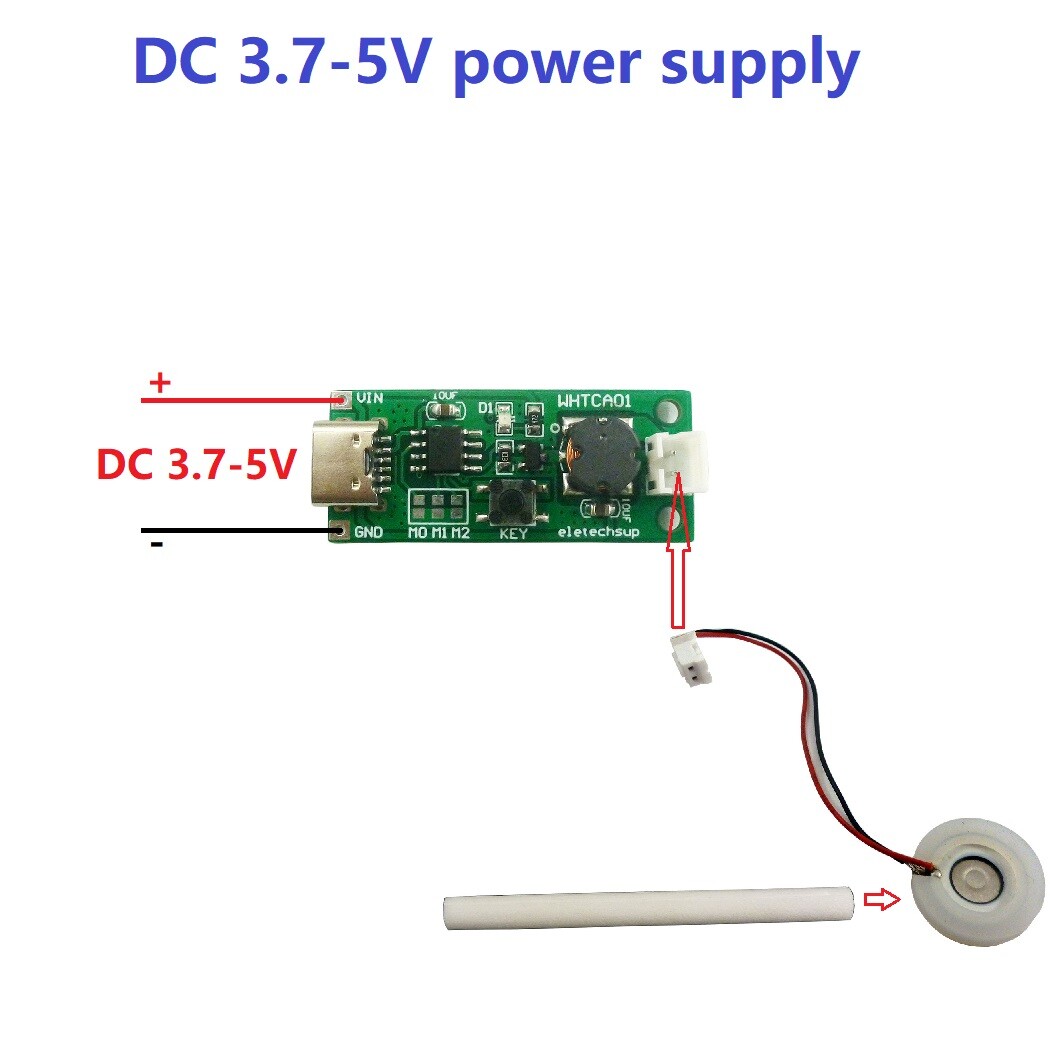

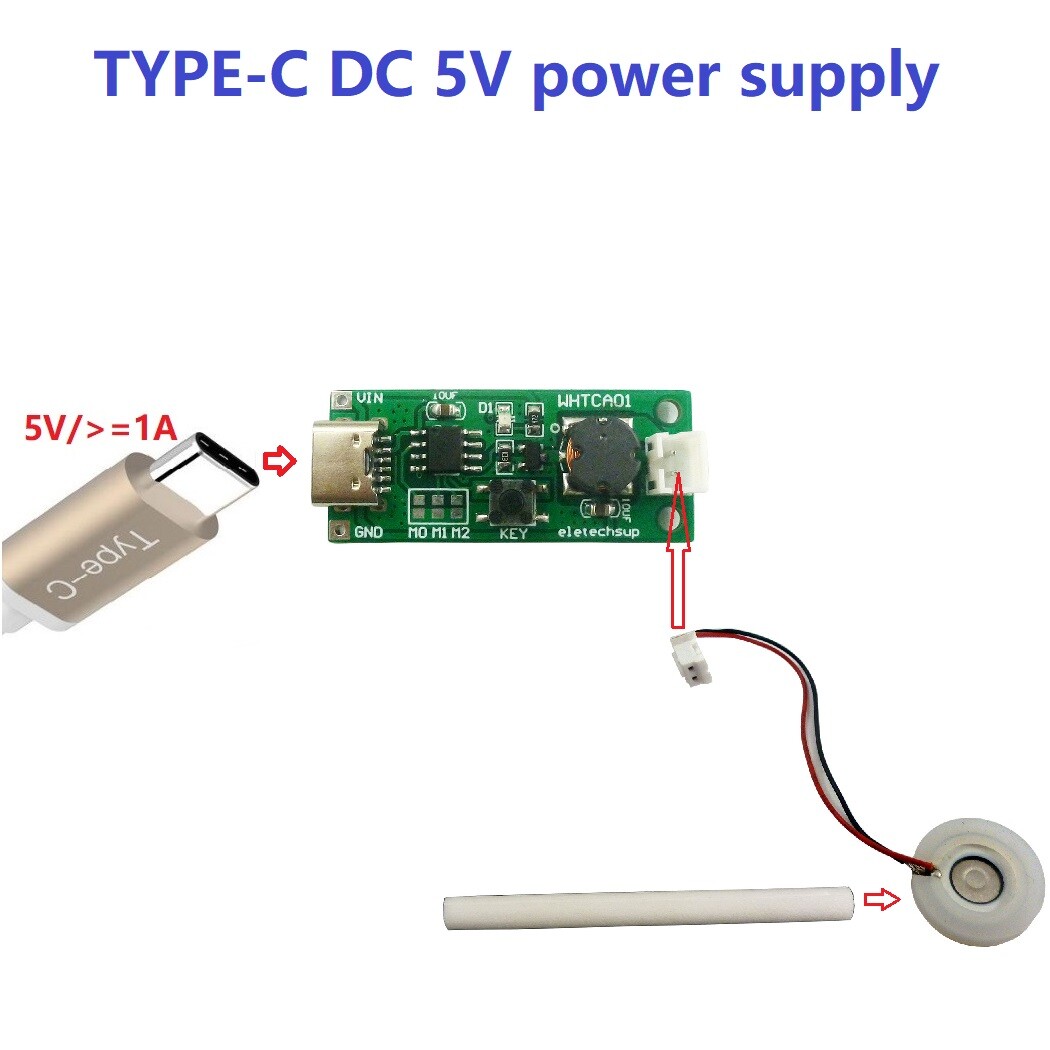

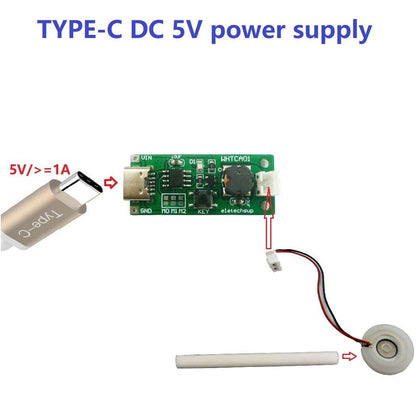

Wiring diagram:
