Wireless Radio Superhet Receiver Module 433HZ -107dBm France IC SYNOXO SYN470R
Wireless Radio Superhet Receiver Module 433HZ -107dBm France IC SYNOXO SYN470R
Regular price
$13.48 USD
Regular price
$13.48 USD
Sale price
$13.48 USD
Unit price
/
per
Couldn't load pickup availability

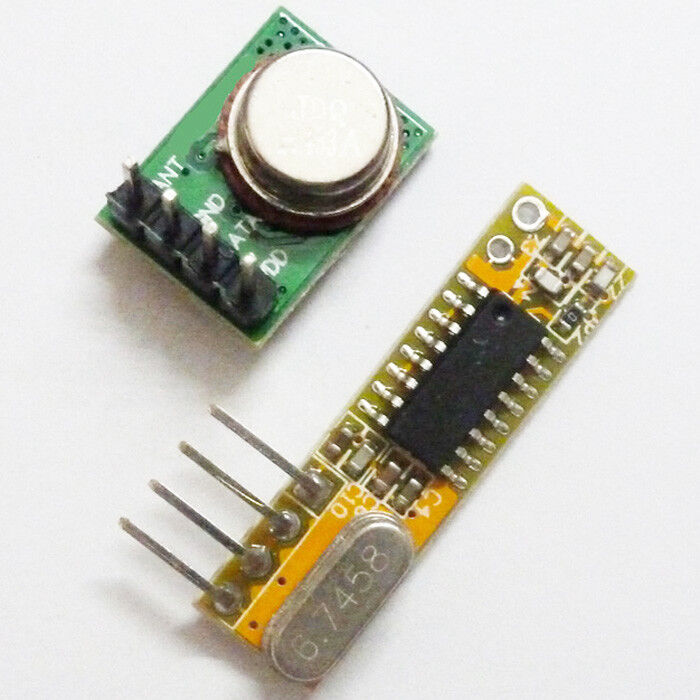

Qty: 1 PCS receiver module and 1 pcs transmitter module .
Receiver module :
Item Description ：
BX-RM12 -433 is an ASK/OOK receiver super-heterodyne module adopted SYN400R chips, which is designed specifically for unlicensed remote-control and wireless security receiver operating at 315/433.92MHZ under FCC Part 15 regulation or pass ETSI certification. BX-RM12 -433 is based on a single-conversion, super-heterodyne receiver architecture and incorporates an entire Phase-Locked Loop(PLL)for precise local oscillator generation. It can be used in OOK/HCS/PWM modulation signal and demodulate it to digital signal. BX-RM12 -433 have a high performance at a competitive cost and easily to design your products.
Feature:
Receiver Module No. : BX-RM12 -433 (match with our BX-TX01 -433 or BX-TX05 -433 module)
Low cost ASK/AM radio superhet receiver ;
High frequency stability ( no adjust components) & coherence;
Very low RF Re-radiation at the antenna;
Operation temperature : -20 ℃ ~ +70 ℃;
Supply voltage:2.8-5.5V;
Operating frequency (MHz): 433.92MHz ( 315MHZ is available if required , other frequency can be custom made if order 100 pcs );
Compatable with most AM (ASK/OOK) transmitters ;
Compatable with most AM (ASK/OOK) transmitters ;
Smal package : SIL-6PIN (2.54 of pin distance);
Lead Temperature(solding 3s) : 330 degrees centigrade .
Receiver IC : SYNOXO SYN470R (Made in France );
Typical Applications
• Smart home systems;
• Remote controls systems;
• Remote fan and light control;
• Garage door and gate openers;
• Alarm and security system ;

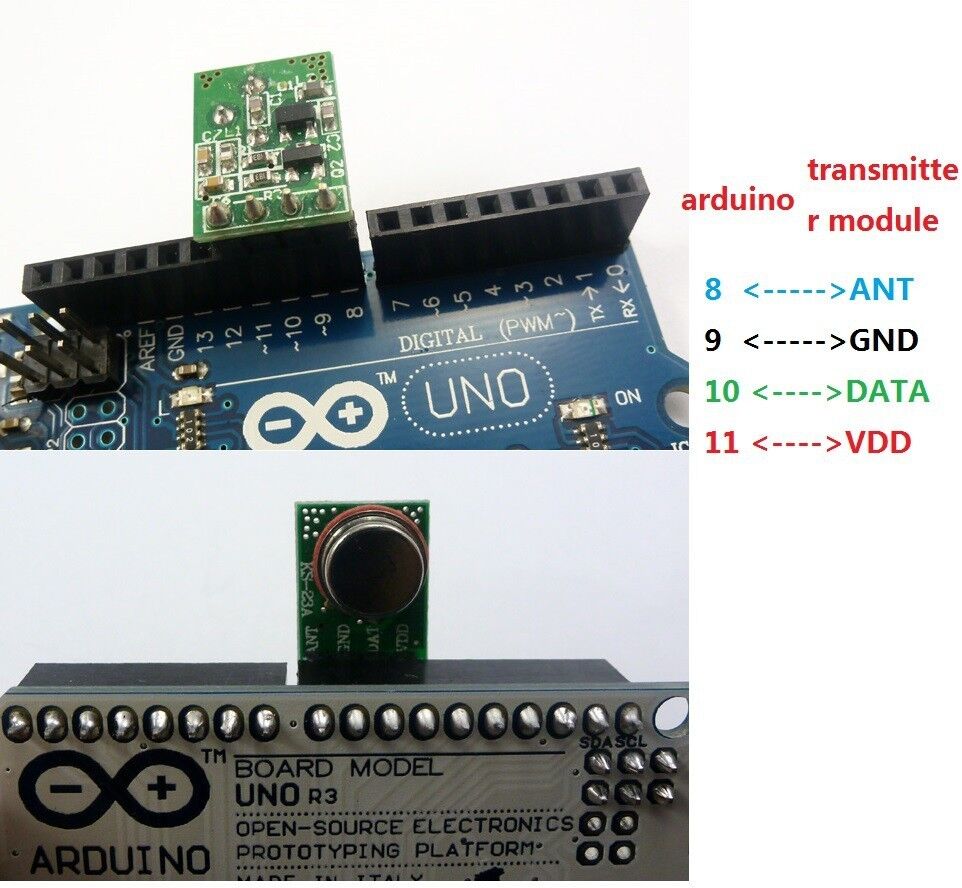

Transmitter module :
Item Description ：
Technical Data :
Transmitter module No.: BX-TM01 -433
Operating frequency (MHz): 433.92MHz ( 315MHZ is available if required , other frequency can be custom made if order 100 pcs );
Transmit power: more than 10mW;
Operating Voltage (V): DC 3-12V
low transmit of the static power consumption is current consumption : 10 mA ( No transmit No current consumption);
SAW Frequency stability :±75KHZ
Data transfer rate : 3 kb/s
Operating temperature: -20 ℃ ~ +60 ℃
Size : 11x16x5.5MM
Type of Output: TTL
